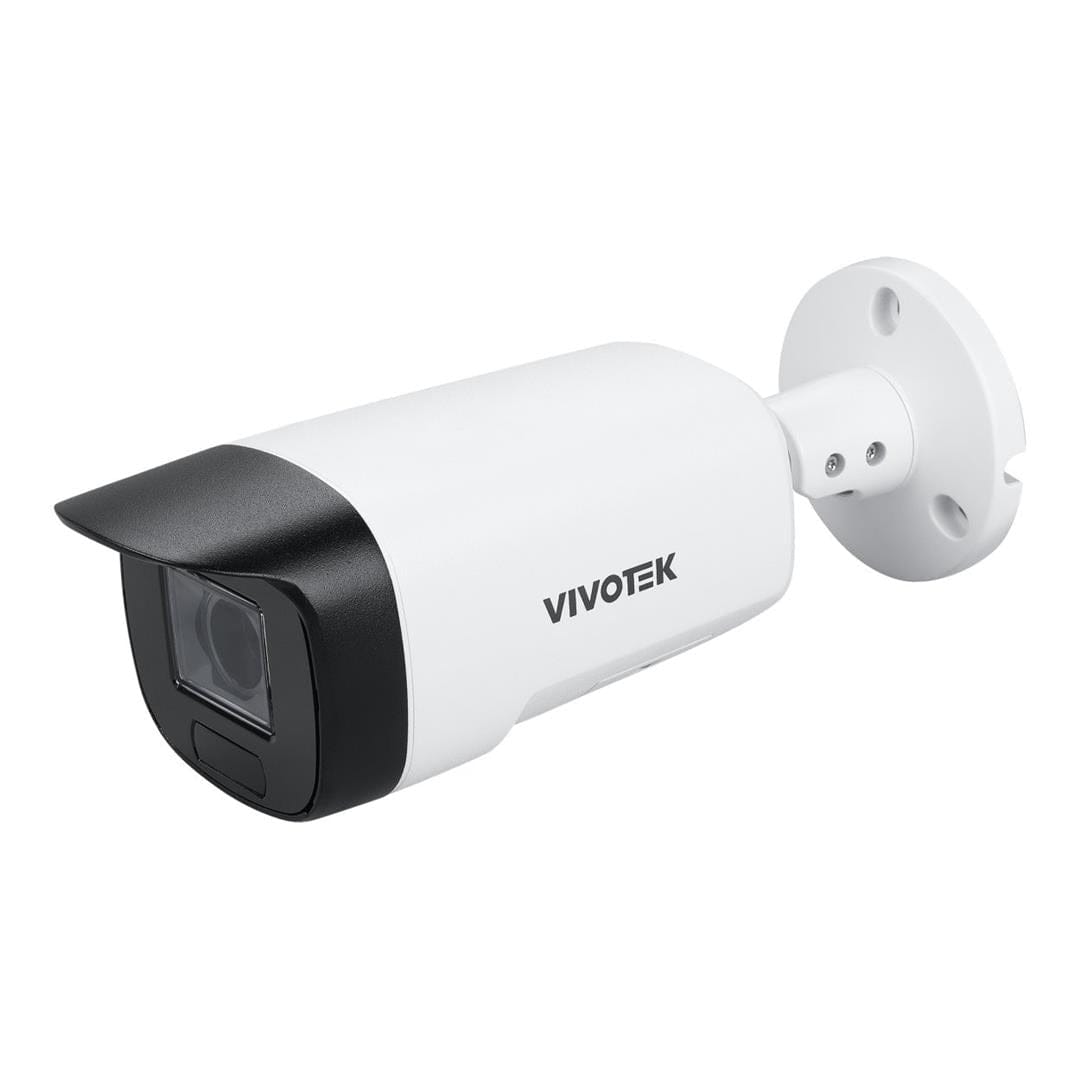

Vivotek IB839-EHTV-V2 5MP Outdoor AI Bullet Camera with 2.8-12mm Lens

Vivotek IB839-EHTV-V2 5MP Outdoor AI Bullet Camera with 2.8-12mm Lens

Features:

• Premium Series
• 5 MP
• 2.8 ~ 12 mm
• 40m IR
• WDR Pro
• IP67/IK10
• FCC/CE/UL/NDAA/TAA

Monitor Anywhere, Anytime, Any Device

VORTEX unifies surveillance extensions on one platform, offering seamless consistency with various cameras. Automate tasks for better productivity and efficiency. Enjoy seamless remote management with instant notifications to your mobile, email, sirens, and Webhooks, ensuring simplified IT maintenance.

AI Analytics for Comprehensive Surveillance

VORTEX provides real-time alerts and notifications via AI analytics like intrusion, line-crossing, and loitering detection. Its machine learning capabilities enhance accuracy over time, ensuring robust surveillance and peace of mind.

Capture with Incredible Clarity

RealSight Engine solve the problem of motion blur in images caused by the rapid movement of people captured previously. This ensures that all moving figure details are captured, automatically making the image clearer without the need to adjust the camera shutter speed

Excel in harsh environments

Premium Bullet AI Cameras support IK10 impact
resistance and IP67 weatherproofing, ensuring durability in
harsh conditions.

Peace of Mind with 10-Year Warranty

VORTEX cameras effortlessly connect to the cloud, scaling without extra servers. Enjoy peace of mind with up to 10-year warranties and continuous license subscriptions for significant cost savings per camera.

Technical Specifications:

Camera Features
Image Sensor: 1/2.8" Progressive CMOS
Resolution: HD: 2560 x 1920, SD: 1280 x 960
Lens Type: Motorized, Vari-focal, Remote Focus
Focal Length: f = 2.8 ~ 12 mm
Aperture: F1.6 ~ F3.3
Iris: P-iris
Field of View: Horizontal: 95.4° ~ 28.7°, Vertical: 68.8° ~ 21.5°, Diagonal: 129.6° ~ 35.9°
Camera Movement: Tilt: 80°, Rotate: 350°
Shutter Speed: 1/5 sec. to 1/32,000 sec.
Day/Night: Yes
IR Cut Filter: Yes
IR Range: Built-in IR illuminators, effective up to 40 meters with Smart IR, IR LED x4
WDR Technology: WDR Pro
Minimum Illumination: 0.04 lux @ F1.6 (Color), 0.005 lux @ F1.6 (B/W), 0 lux with IR on
Onboard Storage: MicroSD/SDHC/SDXC card slot (Built-in 256GB industrial SDCard)

Standard Video Settings
Frame Rate: 15FPS
Video Streaming Settings: HD Video 2560 x 1920@15fps 1.2Mbps upload, SD Video 1280 x 960@15fps 300Kbps upload

Standard Audio Settings
Audio: Two-way Audio (License required to enable speaker talk-down feature)
Interface: Built-in microphone, External microphone input, External line output
Effective Range: 5 meters

Power and Network
Power Input: IEEE 802.3af PoE Class 3
Power Consumption: Max. 12.4W/9.6W (IR on/off)
Connectivity: RJ-45 cable connector for 10/100 Mbps Network/PoE connection, Audio line input/output, Digital input: 1, Digital output: 1
Protocols: WebRTC, ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IPv4, NTP, RTSP/RTP/RTCP, SSL, TCP/IP, TLS 1.2, UDP
Users: Up to 6 clients (Live viewing for 6 clients; live viewing up to 4 clients and playback 2 clients)
Security: Secure boot, Signed firmware, HTTPS/TLS encryption, Video encryption
Interface: 10 Base-T/100 Base-TX Ethernet (RJ-45)

General
Operating Temperature: Starting: -20°C ~ 50°C (-4°F ~ 122°F), Working: -35°C ~ 60°C (-31°F ~ 140°F) (IR off), -35°C ~ 50°C (-31°F ~ 122°F) (IR on)
Humidity: 98% RH (non-condensing)
Certifications: EMC: CE, UKCA, FCC, RCM, VCCI, IC; Safety: UL, CB, UKCA; Environment: IK10, IP66, IP67, BSMI

Warranty
Up to 10 years (Depends on license type)

Mechanical
Weight: 1.04 kg
Dimensions: ø 92 x 258.5 mm
Body: Metal

AI Analytics
Audio Detection: Yes
Tampering Detection: Yes
Application: Intrusion detection, Line crossing detection, Loitering detection, Unattended object detection, Missing object detection
AI Hub with xPro License: Attribute Search, Scene Search, Re-Search, Profile Search, LPR Search
Application available with license: Personal protective equipment

Included Accessories
Quick installation guide, alignment sticker, screw pack, cable gland

Compatibility
Windows, Linux, MacOS, mobile devices as per system integration requirements

Packaging Info
As provided in accessories section only; no additional contents mentioned.
