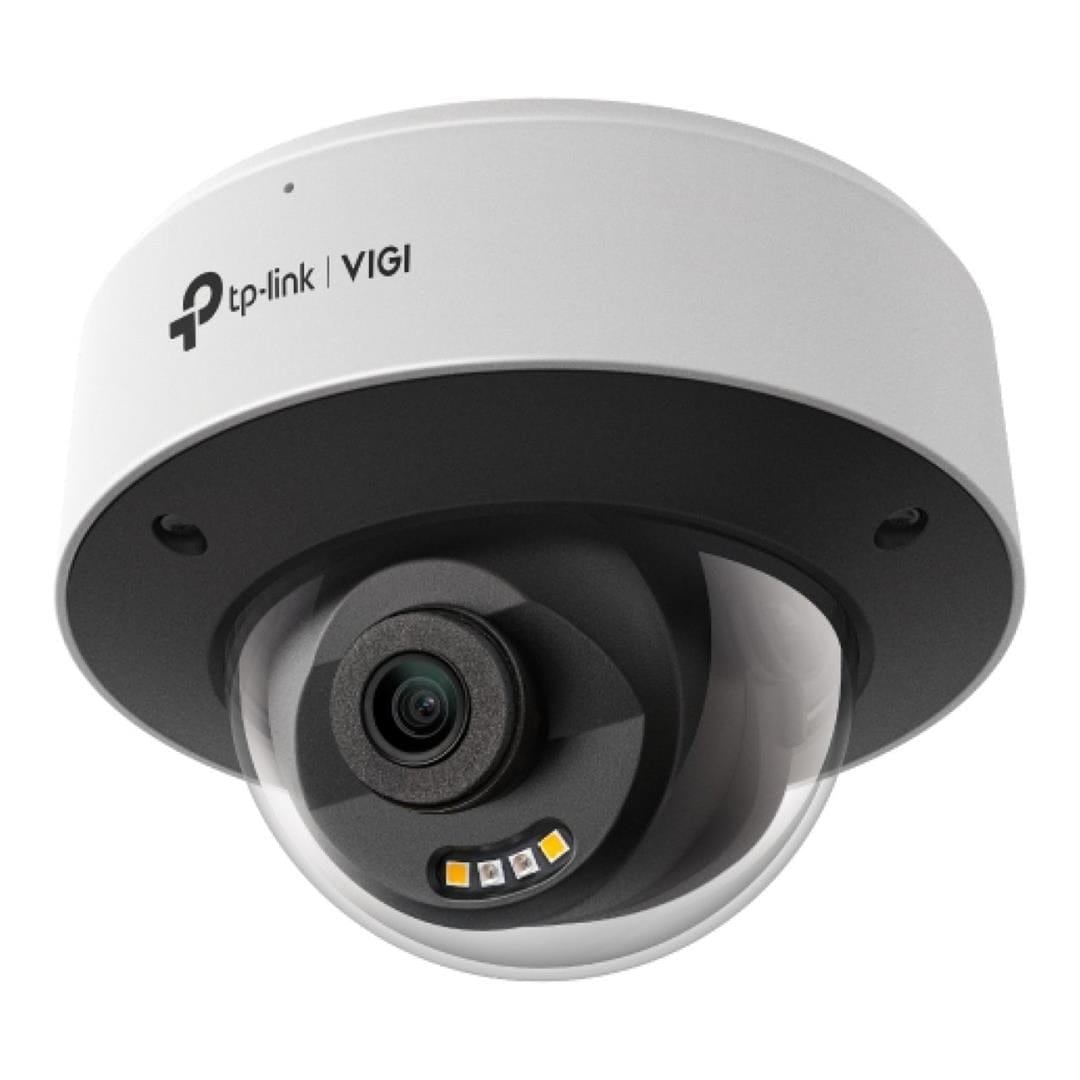

TP-Link InSight S285 VIGI 8MP Full-Color Dome Network Camera

TP-Link InSight S285 VIGI 8MP Full-Color Dome Network Camera

All The Colors, All The Time

8MP Full-Color Dome Network Camera

Features:

• 4K (8MP) Ultra HD and 24h Full-Color
• People & Vehicle Analytics^†
• Human & Vehicle Classification
• Smart Detection
• Smart Video Enhancement Technology
• Active Defense and Two-Way Audio
• IP67 Waterproof and IK10 Vandal-Proof
• H.265+ Compression Technology

People & Vehicle Analytics

Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.

Human & Vehicle Classification

Distinguish humans and vehicles from other objects and receive more accurate event notifications.

Smart Video Enhancement Technology

True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.?

Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.

3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.

White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.

Efficient H.265+ Compression Technology

H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.

Technical Specifications:

Camera
Image Sensor: 1/2.7” Progressive Scan CMOS
Shutter Speed: 1/3 to 1/10000 s
Slow Shutter: Yes
Minimum Illumination: 0.005 Lux; 0 Lux with IR/White Light
Day/Night Mechanism: IR Cut Filter
Day/Night Switch: Unified / Scheduled / Auto

Lens
Type: Fixed Focal Lens
Focal Length: 2.8 mm / 4 mm
Aperture: F1.6
Lens Mount: M12 × P 0.5

FOV:
2.8 mm – Horizontal: 110°, Vertical: 58.1°, Diagonal: 133.5°
4 mm – Horizontal: 88°, Vertical: 46°, Diagonal: 105.4°

DORI Distance:
2.8 mm – Detect: 85 m, Observe: 35 m, Recognize: 17 m, Identify: 8 m
4 mm – Detect: 107 m, Observe: 44 m, Recognize: 21 m, Identify: 11 m

Angle Adjustment (Manual):
Pan: 0° to 346°
Tilt: 0° to 75°
Rotation: 0° to 355°

Illuminator
IR LED: 2 LEDs, 30 m range, 850 nm wavelength
White LED: 2 LEDs, 30 m range
Illuminator Control: Auto / Scheduled / Always On / Always Off

Video
Max Resolution: 3840 × 2160

Main Stream:
Frame Rate – 50Hz: 1/5/10/15/20/25 fps; 60Hz: 1/5/10/15/20/25 fps
Resolution – 3840×2160, 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720
Note – Max 20 fps if image rotation is 90°/270° or HDR enabled

Sub-Stream:
Frame Rate – 50Hz: 1/5/10/15/20/25 fps; 60Hz: 1/5/10/15/20/25 fps
Resolution – 848×480, 704×576, 640×480, 640×360, 352×288, 320×240
Note – Max 20 fps if image rotation is 90°/270° or HDR enabled

Bit Rate Control: CBR, VBR
Video Compression:
Main Stream – H.265+/H.265/H.264+/H.264
Sub-Stream – H.265/H.264
H.264 Type: High Profile
H.265 Type: Main Profile
Video Bit Rate:
Main Stream – 256 Kbps to 8 Mbps
Sub-Stream – 64 Kbps to 512 Kbps

Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to IR Light, HLC (Client Adjustable)
Image Enhancement: BLC / 3D DNR / HLC / Smart IR
Wide Dynamic Range: 120 dB
SNR: ≥ 52 dB
Privacy Mask: Up to 4 Masks
ROI: 1 Region
OSD Setting: Yes
Image Parameters Switch: Yes

Audio
Two-Way Audio: Yes
Audio Input: Yes
Audio Output: Yes
Audio Compression: Yes
Audio Sampling Rate: 8 KHz
Environment Noise Filtering: Yes
Audio Bit Rate: 64 Kbps (G.711 alaw)

Network
Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIF: Yes (Profile S/T/G)
Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
Client: VIGI App, Web UI, VIGI VMS, Utility
Web Browser Support: Chrome 57+, Firefox 52+, Safari 11+, Edge 91+
Cloud: Yes
Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Alarm and Event Management
Smart Events: Intrusion Detection, Line-Crossing Detection, Region Entering/Exiting, Object Abandoned/Removal, Loitering Detection, People Detection, Vehicle Detection, Abnormal Sound Detection, Scene Change Detection
Basic Events: Motion Detection (Human & Vehicle Classification), Camera Tampering, Illegal Login
Alarm Linkage: Memory Card Recording, Message Push, Audible Warning, White Light Flashing

Deep Learning Function:
People & Vehicle Analytics – Attribute-based search and filtering

Interfaces
Network Interface: 1× RJ45 10/100M Self-Adaptive Ethernet Port (PoE)
Reset Button: Yes
Power: DC Power Port
On-board Storage: MicroSD Slot, up to 512 GB
Built-in Microphone: Yes (Up to 5 m radius)
Built-in Speaker: Yes

General
Operating Temperature: -30°C to 60°C
Storage Temperature: -40°C to 60°C
Operating Humidity: ≤ 95% (Non-Condensing)
Storage Humidity: ≤ 95% (Non-Condensing)
Material: Metal
Net Weight: 0.62 kg
Power Supply: 12V DC ±5%, Max. 11 W (5.5 mm Coaxial Plug); PoE 802.3af/at, Class 0, Max. 12.3 W
Protection: IP67 Waterproof, IK10 Vandal Proof
Dimensions: 122 × 122 × 89 mm (4.80 × 4.80 × 3.50 in)
Certifications: CE, NTRA, FCC, VCCI, BSMI, ONVIF, KC

What’s in the Box:

• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
