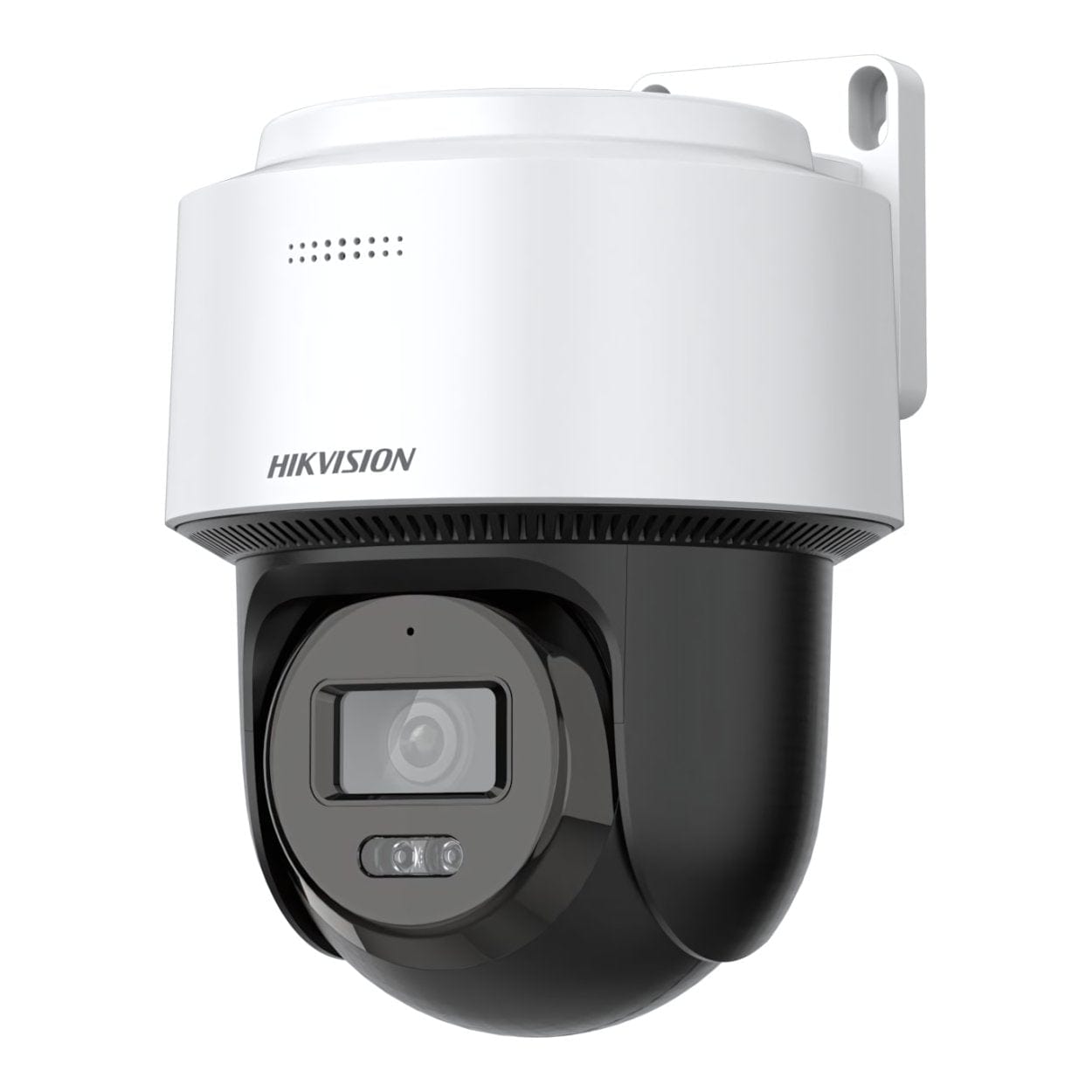

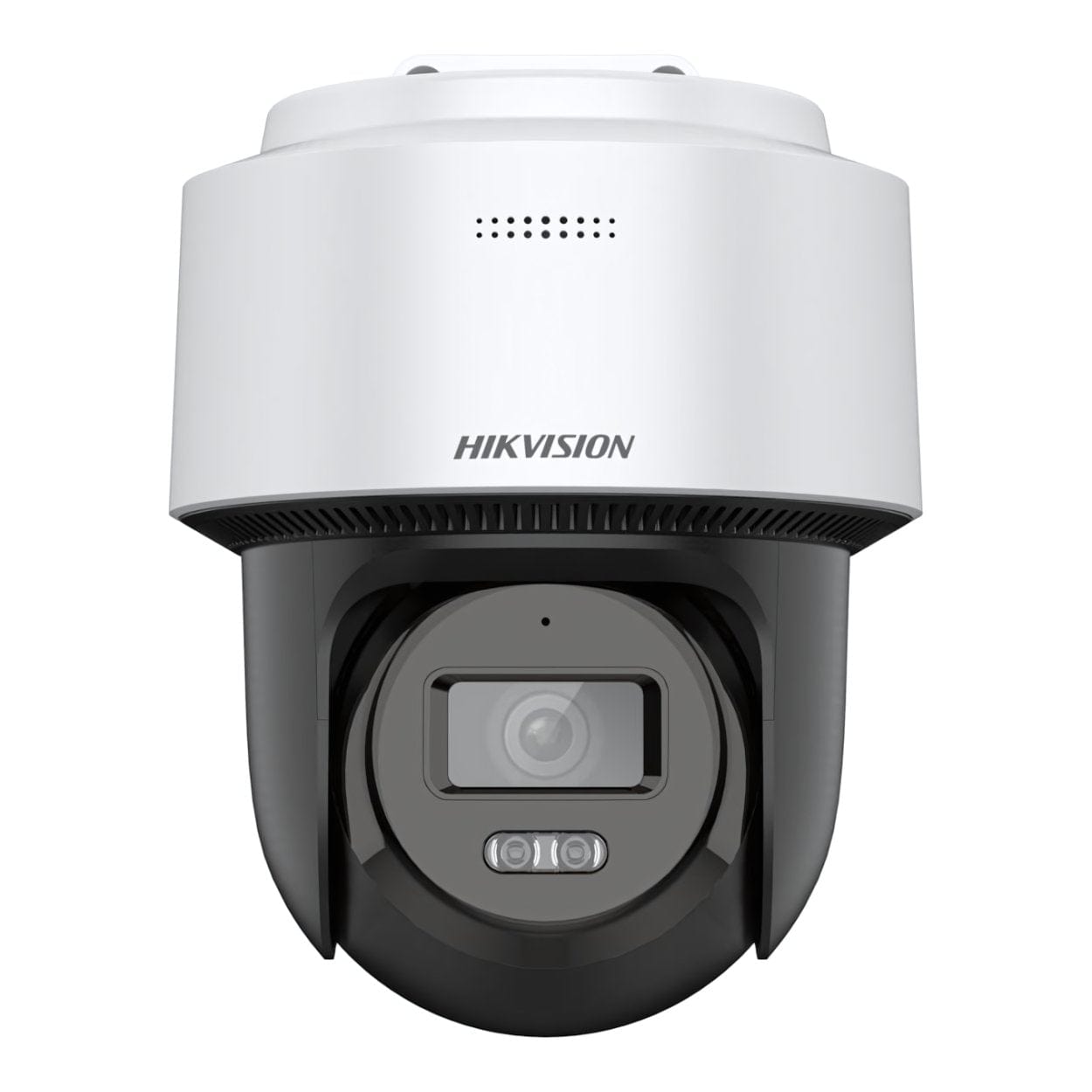

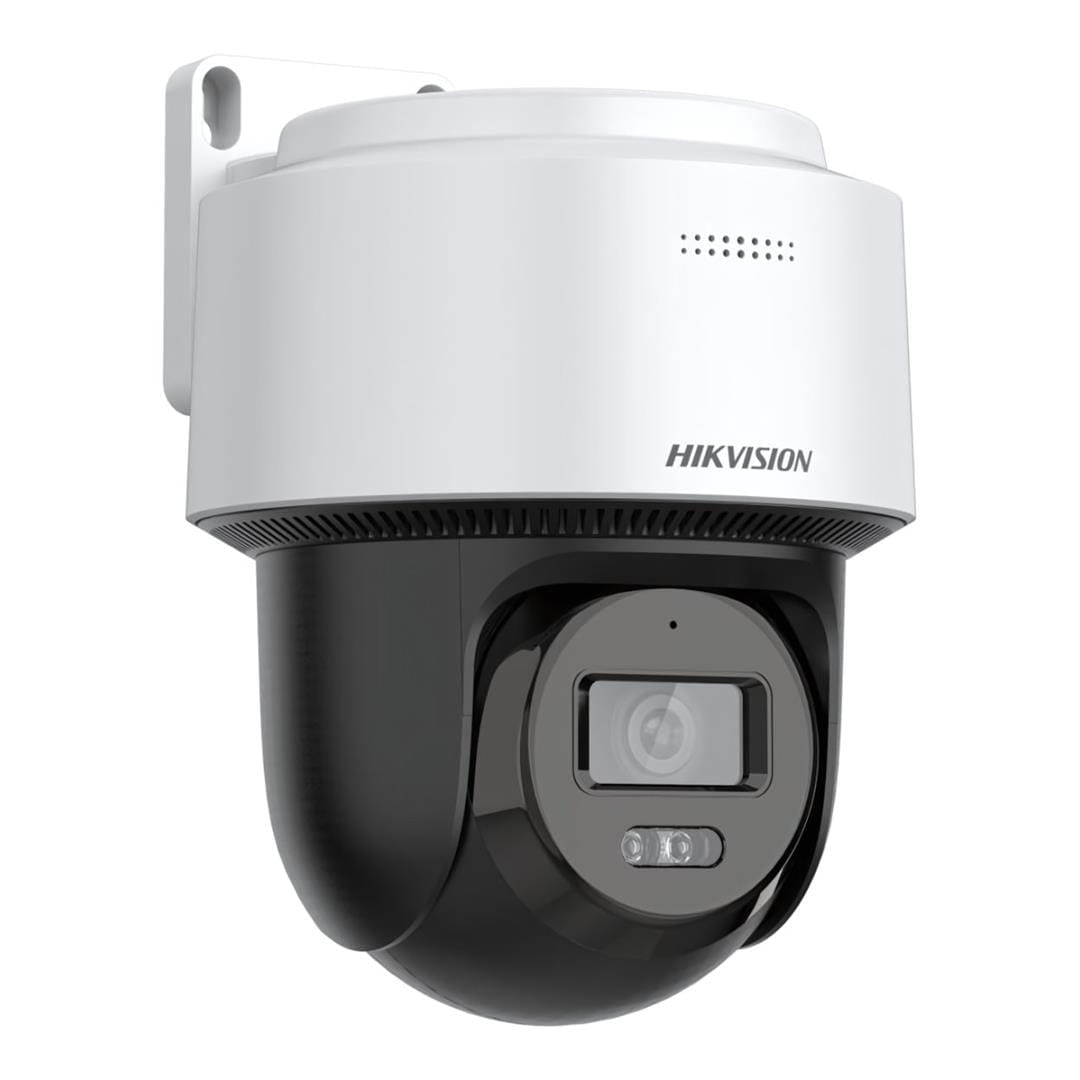

Hikvision 4MP Fixed Outdoor Smart Hybrid-light PT Network Camera DS-2DE2C400MWG-E(2.8mm)

Hikvision 4MP Fixed Outdoor Smart Hybrid-light PT Network Camera DS-2DE2C400MWG-E(2.8mm)

Features:

• High quality imaging with 4 MP resolution
• Support Human Detection and Auto-tracking Lite
• Smart Hybrid Light: advanced technology with long range
• Hik-Connect cloud service and APP for remote management and views of devices
• Built-in microphone and speaker for real-time audio security
• Built-in memory card slot, support microSD/SDHC/SDXC card, up to 512 GB
• Water and dust resistant (IP66)

Technical Specifications:

Camera
Image Sensor: 1/3" Progressive Scan CMOS
Max. Resolution: 2560 × 1440
Min. Illumination: Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0.005 Lux @ (F2.0, AGC ON), 0 Lux with light

Lens
Focal Length: 2.8 mm, 4 mm
FOV:
2.8 mm — Horizontal 94°, Vertical 49°, Diagonal 114°
4 mm — Horizontal 70°, Vertical 35°, Diagonal 85°
Aperture: F1.6

Illuminator
Supplement Light Type: IR, White Light
Supplement Light Range: White light up to 30 m, IR up to 30 m
IR Wavelength: 850 nm

PTZ
Movement Range (Pan): 0° to 345°
Movement Range (Tilt): 0° to 80°
Pan Speed: Up to 25°/s
Tilt Speed: Up to 20°/s

Video
Main Stream:
50 Hz — 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz — 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream:
50 Hz — 25 fps (640 × 480, 640 × 360)
Video Compression: H.265, H.264, MJPEG
Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline, Main, High Profiles
H.265 Type: Main Profile

Audio
Audio Compression: G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC
Audio Bit Rate: 16 Kbps (G.722.1), 64 Kbps (G.711), 32–192 Kbps (MP2L2), 16 Kbps (G.726), 16–64 Kbps (AAC-LC), 8–48 Kbps (PCM)
Audio Sampling Rate: 8 kHz, 16 kHz
Environment Noise Filtering: Yes

Network
Protocols: IPv4/IPv6, HTTP, HTTPS, QoS, FTP, SMTP, UPnP, DNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour
API: ONVIF (Profile S, G, T), ISAPI, SDK

Image Settings: Saturation, brightness, contrast, and sharpness adjustable via client software or browser
Wide Dynamic Range: Digital WDR
Image Enhancement: BLC, HLC, 3D DNR

Interface
Ethernet Interface: 1× RJ45 10M/100M self-adaptive port
Built-in Microphone: 1
On-board Storage: microSD/microSDHC/microSDXC, up to 512 GB
Built-in Speaker: 1

Event
Basic Event: Motion detection (supports human-target alarms), video tampering, exception
Linkage: Upload to FTP/memory card, notify surveillance center, send email, trigger capture, audible warning, auto-tracking lite

General
Power:
12 VDC ±25%, 0.75 A, max. 9 W, Ø5.5 mm power plug, reverse polarity protection
PoE: IEEE 802.3af, 36–57 V, 0.2–0.3 A, max. 10.5 W

Dimension:
Camera: 163.9 × 185.8 × 131.9 mm (6.45" × 7.31" × 5.19")
With Package: 224 × 164 × 230 mm (8.82 × 6.46" × 9.06")
Weight:
Camera: 600 g (1.32 lb.)
With Package: 900 g (2.0 lb.)

Material: Plastic
Operating Condition: -30°C to 40°C (-22°F to 104°F), humidity ≤ 90% non-condensing
General Function: Mirror, password protection, watermark

Approval
EMC: CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)
Safety: CB (IEC 62368-1:2014+A11), CE-LVD (EN 62368-1:2014/A11:2017)
Environment: CE-RoHS (2011/65/EU), REACH (EC 1907/2006)
Protection: IP66 (IEC 60529-2013)
