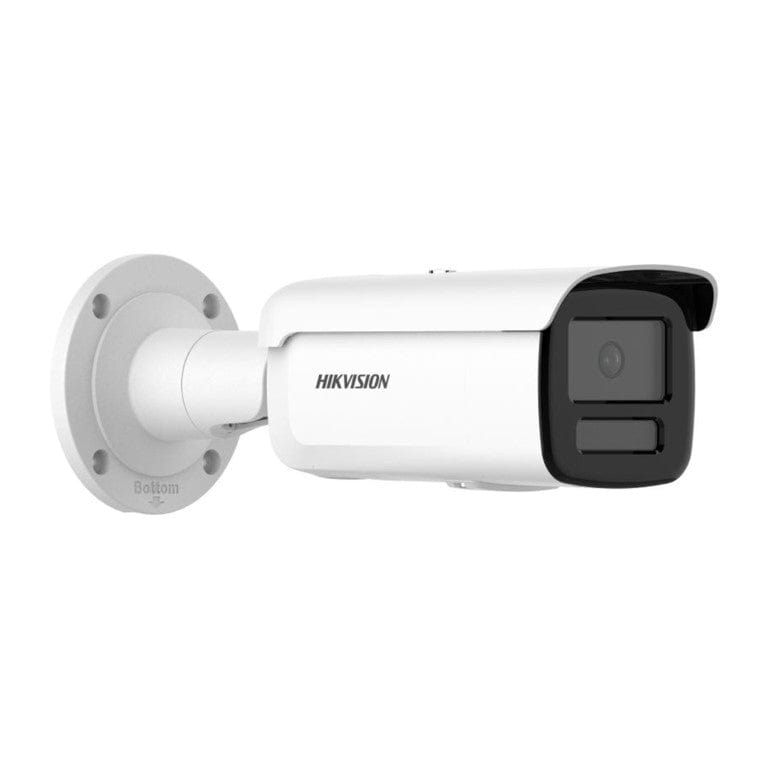

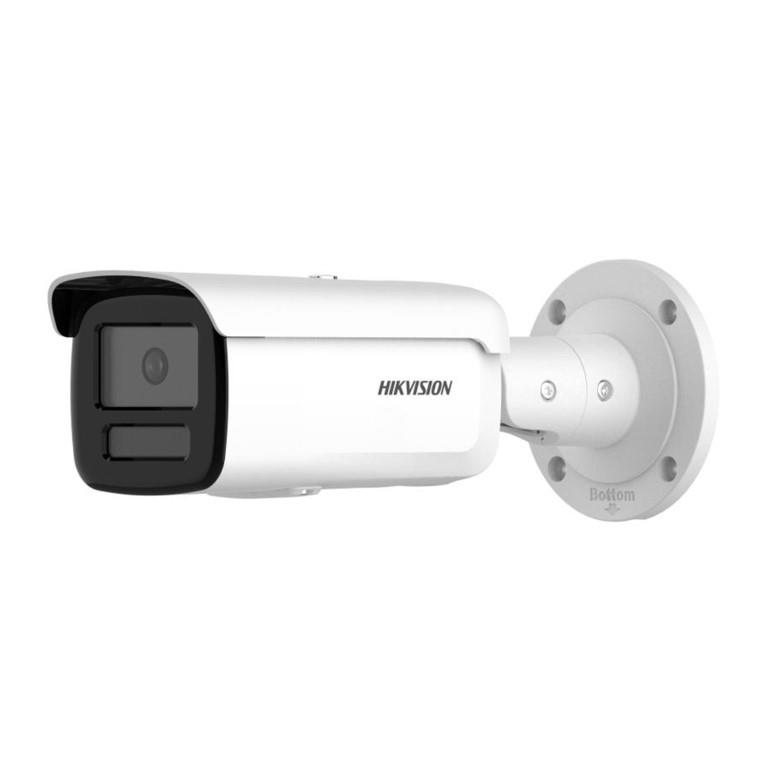

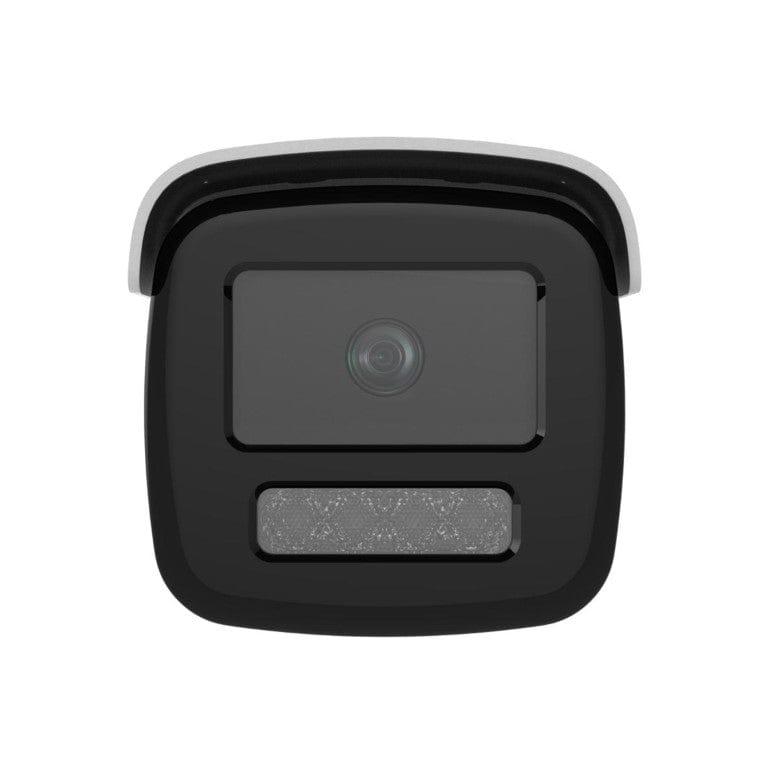

Hikvision 4MP 4mm Smart Hybrid Light with ColorVu Fixed Bullet Network Camera DS-2CD2T47G2H-LI(4mm)

Hikvision 4MP 4mm Smart Hybrid Light with ColorVu Fixed Bullet Network Camera DS-2CD2T47G2H-LI(4mm)

Features

• High quality imaging with 4 MP resolution
• 1/1.8" Progressive Scan CMOS
• 2688 x 1520 Max. Resolution
• 4 mm Fixed focal lens
• Horizontal FOV: 104.0°, Vertical FOV: 54.4°, Diagonal FOV: 126.7°
• D: 61 m, O: 24 m, R: 12 m, I: 6 m
• Smart Hybrid Light: advanced technology with long range
• Up to 60 m IR, White Light
• 850 nm IR Wavelength
• Clear imaging against strong back light due to 130 dB WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle classification based on deep learning
• Water and dust resistant (IP67)
• 1x RJ45 10/100MB self-adaptive Ethernet port
• 12 VDC ± 25%, 0.66 A, max. 8 W,Ø5.5 mm coaxial power plug,reverse polarity protection ; PoE: IEEE 802.3af, Class 3, max. 9 W
• *Power supply is not included

Technical Specifications:

Camera

Image Sensor
1/1.8" Progressive Scan CMOS

Max. Resolution
2688 × 1520

Min. Illumination
Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light

Shutter Time
1/3 s to 1/100,000 s

Day & Night
IR cut filter

Angle Adjustment
Pan: 0°–360°, Tilt: 0°–90°, Rotate: 0°–360°

Lens

Lens Type
Fixed focal lens, 2.8 mm and 4 mm optional

Focal Length & FOV
2.8 mm — HFOV 104.0°, VFOV 54.4°, DFOV 126.7°
4 mm — HFOV 89.2°, VFOV 45.5°, DFOV 108.2°

Lens Mount
M16

Iris Type
Fixed

Aperture
F1.0

Depth of Field
2.8 mm: 2.5 m to ∞
4 mm: 3.1 m to ∞

DORI

2.8 mm
D: 61 m, O: 24 m, R: 12 m, I: 6 m

4 mm
D: 75 m, O: 30 m, R: 15 m, I: 7 m

Illuminator

Supplement Light Type
IR, White Light

Supplement Light Range
Up to 60 m

Smart Supplement Light
Yes

IR Wavelength
850 nm

Video

Main Stream
50 Hz — 25 fps (2688×1520, 1920×1080, 1280×720)
60 Hz — 30 fps (2688×1520, 1920×1080, 1280×720)

Sub-Stream
50 Hz — 25 fps (1280×720, 640×480, 640×360)
60 Hz — 30 fps (1280×720, 640×480, 640×360)

Third Stream
50 Hz — 10 fps (1080p, 720p, 640×480, 640×360)
60 Hz — 10 fps (same resolutions)
Supported under certain settings.

Video Compression
Main: H.265 / H.264 / H.264+ / H.265+
Sub: H.265 / H.264 / MJPEG
Third: H.265 / H.264

Video Bit Rate
32 Kbps to 8 Mbps

H.264 Type
Baseline / Main / High Profile

H.265 Type
Main Profile

Bit Rate Control
CBR / VBR

Scalable Video Coding (SVC)
H.264 and H.265 encoding

Region of Interest (ROI)
1 fixed region for main and sub-stream

Network

Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, SRTP, SFTP

Simultaneous Live View
Up to 6 channels

API
ONVIF (Profile S, G, T), ISAPI, SDK, ISUP

User/Host
Up to 32 users — Administrator / Operator / User

Security
Password protection, HTTPS encryption, 802.1X (EAP-TLS/LEAP/MD5), watermark, IP filtering, HTTP/HTTPS digest auth, WSSE, ONVIF auth, RTP/RTSP over HTTPS, timeout controls, security audit log, TLS 1.1/1.2/1.3, MAC authentication

Network Storage
NAS (NFS, SMB/CIFS), ANR

Client
iVMS-4200, Hik-Connect, Hik-Central

Web Browser
Plug-in required: IE 10/11
Plug-in free: Chrome 57+, Firefox 52+, Edge 89+
Local service: Chrome 57+, Firefox 52+, Edge 89+


Image Parameters Switch
Yes

Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance (via client/web)

Day/Night Switch
Day / Night / Auto / Schedule

Image Enhancement
BLC, HLC, 3D DNR

SNR
≥ 52 dB

Wide Dynamic Range (WDR)
130 dB

Privacy Mask
4 polygon privacy masks

Interface

Ethernet Interface
1 × RJ45 10M/100M self-adaptive port

On-Board Storage
microSD/microSDHC/microSDXC up to 512 GB

Reset Key
Yes

Event

Basic Event
Motion detection (human/vehicle classification), tamper alarm, exception

Linkage
Upload to FTP/NAS/memory card, notify center, trigger recording, capture, send email

Smart Event
Scene change detection

Deep Learning Function

Face Capture
Yes

Perimeter Protection
Line crossing, intrusion, region entrance/exit
Supports human/vehicle filtering

General

Power
12 VDC ±25%, 0.66 A, max 8 W
PoE: 802.3af, Class 3, max 9 W

Material
Metal front cover, body and bracket

Dimensions
286.7 × 93.3 × 91.2 mm (11.3" × 3.7" × 3.6")

Package Dimensions
386 × 156 × 155 mm

Weight
Camera: 1085 g
With Package: 1639 g

Storage Conditions
-30°C to 60°C, ≤95% RH (non-condensing)

Startup / Operating Conditions
-30°C to 60°C, ≤95% RH (non-condensing)

General Functions
Heartbeat, mirror, password reset via email, pixel counter, anti-banding

Language Support (33)
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval

EMC
EN 55032, IEC 61000-3-2, EN 61000-3-3, EN 50130-4
RCM, ICES-003, KC

Safety
UL 62368-1, IEC 62368-1, EN 62368-1, BIS

Environment
CE-RoHS

Protection
IP67 (IEC 60529)
