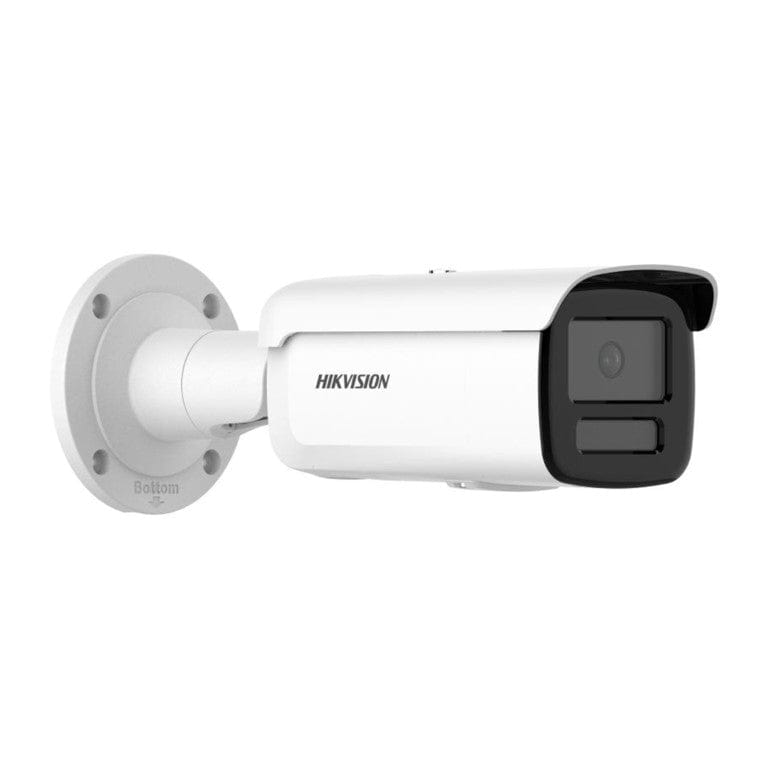

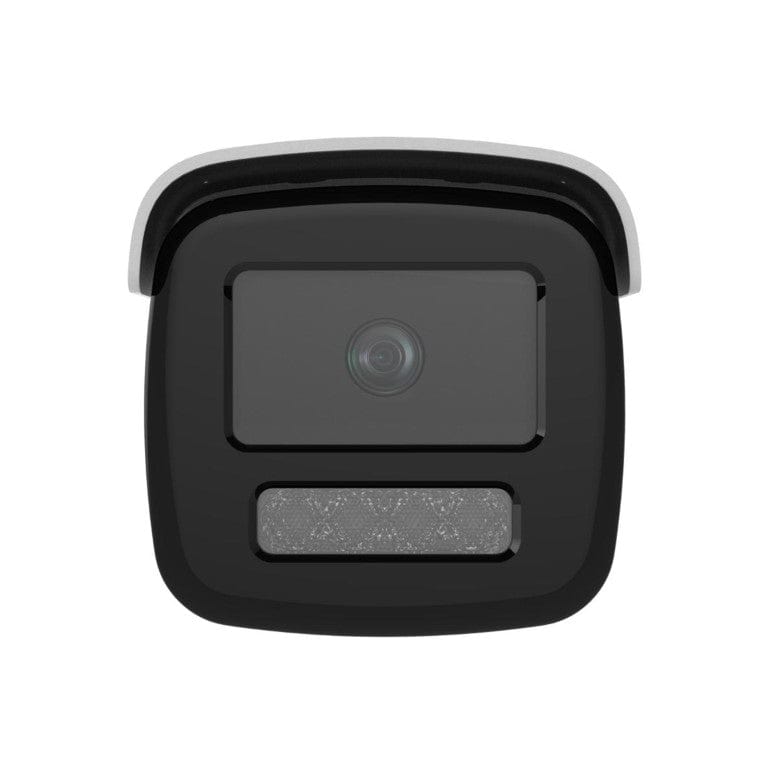

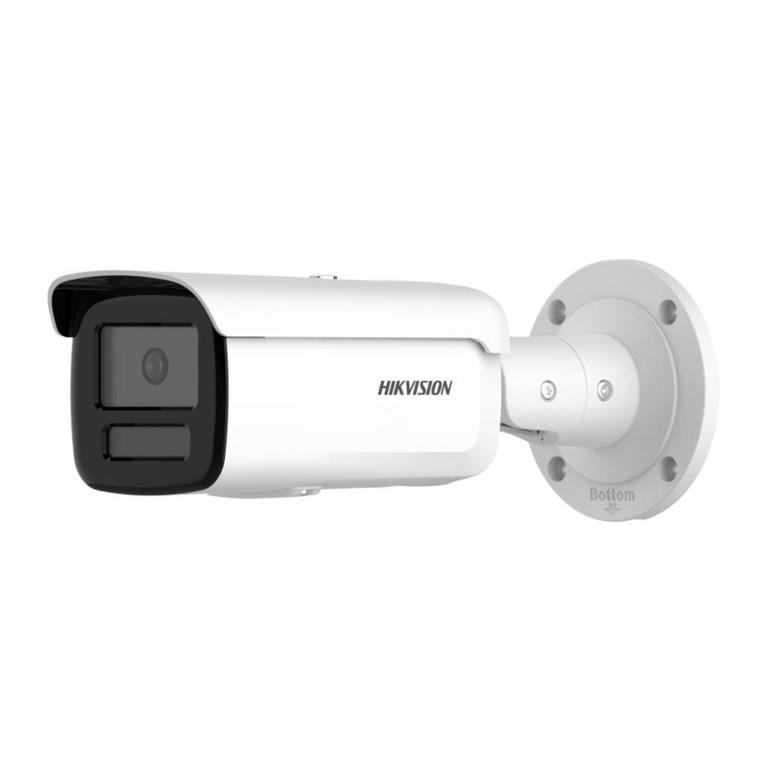

Hikvision 4MP 4mm Powered by Darkfighter Fixed Bullet Network Camera DS-2CD2T46G2H-2I(4mm)

Hikvision 4MP 4mm Powered by Darkfighter Fixed Bullet Network Camera DS-2CD2T46G2H-2I(4mm)

Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.

Features

• High quality imaging with 4 MP resolution
• 1/3" Progressive Scan CMOS
• 2688 x 1520 Max. Resolution
• 4 mm Fixed focal lens
• Horizontal FOV 81.1°, Vertical FOV 44.7°, Diagonal FOV 94.6°
• D: 78 m, O: 31 m, R: 15 m, I: 7 m
• Excellent low-light performance with powered-by-DarkFighter technology
• 2I: up to 60m IR
• 850nm IR Wavelength
• Clear imaging against strong backlight due to 120 dB true WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle targets classification based on deep learning
• Water and dust resistant (IP67)
• 1x RJ45 10/100MB self-adaptive Ethernet port
• 12 VDC ± 25%, 0.6 A, max. 7.2 W, Ø5.5 mm coaxial power plug, reverse polarity protection ; PoE: IEEE 802.3af, Class 3, max. 9 W
• *Power supply is not included

Technical Specifications:

Camera
Image Sensor: 1/3" Progressive Scan CMOS
Max. Resolution: 2688 × 1520
Min. Illumination: Color: 0.001 Lux @ (F1.0, AGC ON), B/W: 0 Lux with IR
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°

Lens
Lens Type: Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV: 2.8 mm, horizontal FOV 100.2°, vertical FOV 54.7°, diagonal FOV 119.7°. 4 mm, horizontal FOV 81.1°, vertical FOV 44.7°, diagonal FOV 94.6°
Lens Mount: M12
Iris Type: Fixed
Aperture: F1.0
Depth of Field: 2.8 mm: 1.9 m to ∞. 4 mm: 2.5 m to ∞

DORI
DORI: 2.8 mm: D: 63 m, O: 25 m, R: 12 m, I: 6 m. 4 mm: D: 78 m, O: 31 m, R: 15 m, I: 7 m

Illuminator
Supplement Light Type: IR
Supplement Light Range: 2I up to 60 m, 4I up to 80 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm

Video
Main Stream: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720). 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360). 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360). 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360). Third stream is supported under certain settings
Video Compression: Main stream H.265/H.264/H.265+/H.264+. Sub-stream H.265/H.264/MJPEG. Third stream H.265/H.264
Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline Profile, Main Profile, High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR, VBR
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region of Interest (ROI): 1 fixed region for main stream and sub-stream

Network
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
Simultaneous Live View: Up to 6 channels
API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
User/Host: Up to 32 users, with administrator, operator, and user levels
Security: Password protection, complicated password, HTTPS encryption, IP address filter, security audit log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR). Memory card encryption and health detection are supported with high-end Hikvision memory cards

Client: iVMS-4200, Hik-Connect, Hik-Central
Web Browser: Plug-in required live view IE 10 and IE 11. Plug-in free live view Chrome 57.0+, Firefox 52.0+, Edge 89+. Local service Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Parameters Switch: Yes
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch: Day, Night, Auto, Schedule
Wide Dynamic Range (WDR): 120 dB
SNR: ≥ 52 dB
Image Enhancement: BLC, HLC, 3D DNR
Privacy Mask: 4 programmable polygon privacy masks

Interface
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in memory card slot supporting microSD, microSDHC, and microSDXC cards up to 512 GB
Reset Key: Yes

Event
Basic Event: Motion detection with support for alarm triggering by specified target types (human and vehicle), video tampering alarm, exception
Smart Event: Scene change detection
Linkage: Upload to NAS, memory card, or FTP; notify surveillance center; trigger recording; trigger capture; send email

Deep Learning Function
Face Capture: Yes
Perimeter Protection: Line crossing, intrusion, region entrance, region exiting, with support for alarm triggering by specified target types (human and vehicle)

General
Power: 2I model supports 12 VDC ± 25%, 0.6 A, max. 7.2 W, Ø5.5 mm coaxial power plug, reverse polarity protection, and PoE IEEE 802.3af Class 3 up to 9 W. 4I model supports 12 VDC ± 25%, 0.83 A, max. 10 W, Ø5.5 mm coaxial power plug, reverse polarity protection, and PoE IEEE 802.3af Class 3 up to 12 W
Material: Front cover metal, body metal, bracket metal
Dimension: 286.7 mm × 93.1 mm × 91.2 mm (11.3" × 3.7" × 3.6")
Package Dimension: 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
Weight: Approx. 1085 g (2.4 lb.)
With Package Weight: Approx. 1639 g (3.6 lb.)
Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Language: 33 languages including English, Russian, German, French, Spanish, Portuguese, and others
General Function: Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding

Approval
EMC: CE-EMC EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
Safety: UL 62368-1, IEC 62368-1:2014+A11, CE-LVD EN 62368-1:2014/A11:2017
Environment: CE-RoHS 2011/65/EU
Protection: IP67 IEC 60529-2013
