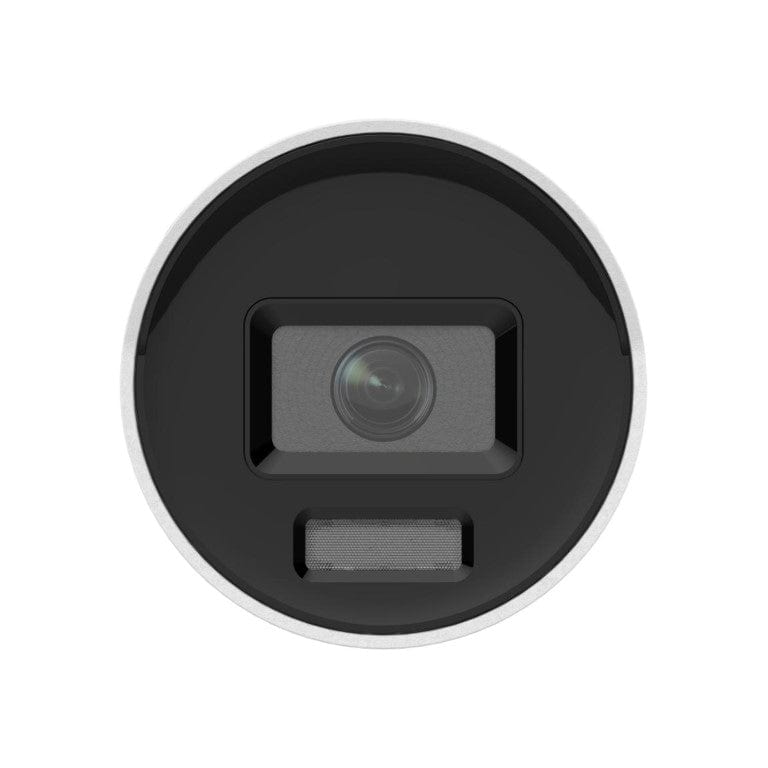

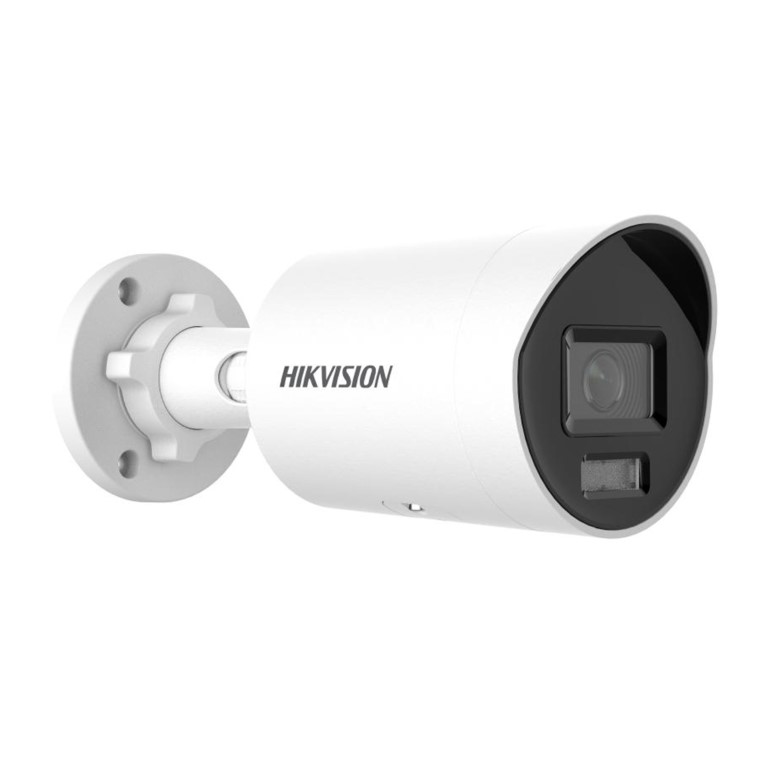

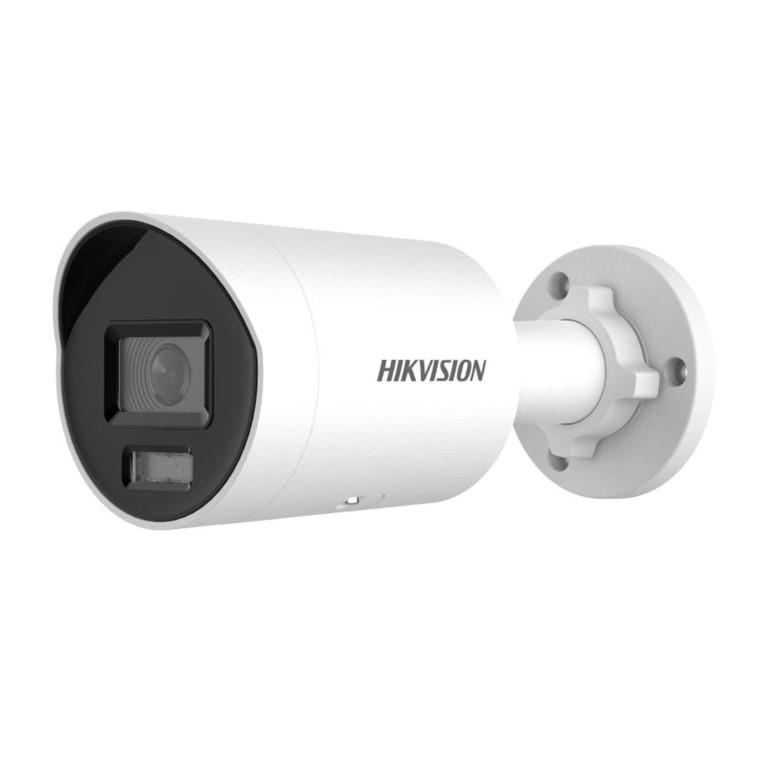

Hikvision 4MP 2.8mm Smart Hybrid Light with ColorVu Fixed Mini Bullet Network Camera DS-2CD2047G2H-LI(2.8mm)

Hikvision 4MP 2.8mm Smart Hybrid Light with ColorVu Fixed Mini Bullet Network Camera DS-2CD2047G2H-LI(2.8mm)

Features

• High quality imaging with 4 MP resolution
• 1/1.8" Progressive Scan CMOS
• 2688 x 1520 Max. Resolution
• 2.8mm Fixed focal lens
• Horizontal FOV: 104.0°, Vertical FOV: 54.4°, Diagonal FOV: 126.7°
• D: 61 m, O: 24 m, R: 12 m, I: 6 m
• Smart Hybrid Light: advanced technology with long range
• Up to 40 m IR,White Light
• 850nm IR Wavelength
• Clear imaging against strong back light due to 130 dB WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle classification based on deep learning
• Water and dust resistant (IP67)
• 1x RJ45 10/100MB self-adaptive Ethernet port
• 12 VDC ± 25%, 0.45 A, max. 5.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection ; PoE: IEEE 802.3af, Class 3, max. 7 W
• *Power supply is not included

Technical Specifications:

Camera

Image Sensor
1/1.8" Progressive Scan CMOS

Max. Resolution
2688 × 1520

Min. Illumination
Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light

Shutter Time
1/3 s to 1/100,000 s

Day & Night
IR cut filter

Angle Adjustment
Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°

Lens
Lens Type
Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV
2.8 mm, horizontal FOV 104.0°, vertical FOV 54.4°, diagonal FOV 126.7°
4 mm, horizontal FOV 89.2°, vertical FOV 45.5°, diagonal FOV 108.2°

Lens Mount
M16

Iris Type
Fixed

Aperture
F1.0

Depth of Field
2.8 mm: 2.5 m to ∞
4 mm: 3.1 m to ∞

DORI
2.8 mm: D: 61 m, O: 24 m, R: 12 m, I: 6 m
4 mm: D: 75 m, O: 30 m, R: 15 m, I: 7 m

Illuminator
Supplement Light Type
IR, White Light

Supplement Light Range
Up to 40 m

Smart Supplement Light
Yes

IR Wavelength
850 nm

Video
Main Stream
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Video Compression
Main stream: H.265 / H.264 / H.264+ / H.265+
Sub-stream: H.265 / H.264 / MJPEG
Third stream: H.265 / H.264

Video Bit Rate
32 Kbps to 8 Mbps

H.264 Type
Baseline Profile / Main Profile / High Profile

H.265 Type
Main Profile

Bit Rate Control
CBR / VBR

Scalable Video Coding (SVC)
H.264 and H.265 encoding

Region of Interest (ROI)
1 fixed region for main stream and sub-stream

Audio
Audio Compression
G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC

Audio Bit Rate
64 Kbps (G.711ulaw / G.711alaw) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 16–64 Kbps (AAC-LC) / 32–192 Kbps (MP2L2) / 8–320 Kbps (MP3)

Audio Sampling Rate
8 kHz / 16 kHz / 32 kHz / 44.1 kHz / 48 kHz

Environment Noise Filtering
Yes

Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP

Simultaneous Live View
Up to 6 channels

API
Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP

User/Host
Up to 32 users, 3 user levels: administrator, operator, user

Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1 / 1.2 / 1.3, host authentication (MAC address)

Network Storage
NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)

Client
iVMS-4200, Hik-Connect, Hik-Central

Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Parameters Switch
Yes

Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Day/Night Switch
Day, Night, Auto, Schedule

Image Enhancement
BLC, HLC, 3D DNR

SNR
≥ 52 dB

Wide Dynamic Range (WDR)
130 dB

Privacy Mask
4 programmable polygon privacy masks

Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage
Built-in memory card slot, support microSD / microSDHC / microSDXC card, up to 512 GB

Built-in Microphone
Yes

Reset Key
Yes

Event
Basic Event
Motion detection (support alarm triggering by specified target types: human and vehicle), video tampering alarm, exception

Smart Event
Scene change detection

Linkage
Upload to FTP / NAS / memory card, notify surveillance center, trigger recording, trigger capture, send email

Deep Learning Function
Face Capture
Yes

Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Supports alarm triggering by specified target types (human and vehicle)

General
Power
12 VDC ± 25%, 0.45 A, max. 5.5 W, Ø 5.5 mm coaxial power plug, reverse polarity protection
PoE: IEEE 802.3af, Class 3, max. 7 W

Material
Front cover: Metal, Body: Metal, Bracket: Metal

Dimension
Ø74.4 mm × 179.2 mm (Ø2.9" × 7.1")

Package Dimension
234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")

Weight
Approx. 525 g (1.2 lb.)
With Package Weight: Approx. 750 g (1.7 lb.)

Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)

Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)

General Function
Heartbeat, mirror, password reset via email, pixel counter, anti-banding

Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Approval
EMC
CE-EMC: EN 55032:2015, EN 61000-3-2:2019, EN 61000-3-3:2013 + A1:2019, EN 50130-4:2011 + A1:2014
IC: ICES-003: Issue 7
KC: KN32: 2015, KN35: 2015
RCM: AS/NZS CISPR 32:2015

Safety
UL: UL 62368-1
CB: IEC 62368-1:2014 + A11
CE-LVD: EN 62368-1:2014 / A11:2017
BIS: IS 13252 (Part 1): 2010 / IEC 60950-1:2005

Environment
CE-RoHS: 2011/65/EU

Protection
IP67: IEC 60529-2013
