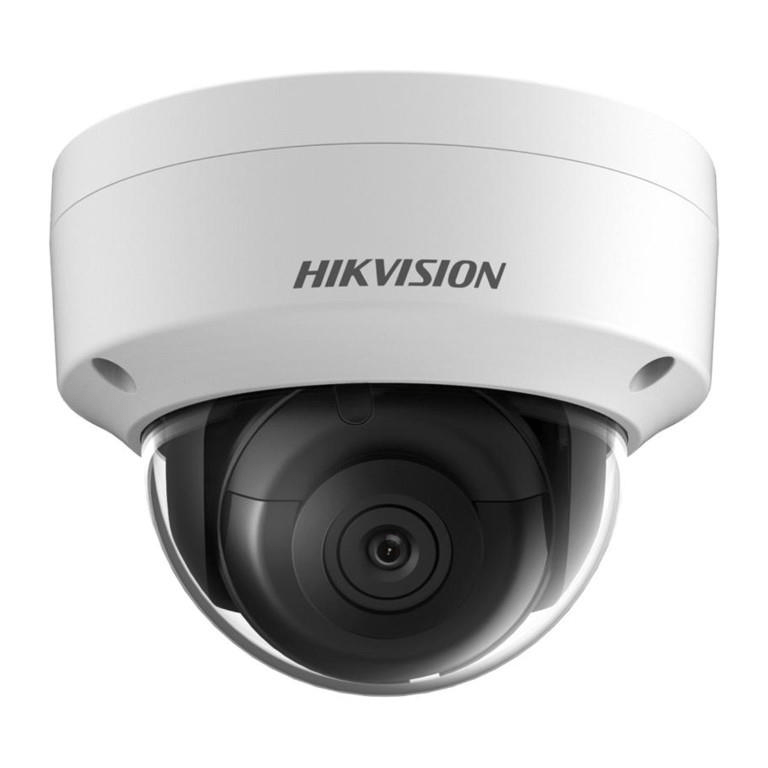

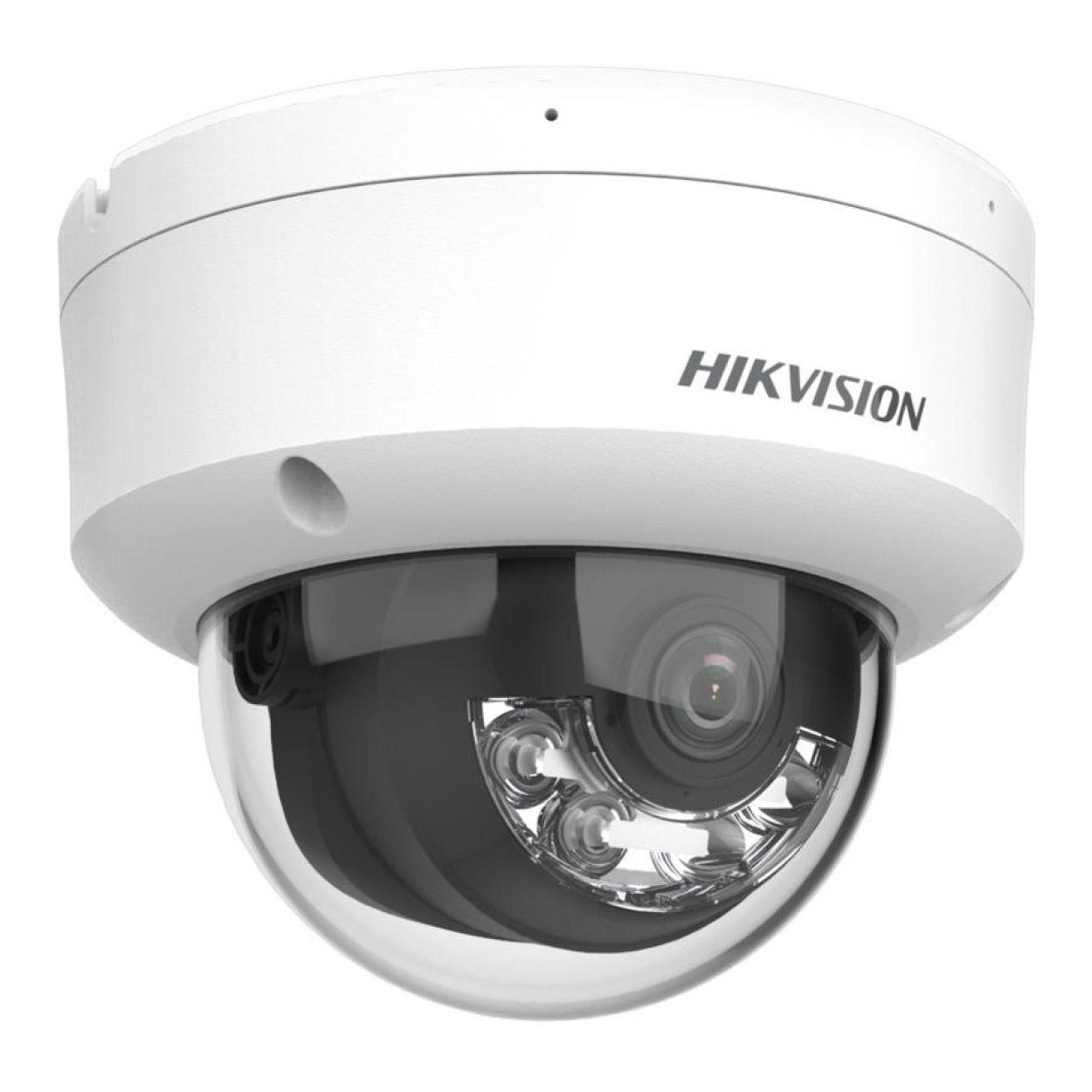

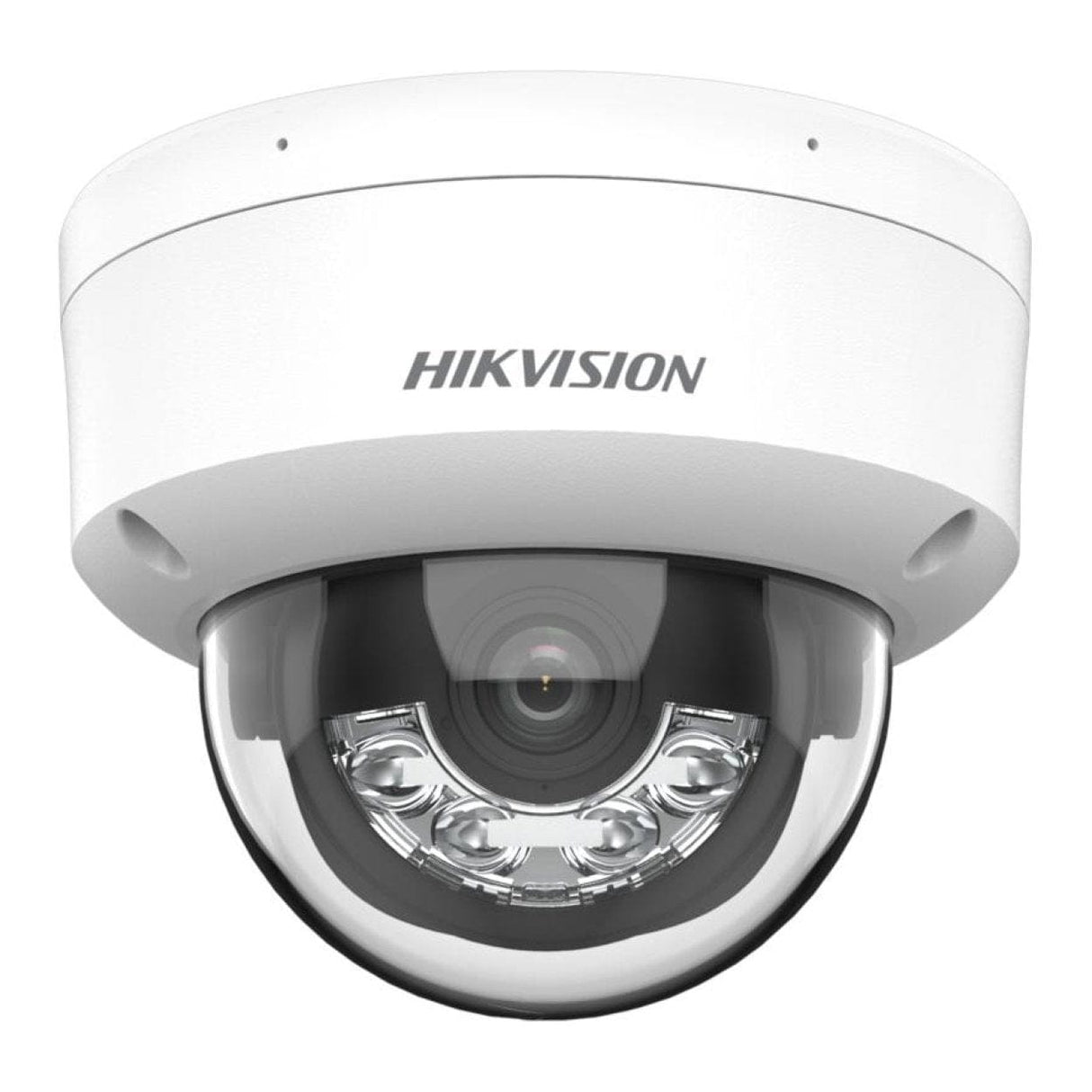

Hikvision 4MP 2.8mm Hybrid Light Fixed Dome Network Camera DS-2CD2141G0-LIU(2.8mm)

Hikvision 4MP 2.8mm Hybrid Light Fixed Dome Network Camera DS-2CD2141G0-LIU(2.8mm)

Features:

• High quality imaging with 4 MP resolution
• Smart Hybrid Light advanced technology with long range
• Built-in microphone for real-time audio security
• Water and dust resistant (IP67) and vandal resistant (IK08)
• Efficient H.265+ compression technology

Technical Specifications:

Camera
Image Sensor: 1/3" Progressive Scan CMOS
Max. Resolution: 2560 × 1440
Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°

Lens
Lens Type: Fixed focal lens, 2.8 mm and 4 mm optional
Focal Length & FOV:
2.8 mm — Horizontal 98°, Vertical 54°, Diagonal 114°
4 mm — Horizontal 78°, Vertical 42°, Diagonal 93°
Lens Mount: M12
Iris Type: Fixed
Aperture: F1.6

DORI
2.8 mm — D: 63 m, O: 25 m, R: 12 m, I: 6 m
4 mm — D: 78 m, O: 31 m, R: 15 m, I: 7 m

Illuminator
Supplement Light Type: IR, White Light
Supplement Light Range: Up to 30 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm

Video
Main Stream:
50 Hz — 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720)
60 Hz — 20 fps (2560 × 1440), 24 fps (1920 × 1080, 1280 × 720)
Sub-Stream:
50 Hz — 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz — 24 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression: Main stream: H.265+, H.265, H.264+, H.264; Sub-stream: H.265, H.264, MJPEG
Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline, Main, High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR, VBR
Region of Interest (ROI): 1 fixed region for main stream

Audio
Audio Type: Mono
Environment Noise Filtering: Yes
Audio Sampling Rate: 8 kHz / 16 kHz
Audio Compression: G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, AAC-LC
Audio Bit Rate: 64 Kbps (G.711 ulaw), 64 Kbps (G.711 alaw), 16 Kbps (G.722.1), 16 Kbps (G.726), 32–160 Kbps (MP2L2), 16–64 Kbps (AAC-LC)

Network
Security: Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for ONVIF, security audit log, host authentication (MAC address)
Simultaneous Live View: Up to 6 channels
API: ISAPI, SDK, ONVIF (Profile S, Profile T)
Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
User/Host: Up to 32 users, 3 user levels: administrator, operator, and user
Client: iVMS-4200, Hik-Connect
Web Browser: Plug-in required live view: IE 10, IE 11; Local service: Chrome 57.0+, Firefox 52.0+

Wide Dynamic Range (WDR): 120 dB
SNR: ≥ 52 dB
Day/Night Switch: Day, Night, Auto, Schedule
Image Enhancement: BLC, HLC, 3D DNR
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable via client software or web browser
Privacy Mask: 4 programmable polygon privacy masks

Interface
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive port
Built-in Microphone: Yes

Event
Basic Event: Motion detection (human and vehicle), video tampering alarm, exception
Linkage: Notify surveillance center, send email, trigger capture

General
Power: 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection; PoE: IEEE 802.3af, Class 3, max. 7.5 W
Material: Metal & Plastic
Dimension: Ø121.4 × 97.7 mm (Ø4.8" × 3.8")
Package Dimension: 150 × 150 × 141 mm (5.9" × 5.9" × 5.6")
Camera Weight: Approx. 550 g (1.2 lb.)
With Package Weight: Approx. 800 g (1.8 lb.)
Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity ≤ 95% non-condensing
Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity ≤ 95% non-condensing
General Function: Heartbeat, anti-banding, mirror, password protection, password reset via email

Approval
EMC: FCC 47 CFR Part 15 Subpart B; CE-EMC EN 55032:2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014; RCM AS/NZS CISPR 32:2015; IC ICES-003 Issue 7
Safety: UL 62368-1; CB IEC 62368-1:2014+A11; CE-LVD EN 62368-1:2014/A11:2017; BIS IS 13252 (Part 1): 2010/IEC 60950-1; LOA IEC/EN 60950-1
Environment: CE-RoHS 2011/65/EU; WEEE 2012/19/EU; REACH EC 1907/2006
Protection: IP67 IEC 60529-2013, IK08 IEC 62262:2002
