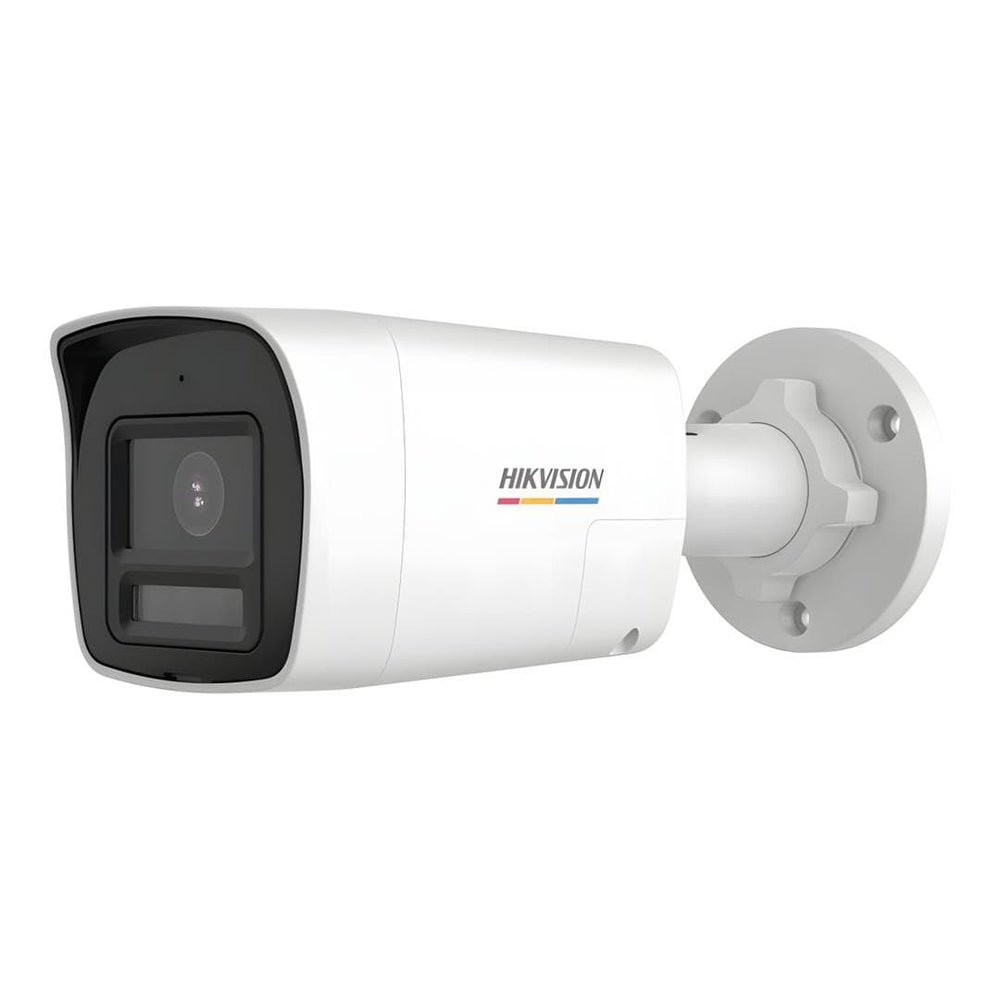

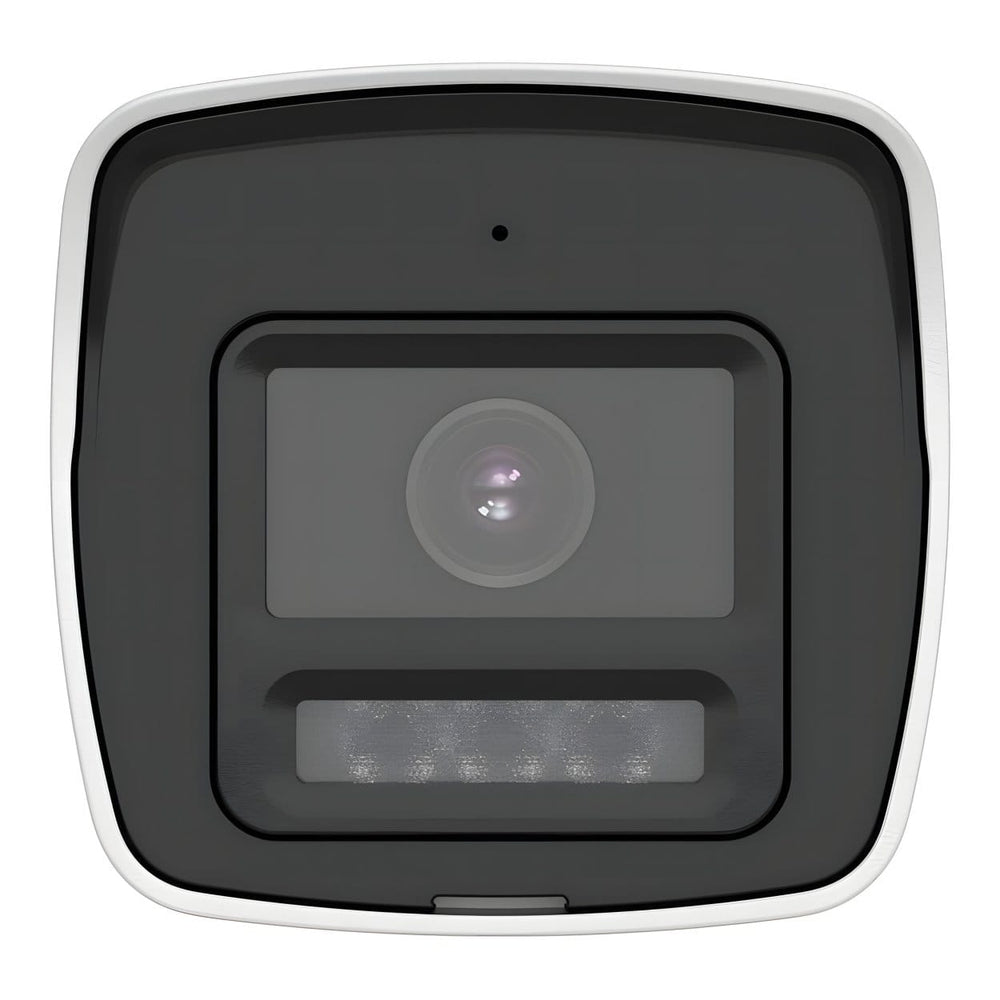

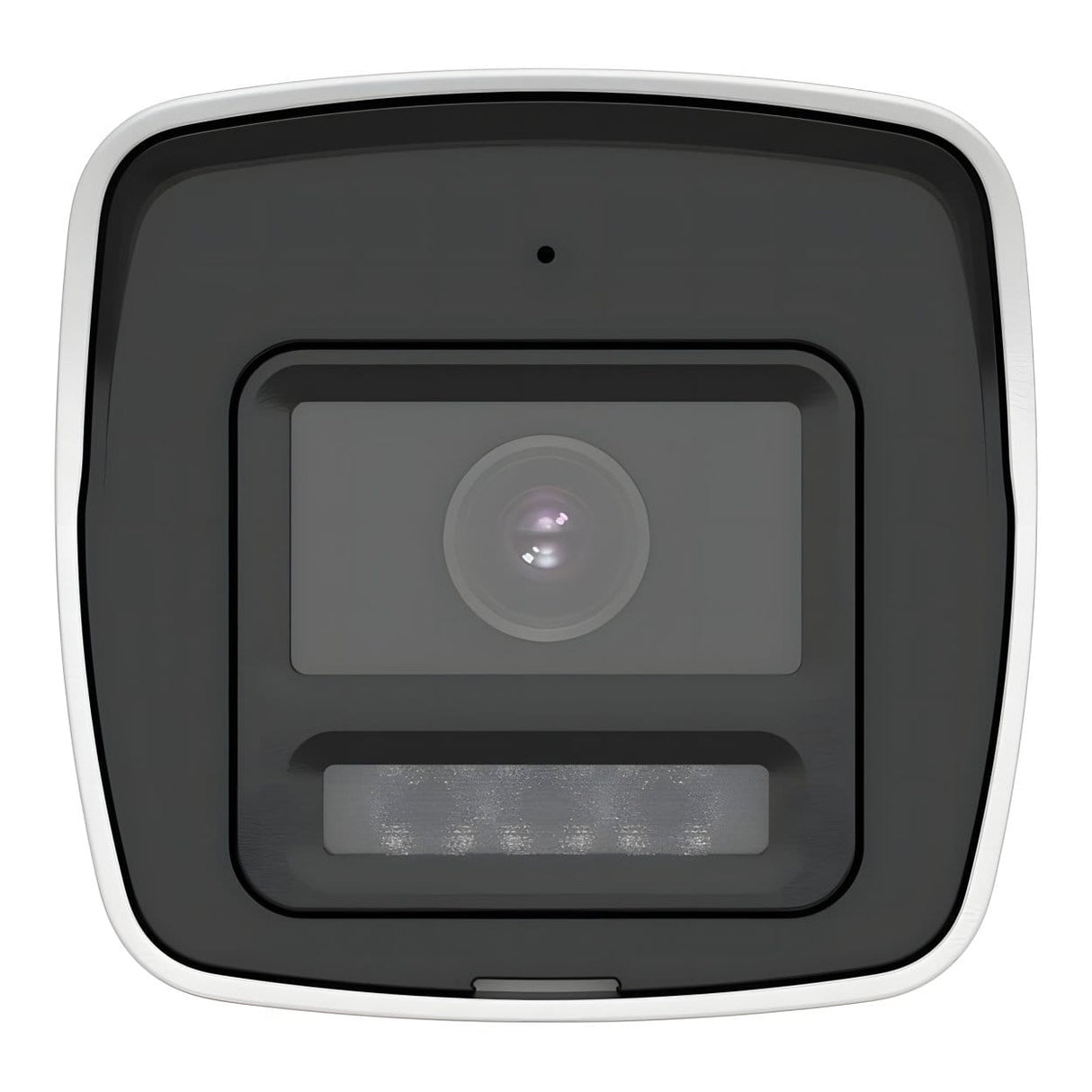

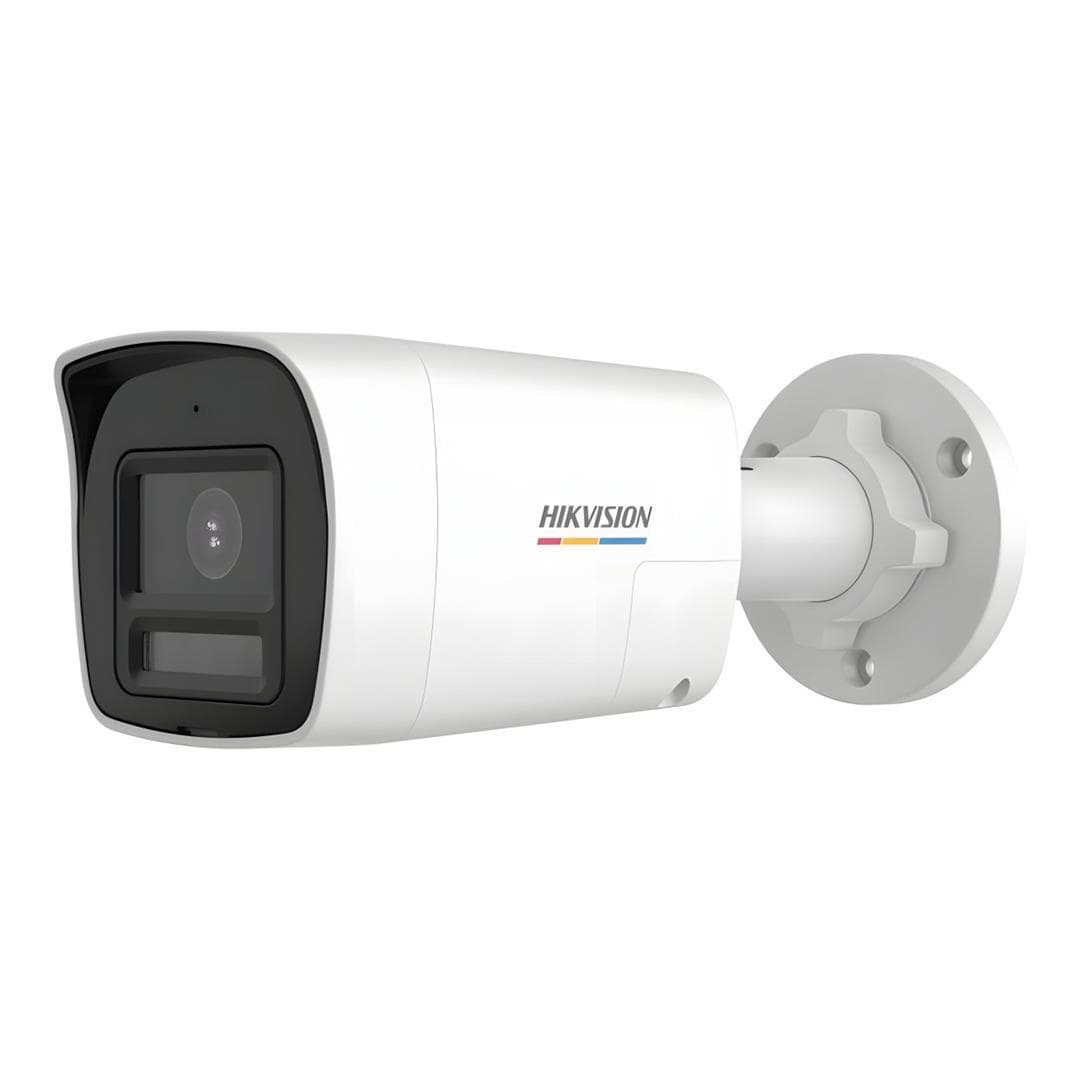

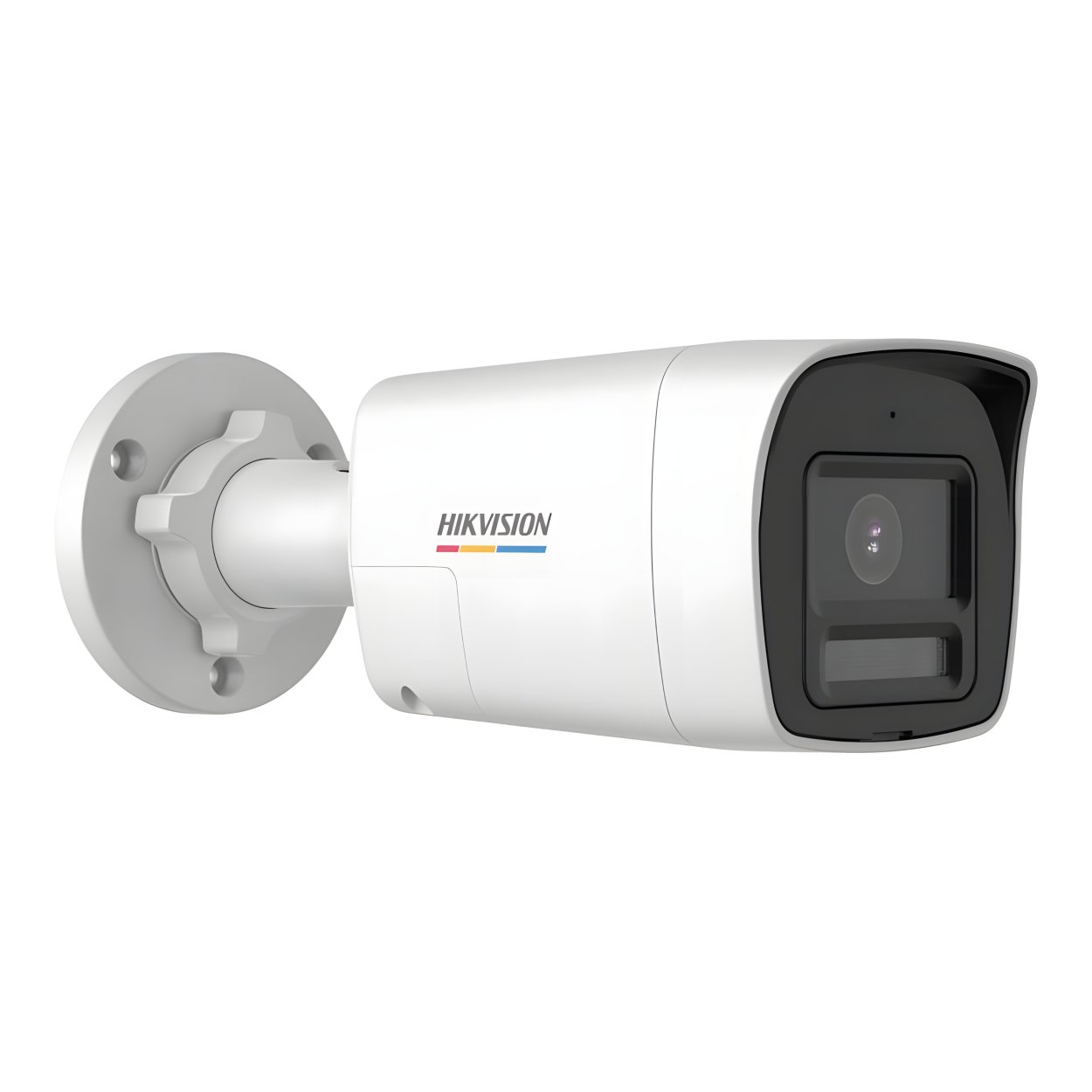

Hikvision 2MP Two Way Audio & Siren Fixed Mini Bullet Camera DS-2CE10DF0T-LXTS(2.8mm)

Hikvision 2MP Two Way Audio & Siren Fixed Mini Bullet Camera DS-2CE10DF0T-LXTS(2.8mm)

Features:

• High quality imaging with 2 MP, 1920 × 1080 resolution
• 24/7 color imaging with F1.0 aperture
• Smart-Hybrid Light, optimize your security with flexible lighting options
• 3D DNR technology delivers clean and sharp images
• Up to 20 m white light and 30 m IR distance for bright night imaging
• Active strobe light and audio alarm to warn intruders off
• Built-in mic and built-in speaker，high quality audio with audio over coaxial cable
• Provide real-time communication via built-in two-way audio
• Water and dust resistant (IP67)

Technical Specifications:

Camera
Image Sensor: 2 MP CMOS
Maximum Resolution: 1920 × 1080
Minimum Illumination: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with White Light
Shutter Time:

• PAL: 1/25 S To 1/50,000 S
• NTSC: 1/15 S To 1/50,000 S

Day & Night Mode: ICR
Signal System: PAL / NTSC

Angle Adjustment:

• Pan: 0° To 360°
• Tilt: 0° To 90°
• Rotate: 0° To 360°

Lens
Lens Type:

• 2.8 Mm Fixed Lens
• 3.6 Mm Fixed Lens

Field of View:

• 2.8 Mm Lens:
  • Horizontal: 101°
  • Vertical: 55°
  • Diagonal: 122°
• 3.6 Mm Lens:
  • Horizontal: 84°
  • Vertical: 47°
  • Diagonal: 99°

Lens Mount: M12

Microphone
Pickup Distance: Up To 5 M Radius
Quantity: 1

Speaker
Rated Power: 2 W
Speaker Range: Up To 5 M Radius

Illuminator
Supplement Light Type:

• Smart
• IR
• White Light

Supplement Light Range:

• IR: Up To 30 M
• White Light: Up To 20 M

Image Features
Image Settings:

• Anti-Banding
• Brightness
• Sharpness
• Smart IR

Frame Rate: TVI 1080p @ 25/30 Fps
Day/Night Mode: Auto / Color
Wide Dynamic Range: Digital WDR

Image Enhancement:

• DWDR
• BLC
• HLC
• Global

Noise Reduction: 3D DNR

White Balance:

• Auto
• Manual

Audio
Audio Functions:

• Echo Cancellation
• AI Noise Reduction
• Automatic Gain Control

Interface
Video Output: 1 × HD Analog Output

Alarm Features
Flashing Light Alarm: Red And Blue

General
Power Supply: 12 VDC ±25%, Max. 6.2 W

Recommended Power Configuration:

• One Power Adapter Per Camera
• If A High-Impedance Cable Is Used (Such As The 18 M Extension Cable In The Kit Package), A 15 VDC Adapter Is Required

Material: Metal

Dimensions: 179 × 66 × 69.1 Mm
Weight: Approx. 435 G

Operating Conditions:

• Temperature: -40°C To 60°C
• Humidity: ≤90% Non-Condensing

Communication Protocol: HIKVISION-C
Language Support: English

Protection
Protection Rating: IP67
