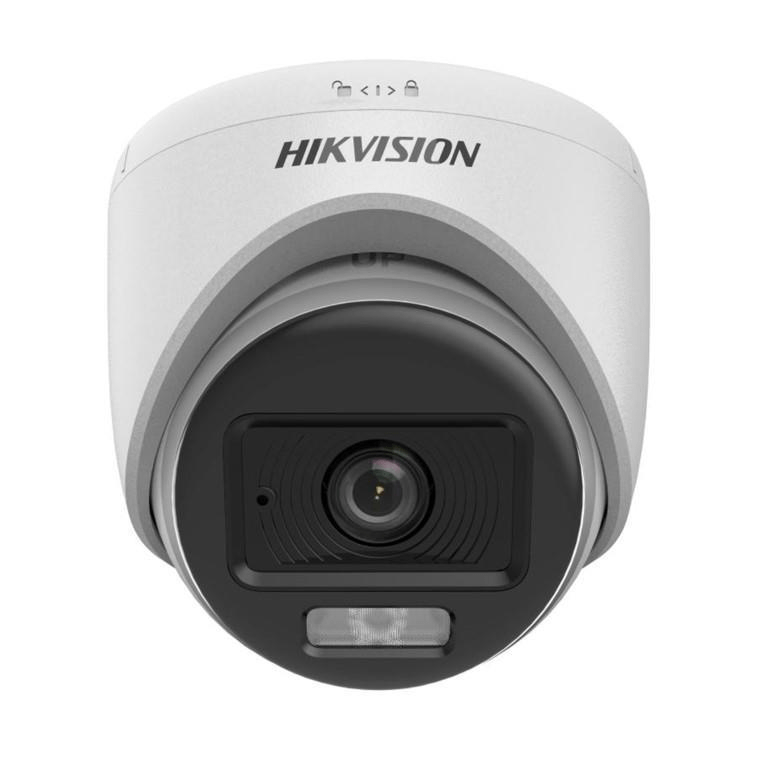

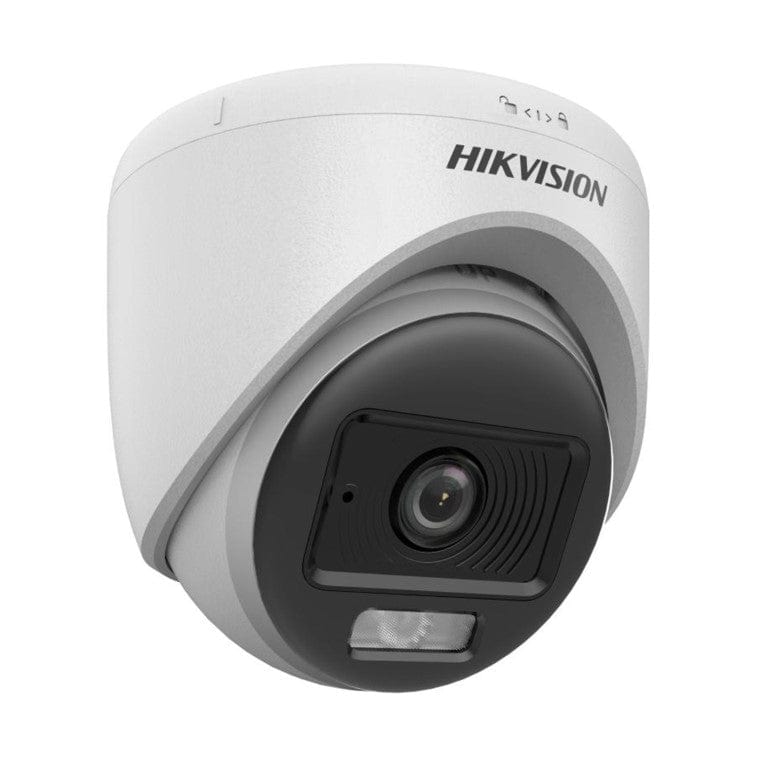

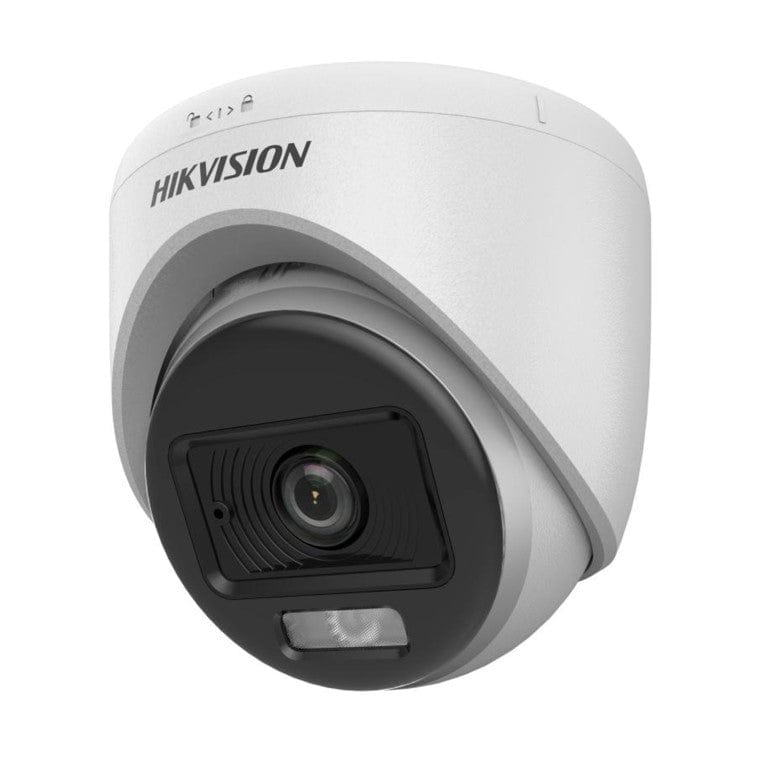

Hikvision 2MP 3.6mm Smart Hybrid Light with ColorVu Indoor Fixed Turret Camera DS-2CE70DF0T-LPFS(3.6mm)

Hikvision 2MP 3.6mm Smart Hybrid Light with ColorVu Indoor Fixed Turret Camera DS-2CE70DF0T-LPFS(3.6mm)

Features

• High quality imaging with 2 MP CMOS
• 1920 x 1080 Max. Resolution
• 3.6 mm Fixed Lens
• Horizontal FOV: 84°, Vertical FOV: 46°, Diagonal FOV: 98°
• 24/7 color imaging with F1.0 aperture
• Smart-Hybrid light, optimize your security with flexible lighting options
• 3D DNR technology delivers clean and sharp images
• Up to 20 m white light distance for bright night imaging
• Up to 20 m IR distance for bright night imaging
• High quality audio with audio over coaxial cable
• Built-in Microphone
• 1-port for four switchable signals (TVI/AHD/CVI/CVBS)
• Plastic Material
• 12 VDC ± 25%, max. 2.9 W
• *Power supply is not included

Technical Specifications:

Camera
Image Sensor: 2 MP CMOS
Max. Resolution: 1920 (H) × 1080 (V)
Min. Illumination: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time: PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Day & Night: ICR
Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
Signal System: PAL/NTSC

Lens
Lens Type: 2.8 mm and 3.6 mm fixed focal lens
Focal Length & FOV:

• 2.8 mm: horizontal FOV 105°, vertical FOV 56°, diagonal FOV 126°
• 3.6 mm: horizontal FOV 84°, vertical FOV 46°, diagonal FOV 98°

Lens Mount: M12

Microphone
Pickup Distance: Up to 5 m radius
Amount: 1

Illuminator
Supplement Light Type: Smart, IR, White Light
Supplement Light Range: IR: up to 20 m, White Light: up to 20 m

Image Parameters Switch: STD / HIGH-SAT / HIGHLIGHT
Image Settings: Brightness, Sharpness, Anti-banding, AGC
Frame Rate:

• TVI: 1080p @ 25/30 fps
• CVI: 1080p @ 25/30 fps
• AHD: 1080p @ 25/30 fps

CVBS: PAL/NTSC
Day/Night Mode: Auto / Color
Wide Dynamic Range (WDR): Digital WDR
Noise Reduction: 3D DNR / 2D DNR
Image Enhancement: DWDR, BLC, HLC, Global
White Balance: Auto / Manual

Interface
Video Output: Switchable TVI / AHD / CVI / CVBS

General
Material: Plastic
Power: 12 VDC ± 25%, max. 2.9 W
Recommended: use one power adapter per camera
Dimension: Ø85.02 mm × 81.25 mm (Ø3.35" × 3.2")
Weight: Approx. 155 g (0.34 lb.)
Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), Humidity ≤ 90% (non-condensing)
