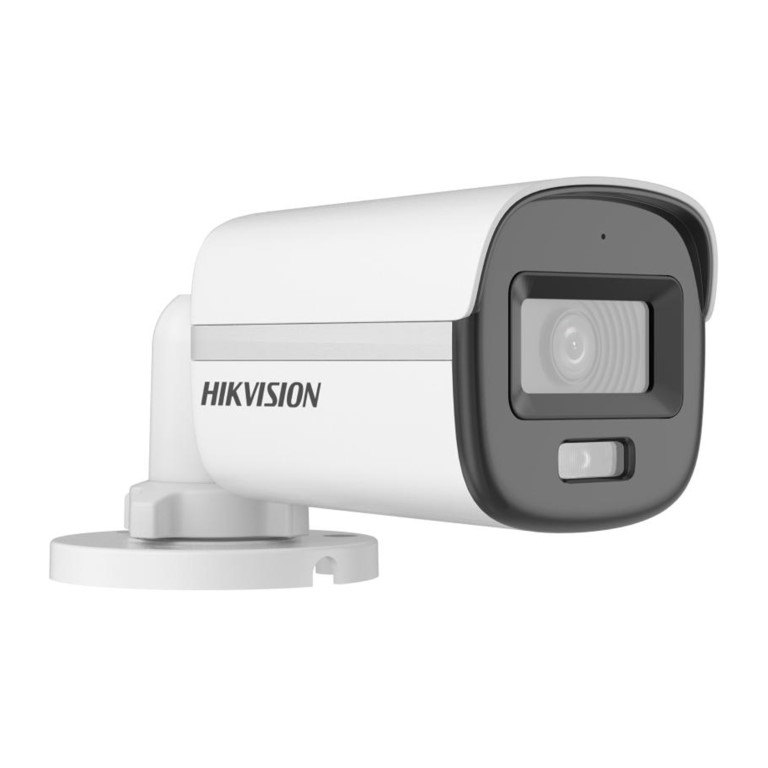

Hikvision 2MP 3.6mm Smart Hybrid-light with ColorVu Fixed Mini Bullet Camera DS-2CE10DF0T-LPFS(3.6mm)

Hikvision 2MP 3.6mm Smart Hybrid-light with ColorVu Fixed Mini Bullet Camera DS-2CE10DF0T-LPFS(3.6mm)

Features

• High quality imaging with 2 MP CMOS
• 1920 x 1080 resolution
• 3.6mm Fixed Focal Lens
• Horizontal FOV: 84°, Vertical FOV: 46°, Diagonal FOV: 98°
• 24/7 color imaging with F1.0 aperture
• Smart-Hybrid light, optimize your security with flexible lighting options
• 3D DNR technology delivers clean and sharp images
• Up to 20m white light distance for bright night imaging
• Up to 20m IR distance for bright night imaging
• High quality audio with audio over coaxial cable
• Built-In Microphone
• 1-port for four switchable signals (TVI/AHD/CVI/CVBS)
• Water and dust resistant (IP67)
• 12 VDC ± 25%, max. 2.9 W
• *Power supply is not included

Technical Specifications:

Camera
Image Sensor: 2 MP CMOS
Max. Resolution: 1920 (H) × 1080 (V)
Min. Illumination: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time: PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Day & Night: ICR
Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
Signal System: PAL / NTSC

Lens
Lens Type: 2.8 mm and 3.6 mm fixed focal lens
Focal Length & FOV:

• 2.8 mm: Horizontal FOV 105°, Vertical FOV 56°, Diagonal FOV 126°
• 3.6 mm: Horizontal FOV 84°, Vertical FOV 46°, Diagonal FOV 98°

Lens Mount: M12

Microphone
Pickup Distance: In a radius of up to 5 m
Amount: 1

Illuminator
Supplement Light Type: IR, White Light
Supplement Light Range: IR: Up to 20 m; White Light: Up to 20 m

Image Parameters Switch: STD / HIGH-SAT / HIGHLIGHT
Image Settings: Brightness, Sharpness, Anti-banding, AGC
Frame Rate:
TVI: 1080p @ 25 fps / 30 fps
CVI: 1080p @ 25 fps / 30 fps
AHD: 1080p @ 25 fps / 30 fps
CVBS: PAL / NTSC
Day/Night Mode: Auto / Color
Wide Dynamic Range (WDR): Digital WDR
Noise Reduction: 3D DNR / 2D DNR
Image Enhancement: DWDR, BLC, HLC, Global
White Balance: Auto, Manual

Interface
Video Output: Switchable TVI / AHD / CVI / CVBS

General
Material: Plastic
Power:
12 VDC ±25%, max. 2.9 W

You are recommended to use one power adapter to supply the power for one camera.

Dimension:
161.1 mm × 68.4 mm × 65.2 mm (6.34" × 2.69" × 2.57")

Approx. Weight: 235 g (0.52 lb.)

Operating Condition:
-40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensing)

Communication: HIKVISION-C

Language: English

Approval
Protection: IP67
