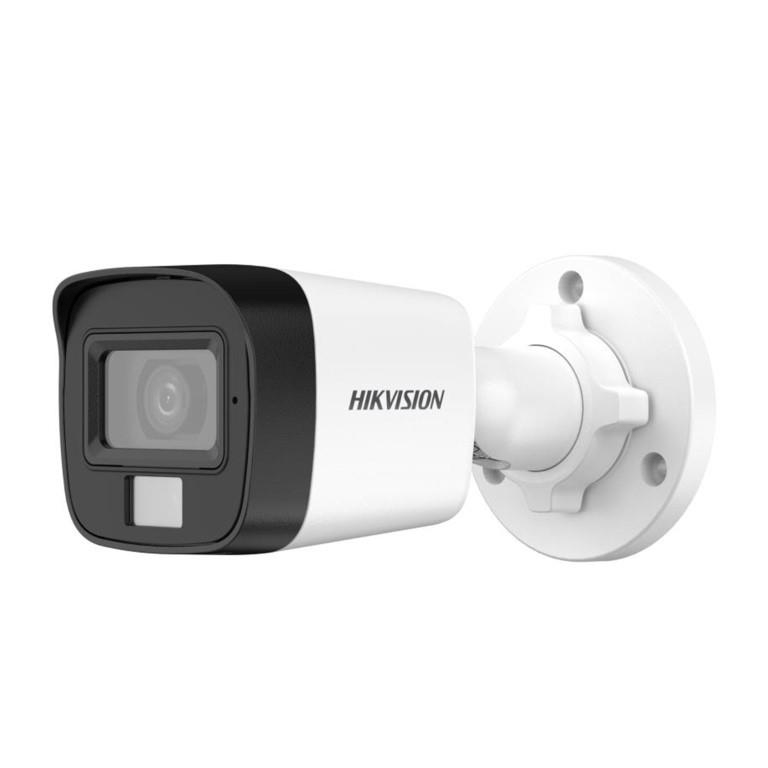

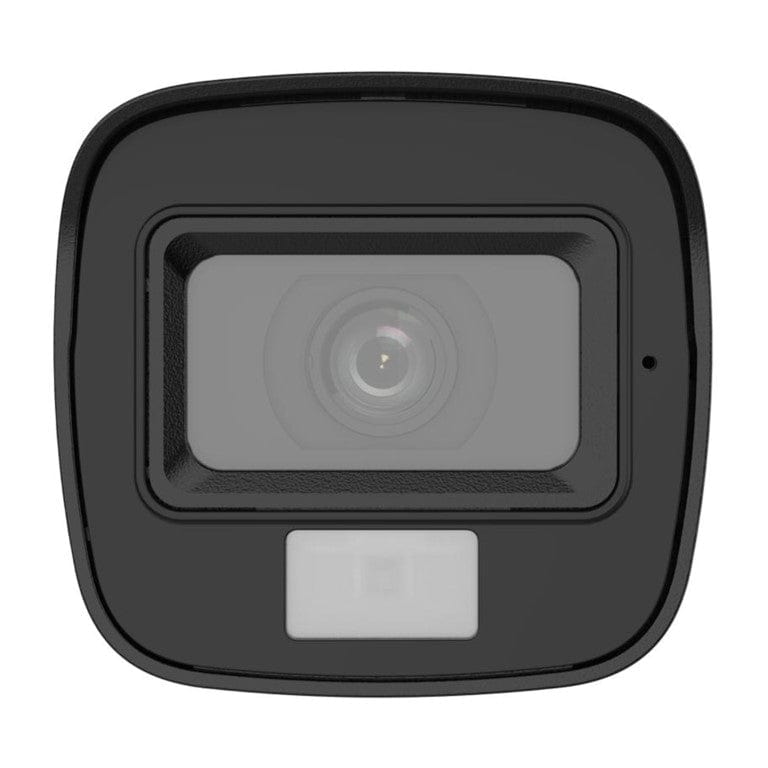

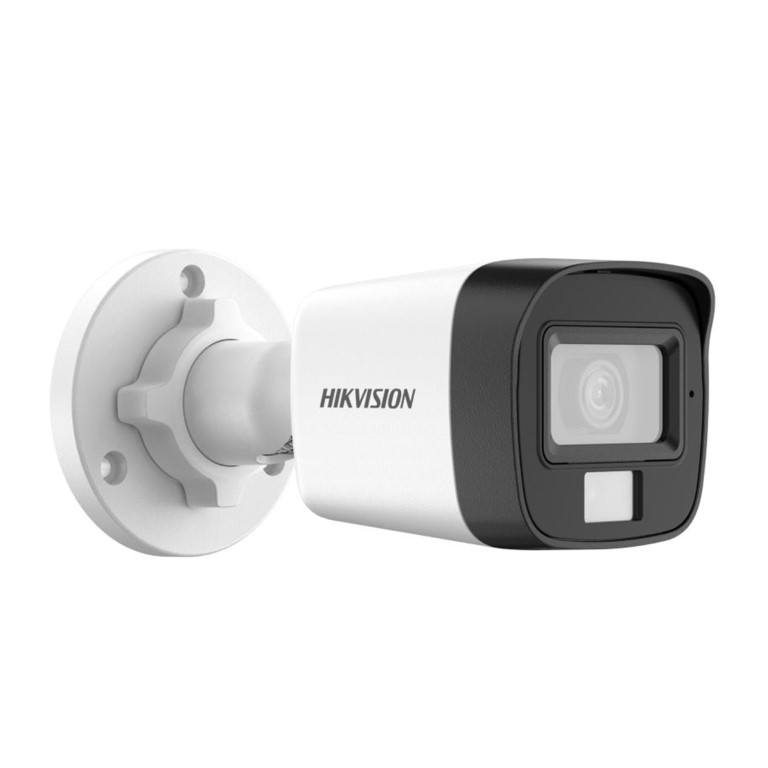

Hikvision 2MP 2.8mm Smart Hybrid Light Audio Fixed Mini Bullet Camera DS-2CE16D0T-LFS(2.8mm)

Hikvision 2MP 2.8mm Smart Hybrid Light Audio Fixed Mini Bullet Camera DS-2CE16D0T-LFS(2.8mm)

Features

• High quality imaging with 2 MP
• 1920 x 1080 Max. Resolution
• 2.8 mm Fixed Lens
• Horizontal FOV: 101°, Vertical FOV: 56°, Diagonal FOV: 118°
• Up to 30 m IR distance for bright night imaging
• Up to 20 m white light distance for bright night imaging
• One port for four switchable signals (TVI/AHD/CVI/CVBS）
• High quality audio with audio over coaxial cable, built-in mic
• Water and dust resistant (IP67)
• Smart-Hybrid light, optimize your security with flexible lighting options
• 12 VDC ± 25%, Max. 3.3 W
• *You are recommended to use one power adapter to supply the power for one camera.
• *Power supply is not included

Technical Specifications:

Camera
Image Sensor: 2 MP CMOS
Max. Resolution: 1920 (H) × 1080 (V)
Min. Illumination: 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Time: PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Day & Night: ICR
Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
Signal System: PAL/NTSC

Lens
Lens Type: 2.8 mm, 3.6 mm fixed focal lens
Focal Length & FOV: 2.8 mm: horizontal FOV 101°, vertical FOV 56°, diagonal FOV 118°; 3.6 mm: horizontal FOV 78°, vertical FOV 42°, diagonal FOV 92°
Lens Mount: M12

Microphone
Pickup Distance: In a radius of 5 m
Amount: 1

Illuminator
Supplement Light Type: Smart, IR, White Light
Supplement Light Range: IR: Up to 30 m; White Light: Up to 20 m

Image Settings: Brightness, Sharpness, Smart IR
Frame Rate: TVI: 1080P @ 30 fps, 1080P @ 25 fps; AHD: 1080P @ 30 fps, 1080P @ 25 fps; CVI: 1080P @ 30 fps, 1080P @ 25 fps; CVBS: PAL/NTSC
Day/Night Mode: Auto/Color
Wide Dynamic Range (WDR): Digital WDR
Image Enhancement: DWDR, BLC, HLC, Global
White Balance: Auto/Manual
AGC: Yes

Interface
Video Output: Switchable TVI/AHD/CVI/CVBS

General
Material: Metal
Dimension: 138.8 mm × 60.9 mm × 57.9 mm (5.47" × 2.4" × 2.3")
Weight: Approx. 266 g (0.59 lb.)
Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
Communication: HIKVISION-C
Language: English
Power Supply: 12 VDC ± 25% (recommended one power adapter per camera)
Consumption: Max. 3.3 W

Approval
Protection: IP67
