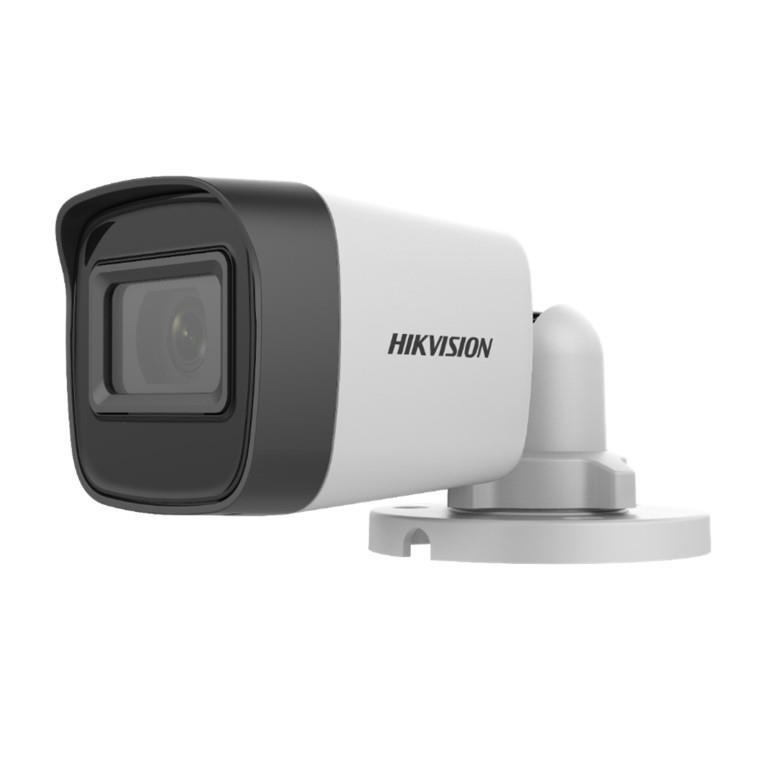

Hikvision 2MP 2.8mm Fixed Mini Bullet Camera DS-2CE16D0T-EXIPF(2.8mm)

Hikvision 2MP 2.8mm Fixed Mini Bullet Camera DS-2CE16D0T-EXIPF(2.8mm)

Features

• High quality imaging with 2MP CMOS, 1920 x 1080 resolution
• 2.8mm Fixed lens
• Horizontal FOV: 96.5°, Vertical FOV: 48.9°, Diagonal FOV: 120.5°
• Up to 20m IR distance for bright night imaging
• One port for four switchable signals (TVI/AHD/CVI/CVBS)
• Water and dust resistant (IP67)
• 12 VDC ± 25%, Max. 3.3 W
• *Power supply is not included

Technical Specifications:

Camera

Image Sensor
2 MP CMOS

Signal System
PAL/NTSC

Max. Resolution
1920 (H) × 1080 (V)

Min. Illumination
0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Time
PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s

Day & Night
IR Cut Filter

Angle Adjustment
Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

Lens
Lens Type
2.8 mm, 3.6 mm Fixed Lens

Focal Length & FOV
2.8 mm, horizontal FOV: 96.5°, vertical FOV: 48.9°, diagonal FOV: 120.5°
3.6 mm, horizontal FOV: 76.9°, vertical FOV: 40.6°, diagonal FOV: 92.0°

Lens Mount
M12

Illuminator
Supplement Light Range
Up to 20 m

Supplement Light Type
Smart, IR, White Light

Frame Rate
TVI: 1080p @ 25fps/30fps
AHD: 1080p @ 25fps/30fps
CVI: 1080p @ 25fps/30fps
CVBS: PAL/NTSC

Wide Dynamic Range (WDR)
Digital WDR

Image Parameters Switch
STD/HIGH-SAT

Day/Night Mode
Auto/Color

White Balance
Auto

Image Enhancement
DWDR, BLC, Global

Noise Reduction
2D DNR

Image Settings
Brightness, Mirror, Smart IR, Sharpness, AGC

Interface
Video Output
Switchable TVI/AHD/CVI/CVBS

General
Language
English

Operating Condition
-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)

Material
Plastic

Communication
HIKVISION-C

Dimension
138.8 mm × 60.9 mm × 57.9 mm (5.465" × 2.389" × 2.278")

Weight
Approx. 145 g (0.32 lb.)

Power
12 VDC ± 25%, Max. 3.3 W

Approval
Protection
IP67
