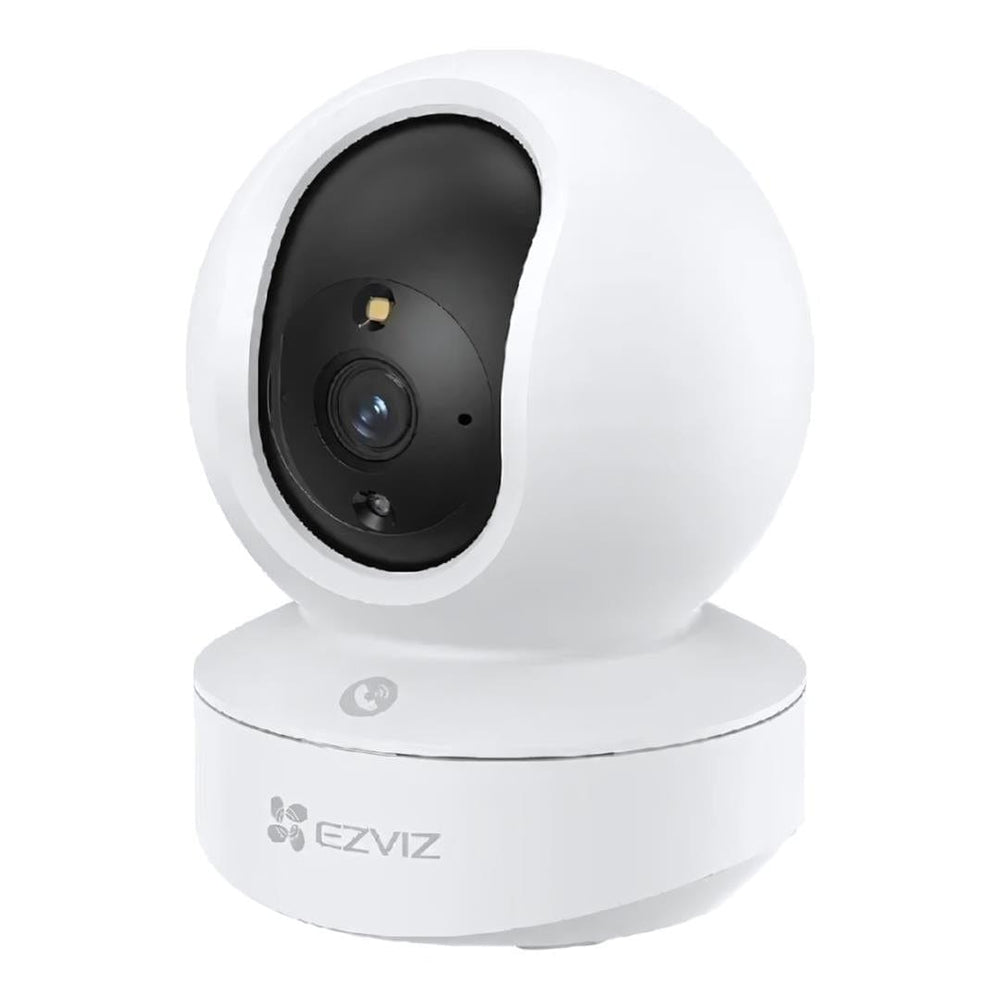

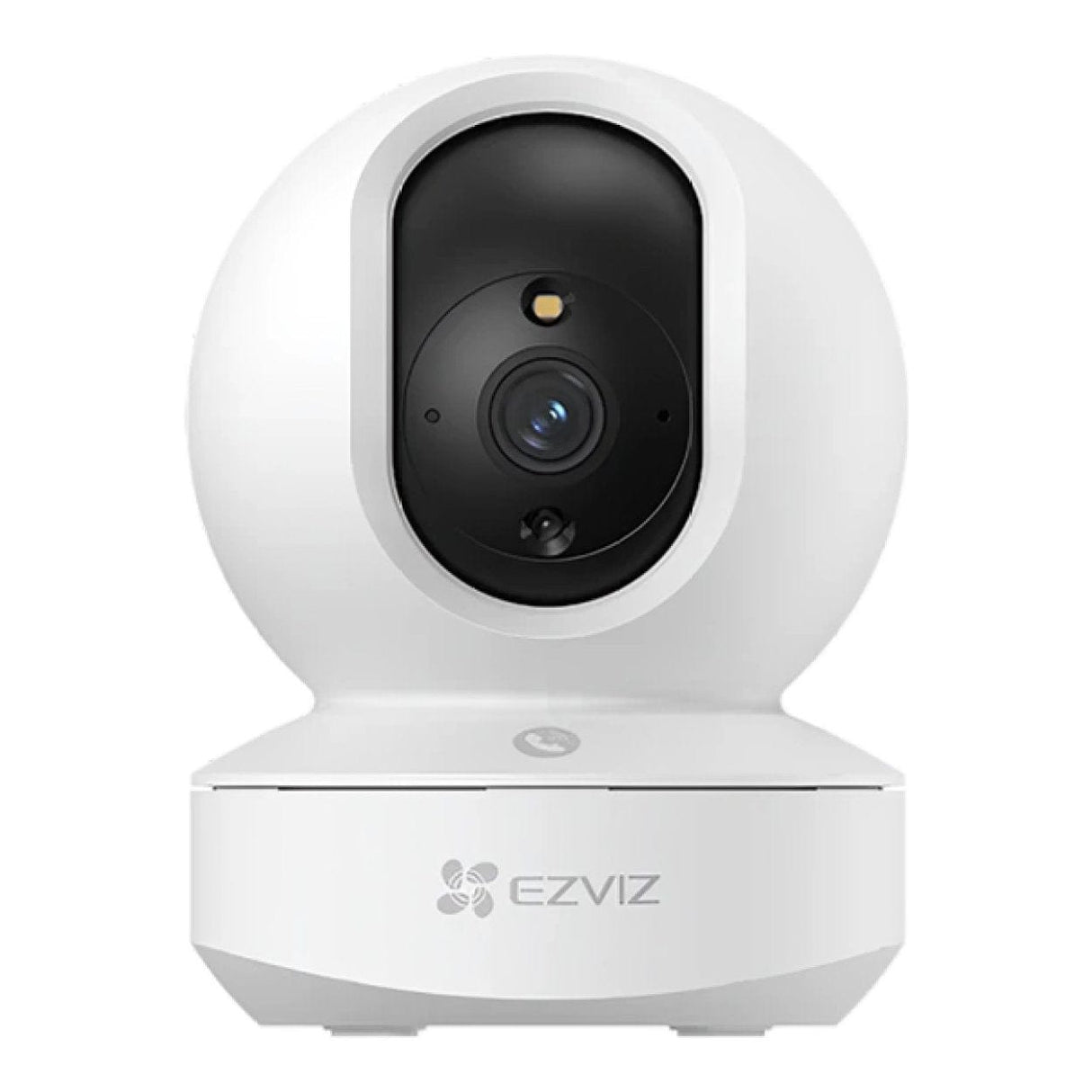

EZVIZ TY1 Pro 5MP 3K Pan and Tilt Smart Home Indoor Camera CS-TY1-R105-1J5WF

EZVIZ TY1 Pro 5MP 3K Pan and Tilt Smart Home Indoor Camera CS-TY1-R105-1J5WF

Sharper vision, smarter security

Unveiling TY1 Pro 3K , the newest innovation to experience next-level home security. It secures your home with sophisticated 3K lens. Swiftly responding to movements and sounds, this smart camera smartly rotates with no corner of your space unnoticed. What’s more, a handy call button keeps your family in close touch with you.

360° protection in stunning 3K detail

See every corner of your indoor realm clearly, just as if you were at home.The TY1 Pro 3K keeps an eye on your home from day to night, ensuring that you can enjoy peace of mind all day long.

Enhanced security with fully-automated rotation

The TY1 Pro 3K pans and tilts automatically to eliminate blind spots with its unique patrol mode. You can even customize patrol pattern in accordance with your very special home, leaving no corner uncovered.

Get the notifications that matter

A lot of activities go on inside your home. Don't want to get alerted repeatedly when your curtains flutter in the wind? The TY1 Pro is smart enough to identify human activities in particular. You can choose to get alerted only when somebody is detected on camera.

Smart enough to detect, zoom, and follow

The camera can automatically zoom in up to 4 times to follow a moving person so you see details and get the whole picture at the same time. You can always enable the AI option to detect and track specifically human movements.

It takes care of the whole family

It’s important to know if you’re needed by your loved ones. The camera alerts you if the noise level suddenly changes – whether your baby cries or a siren blares. In addition, they can contact you from the camera’s side by simply tapping the call button - one of the easiest way to make a video call.

Protection that never sleeps

Say goodbye to grainy video clips during nighttime. Even in pitch black darkness, the TY1 Pro renders vivid night vision to provide peace of mind.

Steady connection for boosted performance

Set up the camera network, either wired or wirelessly. You can connect the camera to either 2.4 or 5 GHz¹ band to ensure a strong Wi-Fi signal.

Technical Specifications:

Camera
Image Sensor: 1/2.7" Progressive Scan CMOS
Shutter Speed: Self-adaptive shutter
Lens: 4mm @ F1.6, viewing angle: 87° (Horizontal), 53° (Vertical), 104° (Diagonal)
Lens Mount: M12
Day & Night: IR-cut filter with auto switch
DNR: 3D DNR
WDR: Digital WDR

Compression
Video Compression: H.264/H.265
Video Bit Rate: Adaptive bit rate

Max. Resolution: 2880 × 1620
Frame Rate: Self-Adaptive during network transmission

Network
Smart Alarm: Motion Detection, Human Shape Detection, Loud Noise Detection, Patrol Mode Detection
Wi-Fi Pairing: AP pairing
Protocol: EZVIZ cloud proprietary protocol
Interface Protocol: EZVIZ cloud proprietary protocol

Interface
Storage: Micro SD card slot (Max. 512G)
Power: TYPE-C

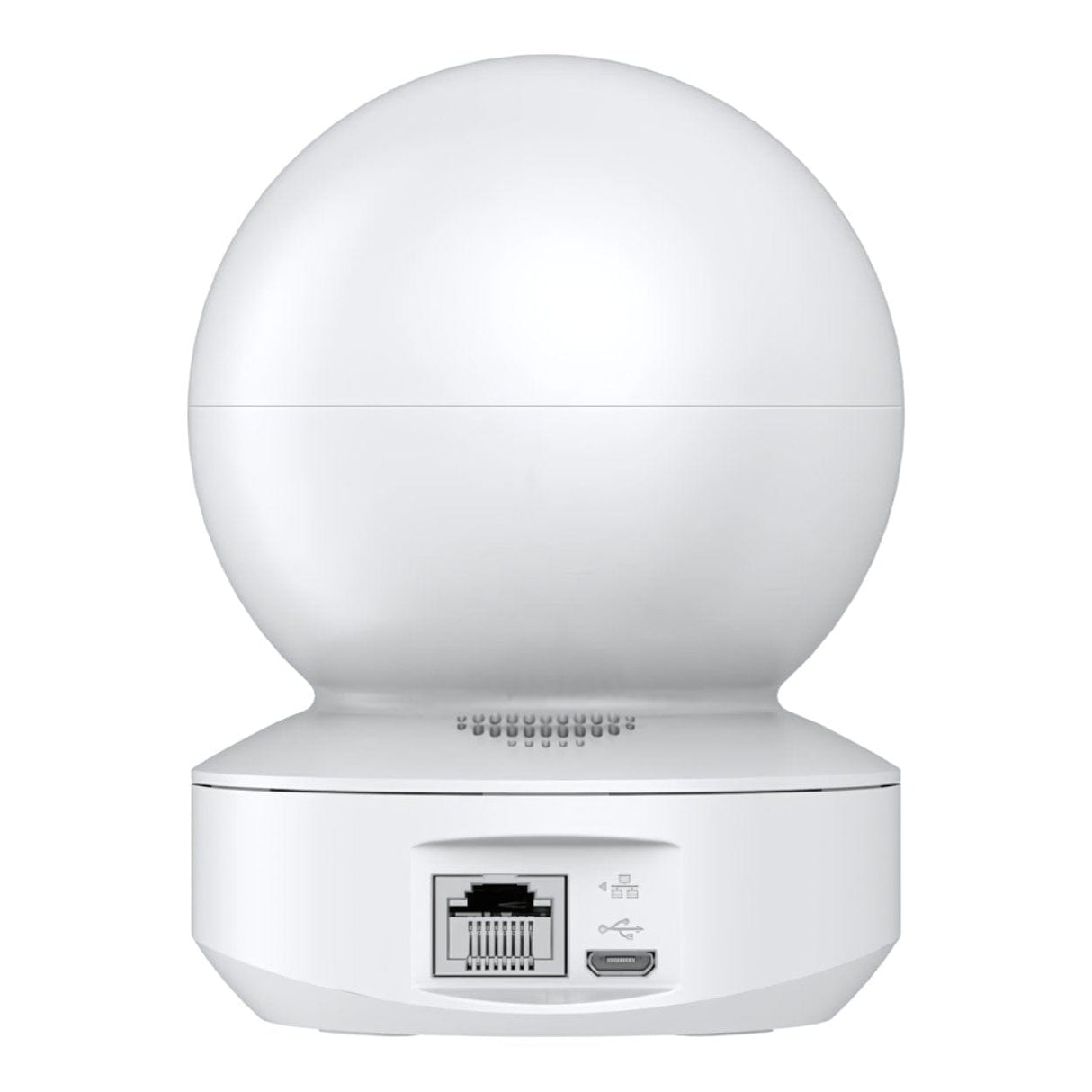

Wired Network: RJ45 × 1 (10M/100M self-adaptive Ethernet port)

Wi-Fi
Standard: IEEE802.11a, 802.11b, 802.11g, 802.11n
Frequency Range: 2.4G: 2400~2483.5 MHz, 5G: 5150~5250 MHz
Channel Bandwidth: Supports 20 MHz
Security: WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate: 11b 11 Mbps, 11g 54 Mbps, 11n HT20 MCS7, 11a 54 Mbps, 11n HT20 MCS7
Output Power (EIRP): 19 dBm
Antenna Gain: 1.9 dBi

General
Operating Conditions: -10°C to 45°C (14°F to 113 °F), Humidity 95% or less (non-condensing)
Power Supply: DC 5V/2A
Power Consumption: Max. 8W
IR Range: Max. 10 meters (32.81 ft)
Dimensions: 88 × 88.2 × 119 mm (3.46 × 3.47 × 4.69 in)
Packaging Dimensions: 103 × 103 × 168 mm (4.06 × 4.06 × 6.61 in)
Bare Weight: 213 g (0.47 lb)

Certifications
CE / UL / WEEE / REACH / RoHS

What's in the Box:

• TY1 Pro 3K Camera
• Power Adapter
• Power Cable
• Drill Template
• Mounting Plate
• EZVIZ Screw Kit
• Regulatory Information
• Quick Start Guide
