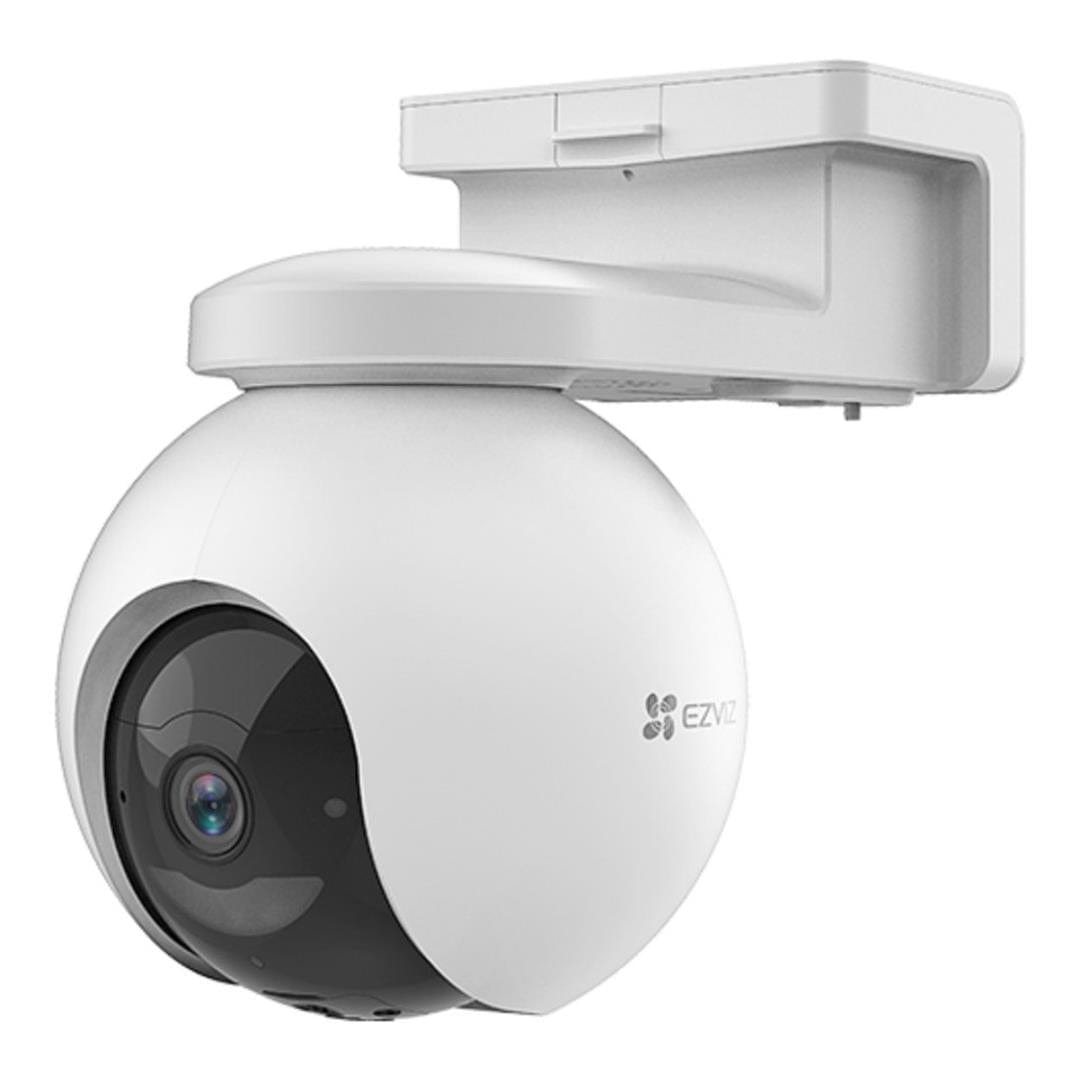

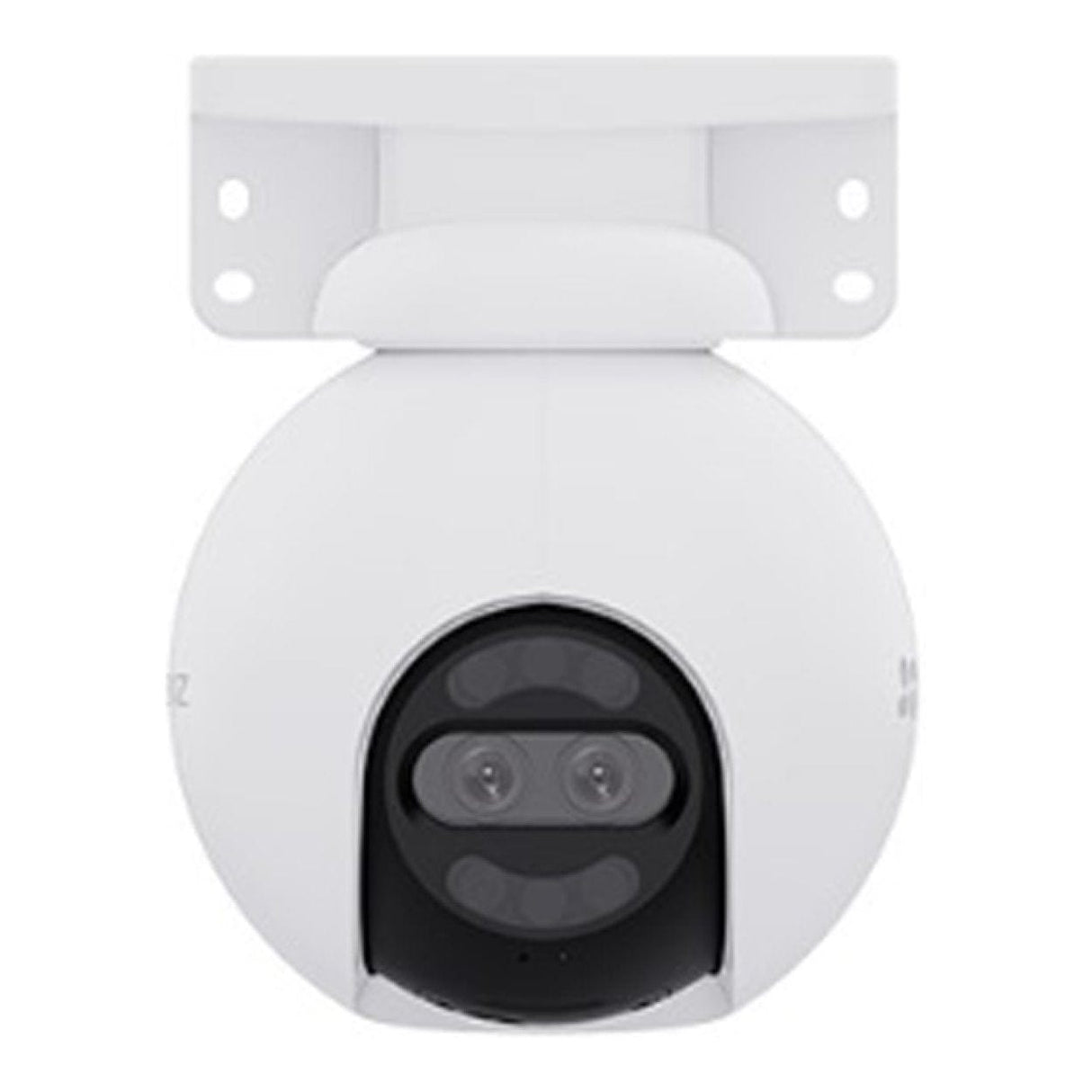

EZVIZ H80x Dual 8MP Pan & Tilt Wi-Fi Camera CS-H80X-R100-8G82WKFL

EZVIZ H80x Dual 8MP Pan & Tilt Wi-Fi Camera CS-H80X-R100-8G82WKFL

Colorful. Powerful. Watchful.

Meet the state-of-the-art outdoor camera that smartly mixes the power of two lenses to truly understand the lights and shadows of an environment and capture crucial moments. Featuring EZVIZ’s self-developed ColorFULL technology and ultra-clear 4K resolution, the H80x Dual doesn’t need to turn on any spotlight before restoring lifelike details in a dark space. A flexible pan and tilt camera by design, it tracks activities, patrols key areas and triggers on-the-spot warnings all automatically to amp up a peaceful mind.

Panoramic view with next-level 4K vision

The H80x Dual is determined to upgrade the level of protection of your outdoor space. With its lifelike 4K resolution, it ensures that even the smallest detail is captured — you can easily see the face of your happy dog even at a distance. Complementing its pan-and-tilt function, the camera offers 360-degree all-round protection for long-lasting peace of mind.

ColorFULL Night Vision: Always stay true to colors

Full-color vision is now made through the night, with EZVIZ’s innovative ColorFULL technology. Even when all the lights go out, every colorful detail can still get captured and presented in a natural way.

ColorFULL means colorful details, fully presented

The camera faithfully captures reality in even ultra-low-light conditions – it recreates the colors with the correct light and shadow ratios throughout the entire scene, without uneven brightness or dark corners. It helps you capture finer detail, stay aware of a lurking situation and reduce the nuisance of flashes.

Detect smartly for events that you care

No need to constantly check your door or rush to the backyard when you hear absurd noises. The H80x Dual helps you be aware of every person or vehicle visit. It notifies about people and vehicles in motion, and reduces unnecessary alerts triggered by objects in your surroundings.

Track and focus with a zoom, all automatically

With its smart tracking ability, the H80x Dual ensures that no event easily disappears from a static camera view. Once identifying human actions, it automatically rotates and zooms in to capture the unfolding activity with a complete video recording.

Patrol automatically for areas that matter

The H80x Dual monitors your property vigilantly with its unique patrol mode. It pans and tilts precisely to your pre-set viewpoints, automating the whole security check routines for greater peace of mind.

Adjustable sound and light alarm

The camera offers an additional level of security with its active defense function. When it notices intruders, it triggers a powerful siren and flashes at them with two spotlights⁴ to warn them on the spot. What's more, users can flexibly adjust the sound and light alarm settings to suit their preferences.

One click return to the preset location

You can use the EZVIZ App to set up 12 most frequently used vision spots, so that the H80x Dual adeptly navigates back to your preferred viewing angle with just one click.

Greeting can be this easy

Enjoy two-way communications by simply using your phone. Or, pre-record specific voice messages that automatically play when people are detected on camera.

Technical Specifications:

Camera
Image Sensor: 1/2.7” + 1/2.9” Progressive Scan CMOS
Shutter Speed: Self-adaptive shutter
Lens: 4 mm @ F1.0, Viewing Angle 46° (Vertical), 87° (Horizontal), 103° (Diagonal) (1080p); 4 mm @ F1.6, Viewing Angle 46° (Vertical), 87° (Horizontal), 103° (Diagonal) (4K)
PT Angle: Pan 340°, Tilt 70°
Minimum Illumination: 0.01 Lux @ (F1.0, AGC ON), 0 Lux with IR (*data from EZVIZ labs)
Lens Mount: M12
Day/Night Switch: IR-cut filter with auto switch
DNR: 3D DNR
WDR: Digital WDR
BLC: Supports
Black & White Night Vision: 30 m (98 ft)

Video & Audio
Max. Resolution: 3840 x 2160
Frame Rate: Self-Adaptive during network transmission
Video Compression: H.265 / H.264
H.265 Type: Main Profile
Video Bit Rate: Ultra HD, Quad HD, Full HD, HD (Adaptive bit rate)
Audio Bit Rate: Self-Adaptive

Network
Wi-Fi Standard: IEEE802.11b / g / n
Frequency Range: 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth: 20 MHz
Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate: 11b: 11 Mbps, 11g: 54 Mbps, 11n: 150 Mbps
Wi-Fi Pairing: AP pairing
Protocol: EZVIZ Cloud proprietary protocol
Interface Protocol: EZVIZ Cloud proprietary protocol
Wired Network: RJ45 x 1 (10M/100M adaptive Ethernet port)

Functions
Smart Alarm: AI-powered human shape detection, AI-powered vehicle shape detection
Customized Alert Area: Supports
Two-way Talk: Supports
Auto Tracking: Supports
General Functions: Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark

Storage
Local Storage: MicroSD card (Up to 512 GB)
Cloud Storage: EZVIZ CloudPlay storage (Subscription required)

General
Operating Conditions: -30 °C to 50 °C, Humidity ≤95% (Non-condensing)
IP Grade: IP65
Power Supply: DC 12V/1A
Power Consumption: Max 12W
Dimensions: 170 x 112 x 154 mm (6.69 x 4.41 x 6.06 in)
Packaging Dimensions: 205 x 176 x 194 mm (8.07 x 6.93 x 7.64 in)
Weight: Product 630 g (22.22 oz), With Package 1035 g (36.5 oz)

Certifications
Certifications: CE / UL / WEEE / RoHS / REACH

What's in the Box:

• H80x Dual 4K Camera
• Drill Template
• Waterproof Kit
• Screw Kit
• Power Adapter
• Regulatory Information x 2
• Quick Start Guide
