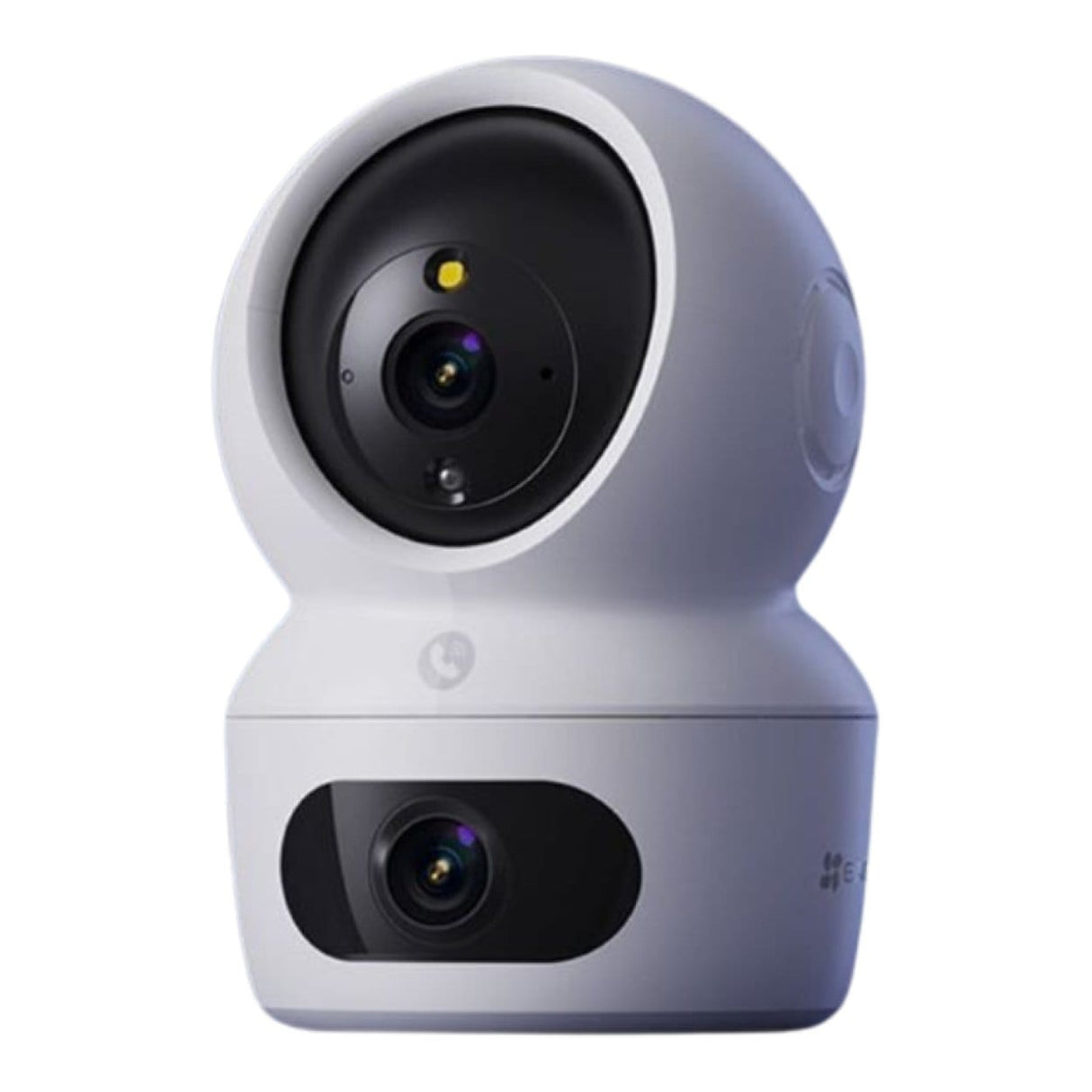

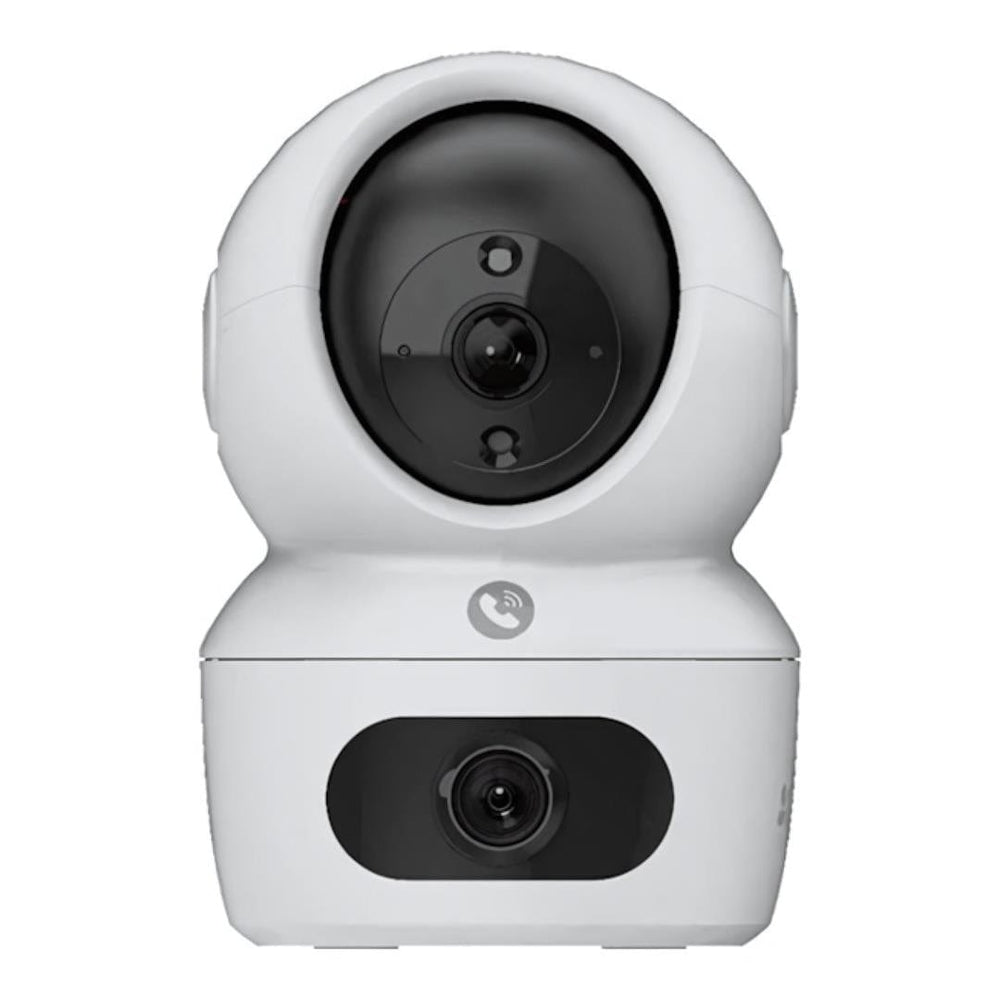

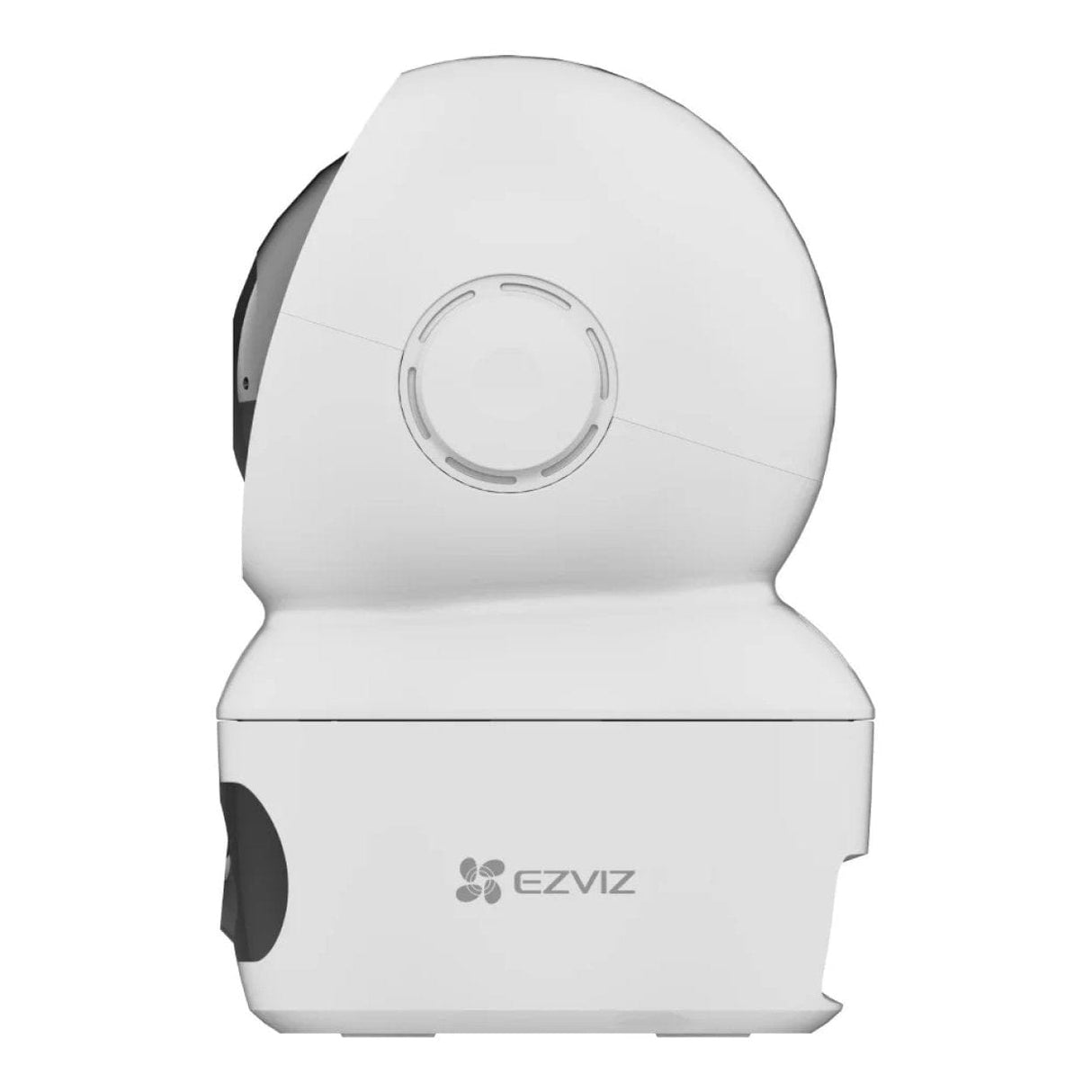

EZVIZ H7c Dual 2K Dual-Lens Pan and Tilt Wi-Fi Camera CS-H7C-R100-8G44WF

EZVIZ H7c Dual 2K Dual-Lens Pan and Tilt Wi-Fi Camera CS-H7C-R100-8G44WF

Broader and smarter protection with dual lenses

Experience unparalleled indoor vision with the EZVIZ H7c Dual. Using two powerful lenses to ensures comprehensive coverage from top to bottom, the camera provides whole-room protection like never before. Equipped with human motion detection, two-way calling, and crystal-clear day/night vision, it keeps you connected to your home from anywhere, and doubles up your sense of safety with much more flexible features.

Dual lenses. Double protection.

With EZVIZ’s unique dual-lens technology, the H7c Dual provides next-level protection that’s usually achieved through a multi-camera setup. It uses a fixed lens and a main pan-and-tilt lens at the same time – the duo works independently or together in a way that is much smarter than your ordinary camera.

01 See much more for whole-home protection

The H7c Dual captures information that’s more than double of your old home camera. It uses a motorized pan and tilt camera to monitor a large interior space with almost no blind spots, and ensure that you always keep the key area under continuous watch with a fixed view, too.

02 Work together for a single detection task

The two lenses respond to each other to provide the protection that makes it much more difficult for anyone to move out of sight. When a person enters the zone watched by the fixed lens, the PT lens will automatically rotate to such viewing angle to lock on the person, follow to record the entire event, and send notifications with video footages.

03 Big picture and small details both matter

The camera allows you to understand the whole picture while paying attention to the important details. Both wide angle and close-up views are displayed simultaneously on your EZVIZ App. Tap on a specific area in the wide-angle viewing box so that a close-up shot will render much more details for you to double check.

Smarter detection for activities you care about

A lot of activities go on inside your home, but you don’t want to get constantly alerted when your curtains flutter in the wind. The H7c Dual is smart enough to notice human activities in particular and can capture sudden sound changes in the environment – all without additional fees to unlock.

Hands-free and worry-free, with customized auto patrols

On set time intervals, the PT lens can automatically complete check-ups to eliminate blind spots. You can customize patrol routes flexibly for tailored focuses, or simply ask it to complete a full-circle horizontal spin.

Love continues, regardless of distance

Staying connected with your family is always a necessity. A simple tap on the camera is all it takes for your children or elderly parents to reach you.

Technical Specifications:

Camera
Resolution: Dual 2K+ Resolution
Image Sensor: 1/3" Progressive Scan CMOS
Shutter Speed: Self-adaptive shutter
Fixed Lens: 2.8 mm @ F1.6, View Angle 108° (Diagonal), 92° (Horizontal), 50° (Vertical)
PT Lens: 6 mm @ F1.6, View Angle 60° (Diagonal), 51° (Horizontal), 28° (Vertical)
Lens Mount: M12
Day & Night: IR-cut filter with auto-switching
DNR: 3D DNR
WDR: Digital WDR

Compression
Video Compression: H.264 / H.265
Video Bit Rate: Adaptive bit rate

Network
Smart Alarm: Motion Detection, Human Shape Detection, Loud Noise Detection, Patrol Mode Detection
Wi-Fi Pairing: AP pairing
Protocol: EZVIZ Cloud proprietary protocol
Interface Protocol: EZVIZ Cloud proprietary protocol

Max. Resolution: 2560 x 1440
Frame Rate: Max 30fps; Self-Adaptive during network transmission

Interface
Storage: MicroSD card slot (Up to 512 GB)
Power: USB Type-C
Wired Network: RJ45 x 1 (10M/100M self-adaptive Ethernet port)

Wi-Fi
Standard: IEEE802.11a / b / g / n / ac / ax
Frequency Range: 2.4 GHz (2.4 ~ 2.4835 GHz), 5 GHz (5.15 ~ 5.25 GHz)
Channel Bandwidth: 2.4 GHz Supports 20 MHz, 5 GHz Supports 80 MHz
Security: WPA-PSK, WPA2-PSK, WPA3-Personal
Transmission Rate:

• 2.4 GHz: 11b_11M, 11g_54M, 11n_MCS7_20M, 11ax_MCS11_20M

• 5.15–5.25 GHz: 11a_54M, 11n_MCS7_20-40M, 11ac_MCS9_20-40-80M, 11ax_MCS11_20-40-80M
  Output Power (EIRP): 20 dBm
  Antenna Gain: 2.56 dBi @ 2.48 GHz, 3.18 dBi @ 5.22 GHz

General
Operating Conditions: -10 °C to 45 °C (14 °F to 113 °F), Humidity 95% or less (Non-condensing)
Power Consumption: Max 8W
Power Supply: DC 5V/2A
IR Range: Up to 10 m (32.81 ft)
Dimensions: 88 x 88 x 131.5 mm (3.46 x 3.47 x 4.69 in)
Package Dimensions: 200 x 105 x 105 mm (7.87 x 4.13 x 4.13 in)
Weight: Net 270 g (9.52 oz), With Package 499 g (17.60 oz)

Certifications
Certifications: CE / UKCA / WEEE / RoHS / REACH / UL

What's in the Box:

• Camera x 1
• Power Adapter x 1
• Power Cable x 1
• Drill Template x 1
• Mounting Plate x 1
• Screw Kit x 1
• Regulatory Information x 1
• Quick Start Guide x 1
