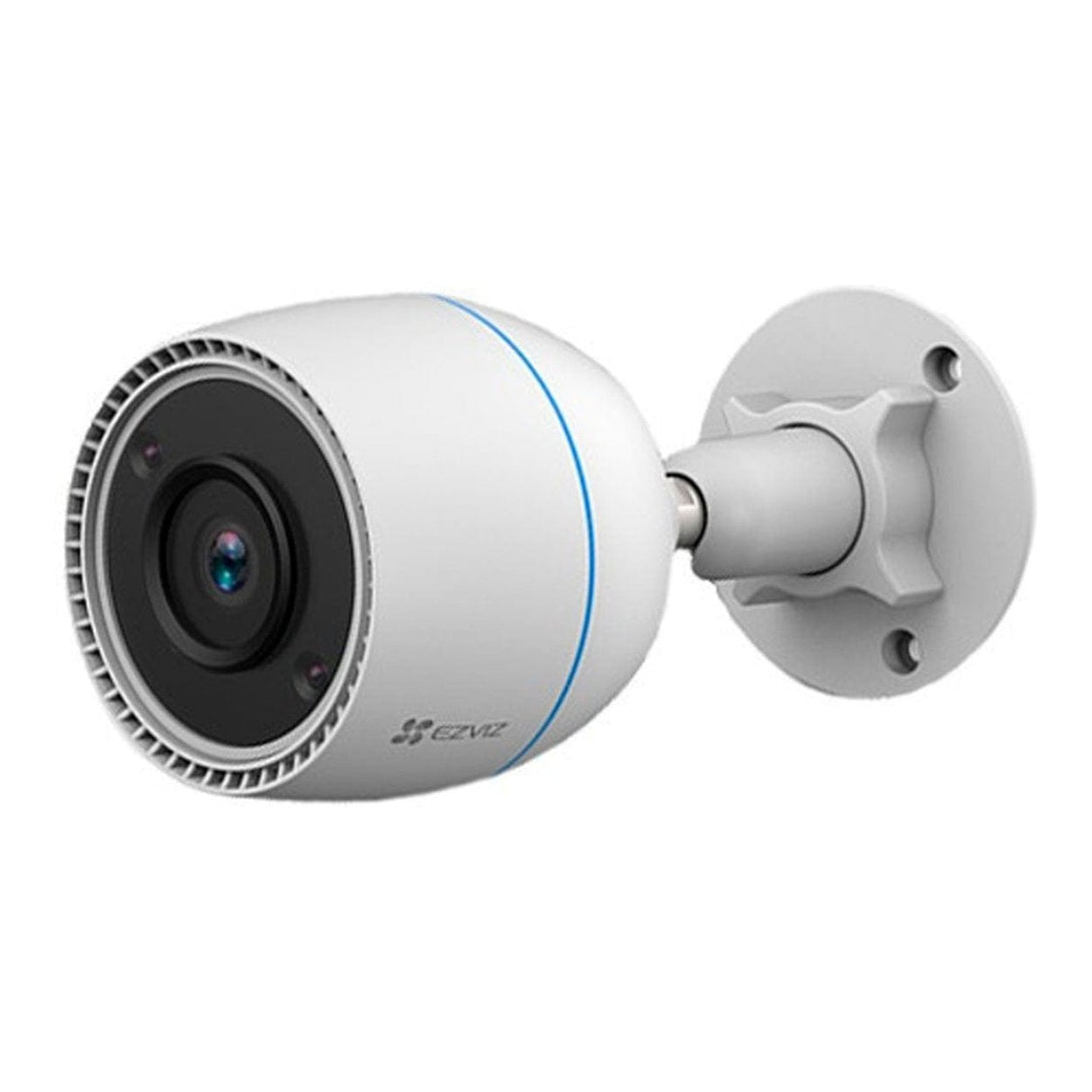

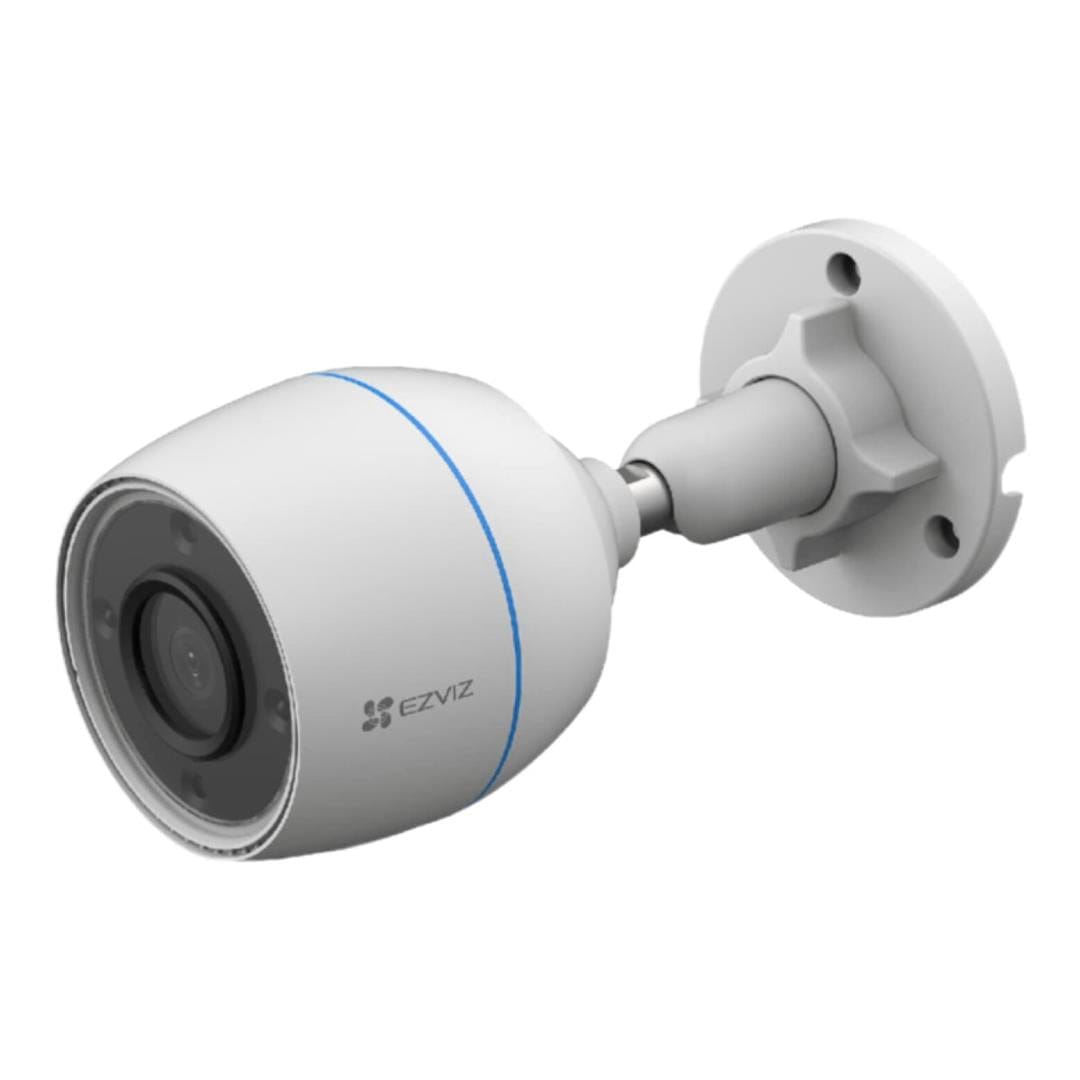

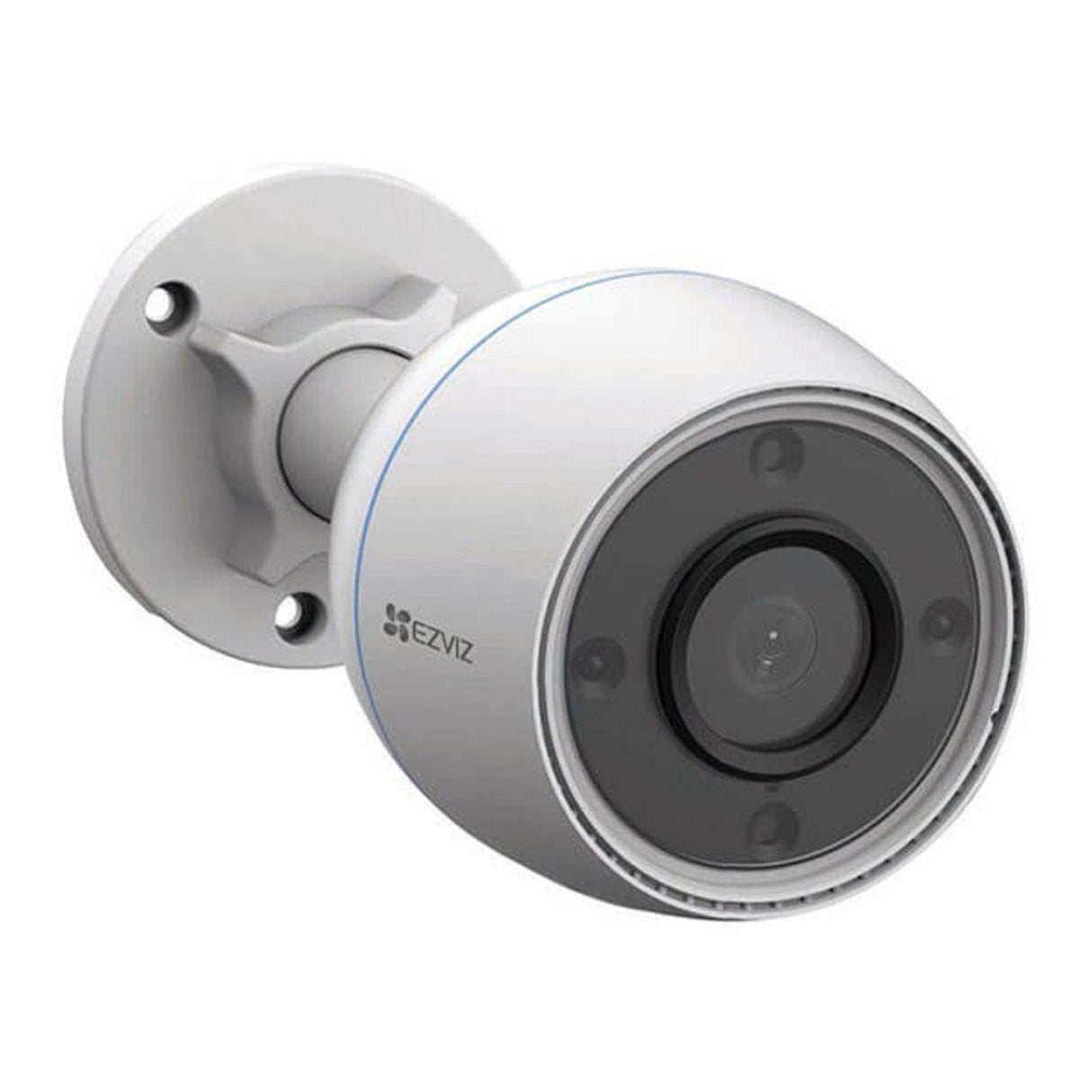

EZVIZ H3c Colour 2MP Wi-Fi Smart Home Camera CS-H3C-R100-1K2WFL(2.8mm)

EZVIZ H3c Colour 2MP Wi-Fi Smart Home Camera CS-H3C-R100-1K2WFL(2.8mm)

Simply smart protection for everyone

Look no further than the H3c Color if you're seeking a smart camera that packs all the essential features to make your money well spent. This camera is reliable in all major aspects, featuring color night vision, IP67 weatherproof enclosure, AI-powered human shape detection and large local storage capacity. From day to night, the H3c Color can get your home well protected.

Vivid colors through day and night

The H3c Color camera is made to capture every moment vividly. It renders crisp images in 1080p resolution, and can record colorful details even at night, thanks to the two built-in spotlights.

See far enough, even in total darkness

The camera makes sure that no one can easily sneak in under the cover of darkness. The H3c Color renders color night vision up to 15 meters and infrared black-and-white vision up to 30 meters.

AI algorithm for alerts that matter

The camera‘s onboard AI algorithm helps distinguish and detect moving people in particular, so as to reduce insignificant alerts caused by falling leaves or flying insects. You will receive smarter notifications that matter to you.

Protection lasts, even in harsh weathers

Thanks to its well-built camera body, the H3c Color is IP67-rated to withstand even the toughest weather conditions – whether it’s rainy, stormy or snowy.

Elegant design with reliable Wi-Fi connection

Compact in design to go under the eaves or on the outer wall, the H3c Color is equipped with high-performance, built-in dual antennas to ensure stable, strong camera connection.

A vigilant guard who works around the clock

The H3c Color integrates EZVIZ’s beloved active defense function to provide an extra layer of protection. Upon detection of intruders, the camera will flash its two dazzling spotlights3 to let them know they have been detected.

It’s your eyes – and ears

The H3c Color comes with a built-in noise-canceling microphone, which can pick up clear audio in the surrounding area. You can see and hear what’s going on in your backyard or at your front door at any time.

Smart integration, hands-free control

You can integrate the H3c Color to your existing smart home system. Voice-enable the live viewing with “Hey Google” or “Alexa” to check what’s happening on a bigger screen.

Extra-Large, safe storage options that you can trust

You can secure your recorded videos on a local microSD card of up to 512 GB, or subscribe to EZVIZ CloudPlay for fully-encrypted cloud storage.

Technical Specifications:

Camera
Image Sensor: 1/2.7” Progressive Scan CMOS
Minimum Illumination: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
IR Night Vision Distance: Up to 98 ft / 30 m
Shutter Speed: Self-adaptive shutter
Lens: 4mm @ F2.0, view angle: 82° (Horizontal), 98° (Diagonal)
Lens Mount: M12
DNR: 3D DNR
WDR: Digital WDR
Day / Night Switch: IR-Cut filter with auto-switching

Video & Audio
Max. Resolution: 1080p, 1920 × 1080
Frame Rate: Max: 30fps; Self-Adaptive during network transmission
Video Compression: H.265 / H.264
Video Bit Rate: Full HD; HD; Standard. Adaptive bit rate
Audio Bit Rate: Self-Adaptive
Max. Bitrate: 1 Mbps

Network
Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n
Frequency Range: 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth: Supports 20 MHz
Security: 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
Transmission Rate: 11b: 11Mbps, 11g: 54Mbps, 11n: 144Mbps
Wi-Fi Pairing: AP Pairing
Protocol: EZVIZ Cloud Proprietary Protocol
Interface Protocol: EZVIZ Cloud Proprietary Protocol
Wired Network: RJ45 × 1 (10M / 100M Adaptive Ethernet Port)

Function
Detection: AI-Powered Human Shape Detection, Motion Detection
Customized Alert Area: Supports
Integration: Works with Alexa, Google Assistant, IFTTT
General Function: Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark

Storage
Local Storage: Supports microSD card (Up to 512 GB)
Cloud Storage: Supports EZVIZ CloudPlay storage (Subscription required)

General
Dimensions: 72mm × 72mm × 157mm (2.83 × 2.83 × 5.98 inch)
Package Dimensions: 227 × 100 × 92 mm (8.94 × 3.94 × 3.62 inch)
Net Weight: 250 g (8.82 oz)
Weight (With Package): 447 g (15.77 oz)
IP Grade: IP67
Operating Conditions: -30 °C to 50°C ( -22 °F to 122 °F ), humidity 95% or less (non-condensing)
Power Supply: DC 12V / 1A
Power Consumption: Max. 6W

Certifications
CE / FCC / UKCA / UL / WEEE / RoHS / REACH

What's in the Box:

• H3c Color Camera
• Drill Template
• Screw Kit
• Waterproof Kit
• Power Adapter
• Regulatory Information
• Quick Start Guide
