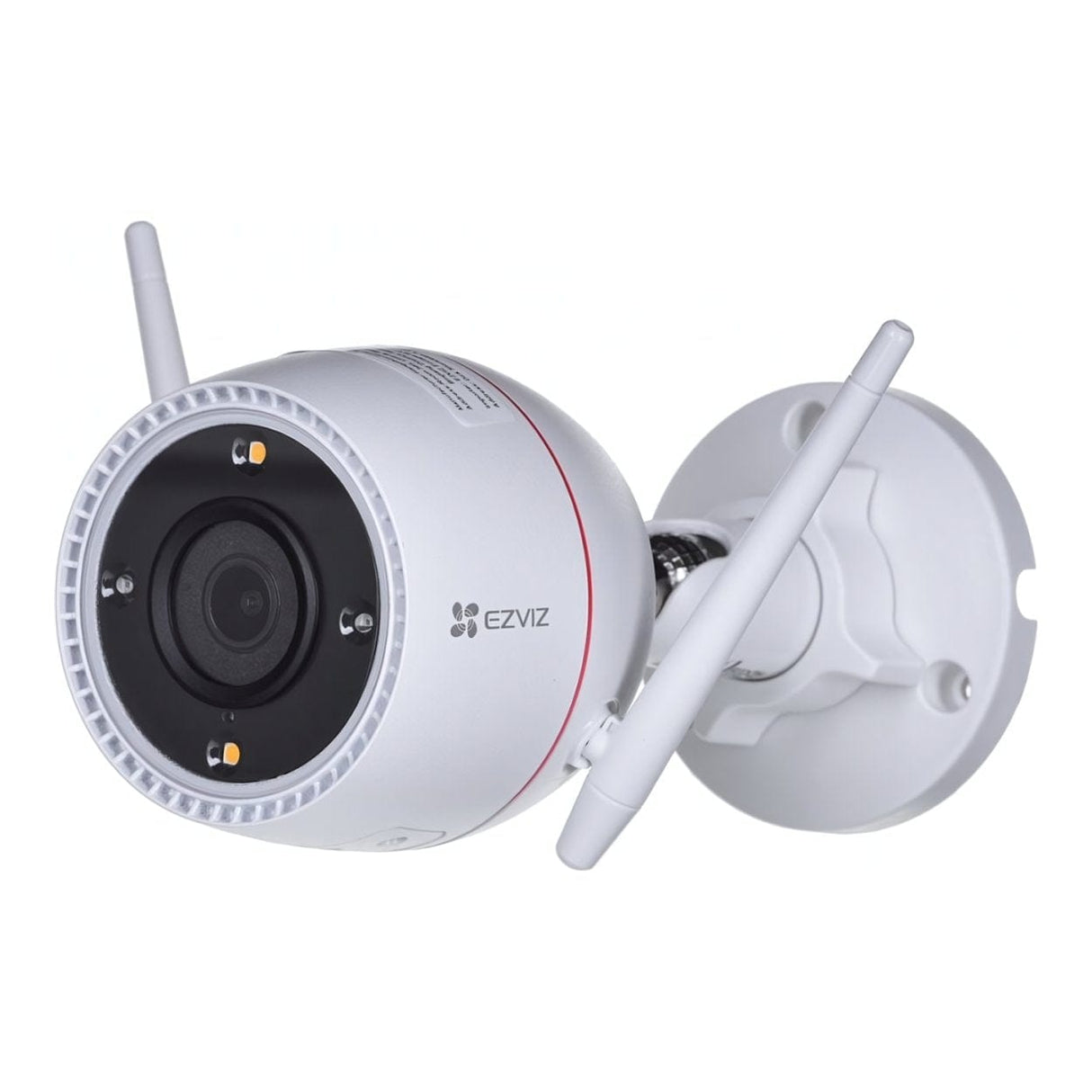

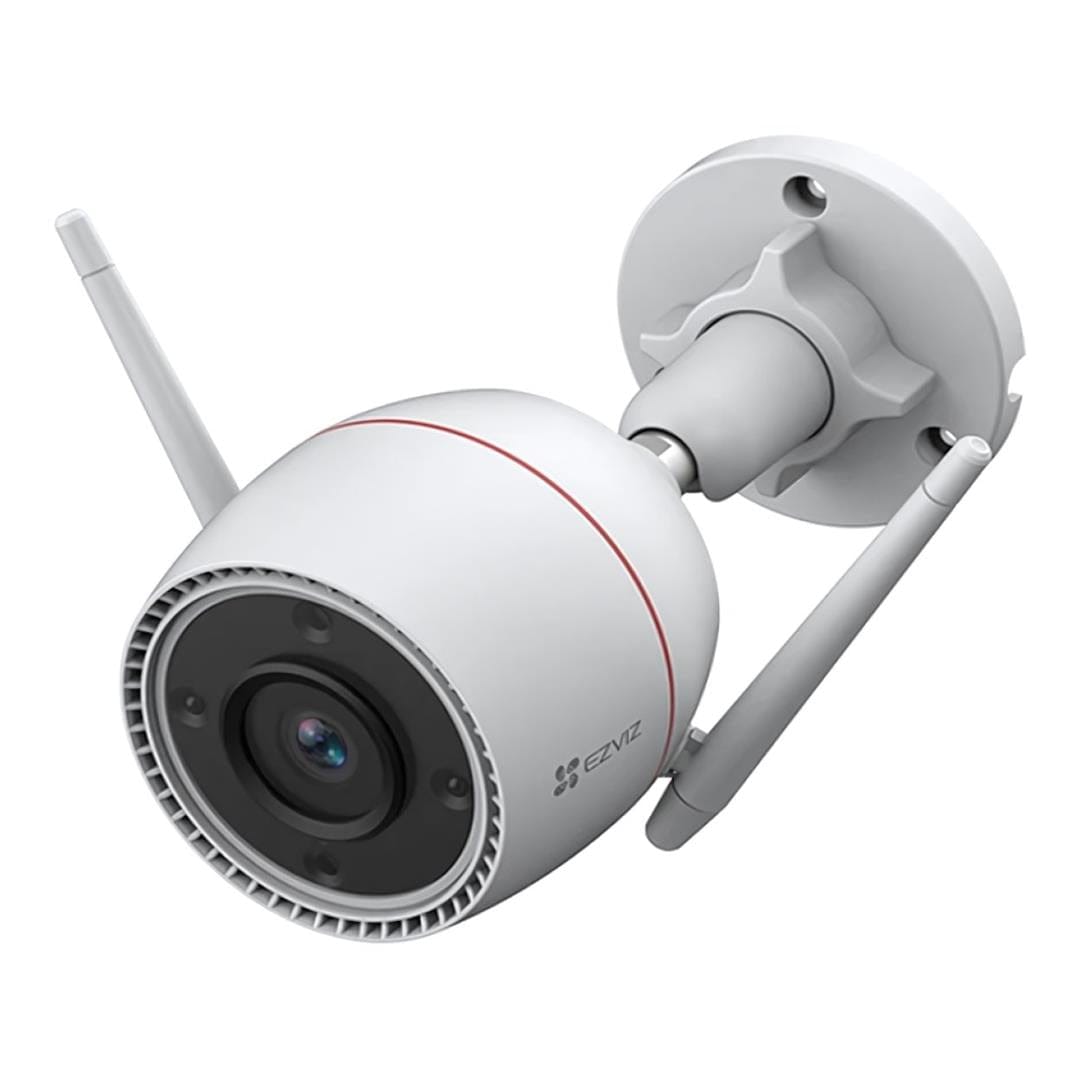

EZVIZ H3c 3K 5MP Wi-Fi Smart Home Camera CS-H3C-R100-1J5WKFL(2.8mm)

EZVIZ H3c 3K 5MP Wi-Fi Smart Home Camera CS-H3C-R100-1J5WKFL(2.8mm)

Your reliable security option, now sharper and smarter

The H3c 3K, a versatile guardian suitable for most homes and buildings, can render every detail in large environments with stunning clarity in 3K, providing 24/7 automatic protection with useful AI-powered detection and active defense features. It can smartly distinguish people and vehicles from other objects, alert you remotely and provide on-site security with lights and siren. Reliably made in multiple levels, it ensures easy installation but long-lasting performance.

Capture every detail in impressive 3K resolution

Blurry footages are now history. The camera delivers 3K video, ensuring that you do not overlook even the tiny details. Whenever and wherever you are, you can easily use your mobile phone to understand what’s going on without worrying about unknown activities.

See in vivid colors, even at night

As an outdoor camera, the H3c 3K provides a pretty sharp IR night vision. Additionally, it uses two built-in spotlights to maintain a colorful vision that’s far-reaching up to 30 meters. What’s better? You can set the camera to the “smart night vision” mode so it automatically switches from black-and-white to full-color upon motion detection.

Receive smarter notifications

The camera’s integrated AI chip helps it detect people and vehicle motions in particular, so you know immediately if someone sets foot in your driveway, or parks on your property area without permission. It reduces alerts caused by falling leaves or flying insects, so you don’t get a flood of irrelevant notifications.

Ring up a call by simply waving your hand

Your family members or visitors can initiate a video call to your phone³ by waving at the camera. Whenever your kids come home from school, they can let you know.

Communications can be this easy

Enjoy two-way audio by simply using your smartphone. Or, pre-record a 10-second voice message that automatically plays upon human motion detection.

A vigilant guard who works around the clock

The H3c 3K integrates EZVIZ’s beloved active defense function to provide an extra layer of protection. Upon detection of intruders, the camera will set off a loud siren and flash two spotlights⁴ to warn them away.

Protection lasts, even in harsh weathers

Thanks to its well-built camera body, the H3c 3K is IP67-rated to withstand even the toughest weather conditions – whether it’s rainy, stormy or snowy

Smart integration, hands-free control

You can integrate the H3c 3K to your existing smart home system. Voice enable the live viewing with “Hey Google” or “Alexa” to check what’s happening on a bigger screen.

Extra-Large, safe storage options that you can trust

You can secure your recorded videos on a local microSD card of up to 512 GB, or subscribe to EZVIZ CloudPlay for fully-encrypted cloud storage.

Technical Specifications:

Camera
Image Sensor: 1/2.7” Progressive Scan CMOS
Minimum Illumination: 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
IR Night Vision Distance: Up to 98 ft / 30 m
Shutter Speed: Self-adaptive shutter
Lens:

• 4mm @ F1.6, viewing angle: 87° (Horizontal), 53° (Vertical), 104° (Diagonal)

• 2.8mm @ F1.6, viewing angle: 103° (Horizontal), 58° (Vertical), 125° (Diagonal)
  Lens Mount: M12
  DNR: 3D DNR
  WDR: Digital WDR
  Day / Night Switch: IR-Cut filter with auto-switching

Video & Audio
Max. Resolution: 2880 × 1620
Frame Rate: Max: 30fps; Self-Adaptive during network transmission
Video Compression: H.265 / H.264
Video Bit Rate: Quad HD; Hi-Def; Full HD; Standard
Audio Bit Rate: Self-Adaptive
Max. Bitrate: 2.5 Mbps

Network
Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n
Frequency Range: 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth: Supports 20 MHz
Security: 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
Transmission Rate: 11b: 11Mbps, 11g: 54Mbps, 11n: 144Mbps
Wi-Fi Pairing: AP Pairing
Protocol: EZVIZ Cloud Proprietary Protocol
Interface Protocol: EZVIZ Cloud Proprietary Protocol
Wired Network: RJ45 × 1 (10M / 100M Adaptive Ethernet Port)

Function
Detection: Motion Detection, AI-Powered Human Shape Detection, Waving-Hand Detection
Customized Alert Area: Supports
Integration: Works with Alexa, Google Assistant
General Function: Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark

Storage
Local Storage: Supports microSD card (Up to 512 GB)
Cloud Storage: Supports EZVIZ CloudPlay storage (Subscription required)

General
Operating Conditions: -22°F to 122 °F (-30ºC ~ 50ºC ), Humidity 95% or less (non-condensing)
IP Grade: IP67
Power Supply: DC 12V / 1A
Power Consumption: MAX. 9W
Dimensions: 72 × 84 × 152 mm (2.83 × 3.31 × 5.98 inch)
Packaging Dimensions: 227 × 100 × 92 mm (8.94 × 3.94 × 3.62 inch)
Net Weight: 330 g (11.64 oz)
Weight (With Package): 539 g (19.01 oz)

Certifications
CE / UL / WEEE / RoHS / REACH

What's in the Box:

• H3c 3K Camera
• Drill Template
• Screw Kit
• Waterproof Kit
• Power Adapter
• Regulatory Information
• Quick Start Guide
