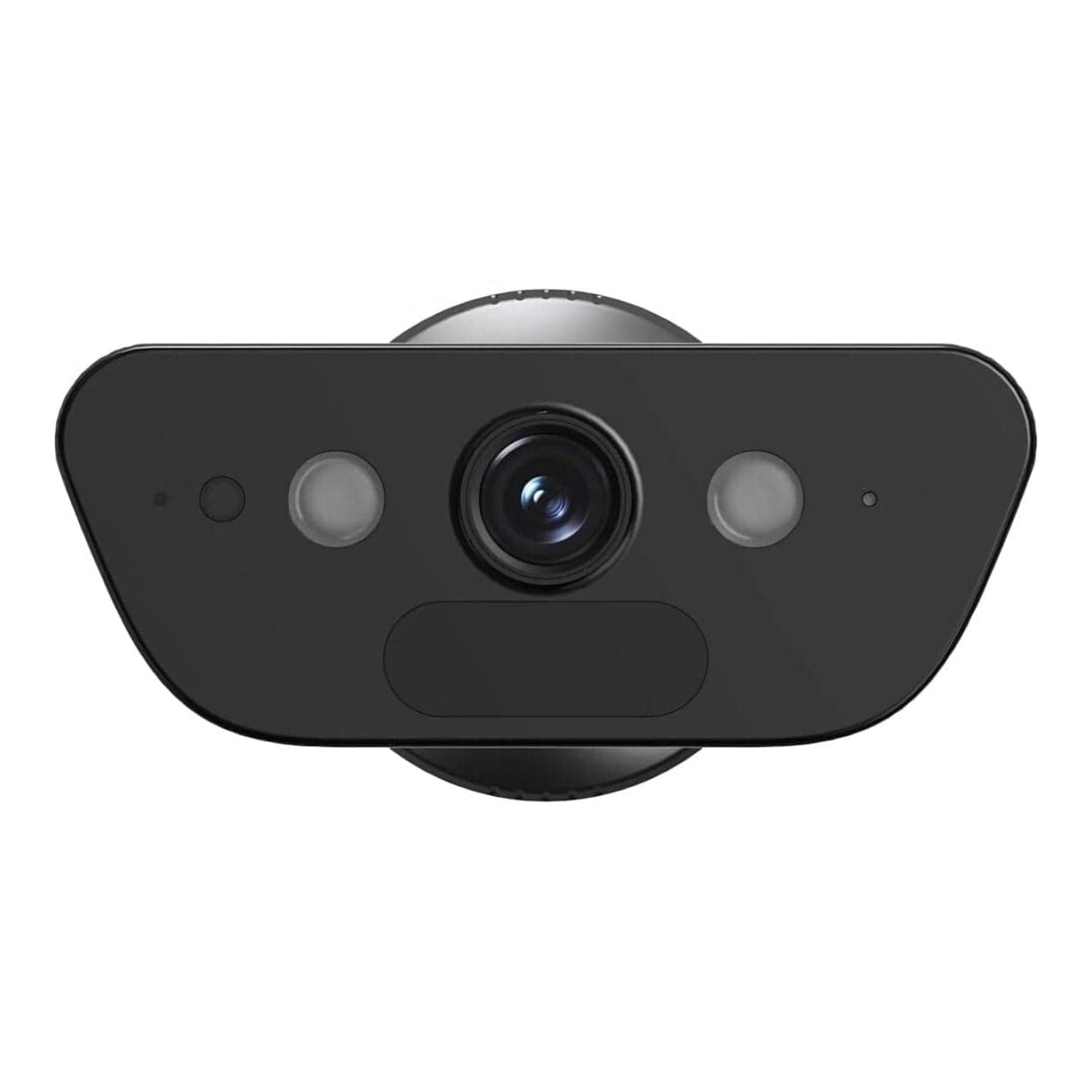

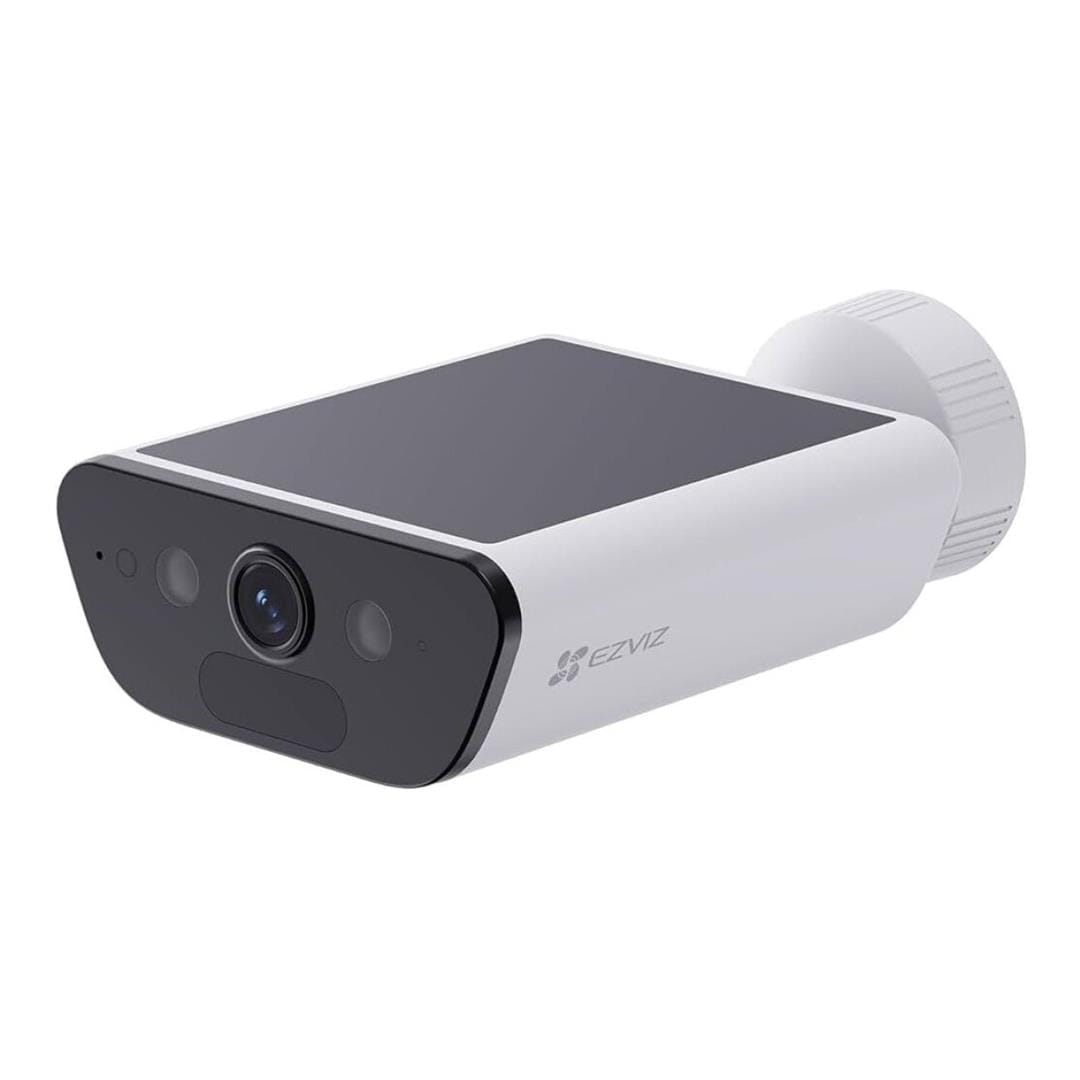

EZVIZ CB5 4K Smart Home Solar Battery Camera CS-CB5-R100-2F8WFL

EZVIZ CB5 4K Smart Home Solar Battery Camera CS-CB5-R100-2F8WFL

Solo. Solar. Sophisticated.

Meet the next-generation camera that lives up to your dream of simple, reliable and powerful home protection. The first-of-its-kind in EZVIZ’s reputable home camera lineup, the CB5 features 4K video, an integrated solar panel, advanced AI-powered detection functions, an Always-On Video Mode and much more of what you could or would want when choosing an all-in-one security camera. With just a single CB5, you can start enjoying non-stop peace of mind with minimal effort.

Non-stop power. Unprecedented easiness.

Solar style, green lifestyle

No electricity wiring available but desire continuous power? The CB5 turns every ray of the sunshine as its free source of energy. Only two hours of direct sunlight every day keep the camera running nonstop.²Even when it’s rainy season, the onboard 10,400mAh large battery ensures the CB5 operates up to 180 days uninterruptedly.

Wire-free, hassle-free

Install CB5 effortlessly – no wires, no hubs and no extra solar panels. Its compact design makes it easy to change its location to find the best sunny spot.

Exceptional vision. Go beyond details.

Time for 4K Ultra HD

We advance the lens of the CB5 to render stunning 4K videos, so even the smallest detail that usually slips your attention now becomes crystal clear. Use the CB5 to oversee expansive outdoor landscapes with precision, and relive precious family moments like never before.

True-to-life night vision

The CB5 delivers vibrant, full-color live feeds at night with its integrated spotlights. Equipped with the F1.6 aperture, it ensures crisp visuals in low-light condition, too. You can set the camera on a smart mode to auto-switch between the two night visions.

The power to protect, now always on

With EZVIZ’s innovative AOV technology, the CB5 provides a plenty of recordings beyond PIR-triggered events, while managing power consumption much more efficiently.

01Always records, scenes or events

Want all-day recording video but worry about the battery will run out too quickly? Use the AOV mode. The CB5 can connect and process the images captured at preset time intervals to render a continuous time-lapse video that shows you changes in the environment. When an important human activity happens, the camera starts recording a normal video, so you don’t miss an important detail.

02Always protects, far or near

When the AOV is on, the camera can detect an approaching person or vehicle at a much greater distance. If a person or vehicle appears in the camera, even if they are outside the range of the PIR sensor, the camera will notice that and inform you immediately.

Powerful detection without a subscription

The CB5 starts detecting important activities around your home the moment that you have it installed, without any hidden fee to lock out advanced features. It smartly distinguishes people and cars from other trivial moving objects, so you do not receive tons of unwanted notifications.

Extra-large storage for everyday videos

Even huge video files and detection clips in a busy day can be properly and safely stored without a problem. You can use a large microSD card to keep everything locally without any commitment to a monthly plan. Or, simply enjoy the services provided by the EZVIZ CloudPlay⁶ for less hassles.

Trusted performance. Ready for the outdoors.

Enhanced connectivity in even large houses

Even when installed outside of houses with thick walls and large transmission range, the CB5 is able to remain vigilant and responsive with a stable Wi-Fi network, thanks to the Wi-Fi 6 technology.

Built to last long

The CB5 is made with a durable, weatherproof enclosure. You can always trust on its performance against rain, dust and snow.

Technical Specifications:

Camera
Image Sensor: 1/2.7” 8-Megapixel Progressive Scan CMOS
Minimum Illumination: 0.01 Lux @(F1.6, AGC ON), 0 Lux with IR
Shutter Speed: Self-adaptive shutter
Lens: 2.8mm@ F1.6; 135° (Diagonal), 113° (Horizontal), 60° (Vertical)
Day & Night: IR-Cut filter with auto-switching
DNR: 3D DNR
Night Vision: IR Distance: 15m, Color Night Vision Distance: 15m

Video & Audio
Max. Resolution: 3840 × 2160
Frame Rate: 15fps. Self-Adaptive during network transmission
Video Compression: H.265 / H.264
Video Bit Rate: Ultra HD; Quad HD; Full HD; Hi-Def Adaptive bit rate
Audio Bit Rate: Self-Adaptive
Max. Bitrate: 4 Mbps

Network
Bluetooth: Supports
Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n, 802.11ax
Frequency Range: 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth: Supports 20 MHz
Security: WPA-PSK/WPA2-PSK, WPA3-Personal
Transmission Rate: 11b: 11Mbps, 11g: 54Mbps, 11n: 72Mbps, 11ax: 114Mbps
Wi-Fi Pairing: AP pairing
Protocol: EZVIZ Cloud proprietary protocol
Interface Protocol: EZVIZ Cloud proprietary protocol
Minimum Network Requirement: 8 Mbps

Function
Smart Alarm: AI-Powered Human Shape Detection, AI-Powered Vehicle Detection
Two-way Talk: Supports
General Function: Anti-Flicker, Heart Beat, Password Protection, Watermark

Storage
Local Storage: Supports Micro SD slot for local storage (Up to 512G)
Cloud Storage: EZVIZ cloud storage

General
Operating Conditions: -20 °C to 50 °C (-4 °F to 122 °F), humidity 95% or less (Non-condensing)
IP Grade: IP65
Power Supply: DC 5V/2A (Compatible power adapter needs to be purchased separately)
Battery Capacity: 10400 mAh
Power Consumption: Max. 10W
Product Dimensions: 166 × 103 × 54 mm
Packaging Dimensions: 227 × 167 × 64 mm
Weight: Net Weight: 466 g, With Package: 822 g

Certifications: CE / REACH / WEEE / RoHS

What's in the Box:

• Camera
• Power Cable
• Screw Base
• Drill Template
• EZVIZ Screw Kit
• Regulatory Information
• Quick Start Guide
