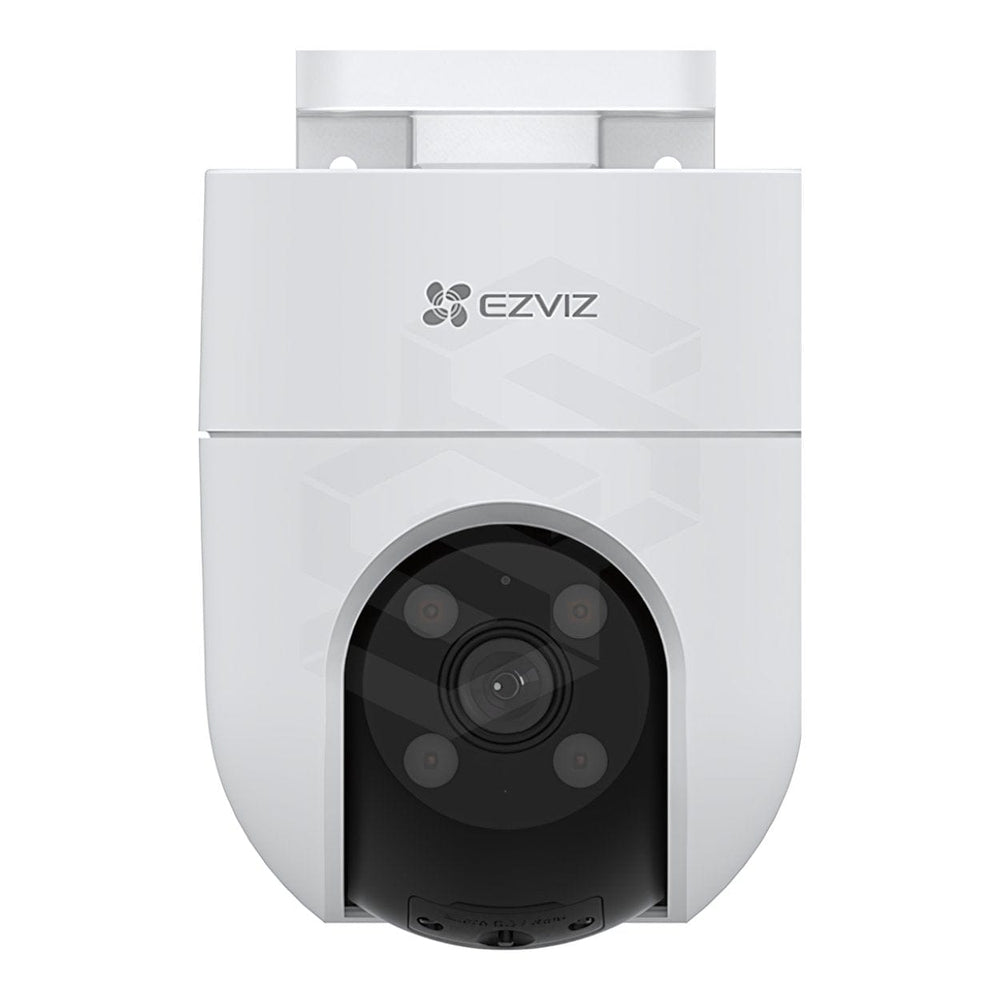

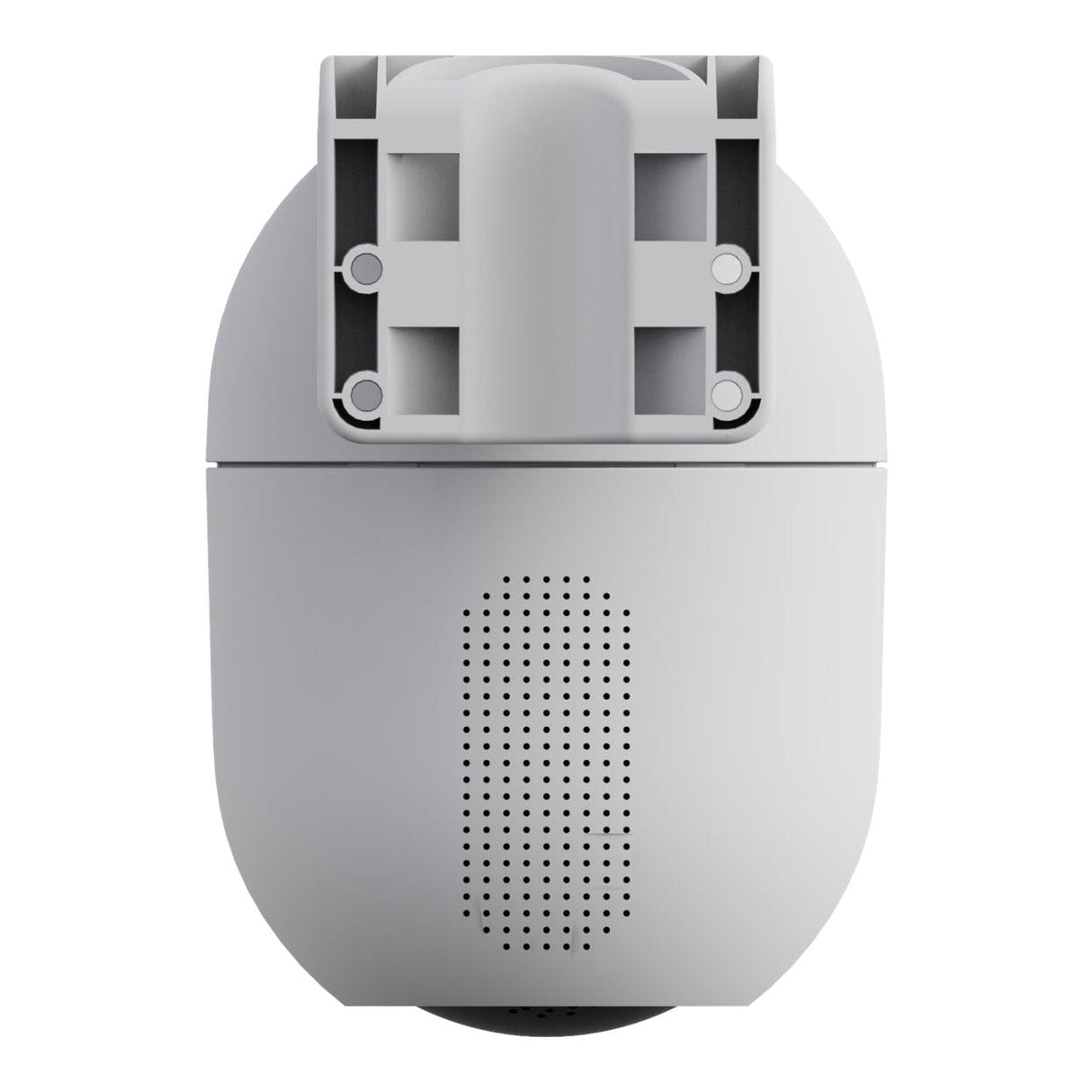

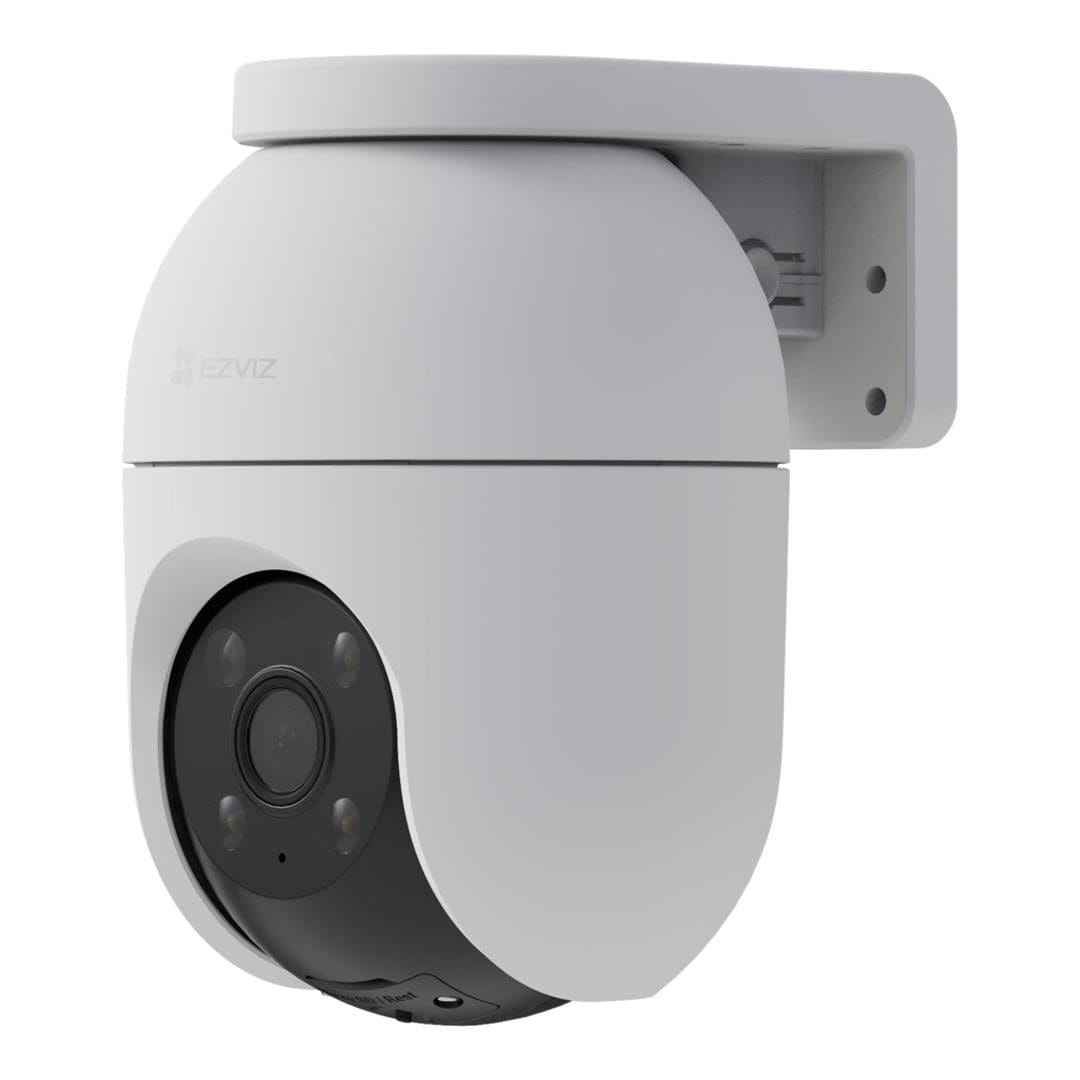

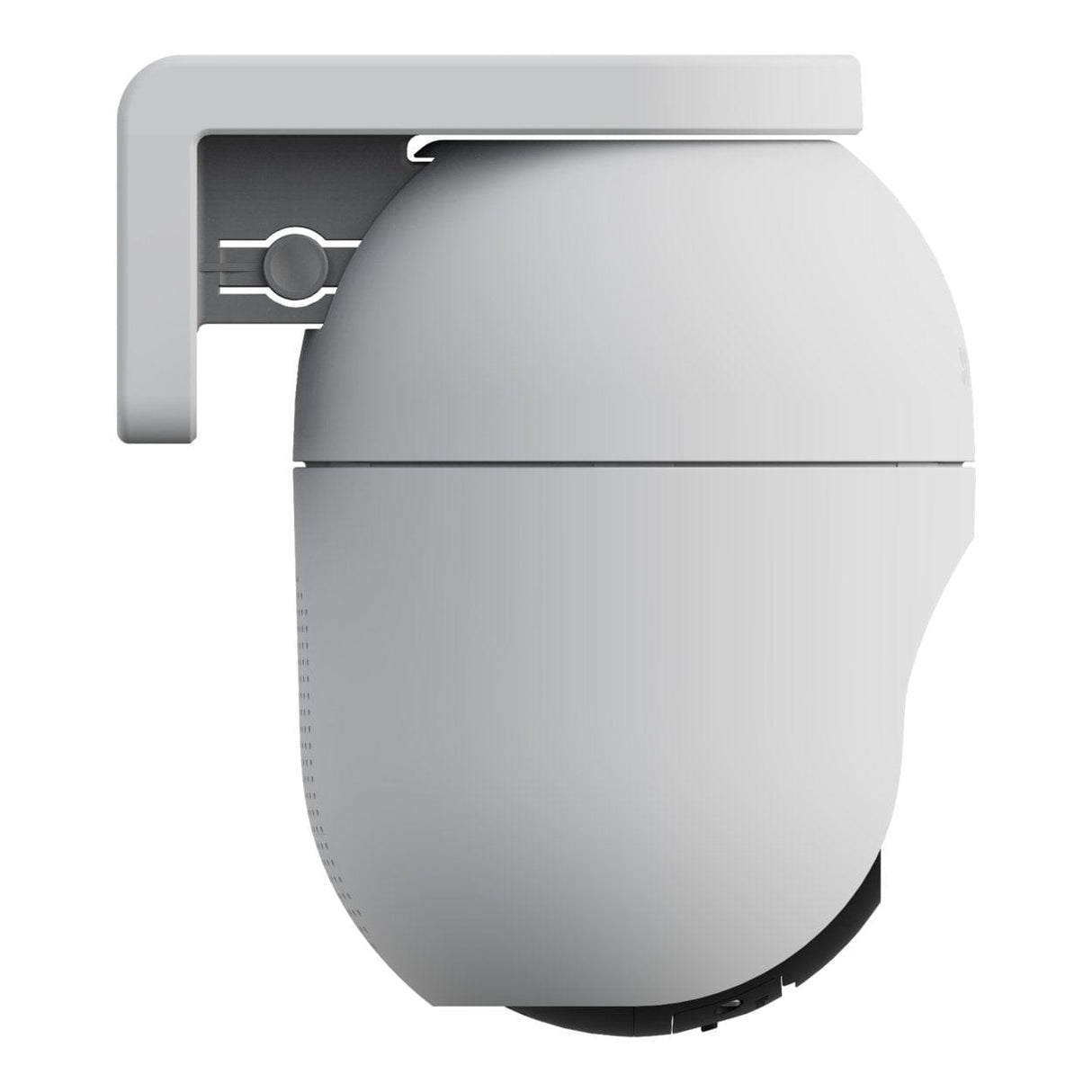

EZVIZ C8C 2MP Pan and Tilt Wi-Fi Camera CS-C8C-R100-1K2WKFL(4mm)

EZVIZ C8C 2MP Pan and Tilt Wi-Fi Camera CS-C8C-R100-1K2WKFL(4mm)

Smartly views, swiftly tracks, securely guards

The C8c meets the fundamental needs of outdoor protection with a handful of essential features that are packed into a budget-friendly solution. It captures a panoramic view with clear details and ensures that far fewer blind spots remain unobserved, even in low light conditions. Acting as a smart eye on your property, it is able to detect and track the activity of a moving person to keep you better informed.

See clear details in almost every corner

You no longer need to stress if you miss an important activity due to restricted vision. With just one C8c, you can capture the big picture in 1080p. Its motorized lens sweeps across a 360° field of view providing comprehensive coverage that leaves no corner unnoticed.

A smart eye to detect and alert

With an embedded AI chip, the C8c goes beyond simple motion detection, recognizing human movements in real time. Whenever an individual enters the customized area, you will receive instant mobile notifications simultaneously.

A mobile eye to lock on and follow

When the C8c detects a moving person, it locks on the subject, and automatically pans and tilts to record the ongoing activity from one side to the other. Rest assured that you won’t lose sight of your loved ones or potential intruders.

Pin down the spots that matter to you most

No matter how complicated the tracking is, the camera always knows it’s way back to your preferred viewing angle. You can pinpoint up to 12 angles via the EZVIZ App. Just click on your pre-set dots and the camera will automatically resume its place.

Technical Specifications:

Camera
Image Sensor: 1/2.8" Progressive Scan CMOS
Shutter Speed: Self-adaptive shutter
Lens: 4mm @ F1.6; Vertical 44°, Horizontal 84°, Diagonal 100°
PT Angle: Pan 350°, Tilt 80°
Minimum Illumination: 0.5 Lux @ (F1.6, AGC ON), 0 Lux with IR (*data obtained from EZVIZ laboratories)
Lens Mount: M12
Day & Night: IR-cut filter with auto switch
DNR: 3D DNR
WDR: Digital WDR
Black & White Night: 30 m / 98 ft

Video & Audio
Max. Resolution: 1920 × 1080
Frame Rate: Max 30 fps; Self-Adaptive during network transmission
Video Compression: H.265 / H.264
H.265 Type: Main Profile
Video Bit Rate: Ultra-HD; Hi-Def; Standard. Adaptive bit rate
Audio Bit Rate: Self-Adaptive

Network
Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n
Frequency Range: 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth: Supports 20 MHz
Security: WPA-PSK / WPA2-PSK
Transmission Rate: 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps
Wi-Fi Pairing: AP pairing
Protocol: EZVIZ Cloud Proprietary Protocol
Interface Protocol: EZVIZ Cloud Proprietary Protocol
Wired Network: RJ45 × 1 (10M/100M Adaptive Ethernet Port)

Storage
Local Storage: MicroSD Card Slot (Up to 512 GB)
Cloud Storage: EZVIZ CloudPlay Storage

Functions
Smart Alarm: AI-Powered Human Shape Detection / Motion Detection
Auto Tracking: Supports
Customized Alert Area: Supports
Two-way Talk: Supports
Preset Locations: Supports
General Function: Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark

General
Operating Conditions: -30°C to 50°C (-22°F to 122°F), humidity 95% or less (non-condensing)
IP Grade: Weatherproof Design
Power Supply: DC 12V / 1A
Power Consumption: MAX 12 W

Dimensions & Weight
Product Dimensions: 102.27 × 128.61 × 147.05 mm (4.03 × 5.06 × 5.79 in)
Packaging Dimensions: 140 × 140 × 192 mm (5.51 × 5.51 × 7.56 in)
Net Weight: 480 g
Weight with Package: 786 g

Certifications
CE / UKCA / UL / WEEE / RoHS / REACH

What's in the box:

• C8c 1080p Camera
• Drill Template
• Screw Kit
• Waterproof Kit
• Power Adapter
• Regulatory Information
• Quick Start Guide
