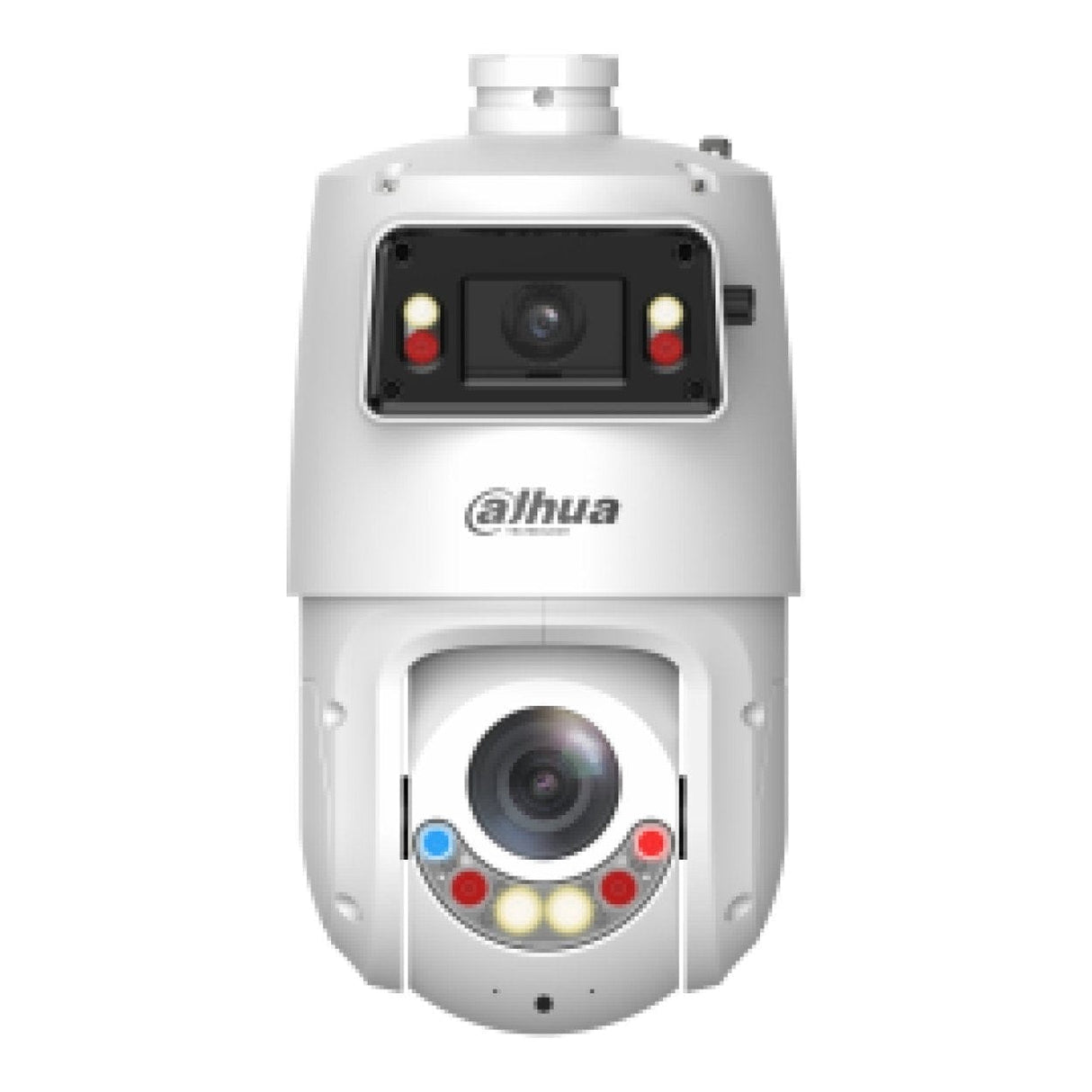

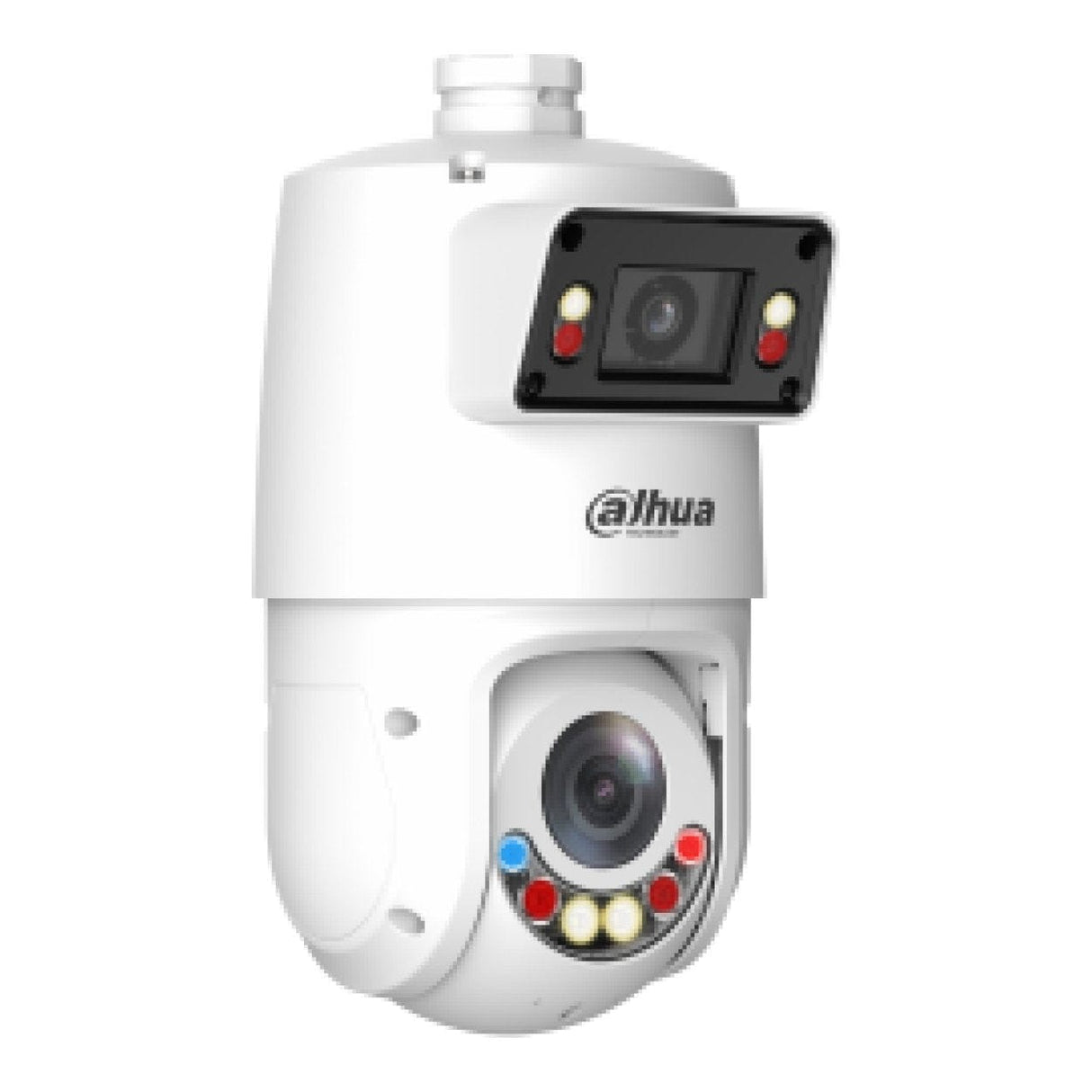

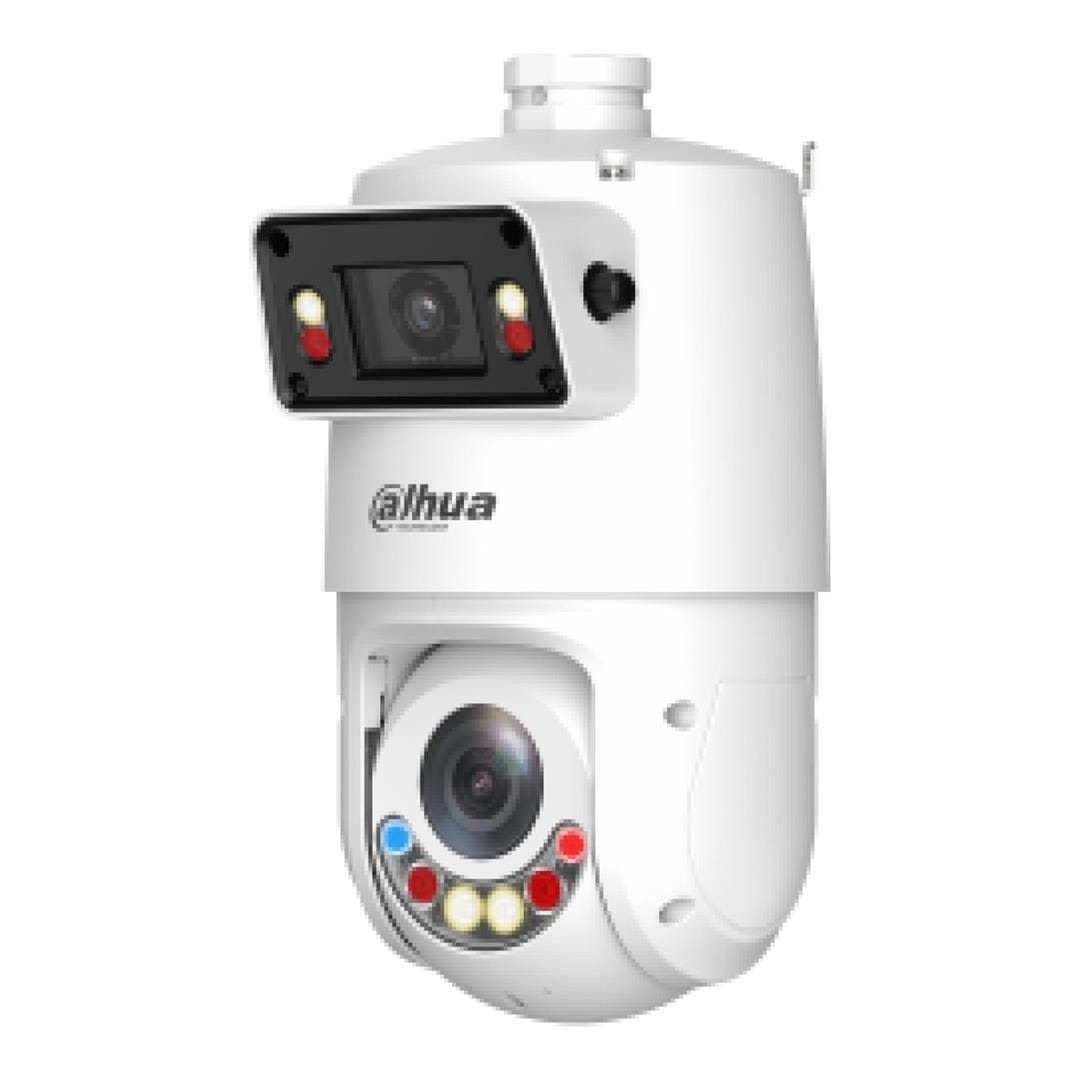

Dahua SDT4E425-4F-GB-A-PV1-S2 4+4MP 25x Smart Dual Illumination X-Spans Network PTZ Camera

Dahua SDT4E425-4F-GB-A-PV1-S2 4+4MP 25x Smart Dual Illumination X-Spans Network PTZ Camera

Designed with more lens than the conventional PTZ camera, the X-Spans series camera captures an expansive view, producing wide, vivid images. It has the combined power of the panoramic and detail camera in its structure and is highly cost-effective, greatly reducing the installation cost of security systems. It also leverages its two cameras to perform smart tracking, and has an independent mode that allows you to separately use each camera.

Smart Dual Light

Dahua Smart Dual Light technology adopts smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the white light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshot and video with full-color image. When the target is out of the monitoring area, the white light is off and the IR illuminator is on, which reduces light pollution efficiently.

AI-ISP

With AI ISP technology, the camera is able to easily adapt to scenes, producing high quality images that reveal the fine details of targets.

AcuPick

This industry-leading search technology effectively utilizes both frontend and back-end intelligence to help with searching through massive video data to quickly and conveniently locate targets with greater precision.

Smart Tracking

The panoramic camera links with the detail camera to track targets.When the target enters the panoramic area, the detail camera starts to monitor them and tracks their movement by rotating, zooming and focusing the PTZ camera lens. This allows the camera to produce highly detailed images with the movement of targets for security personnel.

Perimeter Protection

Automatically filters out false alarms caused by animals, rustling leaves, bright lights, and more, and uses secondary recognition during target detection to improve alarm accuracy.

SMD

Empowered by deep-learning algorithms, Dahua SMD filters out motion detection alarms triggered by targets that are not a concern. It quickly recognizes humans and vehicles, triggering alarms when an intrusion occurs.

Protection (IP66, TVS 6000 V)

IP66, TVS 6000 V lightning proof, surge protection, and voltage transient protection.

Specifications:

Image Sensor: Overview channel: 1/2.8" CMOS; Detail channel: 1/2.8" CMOS

Pixel: Overview channel: 4 MP; Detail channel: 4 MP

Max. Resolution: Overview channel: 2560 (H) × 1440 (V); Detail channel: 2560 (H) × 1440 (V)

ROM: Overview channel: 4 GB; Detail channel: 4 GB

RAM: Overview channel: 2 GB; Detail channel: 1 GB

Electronic Shutter Speed:

• Overview channel: 1/3s-1/100000s
• Detail channel: 1s-1/30000s

Scanning System: Progressive

Min. Illumination:

Overview channel:

• 0.001 lux@F1.0 ( Color, 30 IRE)
• 0.0005 lux@F1.0 (B/W, 30 IRE)
• 0 lux (illuminator on)

Detail channel:

• 0.005 lux@F1.6 ( Color, 30 IRE)
• 0.0005 lux@F1.6 (B/W, 30 IRE)
• 0 lux (illuminator on)

Illumination Distance:

• Overview channel: 30 m (98.43 ft) (IR); 30 m (98.43 ft) (warm light)
• Detail channel: 100 m (328.08 ft) (IR) ; 50 m (164.04 ft) (warm light)

Illuminator On/Off Control:

• Overview channel: Auto; Manual; Off;
• Detail channel: Zoom Prio; Auto; Manual; Off

Illuminator Number:

• Overview channel: 2 (IR); 2 (warm light);
• Detail channel: 2 (IR); 2 (dual light Fusion)

Focal Length: Overview channel: 2.8 mm; Detail channel: 5 mm–125 mm

Max. Aperture: Overview channel: F1.0; Detail channel: F1.6–F3.6

Field of View:

• Overview channel: H: 101°; V: 53°; D: 120°
• Detail channel: H: 51.9°–3.0°; V: 39.7°–2.2°; D: 63.1°–3.7°

Optical Zoom:

• Overview channel: NA
• Detail channel: 25×

Focus Control: Auto; manual; semi-auto

Close Focus Distance:

• Overview channel: 0.2 m (0.66 ft)
• Detail channel: 0.1 m–0.5 m (0.33 ft–1.64 ft)

Iris Control:

• Overview channel: NA
• Detail channel: Auto; manual; iris prio

Pan/Tilt Range:

• Overview channel: Pan: 0°; Tilt: +12° to +24° (manual)
• Detail channel: Pan: 0° to 360° endless; Tilt: –15° to +90°, auto flip 180°

Manual Control Speed:

• Pan: 0.1°/s–200°/s
• Tilt: 0.1°/s–120°/s

Preset Speed:

• Pan: 240°/s
• Tilt: 200°/s

Preset: 300

Tour: 8 (up to 32 presets per tour)

Pattern: 5

Scan: 5

Power-off Memory: Yes

Idle Motion: Preset;Pattern;Tour;Scan

IVS (Perimeter Protection): Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human alarm classification; linkage tracking

Face Detection: Supports face detection, optimization, capturing pictures, uploading high-quality face snapshots and enhancing face images. Attribute Extraction is also supported, where 6 attributes and 8 expressions can be detected. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots.

Smart Tracking: Auto Tracking 3.0;Linkage Tracking

SMD: SMD 4.0

AcuPick: Uses deep learning algorithms and works with backend devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets

Auto Patrol: After an IVS event occurs, the PTZ camera immediately initiates automated patrol of predefined key points to quickly cover potential risk areas and detect unknown threats in real time.

Light Warning:

• Red-Blue light warning
• Flash duration: 5 s–30 s
• Flash frequency: high, medium, low

Sound Warning:

• Offers 11 sound alarm and 10 custom sound alarms can be imported.
• Sound can be set from 0%–100%.
• Play times can be set from 1-10.

Audio Compression: PCM, G.711A, G.711Mu, G.726, MPEG2-Layer2, G.722.1, G.729

Built-in MIC: Yes

Built-in Speaker: Yes

Network Port: 1 × RJ-45 (10/100 Base-T)

Network Protocol: HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;802.1x;SSL;QoS;FTP;UPnP;ICMP;SNMP;IGMP;ARP;RTCP;RTP;PPPoE;RTMP;Bonjour;SMB;NFS

Interoperability: ONVIF (Profile S & Profile G & Profile T);CGI;SDK

Streaming Method: Unicast/Multicast

User/Host: 20 (total bandwidth: 64 M)

Storage: Micro SD card (512 GB); FTP/SFTP; NAS

Browser:

• IE 9 and later versions
• Chrome 41 and later versions
• Firefox 50 and later versions
• iOS 10 and later versions

Management Software: DMSS;DSS Pro

Mobile Client: iOS;Android

Audio Input: 1 channel (LINE IN, bare wire,built-in mic (mutually exclusive)）

Audio Output: 1 channel (LINE OUT,bare wire;built-in speaker (mutually exclusive)）

Alarm Input: 2 (on-off value input: 0–5 VDC)

Alarm Output: 1 channel

Alarm Linkage: Capture; recording; send email; preset; tour; pattern; alarm digital output; audio; warning light

Alarm Event: Motion/tampering detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection

Alarm I/O: 2/1

Audio I/O: 1/1
