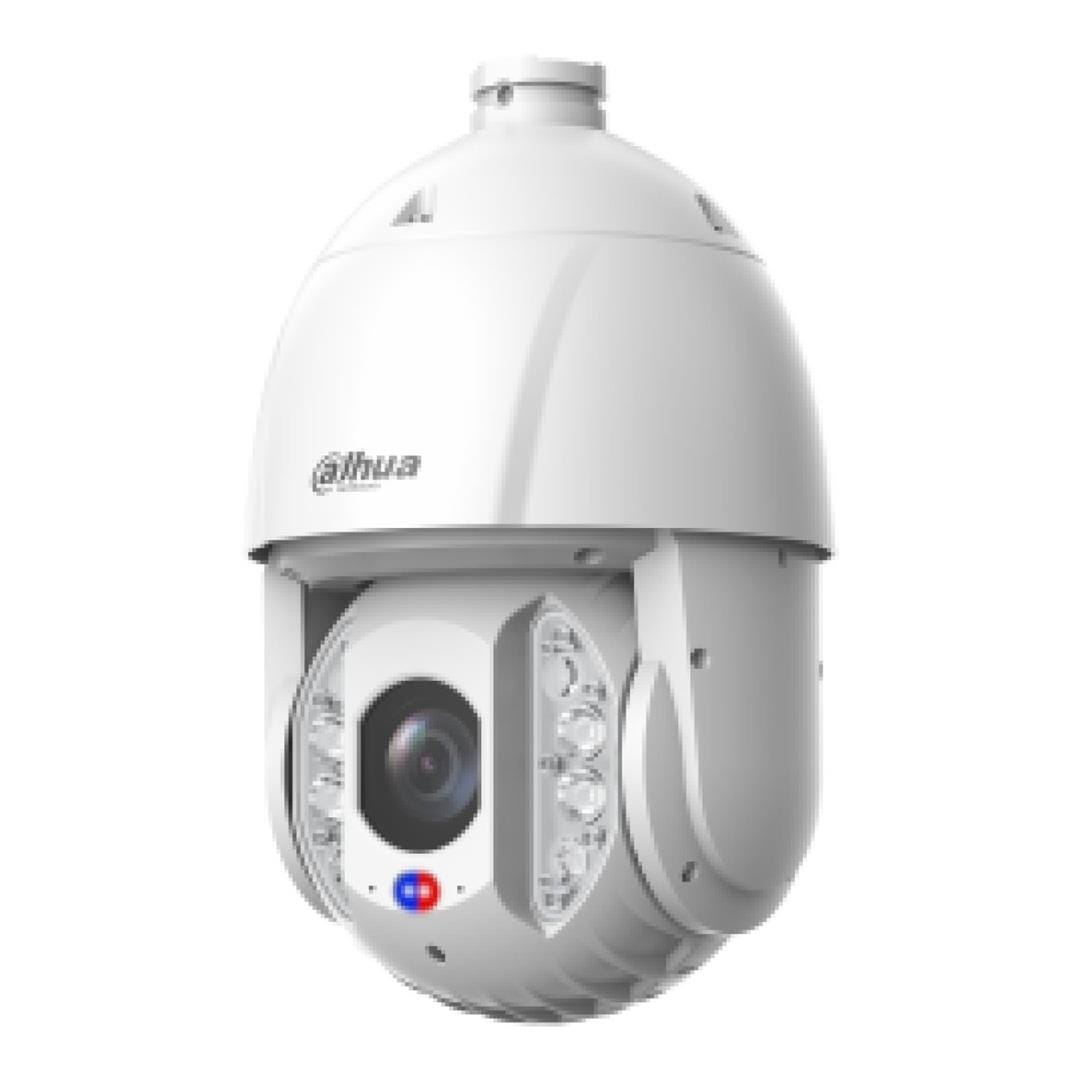

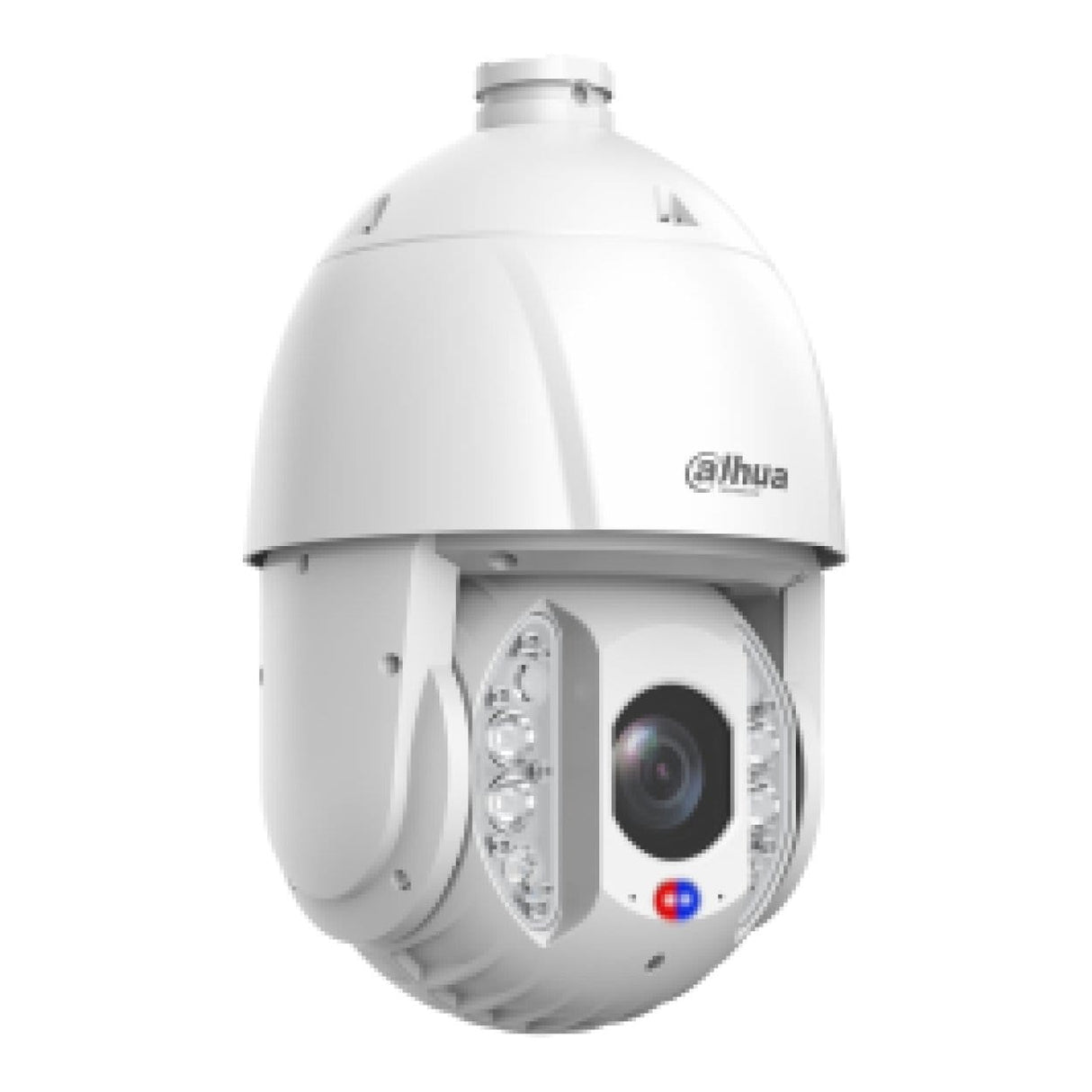

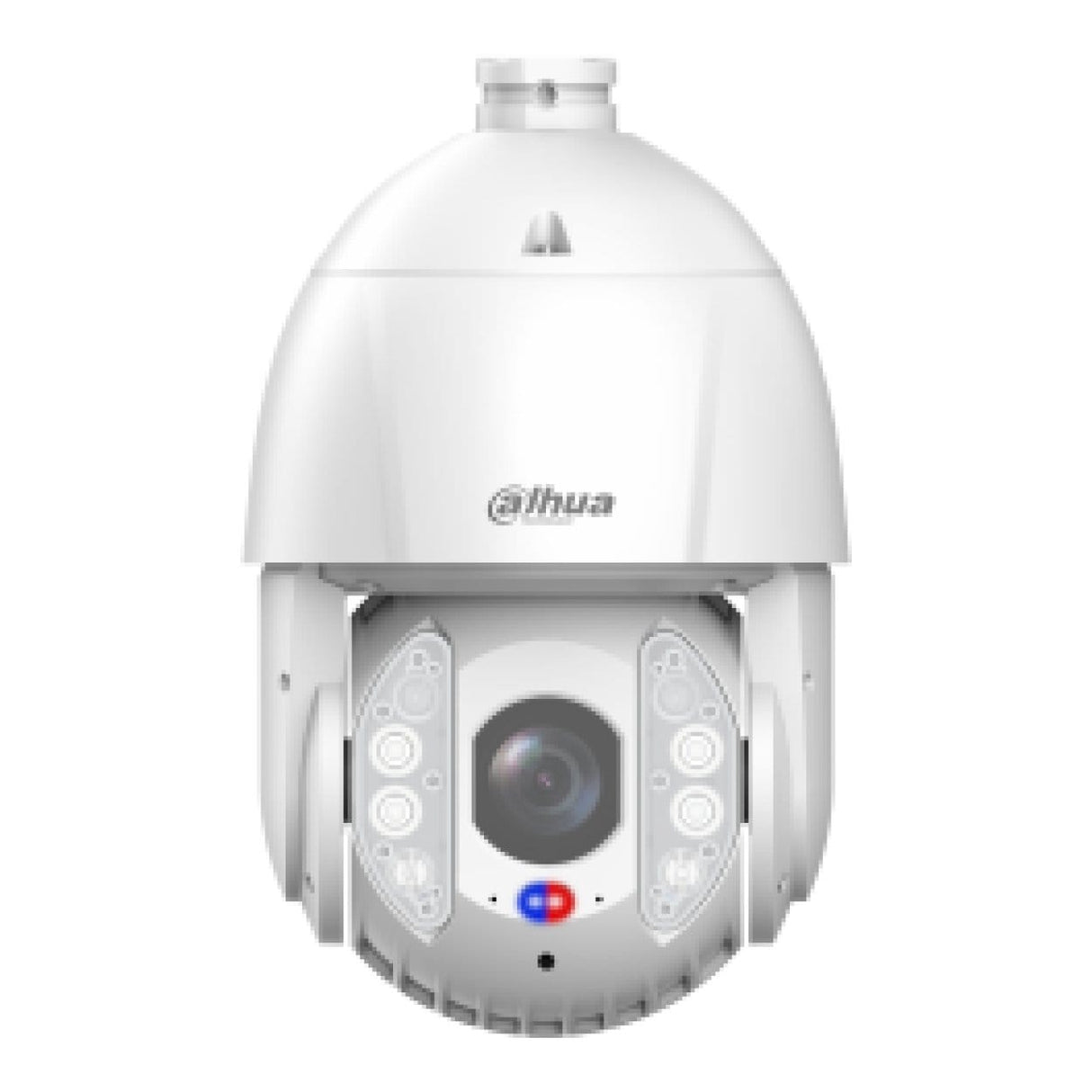

Dahua SD6E245MB-HNR-A-PV1 2MP 45x Smart Dual Illumination Network PTZ Camera

Dahua SD6E245MB-HNR-A-PV1 2MP 45x Smart Dual Illumination Network PTZ Camera

Features:

• High-Quality Imaging with 2MP Resolution
• 45× Optical Zoom Provide Close Up Views Over Expansive Areas
• Smart Dual Light: Expansive Night View with up to 250m IR Distance and 100m Warm Light
• Red & Blue Warning Lights and Alarm Sounds for Active Deterrence
• Xinghan Large-Scale AI Models: Comprehensive Enhancement of Target Detection, Imaging
• AcuPick Enables Fast and Precise Human&Vehicle Search
• Built-in Dual Mic & Speaker: Secure Real-Time Talk
• IP67 and IK10 Ratings for Protection Against Harsh Environments

Specifications:

Image Sensor: 1/2.8" CMOS

Pixel: 2 MP

Max. Resolution: 1920 (H) × 1080 (V)

ROM: 4 GB

RAM: 2 GB

Electronic Shutter Speed: 1s–1/30000s

Scanning System: Progressive

Min. Illumination:

• 0.005 lux@F1.6 (Color, 30 IRE)
• 0.0005 lux@F1.6 (B/W, 30 IRE)
• 0 lux (Illuminator on)

Illumination Distance: 100 m (328.08 ft) (Warm light); 250 m (820.21 ft) (IR)

Illuminator On/Off Control: Zoom Prio; Manual; Auto; Off

Illuminator Number: 6 (Dual light fusion)

Focal Length: 3.95 mm–177.25 mm

Max. Aperture: F1.6–F4.95

Field of View: H: 65.7°–1.9°; V: 39.4°–1.1°; D: 73.1°–2.1°

Optical Zoom: 45×

Focus Control: Auto; Semi-auto; Manual

Close Focus Distance: 0.1 m–1 m (0.33 ft–3.28 ft)

Iris Control: Auto; Manual; Iris prio

Pan/Tilt Range: Pan: 0° to 360° endless; Tilt: –20° to +90°, auto flip 180°

Manual Control Speed: Pan: 0°/s–260°/s; Tilt: 0°/s–140°/s

Preset Speed: Pan: 300°/s; Tilt:200°/s

Preset: 300

Tour: 8

Pattern: 5

Scan: 5

Power-off Memory: Yes

Idle Motion: Preset;Pattern;Tour;Scan

PTZ Protocol:

• DH-SD
• Pelco-P/D(Auto recognition)

Network Port: RJ-45 (10/100 Base-T)

Network Protocol: HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;802.1x;SSL;QoS;FTP;UPnP;ICMP;SNMP;IGMP;ARP;RTCP;RTP;PPPoE;RTMP;Bonjour;SMB;NFS

Interoperability: ONVIF (Profile S & Profile G & Profile T);CGI;SDK

Streaming Method: Unicast/Multicast

User/Host: 20 (total bandwidth: 64 M)

Storage: Micro SD card (512 GB); FTP/SFTP; NAS

Browser:

• IE 9 and later versions
• Chrome 41 and later versions
• Firefox 50 and later versions
• Safari 10 and later versions

Management Software: DMSS;DSS Pro

Mobile Client: iOS;Android
