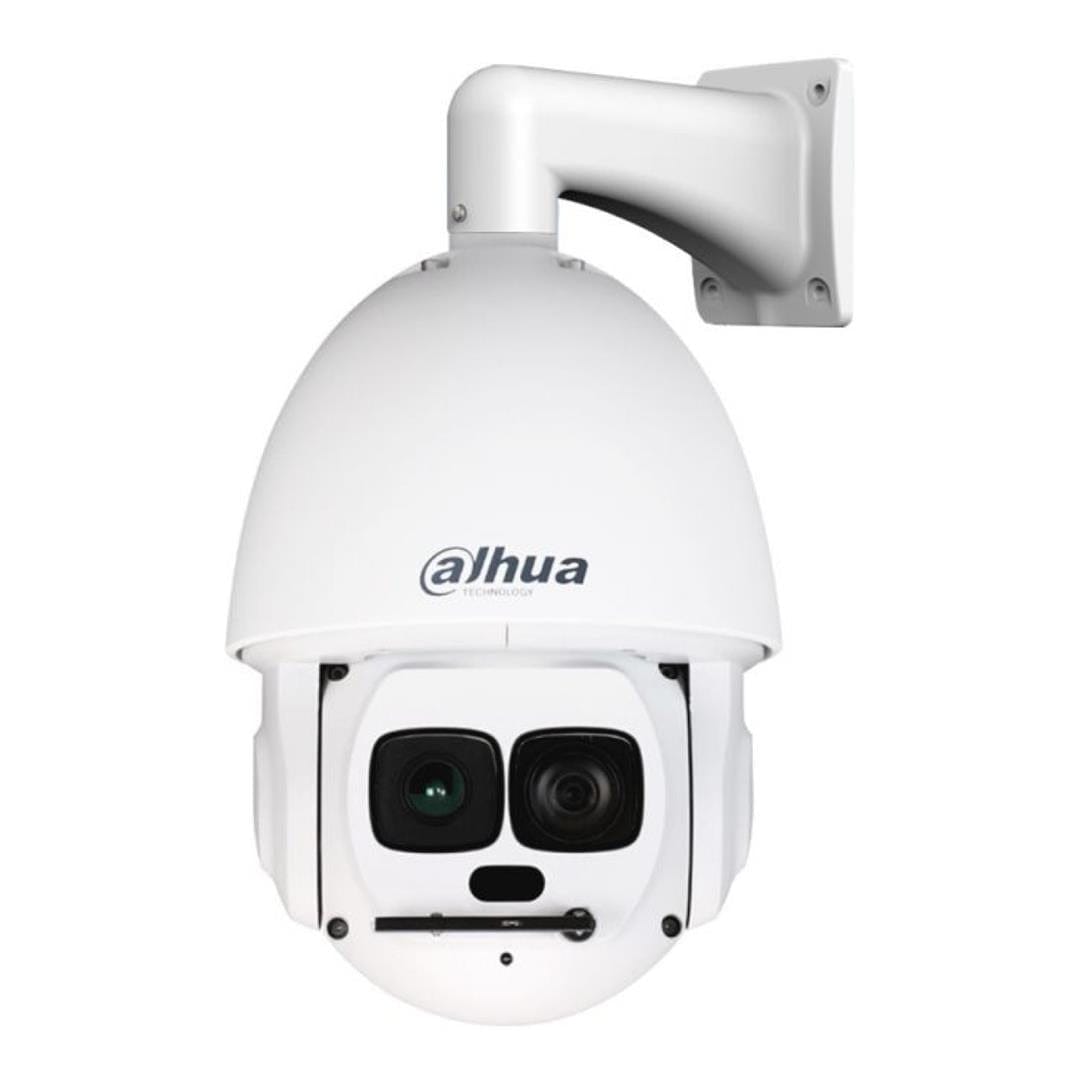

Dahua SD6AL245GB WizMind 2MP 550m Starlight IP PTZ Dome Camera

Dahua SD6AL245GB WizMind 2MP 550m Starlight IP PTZ Dome Camera

Dahua DH-SD6AL245GB-HNV. Dahua WizMind Starlight IP PTZ Dome. 2MP@25/30ips, Smart H.265+. 0.005/0.0005 lux, Smart IR 550m. 45X optical zoom (3.95~177.7mm). WDR 120dB. Pan&Tilt: 360°@200°/s (H); 90°@120°/s (V); 300 presets. Perimeter protection, face detection and Autotracking. Bidirectional audio. 7 alarm inputs / 2 alarm outputs. MicroSD slot, RS485, RJ45, Onvif, IP67, Lightning-proof 6KV. 36V DC / Hi-PoE. Includes bracket and power supply. 2mp wizmind ptz dome with 45x zoom.

Specifications:

Sensor: 1/2.8" Sony Starvis™ 2 megapixel CMOS image sensor

Video compression: Smart H.265+, Smart H.264+, H.265, H.264 and MJPEG

Resolution: 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576, 704x480), VGA (640x480), CIF (352x288, 352x240)

Stream 1: 1080P, 1.3MP, 720P (1~25/30 ips)

Stream 2: D1, VGA, CIF (1~25/30 fps)

Stream 3: 1080P, 1.3MP, 720P (1~25/30 fps)

Day/night mode with electronic filter

0.005 lux F1.6 (color), 0.0005 lux F1.6 (B/W), 0 lux IR On

Smart IR: 2 IR leds + 1 laser, up to 550 meters

45X optical zoom: 3.95 ~ 177.7 mm

Viewing angle: 68°~2.3°(H), 41.7°~1.2°(V), 75.1°~2.4°(D)

Focus:

• Auto, semi-automatic and manual focus control
• Auto, manual and iris priority iris control

Zoom: 16X digital zoom

Image modes: BLC, HLC, WDR 120dB, 2D/3D-NR, Image Stabilizer (EIS), Digital Defog.

White balance: with 8 modes

Automatic, manual and gain priority gain control

Supports videosensor and regions of interest (ROI)

Privacy mask up to 24 zones with 8 zones in one display

Perimeter protection: Line crossing, intrusion, fence climbing, loitering detection, abandoned/missing object, fast motion, parking detection, people gathering, vehicle/person alarm classification

Face detection

Built-in auto-tracking

SMD 4.0

Video metadata: Supports image capture and attribute extraction of human body, human face, motorized and non-motorized vehicles

Horizontal positioner: 0° ~ 360° continuous

Vertical positioner: -20° ~ 90°, auto flip 180

Manual speed: 0.1° ~ 200°/sec (H), 0.1° ~ 120°/sec (V)

Preset speed: 240°/sec (H), 200°/sec (V)

300 presets, DH-SD and Pelco-D/P protocols with auto recognition

8 rounds (up to 32 presets per round)

5 patterns and 5 scans

RS485 port

1 audio input / 1 audio output

7 alarm inputs / 2 alarm outputs

MicroSD card slot up to 512GB (card not included)

Network interface: RJ45 (10/100 Base-T)

Network protocols: FTP, RTMP, IPv6, Bonjour, IPv4, DNS, RTCP, PPPoE, NTP, RTP, 802.1x, HTTPS, SNMP, TCP/IP, DDNS, UPnP, NFS, ICMP, UDP, IGMP, HTTP, SSL, DHCP, SMTP, Qos, RTSP, ARP

ONVIF (S/G/T), CGI, SDK support

Up to 20 users

DMSS and DSS Pro management software

Compatible with IOS and Android devices

Compatible with IE, Chrome, Firefox and Safari browsers

Power supply: 36V DC, 2,23A (±25%) / Hi-PoE

Power consumption: 15W (basic), 45W (illuminator + positioner)

Operating temperature: -40°C ~ +70°C

Relative humidity: ≤95%

Degree of protection: IP67

Lightning-proof: 6KV

Built-in: lens wiper

Dimensions: Ø239.8 x 382 (H) mm

Gross weight: 6.8 kg

Includes wall bracket and power supply
