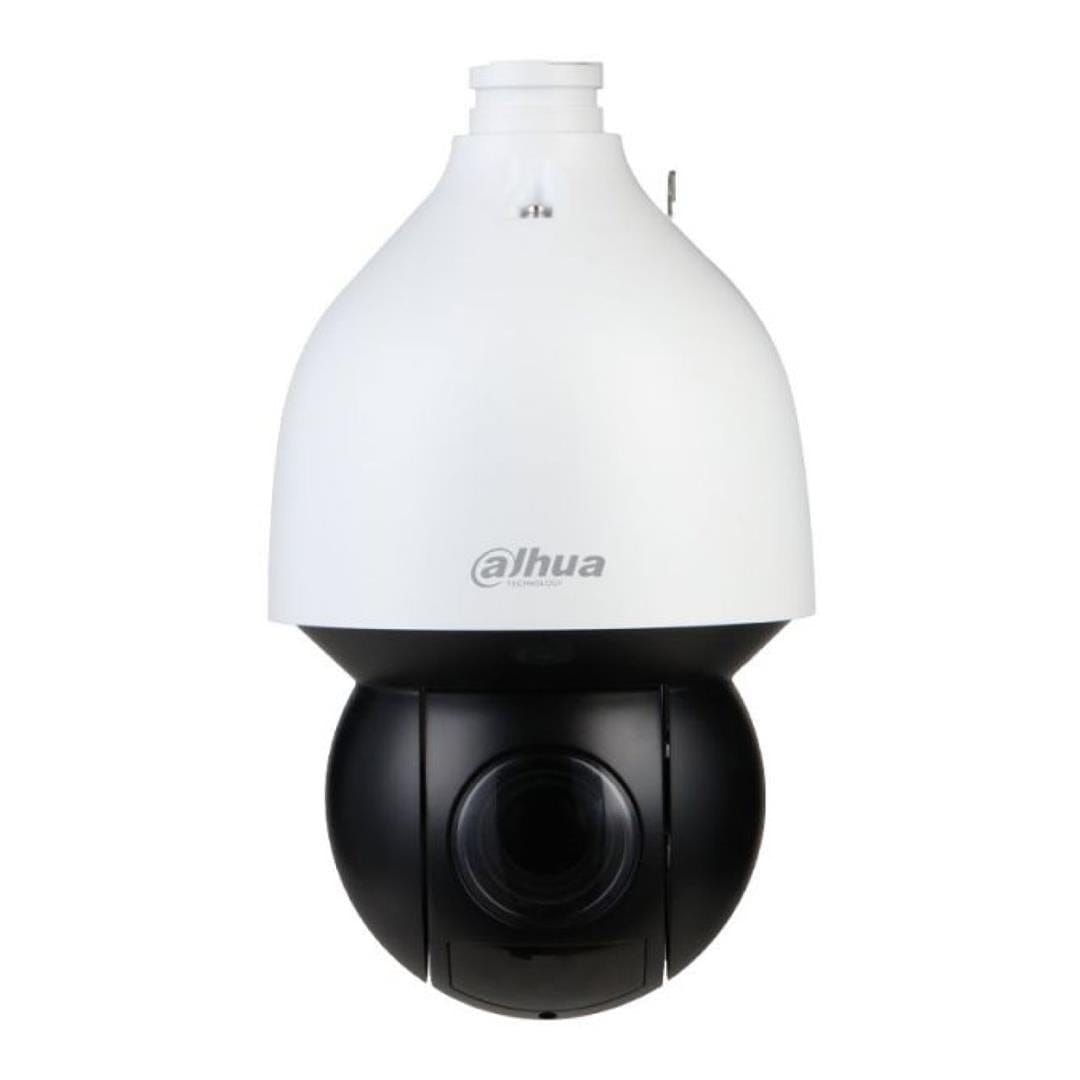

Dahua SD5A245GB WizSense 2MP 150m IP PTZ Dome Camera

Dahua SD5A245GB WizSense 2MP 150m IP PTZ Dome Camera

Dahua DH-SD5A245GB-HNR. Dahua WizSense IP PTZ Dome. 2MP@25/30ips, Smart H.265+. ICR, 0.005/0.0005 lux, Smart IR 150m. 45X optical zoom (3.95~177.75mm). WDR 120dB, 2D/3D-DNR, ROI. Pan&Tilt: 360°@300°/s (H); 90°@200°/s (V); 300 presets. Perimeter protection, face detection, SMD and autotracking. 1 audio input / 1 audio output. 2 alarm inputs / 1 alarm output. MicroSD slot, RJ45, Onvif, IP67, IK10, PoE+. Includes bracket and power supply. Wizsense 2mp ptz ip dome.

Specifications:

Sensor: 1/2.8" Sony Starvis™ 2 megapixel CMOS image sensor

Video compression: Smart H.265+, Smart H.264+, H.265, H.264 and MJPEG

Resolution: 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576),

VGA (640x480), CIF (352x288)

Stream 1: 1080P, 1.3MP, 720P (1~25/30 ips)

Stream 2: D1, VGA, CIF (1~25/30 fps)

Stream 3: 720P (1~25/30 fps)

Day/Night mode with removable mechanical filter

0.005 lux F1.6 (colour), 0.0005 lux F1.6 (B/W), 0 lux IR On

Smart IR: 4 IR leds, up to 150 metres

45X optical zoom: 3.95 ~ 177.75 mm

Angle of view: 65.7°~1.9°(H), 39.4°~1.1°(V), 73.1°~2.1°(D)

Auto, semi-automatic and manual focus control

Auto and manual iris control

Zoom: 16X digital zoom

Picture modes: BLC, HLC, WDR 120dB, 2D/3D-NR, EIS, digital Defog

White balance with 8 modes

Automatic and manual gain control

Supports videosensor and regions of interest (ROI)

Privacy masking up to 24 zones with 8 zones in one display

Perimeter protection: Line crossing, intrusion, fence climbing, loitering detection, abandoned/missing object, fast motion, parking detection, people gathering, vehicle/person alarm classification, link tracking

Face detection and SMD

Auto-tracking available

Horizontal positioner: 0° ~ 360° continuous

Vertical positioner: -15° ~ 90°, with 180° autoflip

Manual speed: 0.1° ~ 300°/sec (H), 0.1° ~ 200°/sec (V)

Preset speed: 400°/sec (H), 300°/sec (V)

300 presets, DH-SD and Pelco-D/P protocols with automatic recognition

8 rounds (up to 32 presets per round)

5 patterns and 5 scans

1 audio input / 1 audio output

2 alarm inputs / 1 alarm output

MicroSD card slot: for up to 512GB (card not included)

Network interface: RJ45 (10/100 Base-T)

Network protocols: FTP, RTMP, IPv6, Bonjour, IPv4, DNS, RTCP, PPPoE, NTP, RTP, 802.1x, HTTPS, SNMP, TCP/IP, DDNS, UPnP, NFS, ICMP, UDP, IGMP, HTTP, SSL, DHCP, SMTP, Qos, RTSP, ARP

ONVIF S/G/T, P2P, CGI, SDK, API support

Compatible with IOS and Android devices

Up to 20 users

DSS, DMSS management software

Power: 24V AC, 2.5A / PoE+ (802.3at)

Power consumption: 10W (basic), 22W (maximum)

Operating conditions: -40°C ~ +70°C, humidity <95%.

IP67 degree of protection

Vandal-proof IK10

Lightning-proof 6KV

Dimensions: Ø190 x 332 (H) mm

Weight: 4,7 kg

Including wall bracket and power supply
