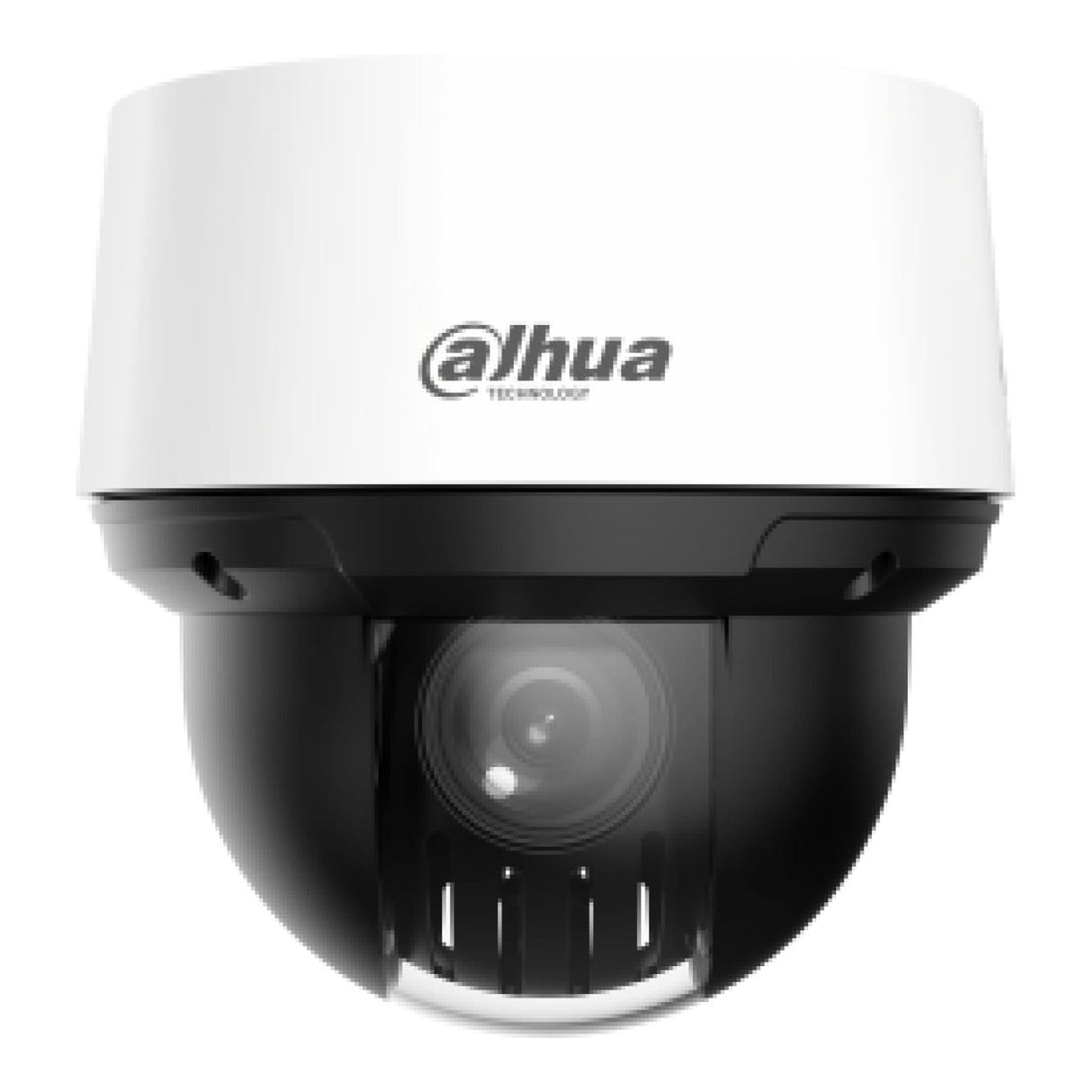

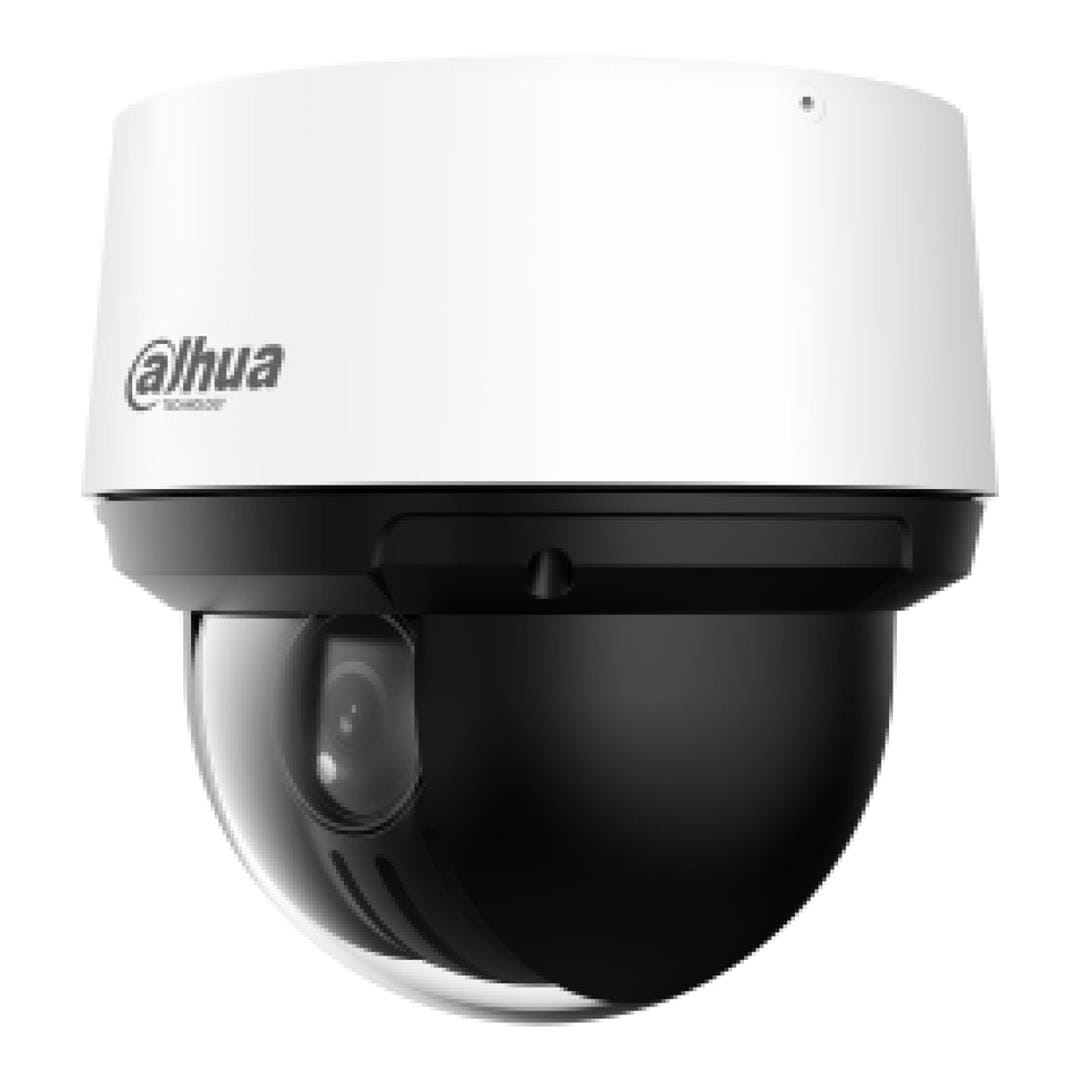

Dahua SD4A425DB-HNY WizSense 4MP 25x Starlight IR Network PTZ Camera

Dahua SD4A425DB-HNY WizSense 4MP 25x Starlight IR Network PTZ Camera

4MP 25x Starlight IR WizSense Network PTZ Camera

• 1/2.8" 4Megapixel STARVIS™ CMOS.
• 25x optical zoom.
• Starlight technology.
• Max. 25/30fps@4MP.
• IR distance up to 100 m.
• Auto-tracking 1.0.
• Perimeter protection.
• Face detection.
• SMD 3.0.
• IP66.

Specifications:

Image Sensor: 1/2.8" CMOS

Pixel: 4 MP

Max. Resolution: 2560 × 1440

ROM: 128 MB

RAM: 512 MB

Electronic Shutter Speed: 1/1s–1/30000s

Scanning System: Progressive

Min. Illumination:

• Colour: 0.005lux@F1.6
• B/W: 0.0005lux@F1.6
• 0Lux (IR on)

Illumination Distance: 100 m (328.08 ft) (IR)

Illuminator On/Off Control: Zoom Prio; Manual; Auto; Off

Illuminator Number: 6 (IR)

Focal Length: 5 mm–125 mm

Max. Aperture: F1.6–F3.6

Field of View:

• H: 51.9°–3.0°
• V: 39.7°–2.2°
• D: 63.1°–3.7°

Optical Zoom: 25×

Focus Control: Auto; semi-auto; manual

Close Focus Distance: 0.5 m–5 m (1.64 ft–16.40ft)

Iris Control: Auto; manual

Pan/Tilt Range:

• Pan: 0° to 360° endless
• Tilt: –5° to +90°, auto flip 180°

Manual Control Speed:

• Pan: 0.1°/s–240°/s
• Tilt: 0.1°/s–160°/s

Preset Speed: Pan: 240°/s; Tilt: 160°/s

Preset: 300

Tour: 8 (up to 32 presets per tour)

Pattern: 5

Scan: 5

Power-off Memory: Yes

Idle Motion: Pattern; Preset; Scan; Tour

PTZ Protocol: DH-SD

Network Port: RJ-45 (10/100 Base-T)

Network Protocol: FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP; ;SAMBA

Interoperability: CGI; SDK; ONVIF (Profile S&G&T); P2P

Streaming Method: Unicast/Multicast

User/Host: 20 (total bandwidth: 64 M)

Storage: Micro SD card (512 GB); FTP/SFTP; NAS

Browser:

• IE 9 and later versions
• Chrome 41 and later versions
• Firefox 50 and later versions
• iOS 10 and later versions

Management Software: DMSS; DSS PRO

Mobile Client: iOS; Android
