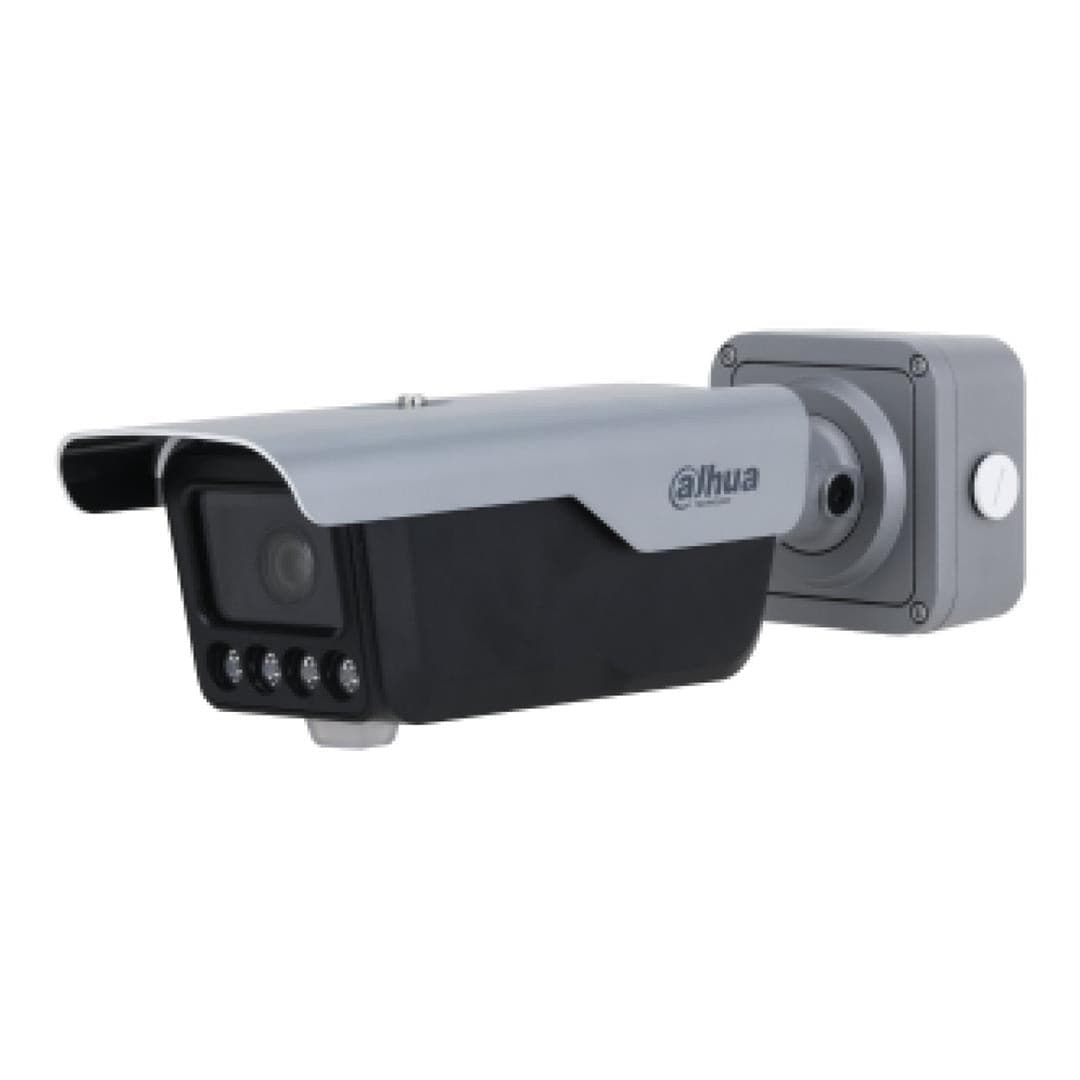

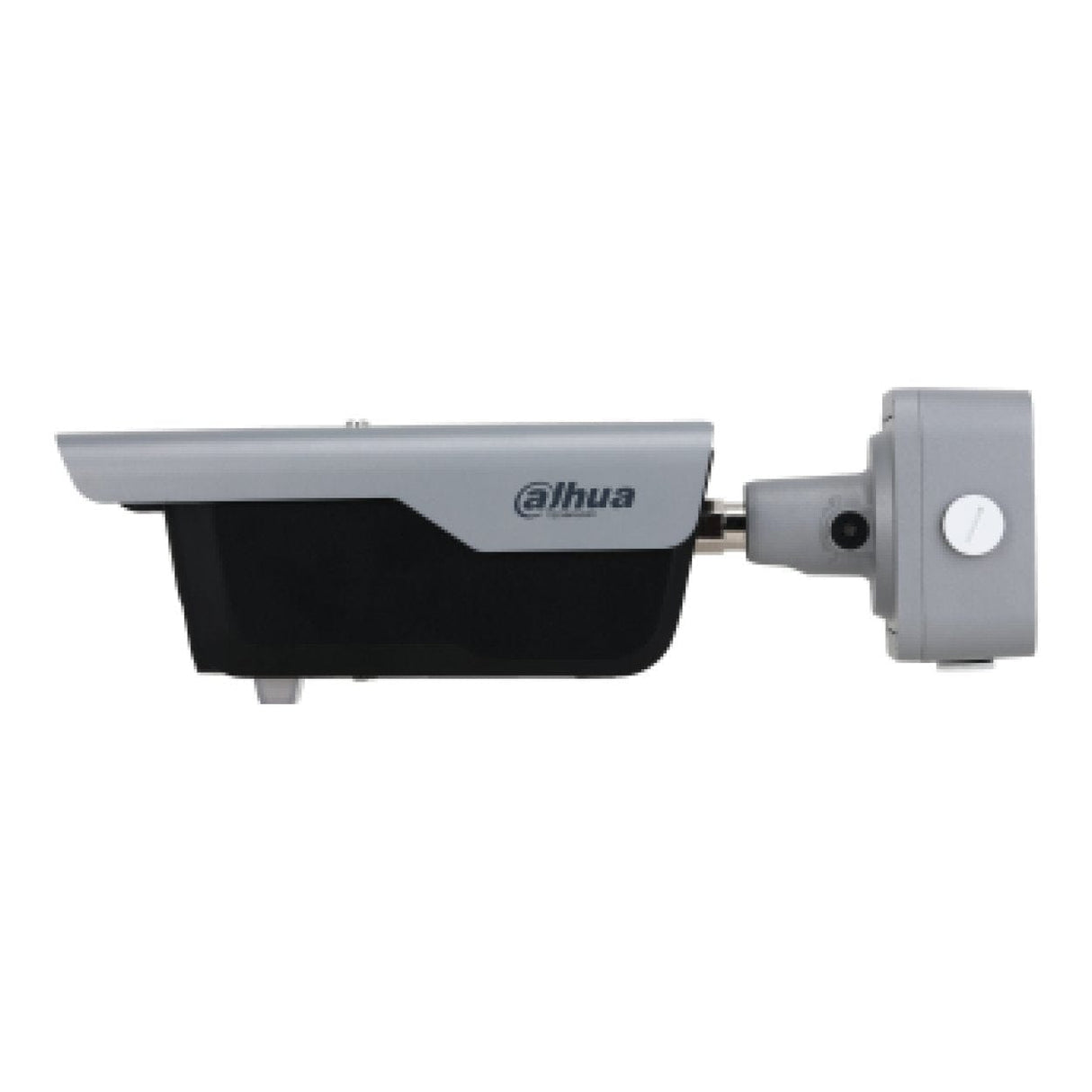

Dahua ITC413-PW4D-IZ3 4MP 32mm Vari-Focal Access ANPR Network Camera

Dahua ITC413-PW4D-IZ3 4MP 32mm Vari-Focal Access ANPR Network Camera

Using deep learning algorithms, Smart ANPR Camera can recognize vehicles, license plates, vehicle brands and vehicle colors. It can be used in scenarios that require vehicle detection and recognition. It also supports using IVS to detect events, and triggers sound and light alarms. The camera can perform various functions without being connected to other devices, which not only greatly improves the security of factories and compounds, but also simplifies the installation process. The camera is dustproof, waterproof, and tamper-proof, and is IP67 rated and IK10 rated.

Vivid Images

With its intuitive CMOS image sensor, the camera has WDR, a high signal-to-noise ratio, and is highly sensitive, producing vivid images 24/7, making it ideal for use in the traffic industry.

Impressive Performance

The high-performance CPU processor extracts and analyzes information on motor and non-motor vehicles in real time, providing valuable information on their features. This information is useful for effective decision making.

High-level Protection

Resilient and versatile, the camera is uniquely designed with an illuminator, junction box and more integrated into its structure. It is IP67 rated and has low power consumption, making it suitable for harsh environments.

Easy Installation

Highly convenient, the device can be configured through a single network port and supports floor-standing installation, making it easy to install and commission.

Specifications:

Image Sensor: 1/1.8" CMOS

Image Resolution: 2688 × 1520

Electronic Shutter Speed: Auto/Manual 1/25 s–1/100,000 s

Max. Detection Speed: 120 km/h

Min. Illumination

• 0.001 Lux@F1.6 (Color, 30 IRE);
• 0.0002 Lux@F1.6 (B/W, 30 IRE);
• 0 Lux (Illuminator on)

ROM: 4 GB

RAM: 1 GB

S/N Ratio: >56 dB

Scanning System: progressive scanning

Focal Length: 8 mm–32 mm

Field of View

• H: 39.9° (W) -15.1° (T)
• V: 21.8° (W) - 8.5° (T)
• D: 46.6° (W) - 17.4° (T)

Focus Control: Auto, area focus, manual

Number of Lens: 1

Lens Type: Motorized Vari-focal

Max. Aperture: 1.6

Iris Control: P-Iris

Illuminator Number: 4

Illuminator On/Off Control: Auto, manual

Illuminator Type: Dual Illuminators (730 nm IR/warm light)

Illumination Distance:

• ANPR: 30 m (98.43 ft)
• Video monitoring: 60 m (196.85 ft)

Smart Illumination: According to the brightness of the environment, the camera automatically adjusts the intensity of its light to reveal the details of moving targets. Devices with warm light can automatically adjust the light intensity according to the time.

Infrared Wavelength: 730 nm

Network Protocol: HTTP; Https; 802.1x; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; IPv4/v6; NTP; SFTP;DDNS; SNMP; PPPoE

API: Yes

SDK: Yes

Interoperability: ONVIF (Profile S/Profile T/Profile M); CGI; ITSAPI; P2P

Management Software: DSS Pro; DSS Express; Cybercity; Smart PSS;DMSS

Security: Username and password; MAC address; HTTPS; IEEE 802.1x; network access control

Browser

Plug in:

• IE 9, 10, 11.
• Chrome 52 and earlier versions
• Firefox 42 and earlier versions

No plug in:

• Chrome 92 and later versions

Image Encoding Format: JPEG

Image Setting: Brightness; contrast; saturation; gamma; sharpness; gain; white balance

Day/Night: IR filter, support three modes: color/B/W/auto

WDR: 140 dB

HLC: Yes

BLC: Yes

White Balance: Auto; Regional Custom; Manual; Outdoor; Natural; Street Lamp

Digital Detail Enhancement (DDE): Yes

OSD Overlay: Supports overlay of time; address (position of channel), lane (number/direction), plate (number and color), vehicle (color, type)

Audio Output: 1 channel (RCA port)

Network Port: RJ-45 (10/100 Mbps Ethernet port)

Alarm Input: 2, optocoupler input (wet node on-off value: 5 V)

Alarm Output: 2, relay output (2A 30 VDC/0.5A 125 VAC), which can connect to devices such as barriers

RS-485: 2 (half duplex,Transparent,DHRS,Push Data through Serial Port)

Reset Button: Yes

Wiegand: 1 channel, SHA-1 26 bit
