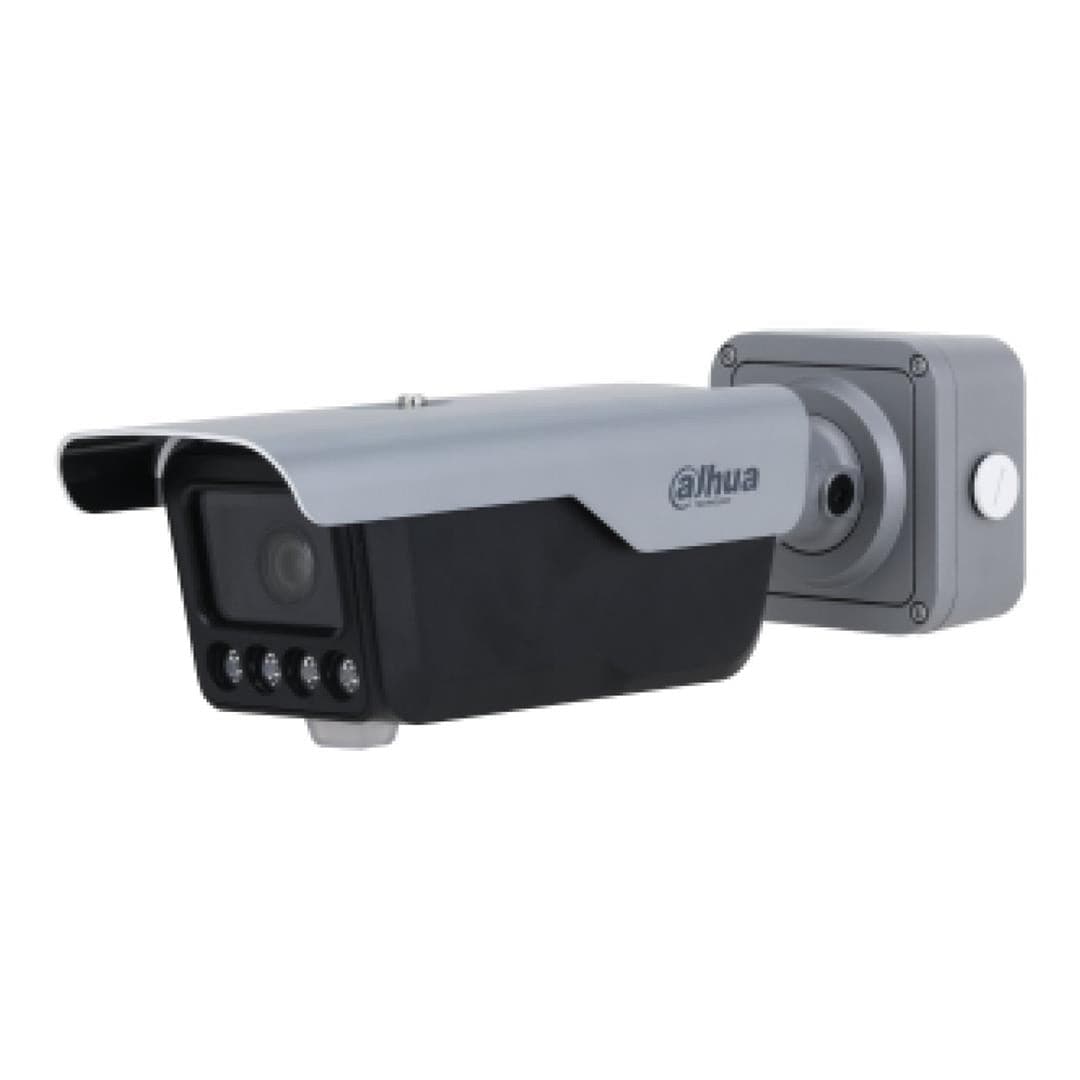

Dahua ITC413-PW4D-IZ1 4MP 12mm Vari-focal Access ANPR Camera

Dahua ITC413-PW4D-IZ1 4MP 12mm Vari-focal Access ANPR Camera

Using deep learning algorithms, Smart ANPR Camera can recognize vehicles, license plates, vehicle brands and vehicle colors. It can be used in scenarios that require vehicle detection and recognition. It also supports using IVS to detect events, and triggers sound and light alarms. The camera can perform various functions without being connected to other devices, which not only greatly improves the security of factories and compounds, but also simplifies the installation process. The camera is dustproof, waterproof, and tamper-proof, and is IP67 rated and IK10 rated.

Vivid Images

With its intuitive CMOS image sensor, the camera has WDR, a high signal-to-noise ratio, and is highly sensitive, producing vivid images 24/7, making it ideal for use in the traffic industry.

Impressive Performance

The high-performance CPU processor extracts and analyzes information on motor and non-motor vehicles in real time, providing valuable information on their features. This information is useful for effective decision making.

High-level Protection

Resilient and versatile, the camera is uniquely designed with an illuminator, junction box and more integrated into its structure. It is IP67 rated and has low power consumption, making it suitable for harsh environments.

Easy Installation

Ideal for scenarios where license plate recognition is needed, the camera is capable of capturing more than ten different types of traffic violations, and supports traffic information collection and event detection. It is suitable for road scenarios.

Multi-dimensional Data Sensing

Easy to install and commission, the camera has an LED illuminator and motorized vari-focal lens embedded in its structure.

Specifications:

Image Sensor: 1/1.8" CMOS

Image Resolution: 2688 × 1520

Electronic Shutter Speed: Auto/Manual 1/25 s–1/100,000 s

Max. Detection Speed: 80 km/h

Min. Illumination:

• 0.001 Lux@F1.4 (Color, 30 IRE)
• 0.0002 Lux@F1.4 (B/W, 30 IRE)
• 0 Lux (Illuminator on)

ROM: 4 GB

RAM: 1 GB

S/N Ratio: >56 dB

Scanning System: progressive scanning

Focal Length: 2.7 mm–12 mm

Field of View:

• H: 92° (W)—46.1° (T)
• V: 49° (W)—26.0° (T)
• D: 109° (W)—52.8° (T)

Focus Control: Auto, area focus, manual

Number of Lens: 1

Lens Type: Motorized Vari-focal

Max. Aperture: 1.4

Iris Control: DC-Iris

Network Protocol: HTTP; Https; 802.1x; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; IPv4/v6; NTP; SFTP;DDNS; SNMP; PPPoE

API: Yes

SDK: Yes

Interoperability: ONVIF (Profile S/Profile T); CGI; ITSAPI; P2P

Management Software: DSS Pro; DSS Express; Cybercity; Smart PSS

Security: Username and password; MAC address; HTTPS; IEEE 802.1x; network access control

Browser:

Plug in:

• IE 9, 10, 11.
• Chrome 52 and earlier versions
• Firefox 42 and earlier versions

No plug in:

• Chrome 92 and later versions
