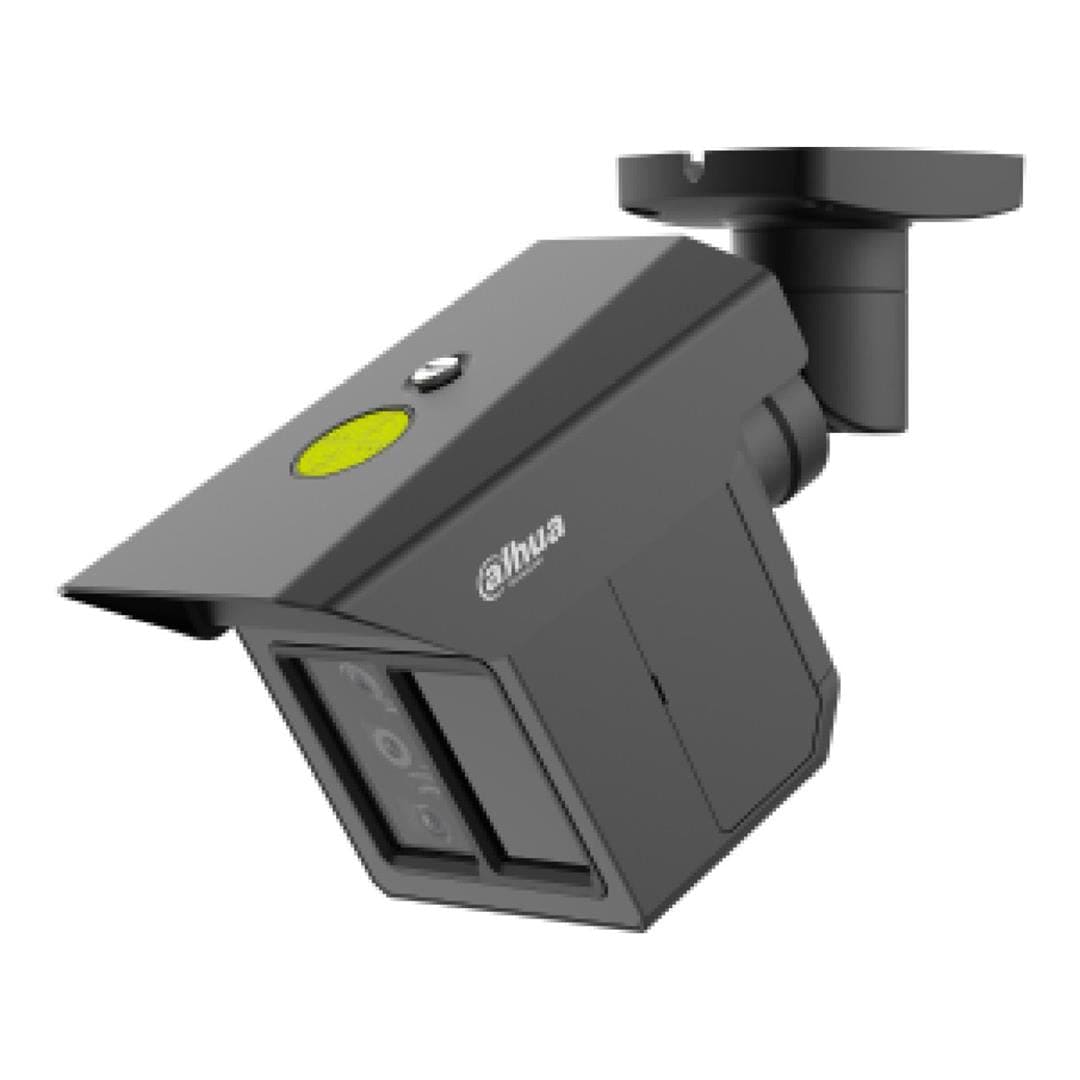

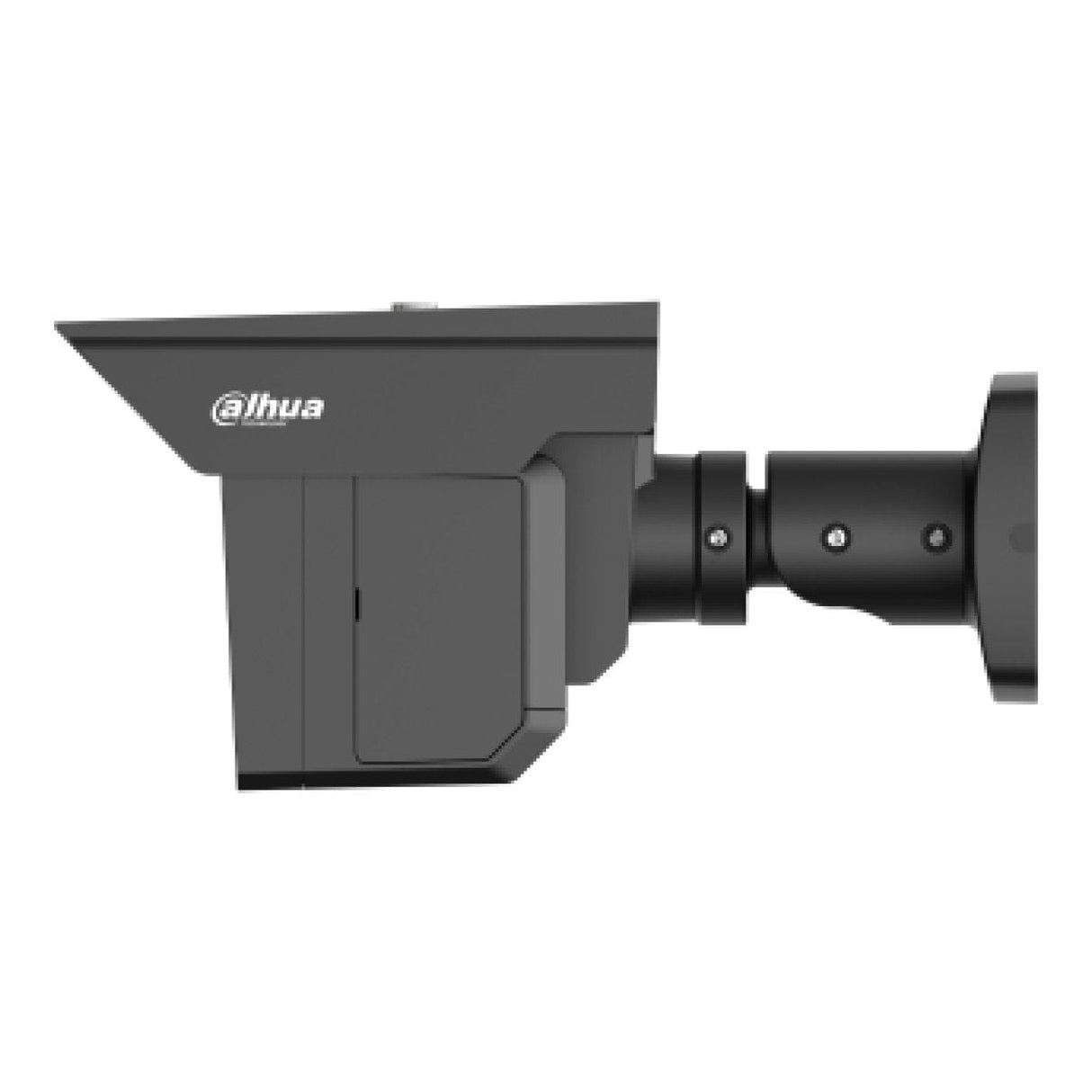

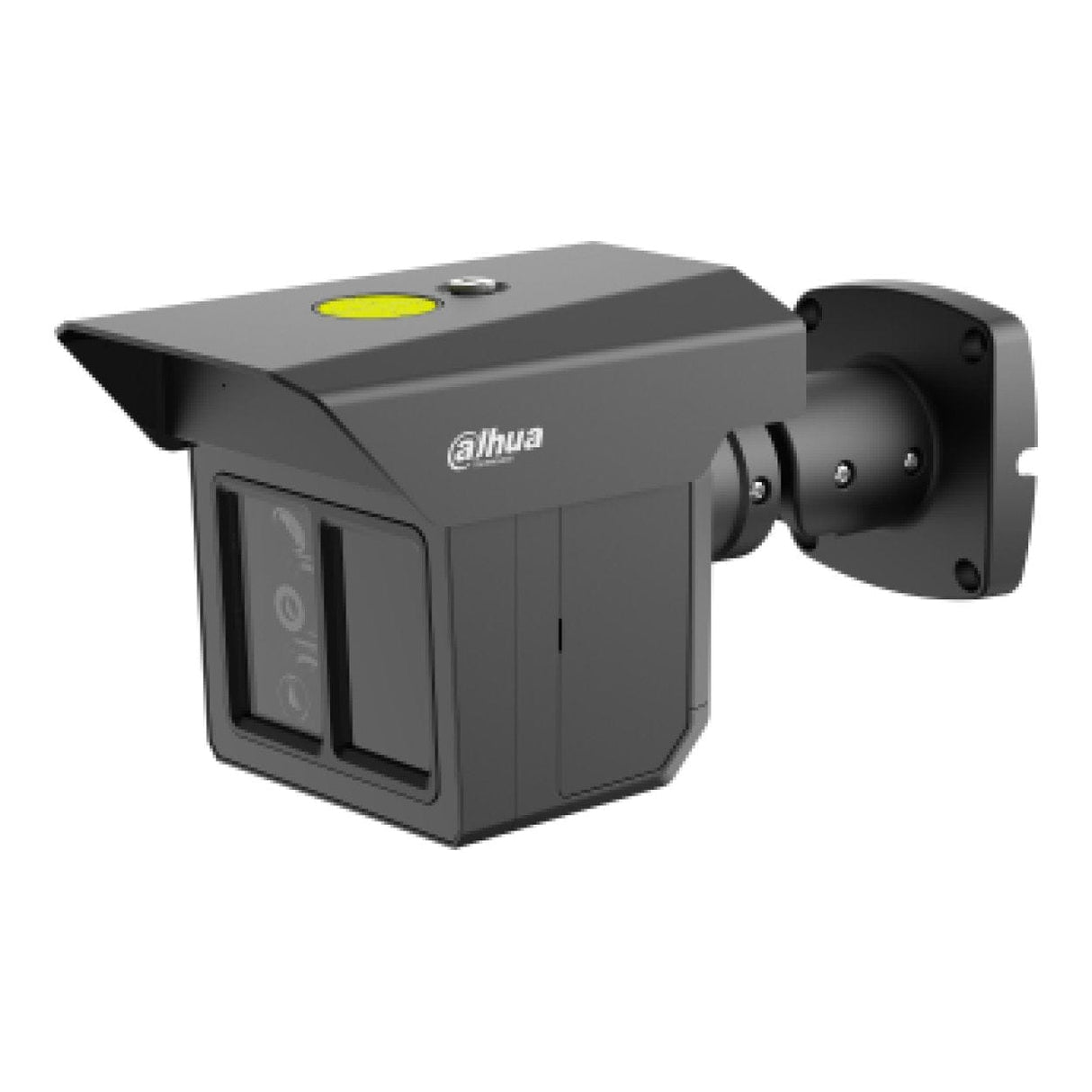

Dahua IPC-MFW5241T2P-E3-ASE WizMind 2MP Triple-Sight IR Bullet Network Camera

Dahua IPC-MFW5241T2P-E3-ASE WizMind 2MP Triple-Sight IR Bullet Network Camera

Launched by Dahua Technology, Dahua WizMind is a full portfolio of solutions composed of project-oriented products including IPC, IVSS,NVR, PTZ, XVR, Thermal and software platform which adopts industry-leading deep learning algorithms. Focusing on customer's requirements, WizMind provides precise, reliable and comprehensive AI solutions for verticals.

The Triple-Sight Long Range Perimeter Protection Bullet WizMind Network Camera leverages its deep learning algorithms and multichannel ultra-long-range perimeter detection technology to accurately detect targets over long ranges and accurately classify humans and vehicles. By employing Micro-PTZ and illumination by area technology, the monitoring range and illumination can be precisely adjusted, enhancing the quality of images and the effectiveness of intelligent detection. The camera is dustproof, waterproof and vandal-proof, and has IP67 and IK10 certification.

Long-Range Perimeter Protection

The camera features long-range perimeter protection by leveraging multi-channel fusion and illumination by area technology. With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire and intrusion) are largely reduced.

Illumination by Area

This technology allows you to independently control the lighting in multiple areas of the image, enabling the device to easily adapt to different scenes, save power and perform more efficiently.

AI-ISP

With AI ISP technology, the camera is able to easily adapt to scenes, producing high quality images that reveal the fine details of targets.

Two-way Talk

With its built-in high-sensitivity microphone and high-power speaker, the camera realizes two-way talk through the mobile app.

Cyber Security

Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from compromising the device.

Protection (IP67, IK10, Wide Voltage)

IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes.

IK10: The enclosure can stand the punch more than 5 times from a 5 kg hammer falling from a height of 40 cm (Impact energy is 20J).

Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

Specifications:

Image Sensor: Channel 1-3: 1/2.8" CMOS

Max. Resolution: Channel 1-3: 1920 (H) × 1080 (V)

ROM: 4 GB

RAM: 2 GB

Scanning System: Progressive

Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s

S/N Ratio: >56 dB

Illumination Distance: Up to 120 m (393.70 ft) (IR)

Illuminator On/Off Control: Auto;Manual

Illuminator Number: 8 (IR LED)

Lens Type: Fixed-focal

Lens Mount: M12

Focal Length

• Channel 1: 3.6 mm
• Channel 2: 12 mm
• Channel 3: 25 mm

Max. Aperture

• Channel 1: F1.6
• Channel 2: F2.0
• Channel 3: F2.8

Field of View:

• Channel1: D: 100.4°; H: 85.9°; V: 46.7°
• Channel2: D: 29.5°; H: 25.7°; V: 14.4°
• Channel3: D: 14.9°; H: 13°; V: 7.4°

Iris Control: Channel 1-3: Fixed

Close Focus Distance

• Channel 1: 1.1 m (3.61 ft)
• Channel 2: 8.6 m (28.22 ft)
• Channel 3: 19.6 m (64.30 ft)

Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream)

Video Frame Rate

• Channel 1-3:
• Main stream: 1920 × 1080@(1–25 fps)
• sub stream: 704 × 576@(1–25 fps)

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability: 2 streams

Resolution: Channel 1-3: 1080p (1920 × 1080)

Bit Rate Control: VBR;CBR

Video Bit Rate:

• Channel 1-3:
• H.264: 3 kbps–8192 kbps
• H.265: 3 kbps–8192 kbps

Day/Night: Auto(ICR)/Color/B/W

BLC: Yes

HLC: Yes

WDR: DWDR

Scene Self-adaptation (SSA): Yes

White Balance: Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control: Auto/Manual

Noise Reduction: 3D NR

Motion Detection: OFF/ON (4 areas, rectangular)

Region of Interest (RoI): Yes (4 areas)

Illumination By Area: Yes, 6 areas

Smart Illumination: Yes

Defog: Yes

Privacy Masking: 8 areas

Built-in MIC: Yes, built-in dual Mic

Built-in Speaker: Yes, built-in speaker

Audio Compression: G.711a; G.711Mu; PCM; G.726; G.723

Network Port: RJ-45 (10/100 Base-T)

SDK and API: Yes

Network Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Bonjour

Cyber Security: Video encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning

Interoperability: ONVIF (Profle S & Profle G & Profle T & Profle M); CGI

User/Host: 20 (Total bandwidth: 80 M)

Storage: FTP; SFTP; Micro SD card (support max. 1 TB); NAS

Browser:

• IE: IE 9 and later
• Edge: Edge 79 and later
• Chrome: Chrome 102 and later
• Firefox: Firefox 88 and later

Management Software: Smart PSS Lite; DSS; DMSS; DoLynk Care
