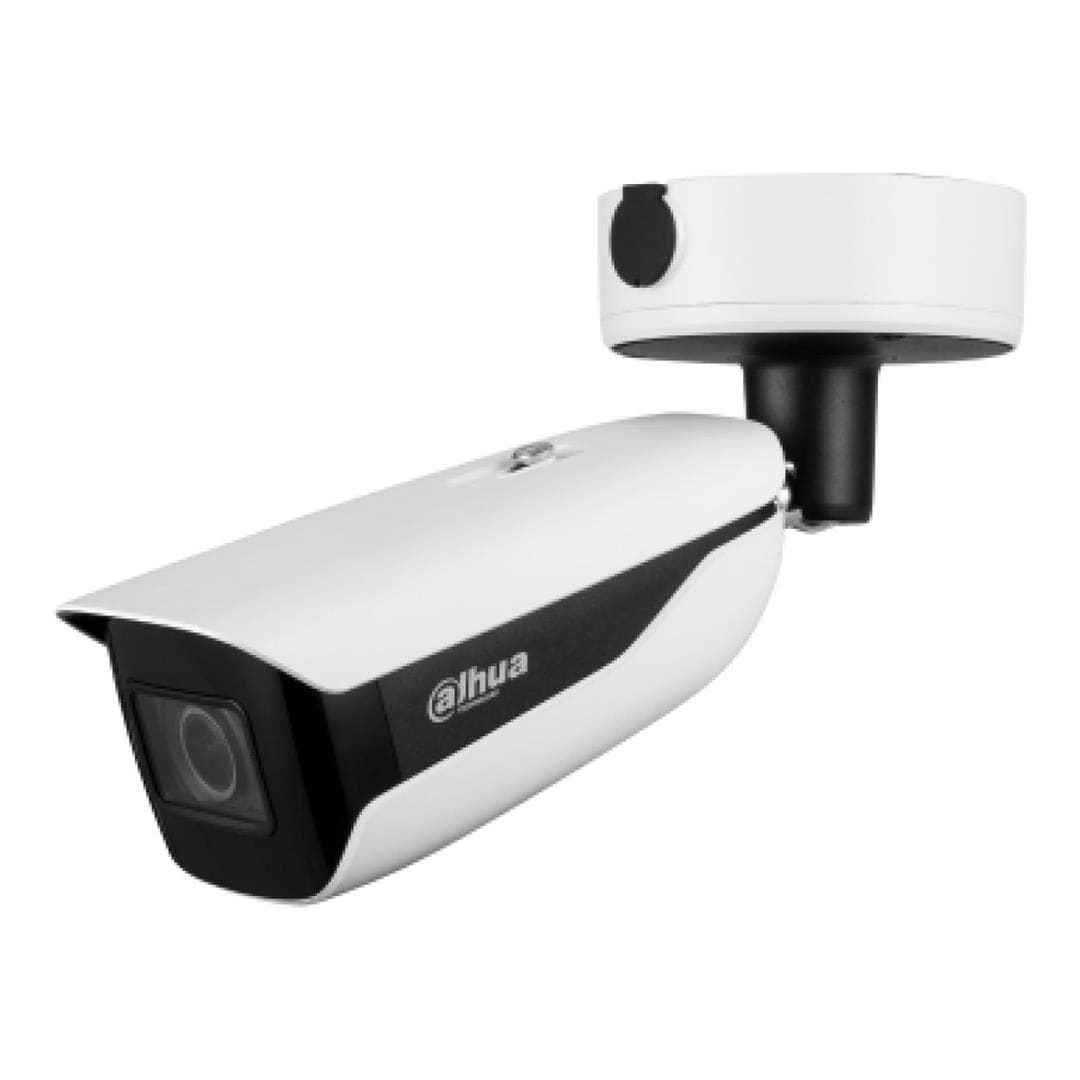

Dahua IPC-HFW7442H-Z4-S2 WizMind 4MP 32mm Vari-Focal IR Bullet Network Camera

Dahua IPC-HFW7442H-Z4-S2 WizMind 4MP 32mm Vari-Focal IR Bullet Network Camera

Launched by Dahua Technology, Dahua WizMind is a full portfolio of solutions composed of project-oriented products including IPC, NVR, PTZ, XVR, Thermal and software platform which adopts industry-leading deep learning algorithms. Focusing on customer's requirements, WizMind provides precise, reliable and comprehensive AI solutions for verticals.

With advanced deep learning algorithm, Dahua WizMind 7 Series network camera supports various intelligent functions and satisfies the requirements in different scenes. The camera can accurately recognize person, vehicle, and non-motor vehicle, face, and liveness. This series camera has ultra starlight night version effect, and works with ultra-low stream. It supports dust-proof function, waterproof function and vandal-proof function, complying with the standards of IP67 and IK10 (Supported by some select models).

Smart H.265+ & Smart H.264+

With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

Starlight+

With advanced image processing technology, optical technology, and image sensor of large target surface, Dahua Starlight+ technology can provide clear colorful video in the environment of ultra-low illuminance. It applies to various environments of low illuminance.

Video Metadata

With deep learning algorithm, Dahua Video Metadata technology can detect, track, capture vehicle, non-motor vehicle and people, and select the best images, and extract attributes.

Perimeter Protection

With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.

People Counting

With deep learning algorithm, Dahua People Counting technology can track and process moving human body targets to realize the accurate statistics of enter No., leave No., and In Area No. Working with management platform, it outputs reports to meet your requirements.

Face Detection

Dahua Face Detection technology can detect the face in the image. With deep learning algorithm, the technology supports detecting, tracking, capturing and selecting the best face image, and then outputs face snapshot.

Specifications:

Image Sensor: 1/1.8" CMOS

Max. Resolution: 2688 (H) × 1520 (V)

ROM: 4 GB

RAM: 2 GB

Scanning System: Progressive

Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

• 0.001 lux@F1.6 (Color, 30 IRE)
• 0.0002 lux@F1.6 (B/W, 30 IRE)
• 0 lux (Illuminator on)

S/N Ratio: >56 dB

Illumination Distance: 120 m (393.70 ft)

Illuminator On/Off Control: Auto; Manual; Zoomprio

Illuminator Number: 4 (IR LED)

Pan/Tilt/Rotation Range:

• Pan: 0°–360°
• Tilt: 0°–90°
• Rotation: 0°–360°

Lens Type: Motorized vari-focal

Lens Mount: Module interface

Focal Length: 8-32 mm

Max. Aperture: F1.6 (Constant)

Field of View:

• Horizontal: 41° (W)–15° (T)
• Vertical: 22° (W)–9° (T)
• Diagonal: 48° (W)–18° (T)

Iris Control: Auto; P-iris

Close Focus Distance: 1.0 m (3.28 ft)

Network Port: RJ-45 (10/100/1000 Base-T)

SDK and API: Yes

Cyber Security: Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade

Network Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP

Interoperability: ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; P2P

User/Host: 20 (Total bandwidth: 80 M)

Storage: FTP; SFTP; Micro SD card (support max. 256 GB); NAS

Browser

• IE: IE9 and later
• Chrome: Chrome 42 and later
• Firefox: Firefox 48.0.2 and later

Management Software: Smart PSS; DSS; DMSS

Mobile Client: iOS; Android

RS-485: 1 (baud rate range: 1200 bps–115200 bps)

Audio Input: 1 channel (RCA port)

Audio Output: 1 channel (RCA port)

Alarm Input: 3 channels in: 5 mA 3 V–5 VDC

Alarm Output: 2 channels out: 1,000 mA 30 VDC/500 mA 50 VDC
