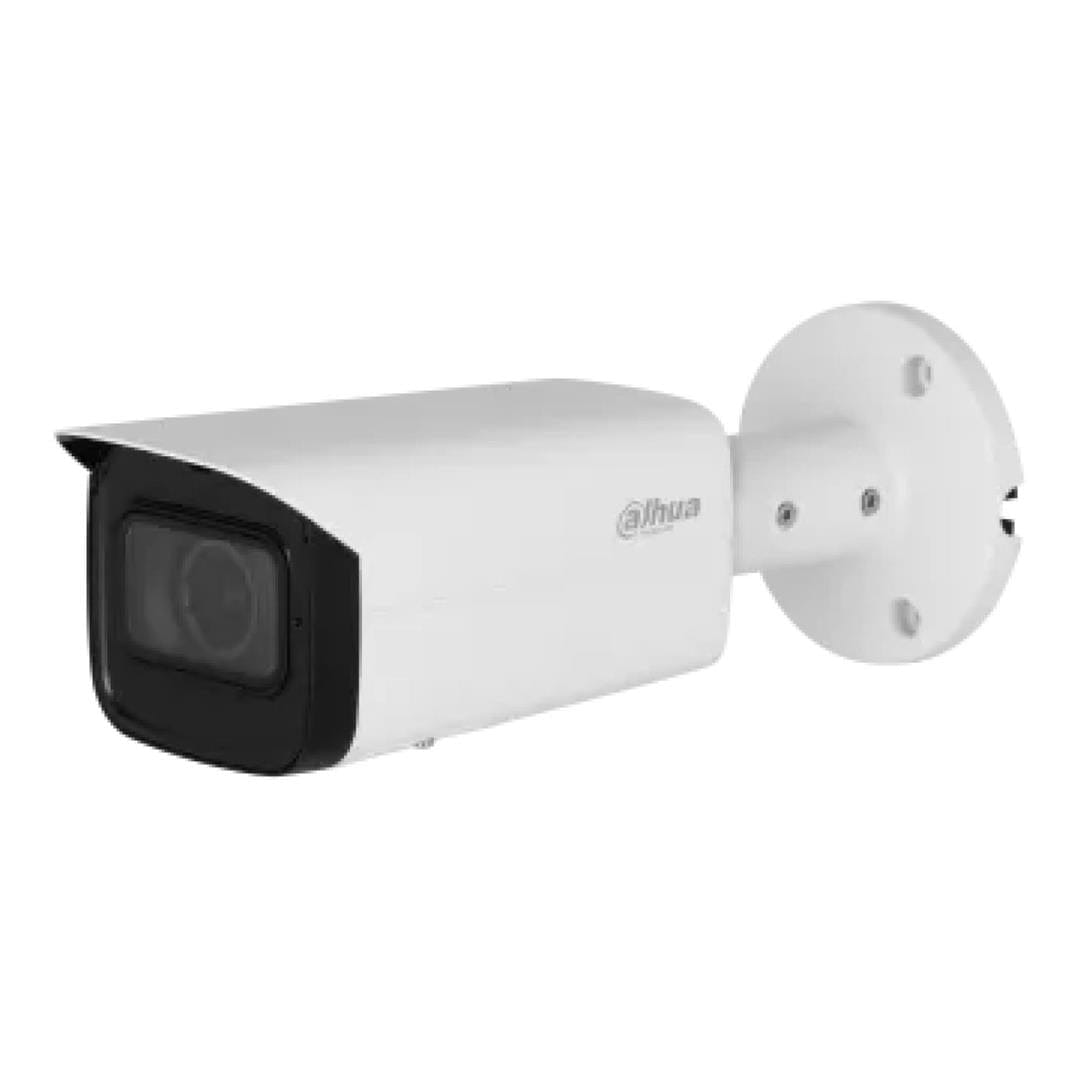

Dahua IPC-HFW3441T-ZAS-S2 WizSense 4MP 13.5mm IR Vari-Focal Bullet Network Camera

Dahua IPC-HFW3441T-ZAS-S2 WizSense 4MP 13.5mm IR Vari-Focal Bullet Network Camera

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

Dahua WizSense 3 Series Network Camera greatly saves on bandwidth and storage space through its AI Coding technology. Driven by its advanced deep learning algorithms, the camera supports intelligent functions such as perimeter protection, smart motion detection (SMD), Quick Pick, and AI SSA (AI Scene Self-adaptation), making it easy and convenient to use. Starlight technology and its large aperture lens also allow the camera to produce clear, vivid images even in poor lighting conditions.

SMD 4.0

Dahua Smart Motion Detection technology works with intelligent algorithms to classify targets that trigger motion detection alarms. It filters out objects that are not targets, such as small and large animals, to avoid triggering false alarms. With an AI NVR, Quick Pick technology becomes available, allowing you to easily search for and pick out human and vehicle targets from SMD event videos, prioritizing the highest matches.

AI SSA

Dahua AI Scene Self-adaptation (AI SSA) adopts deep learning algorithms to detect environmental conditions, such as rain, fog, backlight, low light and flicker, to adjust the parameters of the image to suit the conditions, ensuring that clear images are always produced.

Smart H.265+ & Smart H.264+

With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

Specifications:

Image Sensor: 1/2.9" CMOS

Max. Resolution: 2688 (H) × 1520 (V)

ROM: 128 MB

RAM: 512 MB

Scanning System: Progressive

Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s

Min. Illumination:

• 0.005 lux@F1.5 (Color, 30 IRE)
• 0.0005 lux@F1.5 (B/W, 30 IRE)
• 0 lux (Illuminator on)

S/N Ratio: >56 dB

Illumination Distance: Up to 60 m (196.85 ft)

Illuminator On/Off Control: Auto/Manual

Illuminator Number: 4 (IR LED)

Pan/Tilt/Rotation Range: Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360°

Lens Type: Motorized vari-focal

Lens Mount: φ14

Focal Length: 2.7 mm–13.5 mm

Max. Aperture: F1.5

Field of View:

• Horizontal: 104°–29°
• Vertical: 54° –16°
• Diagonal: 125° –33°

Iris Control: Fixed

Close Focus Distance: 0.8 m (2.62 ft)

Audio Input: 1 channel (RCA port) (Only - ZAS supports)

Audio Output: 1 channel (RCA port) (Only - ZAS supports)

Alarm Input: 1 channel in: wet contact, 5 mA 3 V–5 VDC (Only - ZAS supports)

Alarm Output: 1 channel out: wet contact, 300 mA 12 VDC (Only - ZAS supports)
