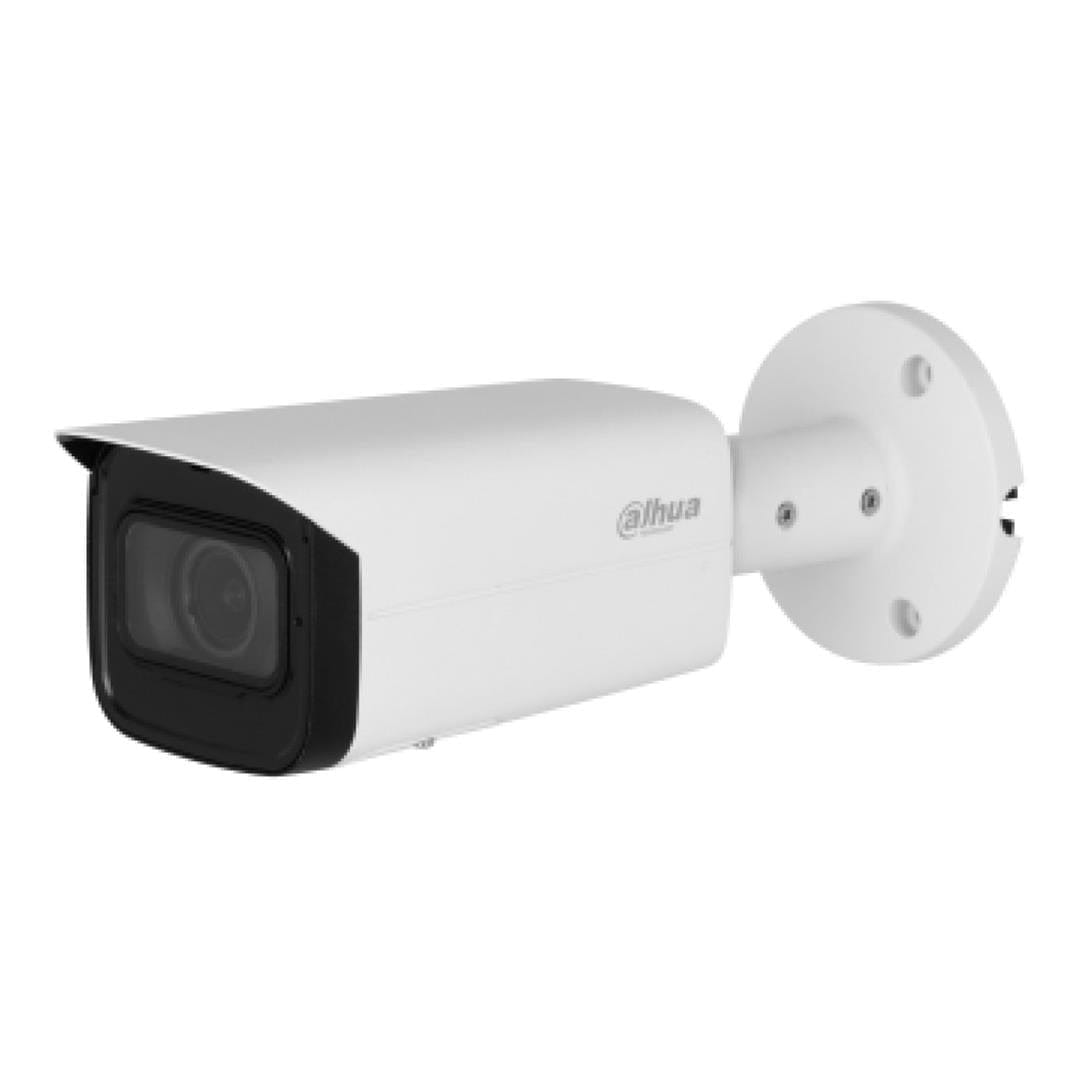

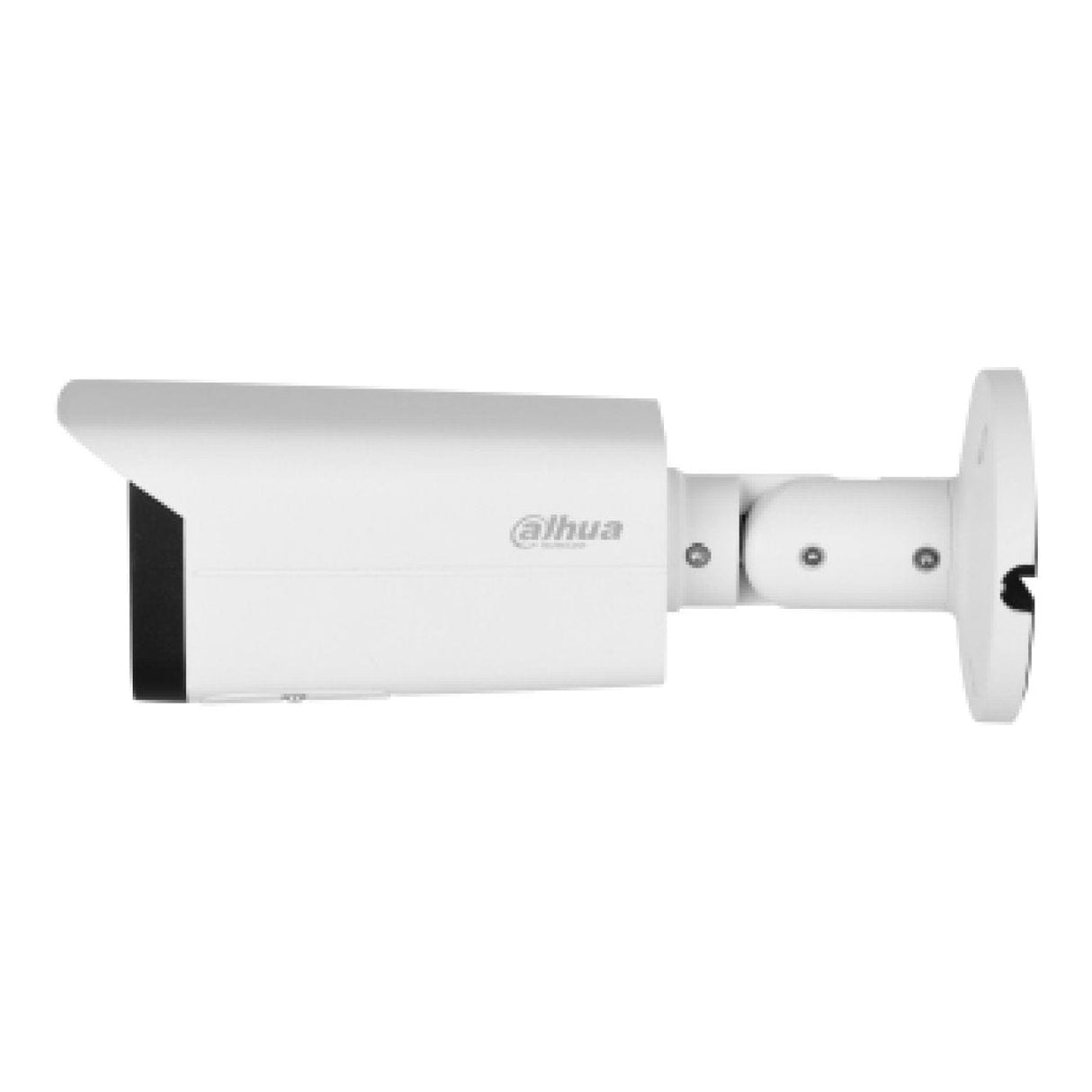

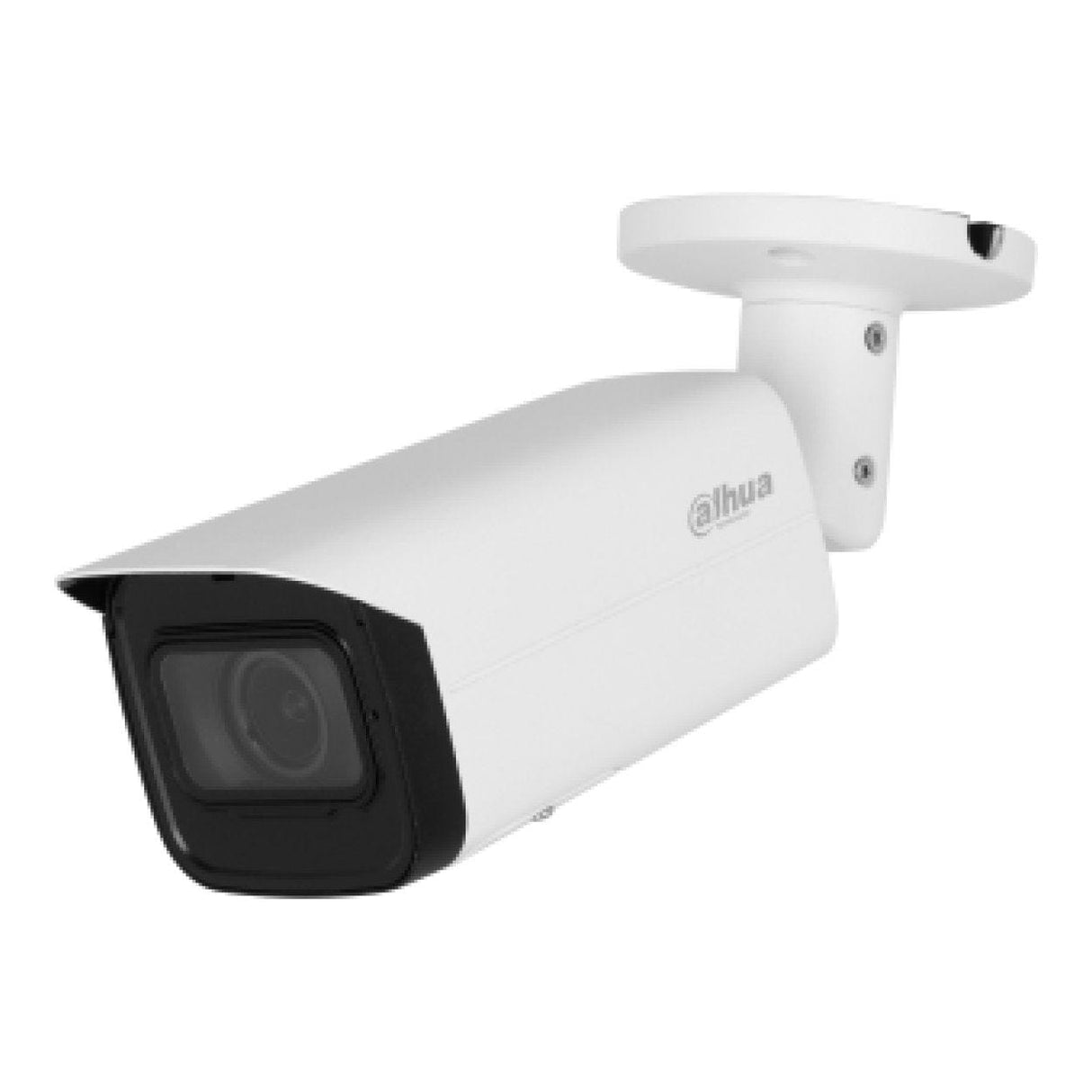

Dahua IPC-HFW3241T-ZS-S2 WizSense 2MP 13.5mm IR Vari-focal Bullet Network Camera

Dahua IPC-HFW3241T-ZS-S2 WizSense 2MP 13.5mm IR Vari-focal Bullet Network Camera

2MP IR Vari-focal Bullet WizSense Network Camera

• 2-MP 1/2.8" CMOS image sensor, excellent low luminance performance and high definition of images.
• Outputs max. 2 MP (1920 × 1080) @ 25/30 fps.
• H.265 codec, high compression rate, ultra-low bit rate.
• Built-in IR LED, max. IR distance: 60 m.
• ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
• Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
• Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
• Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection..
• Alarm: 1 in, 1 out (Only - ZAS supports); audio: 1 in, 1 out (Only - ZAS supports); max. 512 G Micro SD card; built-in Mic.
• 12 VDC/PoE power supply facilitates installation.
• IP67, IK10 (optional) protection.
• SMD 4.0, AI SSA.

Specifications:

Image Sensor: 1/2.8" CMOS

Max. Resolution: 1920 (H) × 1080 (V)

ROM: 128 MB

RAM: 512 MB

Scanning System: Progressive

Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s

Min. Illumination:

• 0.002 lux@F1.5 (Color, 30 IRE)
• 0.0002 lux@F1.5 (B/W, 30 IRE)
• 0 lux (Illuminator on)

S/N Ratio: >56 dB

Illumination Distance: Up to 60 m (196.85 ft)

Illuminator On/Off Control: Auto/Manual

Illuminator Number: 4 (IR LED)

Pan/Tilt/Rotation Range: Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360°

Lens Type: Motorized vari-focal

Lens Mount: φ14

Focal Length: 2.7 mm–13.5 mm

Max. Aperture: F1.5

Field of View:

• Horizontal: 109°–30°
• Vertical: 56° –17°
• Diagonal: 137° –35°

Iris Control: Fixed

Close Focus Distance: 0.8 m (2.62 ft)

Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

Smart Codec:

• Smart H.265+
• Smart H.264+

AI Coding:

• AI H.265
• AI H.264

Video Frame Rate:

• Main stream: 1920 × 1080 @ (1–25/30) fps
• Sub stream 1: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps)
• Sub stream 2: 1920 × 1080 @ (1–25/30 fps)
• *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity

Stream Capability: 3 streams

Resolution: 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240); VGA (640 × 480)

Bit Rate Control: CBR/VBR

Video Bit Rate:

• H.264: 3 kbps–8192 kbps
• H.265: 3 kbps–8192 kbps

Day/Night: Auto (ICR)/Color/B/W

BLC: Yes

HLC: Yes

WDR: 120 dB

Scene Self-adaptation (SSA): Yes

White Balance: Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control: Auto

Noise Reduction: 3D NR

Motion Detection: OFF/ON (4 areas, rectangular)

Image Stabilization: Electronic Image Stabilization (EIS)

Region of Interest (RoI): Yes (4 areas)

Defog: Yes

AFSA: Yes

Image Rotation: 0°/90°/180°/270° (support 90°/270° with 1920 × 1080 resolution and lower)

Mirror: Yes

Privacy Masking: 4 areas

Network Port: RJ-45 (10/100 Base-T)

SDK and API: Yes

Network Protocol: IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P

Security: Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade

Interoperability: ONVIF (Profile S/Profile G/Profile T); CGI

User/Host: 20 (Total bandwidth: 64 M)

Storage: FTP; SFTP; Micro SD card (support max. 512 G); NAS

Browser:

• IE: IE11
• Chrome
• Firefox

Management Software: SmartPSS Lite; DSS; DMSS

Mobile Client: IOS; Android
