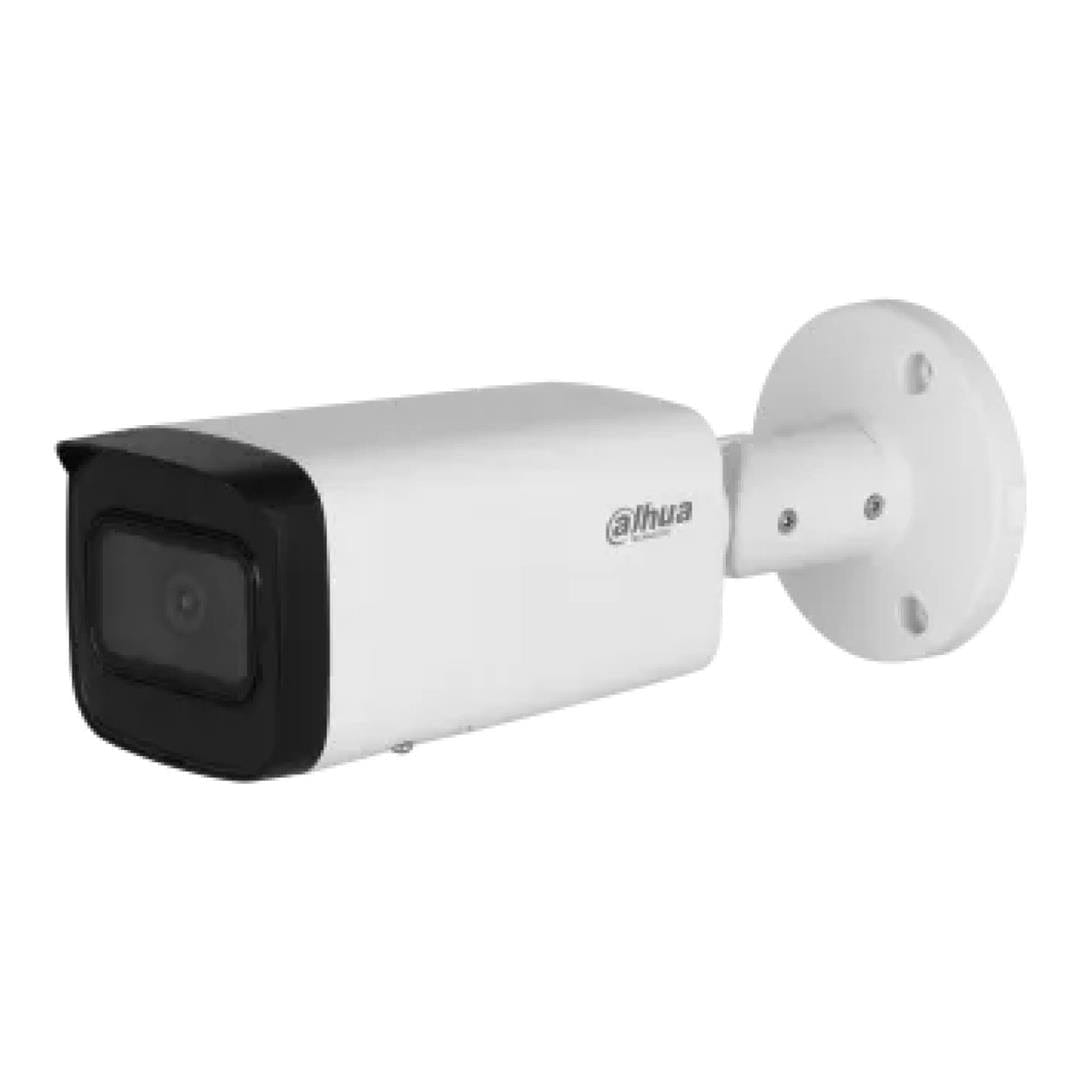

Dahua IPC-HFW2441T-AS WizSense 4MP 6mm IR Fixed-focal Bullet Network Camera

Dahua IPC-HFW2441T-AS WizSense 4MP 6mm IR Fixed-focal Bullet Network Camera

4MP IR Vari-focal Bullet WizSense Network Camera

• 4-MP 1/2.9″ CMOS image sensor, low luminance, and high definition image.
• Outputs max. 4 MP (2688 × 1520)@20 fps, and supports 2560 × 1440 (2560 × 1440)@25/30 fps.
• H.265 codec, high compression rate, ultra-low bit rate.
• Built-in IR LED, and the max. illumination distance is 60 m.
• ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
• Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
• Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
• Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
• Alarm: 1 in, 1 out (Only – ZAS supports); audio: 1 in, 1 out (Only – ZAS supports); supports max. 256 G Micro SD card; built in MIC.
• 12 VDC/PoE power supply, easy for installation.
• IP67, IK10 (optional) protection.
• SMD Plus.

Specifications:

Image Sensor: 1/2.9″ CMOS

Max. Resolution: 2688 (H) × 1520 (V)

ROM: 128 MB

RAM: 128 MB

Scanning System: Progressive

Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s

Min. Illumination:

• 0.006 lux@F1.5 (Color, 30 IRE)
• 0.0006 lux@F1.5 (B/W, 30 IRE)
• 0 lux (Illuminator on)

S/N Ratio: >56 dB

Illumination Distance: Up to 60 m (196.85 ft) (IR LED)

Illuminator On/Off Control: Auto; Manual

Illuminator Number: 4 (IR LED)

Pan/Tilt/Rotation Range:

• Pan: 0°–360°
• Tilt: 0°–90°
• Rotation: 0°–360°

Lens Type: Motorized vari-focal

Lens Mount: φ14

Focal Length: 2.7 mm–13.5 mm

Max. Aperture: F1.5

Field of View:

• H: 104°–29°;
• V: 54°–16°;
• D: 125°–34°

Iris Control: Fixed

Close Focus Distance: 0.8 m (2.62 ft)

Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec: Smart H.265+; Smart H.264+

Video Frame Rate:

• Main stream: 2688 × 1520@(1–20 fps)/2560 × 1440@(1-25/30 fps)
• Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
• *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability: 2 streams

Resolution: 2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control: CBR/VBR

Video Bit Rate:

• H.264: 32 kbps–6144 kbps;
• H.265: 12 kbps–6144 kbps

Day/Night: Auto(ICR)/Color/B/W

BLC: Yes

HLC: Yes

WDR: 120 dB

White Balance: Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control: Manual;Auto

Noise Reduction: 3D NR

Motion Detection: OFF/ON (4 areas, rectangular)

Region of Interest (RoI): Yes (4 areas)

Smart Illumination: Yes

Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)

Mirror: Yes

Privacy Masking: 4 areas

Built-in MIC: Yes

Audio Compression: G.711a; G.711Mu; G.726; PCM

Alarm Event: No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; defocus detection; external alarm (Only – ZAS supports); SMD; security exception

Network Port: RJ-45 (10/100 Base-T)

SDK and API: Yes

Network Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P

Interoperability: ONVIF (Profile S/Profile G/Profile T); CGI

User/Host: 6 (Total bandwidth: 36 M)

Storage: FTP; SFTP; Micro SD card (support max. 256 GB)

Browser:

• IE
• Chrome
• Firefox

Management Software: SmartPSS Lite; DSS; DMSS

Mobile Client: iOS; Android

Cyber Security: Video encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
