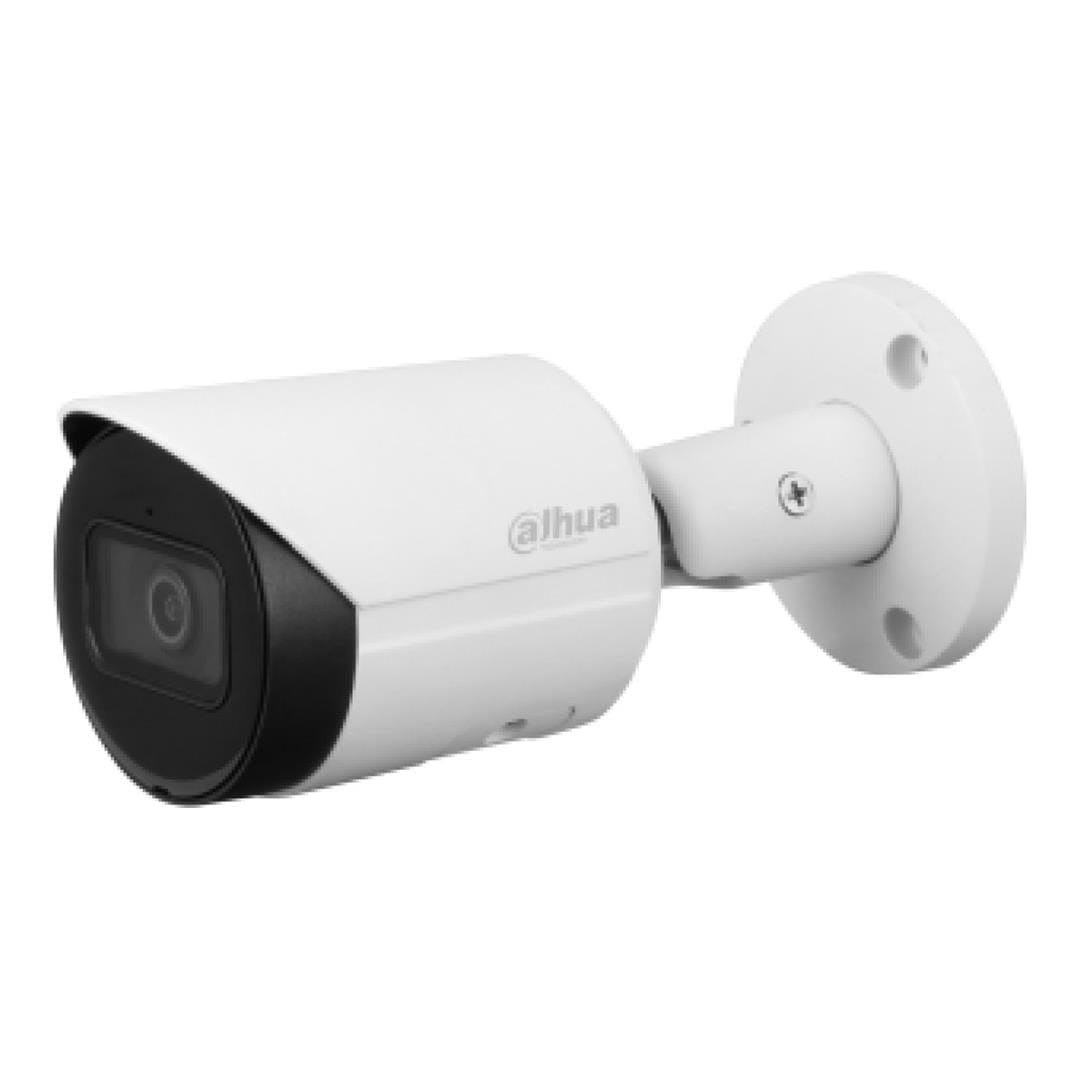

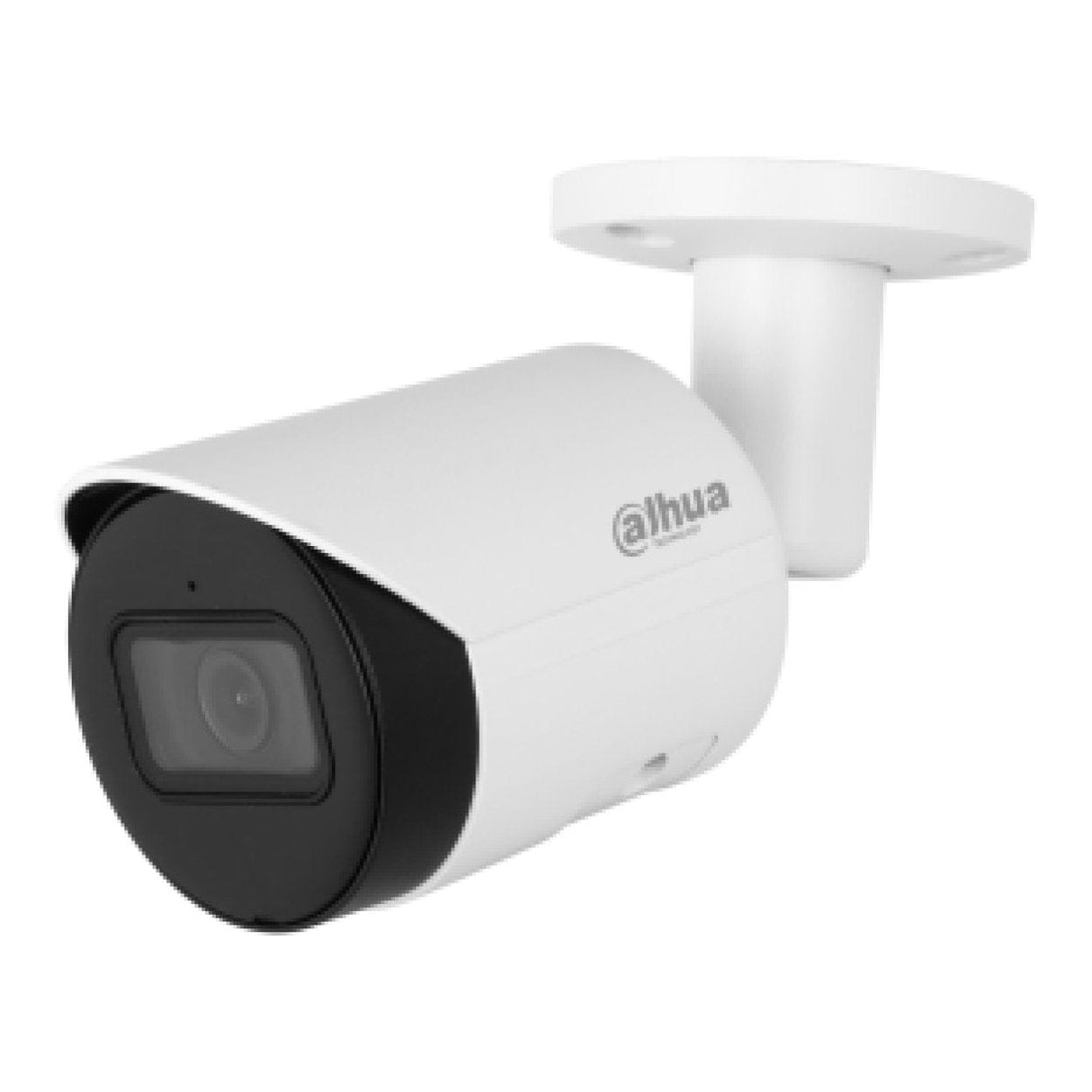

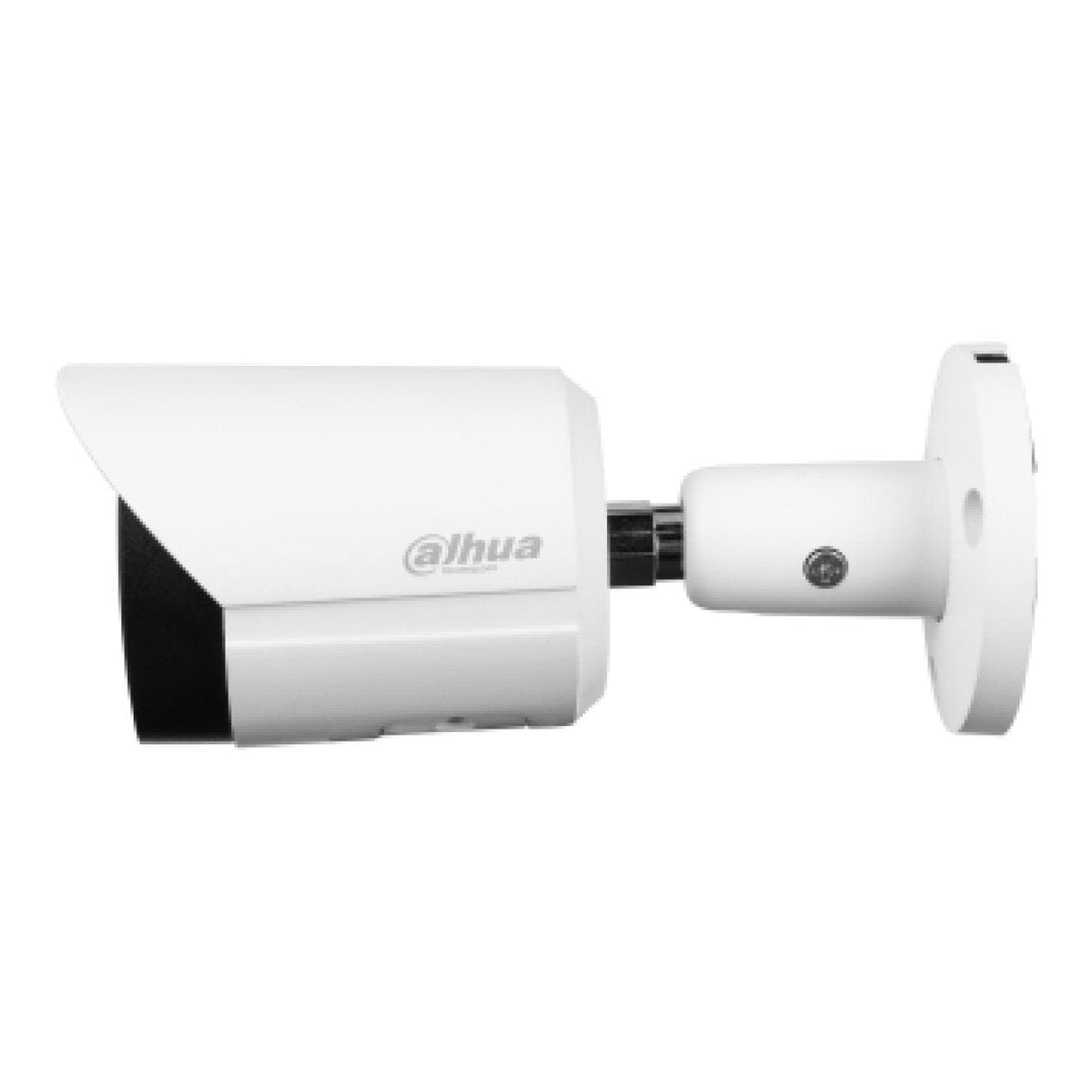

Dahua IPC-HFW2241S-S WizSense 2MP 3.6mm IR Fixed-focal Bullet Network Camera

Dahua IPC-HFW2241S-S WizSense 2MP 3.6mm IR Fixed-focal Bullet Network Camera

2MP IR Fixed-focal Bullet WizSense Network Camera

• 2-MP 1/2.8" CMOS image sensor, low luminance, and high definition image.
• Outputs max. 2 MP (1920 × 1080)@25/30 fps. · H.265 codec, high compression rate, ultra-low bit rate.
• Built-in IR LED, and the max. illumination distance is 30 m.
• ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
• Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
• Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
• Supports max. 256 G Micro SD card; built in MIC.
• 12 VDC/PoE power supply.
• IP67 protection.
• SMD Plus.

Specifications:

Image Sensor: 1/2.8" CMOS

Max. Resolution: 1920 (H) × 1080 (V)

ROM: 128 MB

RAM: 128 MB

Scanning System: Progressive

Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s

Min. Illumination:

• 0.002 lux@F1.6 (Color, 30 IRE)
• 0.0002 lux@F1.6 (B/W, 30 IRE)
• 0 lux (Illuminator on)

S/N Ratio: >56 dB

Illumination Distance: 30 m (98.43 ft) (IR LED)

Illuminator On/Off Control: Auto; manual

Illuminator Number: 1 (IR LED)

Pan/Tilt/Rotation Range:

• Pan: 0°–360°
• Tilt: 0°–90°
• Rotation: 0°–360°

Lens Type: Fixed-focal

Lens Mount: M12

Focal Length: 3.6 mm

Max. Aperture: F1.6

Field of View: 3.6 mm: H: 88°; V: 44°; D: 105°

Iris Control: Fixed

Close Focus Distance: 3.6 mm: 1.3 m (4.37 ft)

Network Port: RJ-45 (10/100 Base-T)

SDK and API: Yes

Network Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P

Interoperability: ONVIF (Profile S/Profile G/Profile T); CGI

User/Host: 6 (Total bandwidth: 36 M)

Storage: FTP; SFTP; Micro SD card (support max. 256 GB)

Browser:

• IE
• Chrome
• Firefox

Management Software: DSS; DMSS

Mobile Client: iOS; Android

Security: Trusted execution; Digest; Security logs; WSSE; Account lockout; Syslog; 802.1x; IP/MAC filtering; HTTPS; Trusted upgrade; Trusted boot; Generation and importing of X.509 certification
