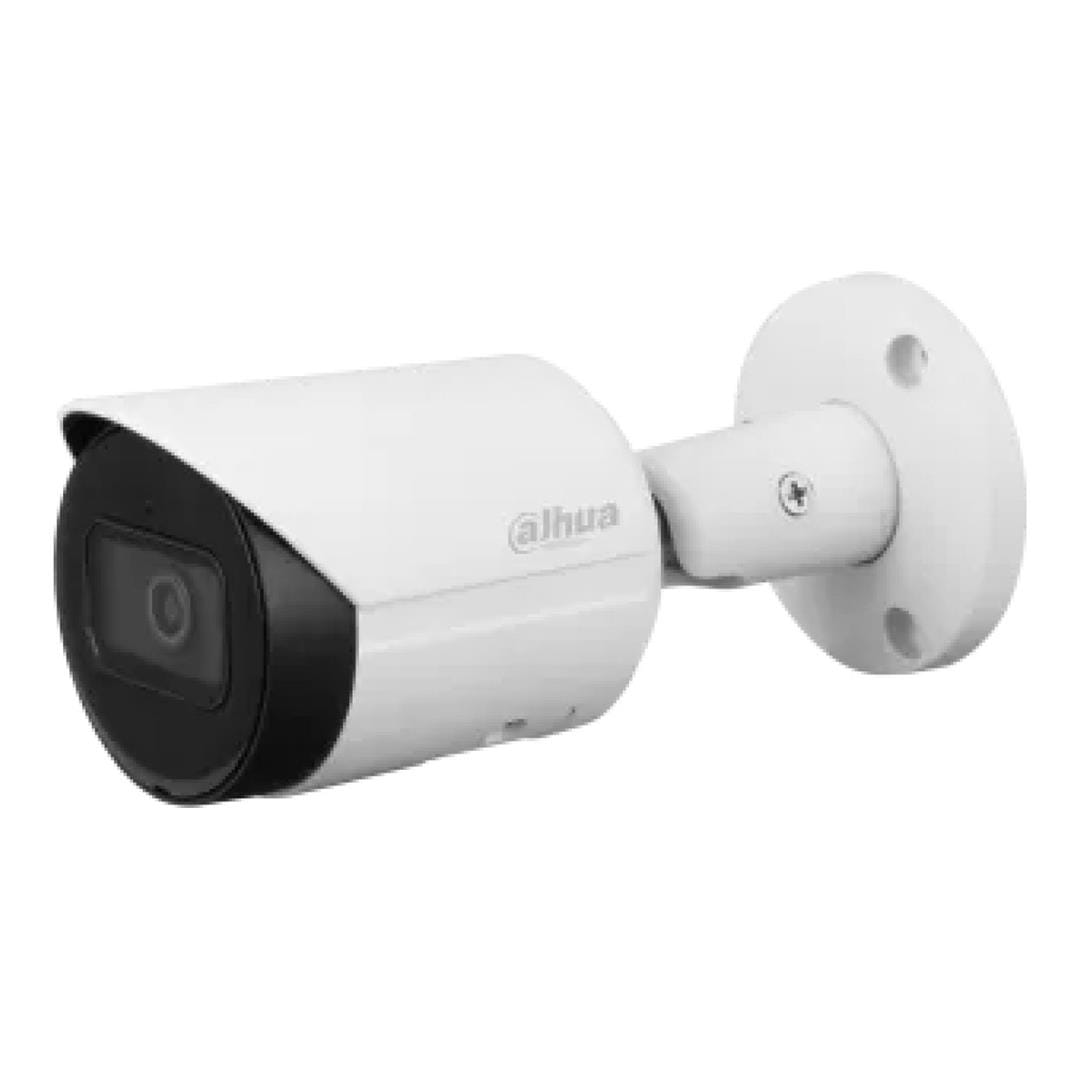

Dahua IPC-HFW2241S-S WizSense 2MP 2.8mm IR Fixed-focal Bullet Network Camera

Dahua IPC-HFW2241S-S WizSense 2MP 2.8mm IR Fixed-focal Bullet Network Camera

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

With advanced deep learning algorithm, Dahua WizSense 2 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. With starlight technology, this series camera provides a better image effect in the condition of low illuminance.

SMD Plus

With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.

Smart H.265+ & Smart H.264+

With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

Perimeter Protection

With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion) are largely reduced.

Specifications:

Image Sensor 1/2.8" CMOS

Max. Resolution 1920 (H) × 1080 (V)

ROM 128 MB

RAM 128 MB

Scanning System Progressive

Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

• 0.002 lux@F1.6 (Color, 30 IRE)
• 0.0002 lux@F1.6 (B/W, 30 IRE)
• 0 lux (Illuminator on)

S/N Ratio >56 dB

Illumination Distance 30 m (98.43 ft) (IR LED)

Illuminator On/Off Control Auto; manual

Illuminator Number 1 (IR LED)

Pan/Tilt/Rotation Range

• Pan: 0°–360°
• Tilt: 0°–90°
• Rotation: 0°–360°

Lens Type: Fixed-focal

Lens Mount: M12

Focal Length: 2.8 mm

Max. Aperture: F1.6

Field of View: 2.8 mm: H: 107°; V: 56°; D: 127°

Iris Control: Fixed

Close Focus Distance: 2.8 mm: 0.7 m (2.30 ft)

Network Port: RJ-45 (10/100 Base-T)

SDK and API: Yes

Network Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P

Interoperability: ONVIF (Profile S/Profile G/Profile T); CGI

User/Host: 6 (Total bandwidth: 36 M)

Storage: FTP; SFTP; Micro SD card (support max. 256 GB)

Browser:

• IE
• Chrome
• Firefox

Management Software: DSS; DMSS

Mobile Client: iOS; Android
