Dahua IPC-HFW2230TC-A-E 2MP 2.8mm IR Bullet Network Camera

Dahua IPC-HFW2230TC-A-E 2MP 2.8mm IR Bullet Network Camera

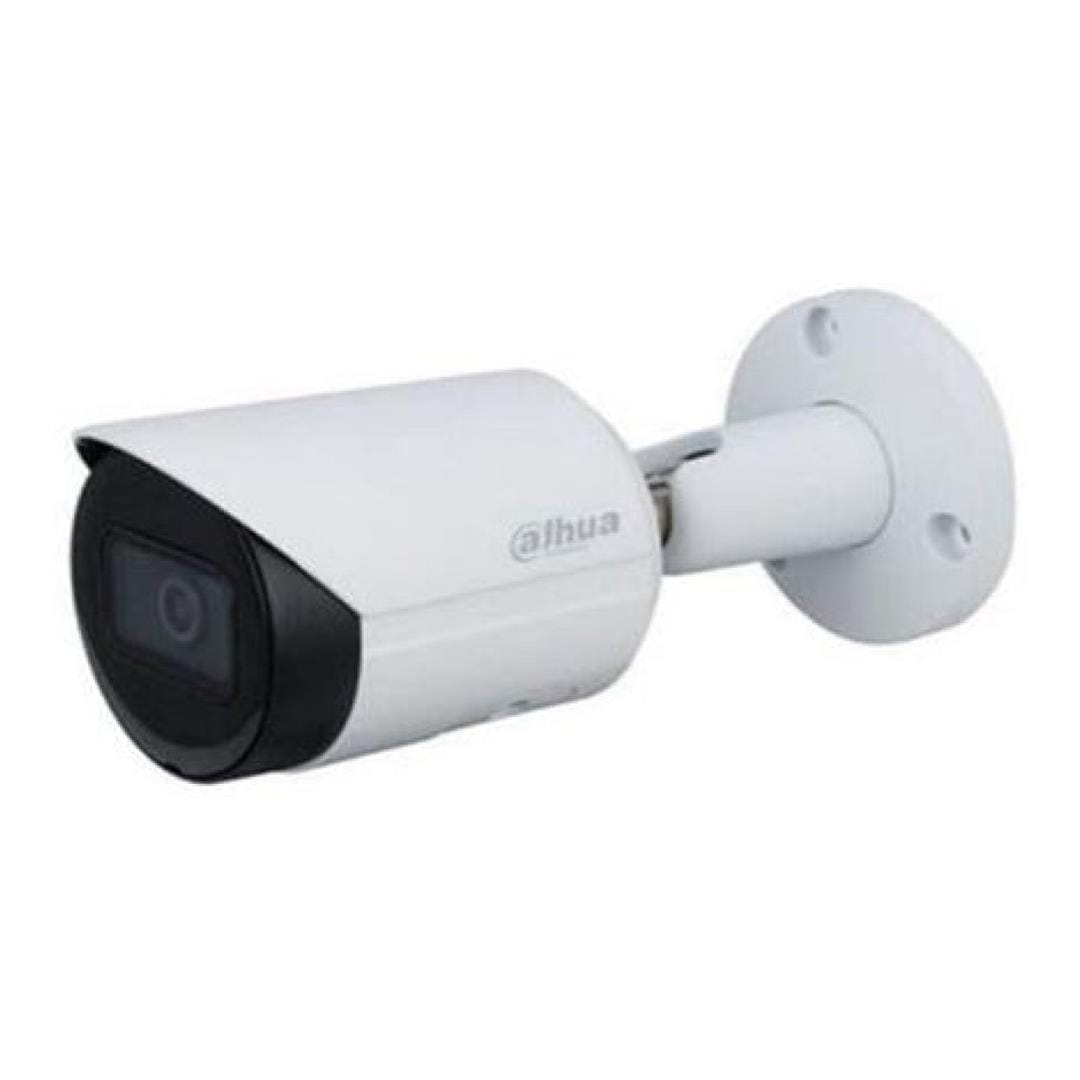

The Dahua DH-IPC-HFW2230TC-A-E is a 2MP Lite-series fixed-focal bullet network camera designed for reliable outdoor surveillance. Featuring a 2.8mm wide-angle lens, built-in IR illumination, and Smart H.265+ compression, it delivers efficient Full HD monitoring with reduced storage and bandwidth requirements.

• 2MP Full HD Resolution (1920 × 1080) – Clear and detailed video output
• 2.8mm Fixed Lens – Wide field of view for general surveillance coverage
• IR Night Vision (up to ±30m) – Reliable monitoring in low-light and total darkness
• Smart H.265+/H.264+ Compression – Reduces bandwidth and storage usage
• Built-in Microphone (-A variant) – Supports audio recording for enhanced situational awareness
• PoE Support – Simplified installation with a single cable for power and data
• IP67 Weatherproof Rating – Suitable for outdoor environments

The Dahua DH-IPC-HFW2230TC-A-E forms part of Dahua’s Lite Series, offering a balance between performance and cost-efficiency for residential and commercial security deployments. It uses a progressive CMOS sensor to deliver Full HD video at up to 30fps, ensuring smooth and detailed footage.

The 2.8mm fixed lens provides a wide viewing angle, making it ideal for monitoring entrances, perimeters, parking areas, and general surveillance zones. Integrated IR LEDs enable night vision up to approximately 30 metres, ensuring consistent monitoring regardless of lighting conditions.

With Smart H.265+ compression, the camera optimises video encoding to significantly reduce storage and bandwidth consumption while maintaining image quality—particularly useful for remote monitoring or large CCTV systems.

The inclusion of a built-in microphone allows audio capture alongside video, enhancing security coverage. Additionally, PoE (Power over Ethernet) simplifies installation by combining power and data transmission through a single cable.

Designed for durability, the camera features an IP67-rated housing, providing protection against dust, rain, and harsh outdoor conditions, making it suitable for long-term external deployment.

Specifications:

Image Sensor: 1/2.7" CMOS

Resolution: 2MP (1920 × 1080 @ 25/30fps)

Lens: 2.8mm fixed focal

Night Vision: IR up to ±30m

Video Compression: H.265+/H.264+

Audio: Built-in microphone (-A variant)

Storage: Supports MicroSD (model dependent)

Connectivity: Ethernet (PoE supported)

Weather Rating: IP67

Power Supply: 12V DC / PoE
