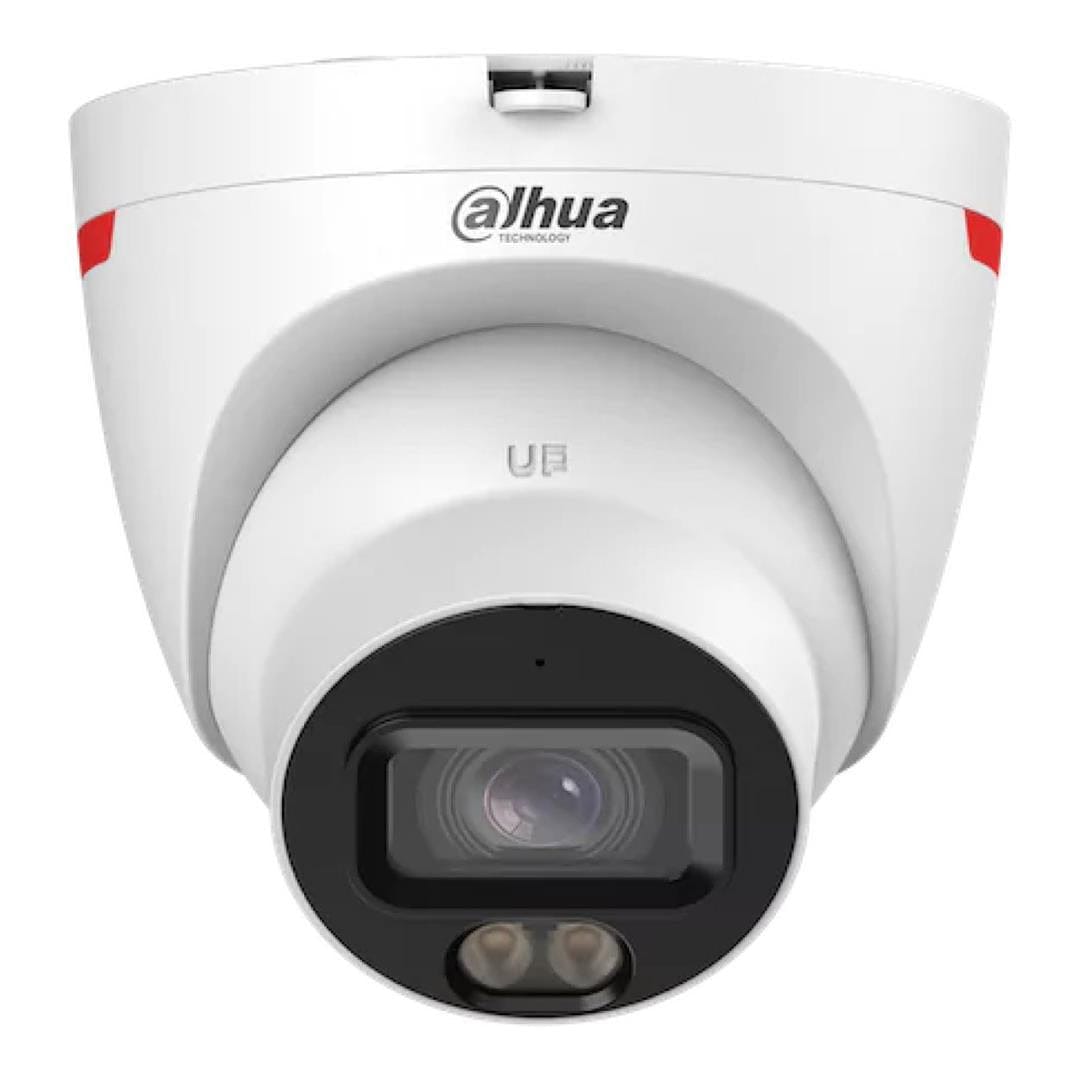

Dahua IPC-HDW2449TP-S-LED WizSense 4MP 2.8mm IR WizColour Fixed-focal Eyeball Network Camera

Dahua IPC-HDW2449TP-S-LED WizSense 4MP 2.8mm IR WizColour Fixed-focal Eyeball Network Camera

With advanced deep learning algorithm, Dahua WizSense 2 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. With starlight technology, this series camera provides a better image effect in the condition of low illuminance.

WizColor Technology

Dahua WizColor Technology seamlessly combines with the powerful AI-ISP, large pixel size sensor and large aperture in cameras. This unique integration enables cameras to effortlessly capture high-quality images with vibrant colors during nighttime scenarios, ensuring fine details are preserved and minimizing motion blur. Unlike traditional self-illuminating cameras, Dahua WizColor Technology maximizes the utilization of weak light sources, such as moonlight and city lights reflected in the sky, delivering captivating full-color images of the entire scene. It also ensures that monitoring distances are not compromised at night due to limited illumination ranges, facilitating full-color image capture even over long distances

AI-ISP

With AI ISP technology, the camera is able to easily adapt to scenes, producing high quality images that reveal the fine details of targets.

SMD Plus

With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.

Perimeter Protection

With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.

Smart H.265+ & Smart H.264+

With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

Protection (IP67, Wide Voltage)

IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

Specifications:

Image Sensor: 1/1.8" CMOS

Max. Resolution: 2688 (H) × 1520 (V)

ROM: 128 MB

RAM: 256 MB

Scanning System: Progressive

Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s

Min. Illumination: 0.0005 lux@F1.0

S/N Ratio: >56 dB

Illumination Distance: Up to 30 m (98.43 ft) (Warm light)

Illuminator On/Off Control: Auto;Manual

Illuminator Number: 2 (Warm light)

Angle Adjustment:

• Pan: 0°–360°
• Tilt: 0°–78°
• Rotation: 0°–360°

Lens Type: Fixed-focal

Lens Mount: M16

Focal Length: 2.8 mm

Max. Aperture: F1.0

Field of View: 2.8 mm: H: 112°; V: 60°; D: 134°

Iris Control: Fixed

Close Focus Distance: 2.8 mm: 2 m (6.56 ft)

Network Port: RJ-45 (10/100 Base-T)

SDK and API: Yes

Network Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour;

Auto Registration Interoperability: ONVIF (Profile S & Profile G & Profile T); CGI User/Host 20 (Total bandwidth: 48 M)

Storage: FTP; SFTP; Micro SD card (support max. 256 GB); NAS

Browser: IE; Chrome; Firefox
