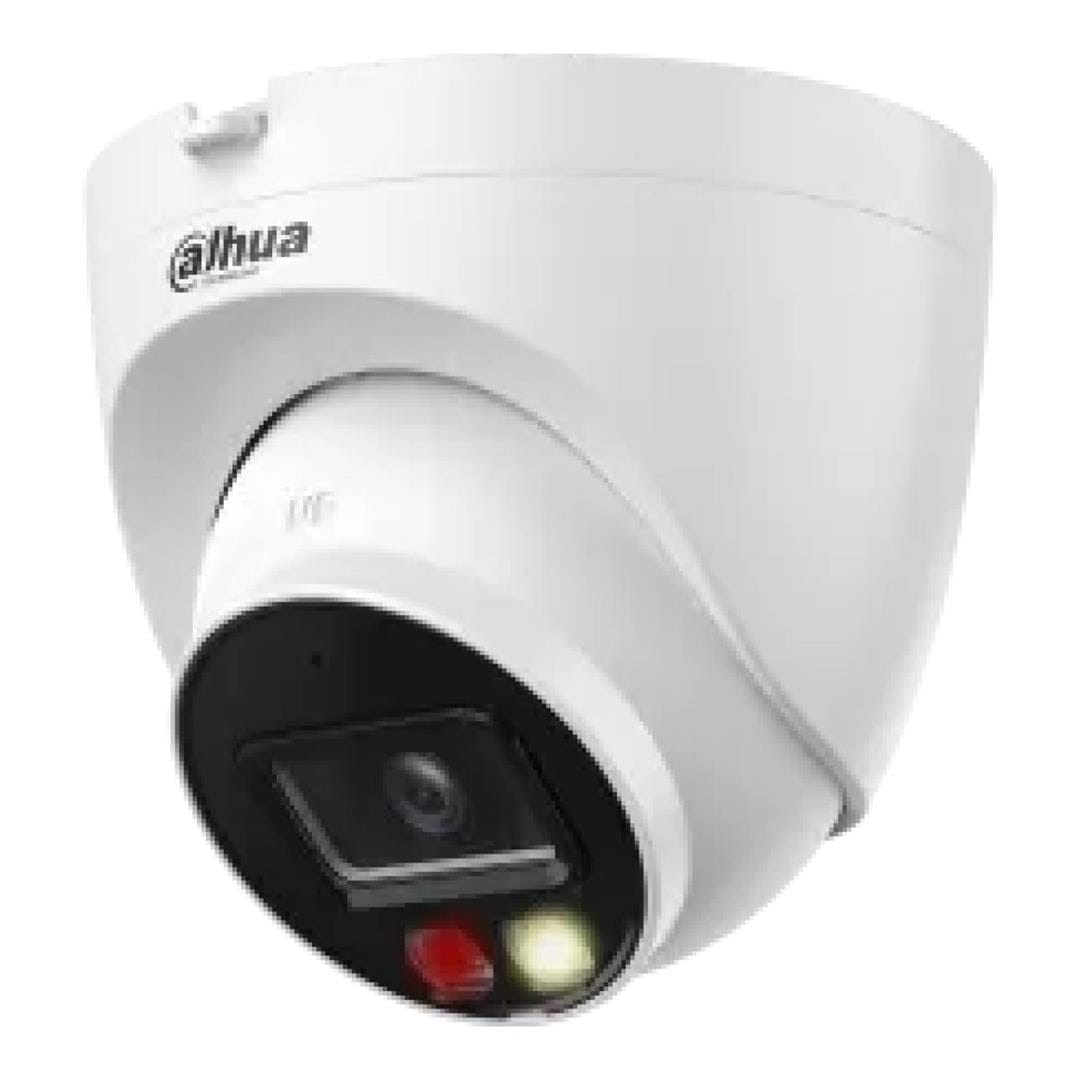

Dahua IPC-HDW2249T-S-IL WizSense 2MP 2.8mm Smart Dual Light Vari-focal Eyeball Network Camera

Dahua IPC-HDW2249T-S-IL WizSense 2MP 2.8mm Smart Dual Light Vari-focal Eyeball Network Camera

With advanced deep learning algorithm, Dahua WizSense 2 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. With starlight technology, this series camera provides a better image effect in the condition of low illuminance.

Smart Dual Light

Dahua Smart Dual Light technology adopts smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the white light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshot and video with full-color image. When the target is out of the monitoring area, the white light is off and the IR illuminator is on, which reduces light pollution efficiently.

SMD Plus

With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.

Perimeter Protection

With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.

Smart H.265+ & Smart H.264+

With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost ofstorage and transmission.

Full-colour

With high-performance sensor and large aperture lens, Dahua Full-color technology can display clear colorful image in the environment of ultra-low illuminance. With this photosensitivity technology, the camera can capture more available light, and display more colorful image details.

Cyber Security

Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from compromising the device.

Protection (IP67, Wide Voltage)

IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

Specifications:

Image Sensor: 1/2.8" CMOS

Max. Resolution: 1920 (H) × 1080 (V)

ROM: 128 MB

RAM: 128 MB

Scanning System: Progressive

Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s

Min. Illumination:

• 0.002 lux@F1.5 (Color, 30 IRE)
• 0.0002 lux@F1.5 (B/W, 30 IRE)
• 0 lux (Illuminator on)

S/N Ratio: ï¼ž56 dB

Illumination Distance:

• Up to 40 m (131.23 ft) (IR)
• Up to 40 m (131.23 ft) (Warm light)

Illuminator On/Off Control: Auto;Manual

Illuminator Number:

• 2 (Multi-core (IR + warm) light)
• Angle Adjustment
• Pan: 0°–360°
• Tilt: 0°–78°
• Rotation: 0°–360°

Lens Type: Motorized vari-focal

Lens Mount: φ14

Focal Length: 2.7 mm–13.5 mm

Max. Aperture: F1.5

Field of View: H: 109°–30°; V: 56°–17°; D: 131°–35°

Iris Control: Fixed

Close Focus Distance: 0.8 m

Network Port: RJ-45 (10/100 Base-T)

Network Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P

Interoperability: ONVIF (Profile S & Profile T & Profile G); CGI

User/Host: 6 (Total bandwidth: 36 M)

Storage: FTP; SFTP; Micro SD card (support max. 256 GB)

Browser:

• IE
• Chrome
• Firefox
