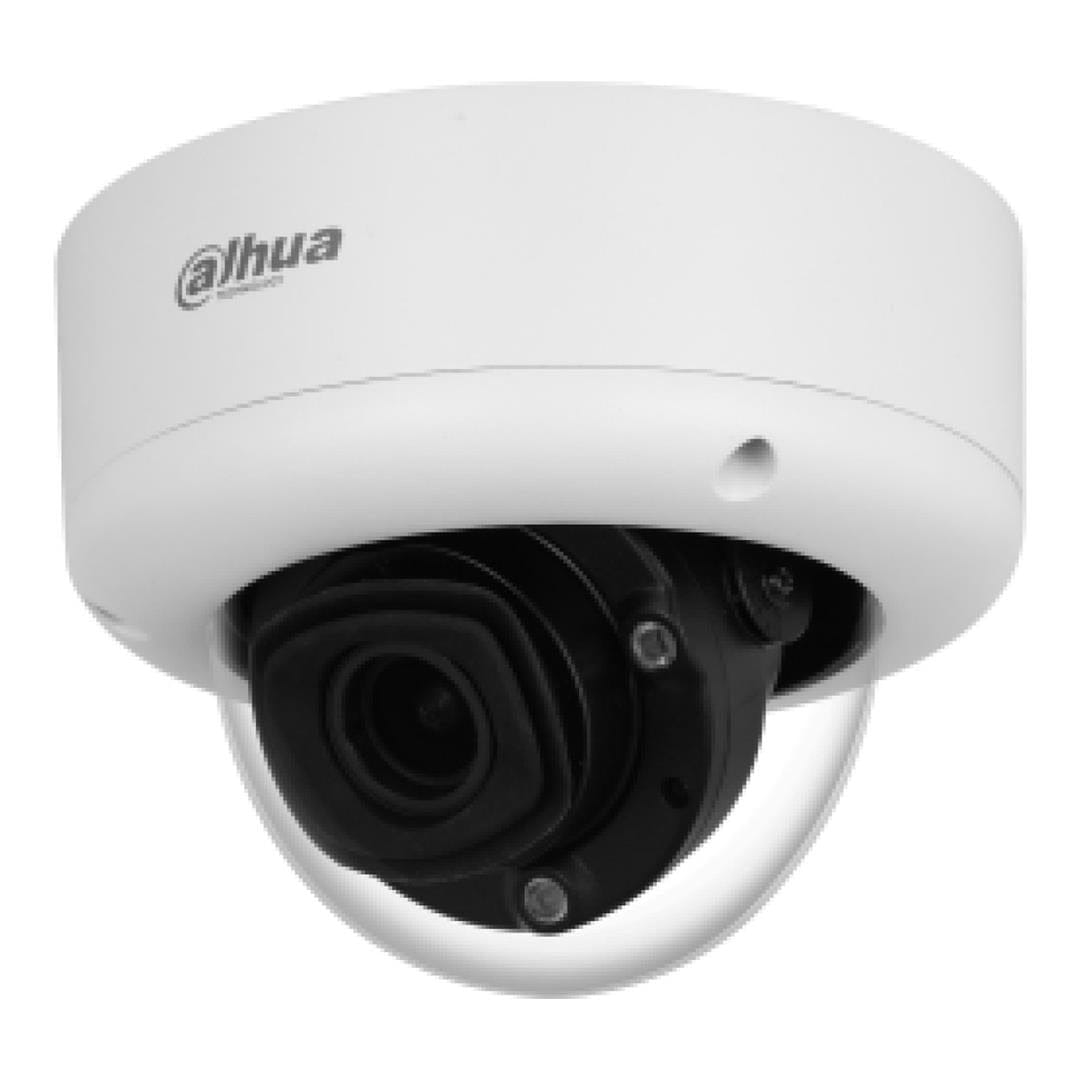

Dahua IPC-HDBW7842E1 WizMind 8MP 40m IR Network Dome Camera

Dahua IPC-HDBW7842E1 WizMind 8MP 40m IR Network Dome Camera

Specifications:

Image Sensor: 1/1.8" CMOS

Max. Resolution: 3840 (H) × 2160 (V)

ROM: 8 GB

RAM: 4 GB

Scanning System: Progressive

Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s

Min. Illumination:

• 0.0006 lux@F1.2 (Color, 30 IRE)
• 0.0003 lux@F1.2 (B/W, 30 IRE)
• 0 lux (Illuminator on)

S/N Ratio: >56 dB

Illumination Distance: Up to 40 m (131.23 ft) (IR)

Illuminator On/Off Control: Auto

Illuminator Number: 3 (IR LED)

Angle Adjustment

• Pan: 0-355°
• Tilt:0-80°
• Rotation: 0-355°

Lens Type: Motorized vari-focal

Lens Mount: φ16

Focal Length: 2.7 mm–12 mm

Max. Aperture: F1.2

Field of View: H: 105°–48°; V: 55°–27°; D: 124°–55°

Iris Control: Auto

Iris Control Type: P-Iris

Close Focus Distance: 1.8 m (5.91 ft)

IVS: Abandoned object; missing object

Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec: Smart H.265+; Smart H.264+

Video Frame Rate

Default:

• Main Stream: 3840 × 2160@(1–25/30 fps)
• Sub stream: 1920×1080@(1–25/30 fps)
• Third stream: 1920 × 1080@(1–25/30 fps)
• Fourth stream: 1920 × 1080@(1–25/30 fps)
• Fifth stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)

High Frame Rate:

• Main Stream: 3840 × 2160@(1–50/60 fps)
• Sub stream: 1920×1080@(1–25/30 fps)
• Stream Capability
• 5 streams

Resolution: 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072×1728); 5M (2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536); 3M (2304 × 1296) 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control: CBR/VBR

Video Bit Rate: H.264: 32 kbps–16384 kbps; H.265: 12 kbps–12800 kbps

Day/Night: Auto(ICR)/Color/B/W

BLC: Yes

HLC: Yes

WDR: 140 dB

Scene Self-adaptation (SSA): Yes

White Balance: Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control: Auto

Noise Reduction: 3D NR

Motion Detection: OFF/ON (4 areas, rectangular)

Region of Interest (RoI): Yes (4 areas)

Image Stabilization: Electronic Image Stabilization (EIS)

Smart Illumination: Yes

Defog: Yes

Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)

Mirror: Yes

Privacy Masking: 8 areas

LDC: Yes

Built-in MIC: Dual MICs

Built-in Speaker: Yes

Audio Compression: G.711a; G.711Mu; PCM; G.726; G.723

Network Port: RJ-45 (10/100/1000 Base-T)

SDK and API: Yes

Network Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Profile M; Auto Register

Interoperability: ONVIF (Profile S/Profile G/Profile T/ Profile M); CGI; P2P

User/Host: 20 (Total bandwidth: 340 M)

Storage: FTP;SFTP; Micro SD card (support max. 1 TB); NAS

Browser

• IE: IE11 and later;
• Chrome: Chrome 88.0.4324.190 and later;
• Firefox: Firefox 47.0.2 and later

Management Software: SmartPSS Lite; DSS; DMSS

Mobile Client: iOS; Android

Security: Trusted execution; Digest; Security logs; WSSE; Account lockout; Syslog; 802.1x; IP/MAC filtering; HTTPS; Trusted upgrade; Trusted boot; Generation and importing of X.509 certification

RS-485: 1 (baud rate range:1200 bps–115200 bps)

Audio Input: 1 channel (RCA port)

Audio Output: 1 channel (RCA port)

Alarm Input: 3 channels in: wet contact, 5mA 3V–5V DC

Alarm Output: 2 channels out: dry contact, 1,000mA 30V DC/500mA; 50V AC

Analog Output: 1 channel (CVBS output: BNC)

Power Output: 12 VDC power output, max. current 165 mA, peak current 700 mA
