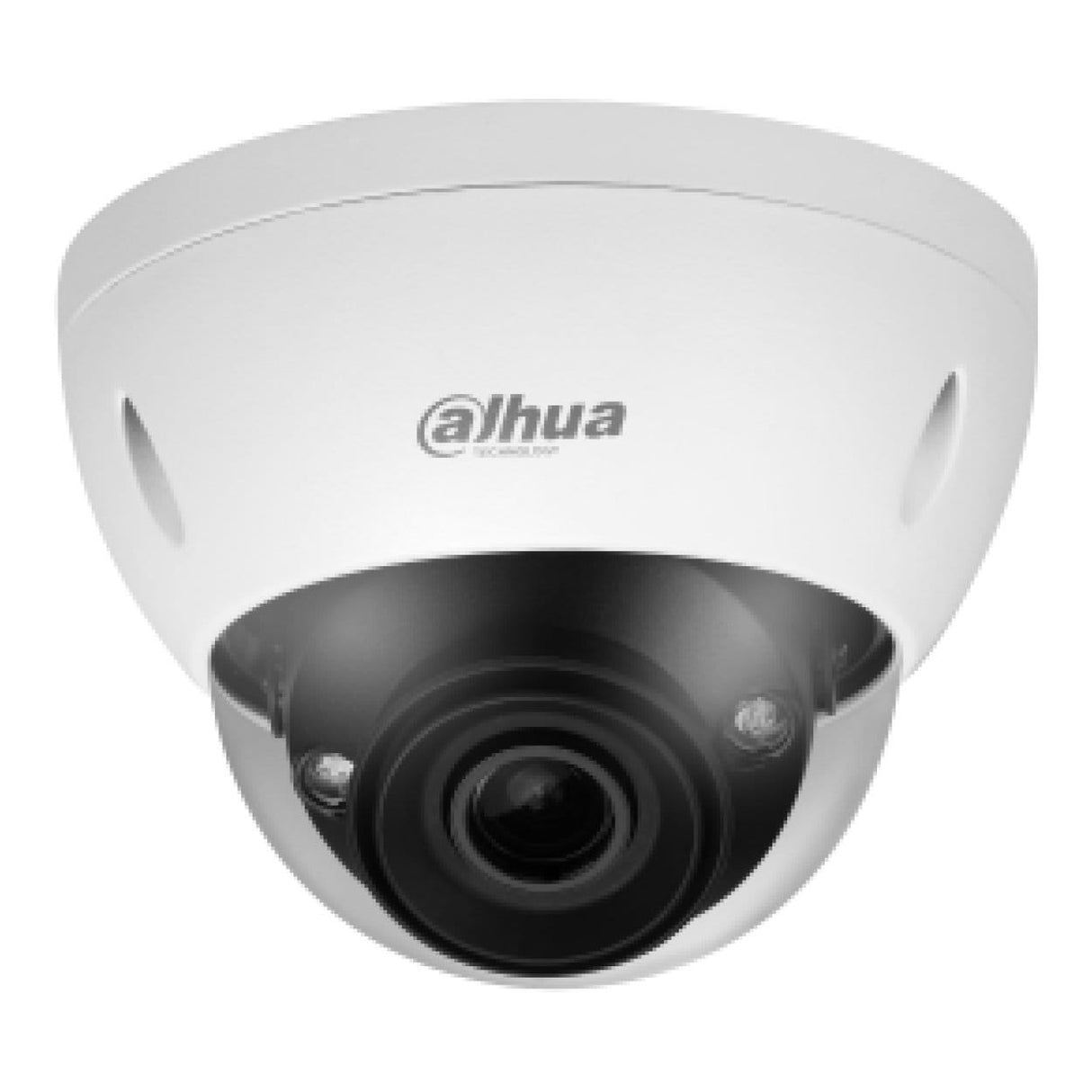

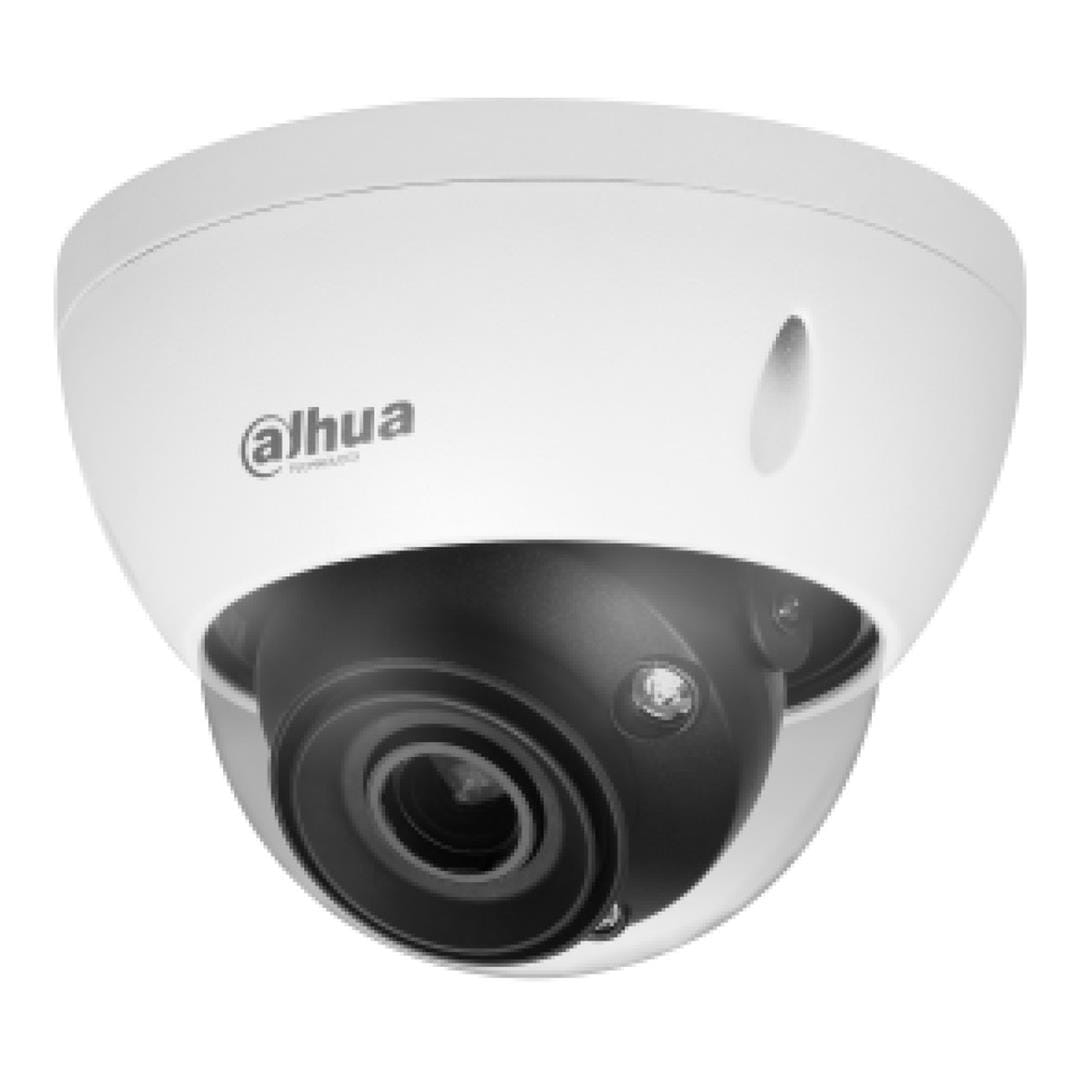

Dahua IPC-HDBW5541EP-ZE 5MP 35mm IR Vari-focal Vandal-proof Dome WizMind Network Camera

Dahua IPC-HDBW5541EP-ZE 5MP 35mm IR Vari-focal Vandal-proof Dome WizMind Network Camera

Features:

• High-Quality Imaging with 5MP Resolution
• Enhancing Image Quality with AI-ISP Technology
• AcuPick2.0 Enables Fast and Precise Human&Vehicle&Animals Search
• Supports Over 8 AI Functions, Applicable for Multi-scenario Targets Detection and Analysis
• Built-in Mic for Real-Time Audio Security
• IP67 and IK10 Ratings for Protection Against Harsh Environments

Specifications:

Image Sensor: 1/2.7" CMOS

Max. Resolution: 2960 (H) × 1668 (V)

ROM: 4 GB

RAM: 1 GB

Scanning System: Progressive

Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s

Min. Illumination:

• 0.0009 lux@F1.5 (Color, 30 IRE)
• 0.0005 lux@F1.5 (B/W, 30 IRE)
• 0 lux (Illuminator on)

S/N Ratio: >56 dB

Illumination Distance: Up to 40 m (131.23 ft) (IR)

Illuminator On/Off Control: Auto;Zoomprio; Manual

Illuminator Number: 3 (IR LED)

Angle Adjustment:

• Pan: 0°–355°
• Tilt: 0°–65°
• Rotation: 0°–355°

Lens Type: Motorized vari-focal

Lens Mount: φ14

Focal Length: 2.7 mm–13.5 mm

Max. Aperture: F1.5

Field of View: H: 114°–32°; V: 58°–17°; D: 138°–36°

Iris Control: Auto

Close Focus Distance: 0.8 m (2.62 ft)

Stream Capability: 4 streams

Resolution: 5M (2960 × 1668); 5M (2880 × 1620); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control: CBR/VBR

Video Bit Rate: H.264: 32 kbps–16384 kbps; H.265: 12 kbps–11776 kbps

Day/Night: Auto(ICR)/Color/B/W

BLC: Yes

HLC: Yes

WDR: 120 dB

Scene Self-adaptation (SSA): Yes

White Balance: Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control: Auto

Noise Reduction: 3D NR

Motion Detection: OFF/ON (4 areas, rectangular)

Region of Interest (RoI): Yes (4 areas)

Image Stabilization: Electronic Image Stabilization (EIS)

Defog: Yes

Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 4M (2688 ×1520) resolution and lower)

Mirror: Yes

Privacy Masking: 8 areas

LDC: Yes

Network Port: RJ-45 (10/100 Enhancement Base-T)

SDK and API: Yes

Network Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Register

Interoperability: ONVIF (Profile S/Profile G/Profile T/Profile M); CGI

User/Host: 20 (Total bandwidth: 80 M)

Storage: FTP; SFTP; Micro SD card (support max. 1 TB); NAS

Browser:

• IE: IE 9 and later
• Chrome: Chrome 102 and later
• Firefox:Firefox 88 and later

Management Software: SmartPSS Lite; DSS; DMSS

Mobile Client: iOS; Android

Cyber Security: Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification
