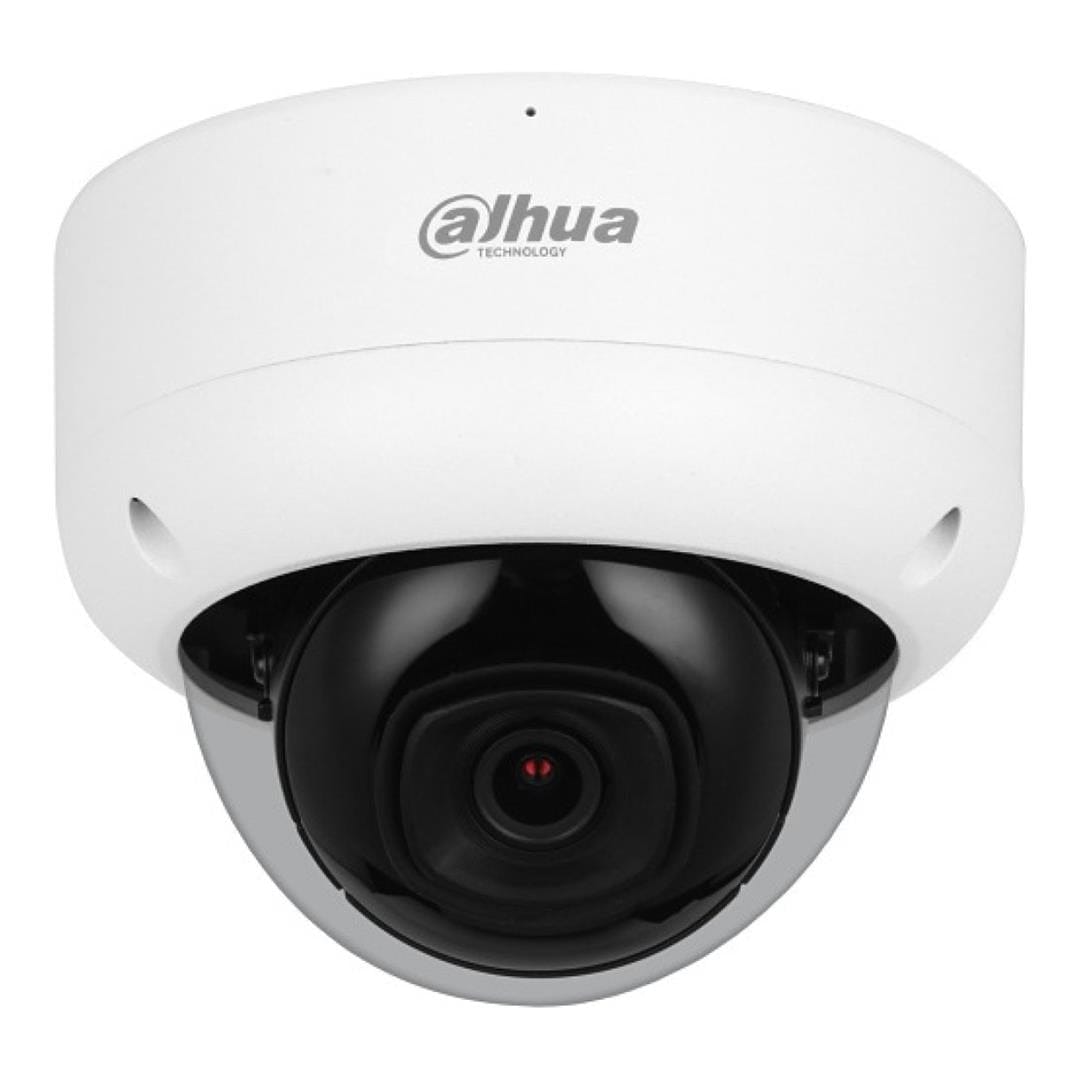

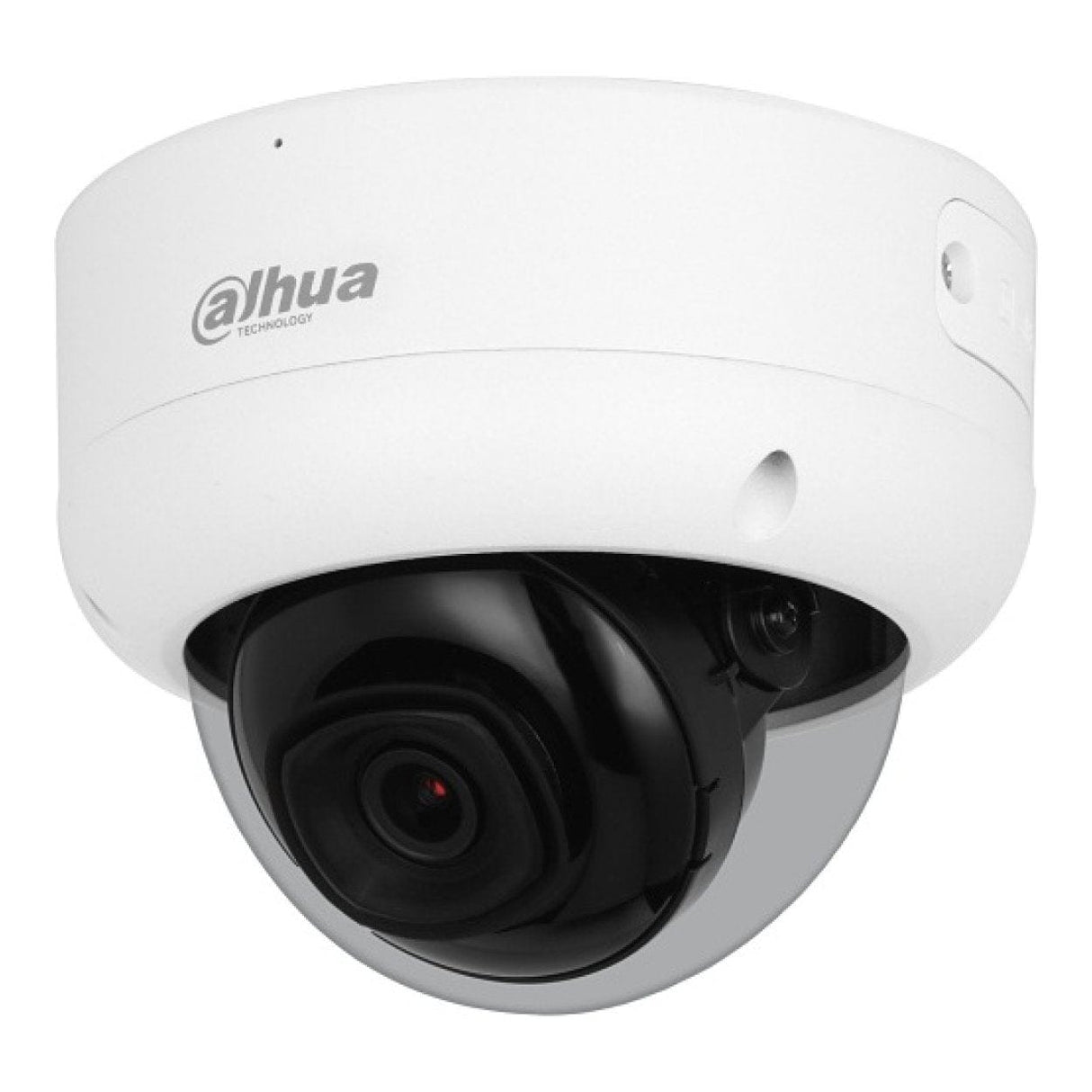

Dahua IPC-HDBW3841EP-AS WizSense 8MP 2.8mm IR Fixed-focal Dome Network Camera

Dahua IPC-HDBW3841EP-AS WizSense 8MP 2.8mm IR Fixed-focal Dome Network Camera

Introducing the Dahua DH-IPC-HDBW3841EP-AS-0280B-S2, an advanced 8MP IR Fixed Focal Dome WizSense Network Camera designed for superior surveillance. This high-definition camera ensures crystal-clear images, even in low-light conditions, thanks to its infrared capabilities. Its sleek dome design allows for discreet installation, making it perfect for both indoor and outdoor settings. With robust features tailored for security needs, this camera is an ideal choice for those seeking reliable monitoring solutions.

Specifications:

Image Sensor: 1/2.8" CMOS

Max. Resolution: 3840 (H) × 2160 (V)

ROM: 128 MB

RAM: 1 GB

Scanning System: Progressive

Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

• 0.007 lux@F1.4 (Color, 30I RE)
• 0.0007 lux@F1.4 (B/W, 30 IRE)
• 0 lux (Illuminator on)

S/N Ratio: >56 dB

Illumination Distance: 30 m (98.42 ft)

Illuminator On/Off Control: Auto/Manual

Illuminator Number: 3 (IR LED)

Pan/Tilt/Rotation Range: Pan: 0°–355°; Tilt: 0°–80°; Rotation: 0°–355°

Lens Type: Fixed-focal

Lens Mount: M12

Focal Length: 2.8 mm; 3.6 mm

Max. Aperture: F1.4

Field of View: 2.8 mm: Horizontal:107°; vertical: 56°; diagonal: 127°

Iris Control: Fixed

Close Focus Distance: 2.8 mm: 1.5 m (4.9 ft)

Audio Input: 1 channel (RCA port) (Only - AS supports)

Audio Output: 1 channel (RCA port) (Only - AS supports)

Alarm Input: 1 channel in: 5 mA 3–5 VDC (Only - AS supports)

Alarm Output: 1 channel out: 300 mA 12 VDC (Only - AS supports)
