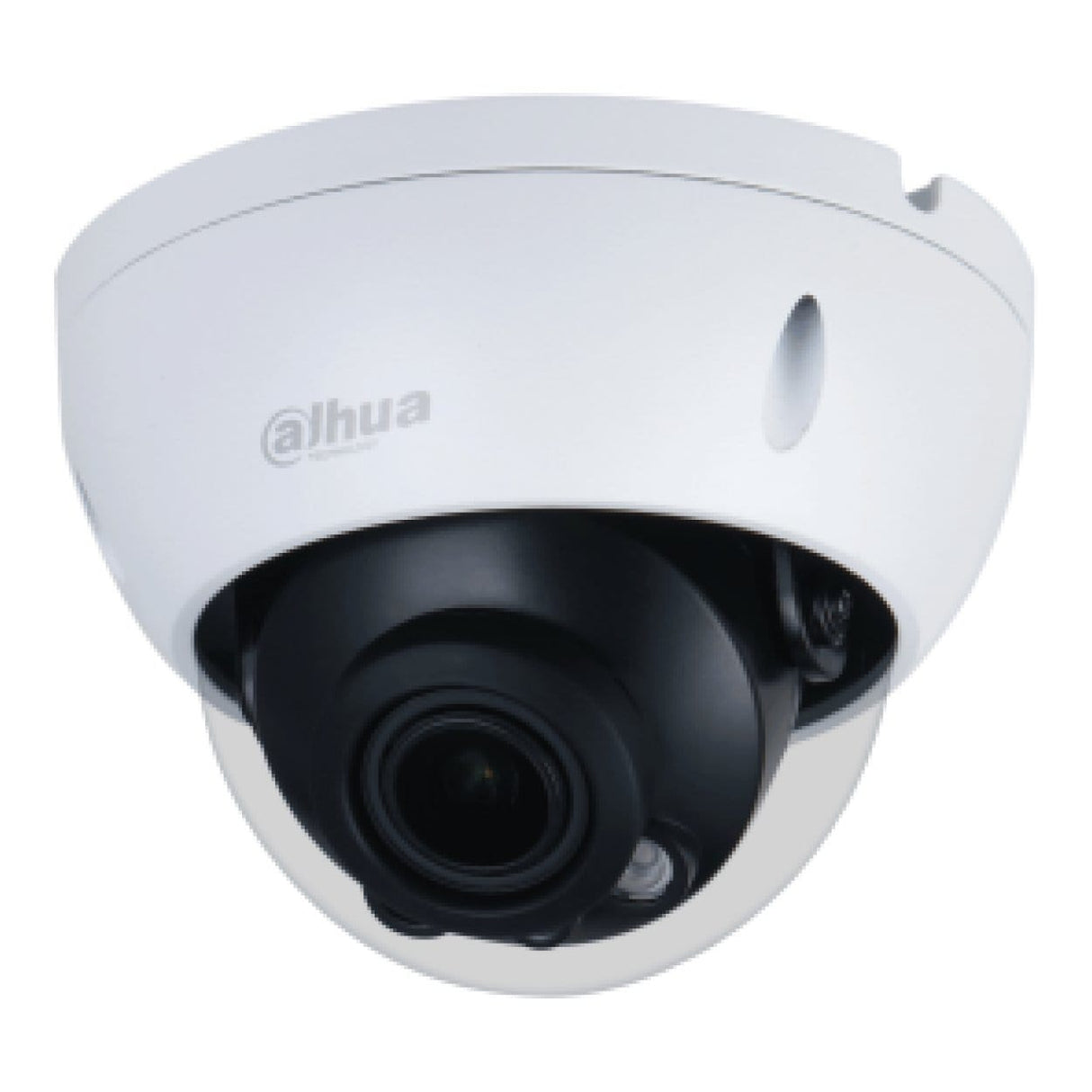

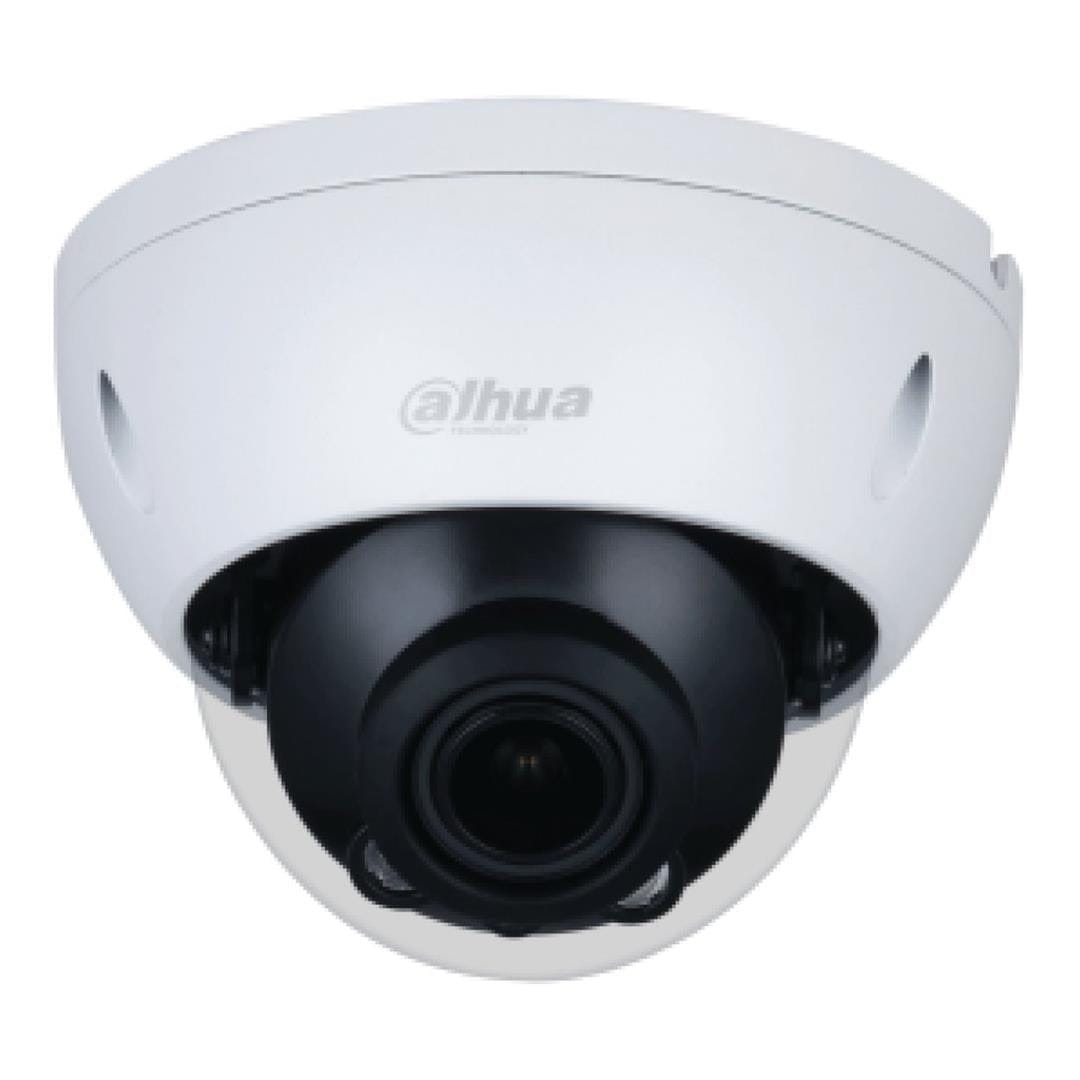

Dahua IPC-HDBW3441R-ZS WizSense 4MP 13.5mm IR Vari-focal Dome Network Camera

Dahua IPC-HDBW3441R-ZS WizSense 4MP 13.5mm IR Vari-focal Dome Network Camera

4MP IR Vari-focal Dome WizSense Network Camera

• 4MP, 1/3” CMOS image sensor, low illuminance, high image definition
• Outputs max. 4MP (2688 × 1520)@30 fps
• H.265 codec, high compression rate, low bit rate
• Built-in IR LED, max. IR distance: 40 m
• ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
• Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
• Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
• Abnormality detection: Motion detection, video tampering, scene changing,no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
• Supports max. 256 G Micro SD card
• 12V DC/POE power supply
• IP67, IK10 protection
• SMD Plus

Specifications:

Image Sensor: 1/3”4Megapixel progressive CMOS

Max. Resolution: 2688 (H) ×1520 (V)

ROM: 128 MB

RAM: 512 MB

Scanning System: Progressive

Electronic Shutter Speed: Auto/Manual 1/3 s–1/100000 s

Min. Illumination:

• 0.005 Lux@F1.5 (Color, 30IRE)
• 0.0005 Lux@F1.5 (B/W, 30IRE)
• 0 Lux (Illuminator on)

S/N Ratio: > 56 dB

Illumination Distance: 40 m (131.23 ft)

Illuminator On/Off Control: Auto/Manual

Illuminator Number: 2 (IR LED)

Pan/Tilt/Rotation Range: Pan: 0°–355°; Tilt: 0°–75°; Rotation: 0°–355°

Lens Type: Motorized vari-focal

Mount Type: φ14

Focal Length: 2.7 mm–13.5 mm

Max. Aperture: F1.5

Field of View:

• Horizontal: 104°–27°
• Vertical: 55° –15°
• Diagonal: 124° –31°

Iris Type: Fixed

Close Focus Distance: 0.8 m (2.6 ft)

Perimeter Protection: Tripwire; intrusion (Recognition of human and vehicle)

Intelligent Search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Network: RJ-45 (10/100 Base-T)

SDK and API: Yes

Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP

Cyber Security: Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Interoperability:

• ONVIF(Profile S/Profile G/Profile T);CGI;P2P;Milestone;
• Genetec

Scene Self-adaptation (SSA): Yes

User/Host: 20 (Total bandwidth: 64 M)

Storage: FTP; SFTP; Micro SD Card (support max. 256 G); NAS

Browser:

• IE: IE8, IE9, IE11
• Chrome
• Firefox

Management Software: Smart PSS, DSS, DMSS

Mobile Phone: IOS; Android
