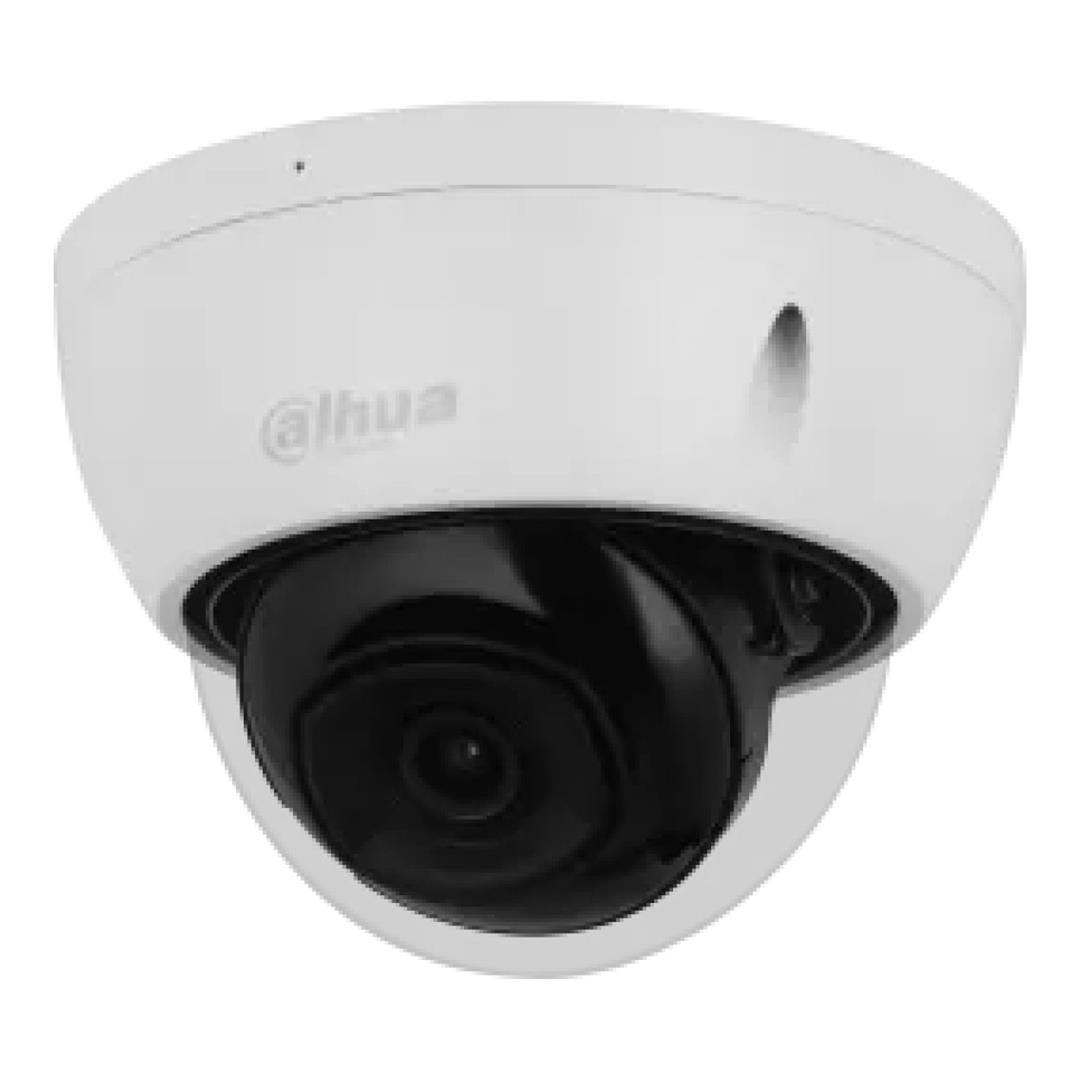

Dahua IPC-HDBW2441E-S WizSense 4MP 3.6mm IR Fixed-focal Dome Network Camera

Dahua IPC-HDBW2441E-S WizSense 4MP 3.6mm IR Fixed-focal Dome Network Camera

Features:

• High-Quality Imaging with 4MP Resolution
• Deep Learning-Based Human and Vehicle Classification
• Built-in Mic for Real-Time Audio Security
• Supports Max. 256G Micro SD card
• Efficient H.264+/H.265+ Compression Technology
• IP67 and IK10 Ratings for Protection Against Harsh Environments

Specifications:

Image Sensor: 1/2.9" CMOS

Max. Resolution: 2688 (H) × 1520 (V)

ROM: 128 MB

RAM: 128 MB

Scanning System: Progressive

Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s

Min. Illumination:

• 0.006 lux@F1.6 (Color, 30 IRE)
• 0.0006 lux@F1.6 (B/W, 30 IRE)
• 0 lux (Illuminator on)

S/N Ratio: >56 dB

Illumination Distance: up to 30 m (98.43 ft) (IR LED)

Illuminator On/Off Control: Auto;Manual

Illuminator Number: 3 (IR LED)

Pan/Tilt/Rotation Range:

• Pan: 0°–355°
• Tilt: 0°–65°
• Rotation: 0°–355°

Lens Type: Fixed-focal

Lens Mount: M12

Focal Length: 3.6 mm

Max. Aperture: F1.6

Field of View: 3.6 mm: H: 84°; V: 42°; D: 101°

Iris Control: Fixed

Close Focus Distance: 3.6 mm: 1.7 m (4.27 ft)

Stream Capability: 2 streams

Resolution: 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control: CBR/VBR

Video Bit Rate:

• H.264: 32 kbps–6144 kbps
• H.265: 12 kbps–6144 kbps

Day/Night: Auto(ICR)/Color/B/W

BLC: Yes

HLC: Yes

WDR: 120 dB

White Balance: Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control: Manual;Auto

Noise Reduction: 3D NR

Motion Detection: OFF/ON (4 areas, rectangular)

Region of Interest (RoI): Yes (4 areas)

Smart Illumination: Yes

Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)

Mirror: Yes

Privacy Masking: 4 areas

Network Port: RJ-45 (10/100 Base-T)

SDK and API: Yes

Network Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P

Interoperability: ONVIF (Profile S/Profile G/Profile T); CGI

User/Host: 6 (Total bandwidth: 36 M)

Storage: FTP;SFTP; Micro SD card (support max. 256 GB)

Browser: IE; Chrome; Firefox

Management Software: DSS; DMSS

Mobile Client: iOS; Android

Security: Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS;802.1x; Trusted boot; Trusted execution; Trusted upgrade
