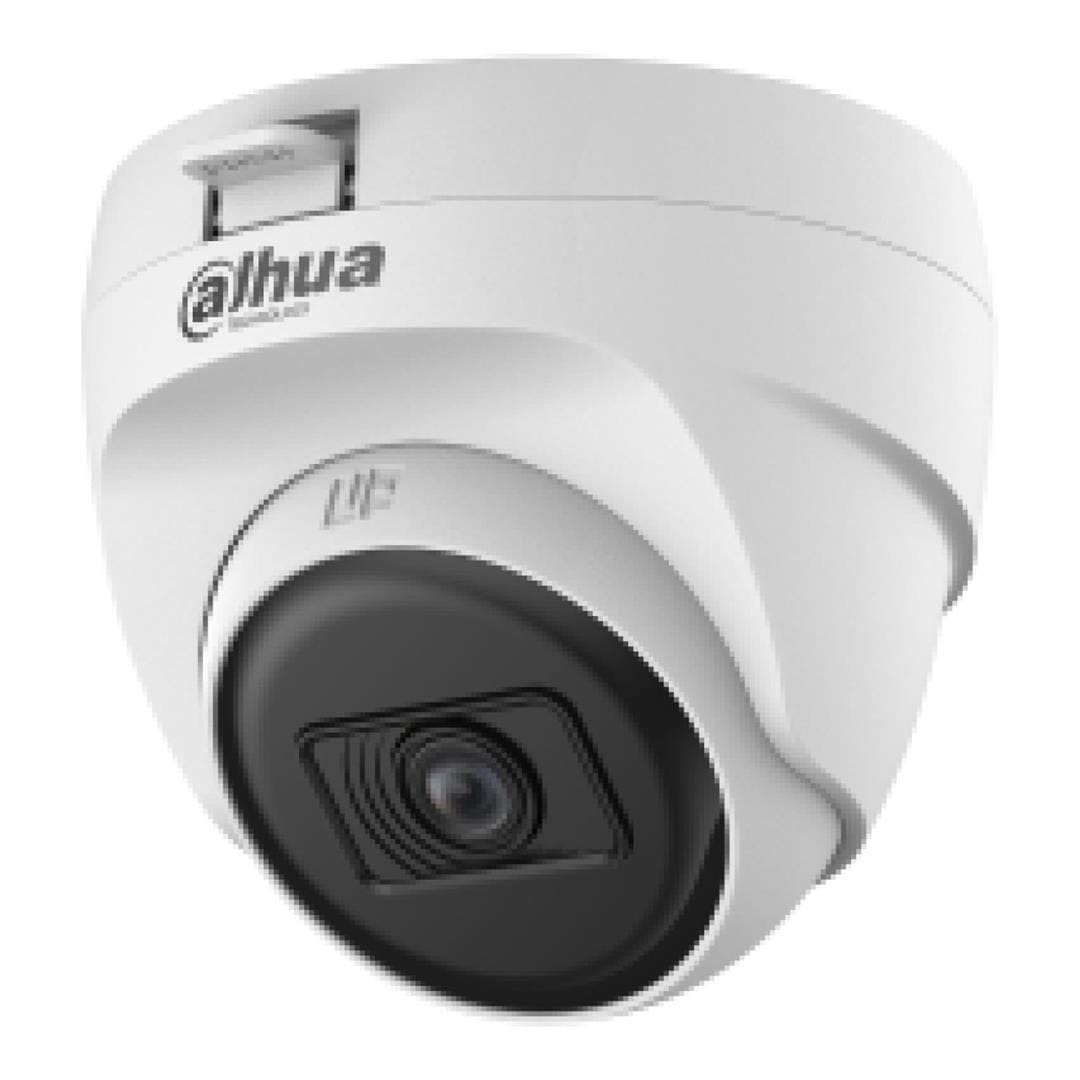

Dahua HAC-T1A21P-U-0280B 2MP 2.8mm IR Fixed-Focal Eyeball Camera

Dahua HAC-T1A21P-U-0280B 2MP 2.8mm IR Fixed-Focal Eyeball Camera

The Cooper Series offers simple and highly cost-effective HDCVI solutions. It provides 24/7 reliable monitoring with high-quality image performance, saving cost on both material and labor force. It is also designed and built to the specific standards of Dahua.

Smart IR Illumination

With its IR illumination, the camera provides optimal performance in low light conditions, ensuring uniformity in the brightness of B/W images. Through its smart IR technology, the camera also compensates for the distance of targets by adjusting the intensity of its IR LEDs, preventing overexposure of images as targets move closer to the camera.

Easy Installation

HDCVI eyeball comes with a quick-to-install pedestal, which makes it easier to install than conventional eyeballs and reduces cost on time and labor.

Specifications:

Image Sensor: 2 MP CMOS

Max. Resolution: 1920 (H) × 1080 (V)

Scanning System: Progressive

Electronic Shutter Speed: PAL: 1/25 s–1/100,000 s; NTSC: 1/30 s–1/100,000 s

Min. Illumination

• 0.02 lux@F2.0 (Color, 30 IRE)
• 0.002 lux@F2.0 (B/W, 30 IRE)
• 0 lux (Illuminator on)

S/N Ratio: >65 dB

Illumination Distance: 25 m (82.02 ft)

Illuminator: On/Off Control Auto/Manual

Illuminator Number: 1 (IR light)

Angle Adjustment:

• Pan: 0°–360°
• Tilt: 0°–78°
• Rotation: 0°–360°

Lens Type: Fixed-focal

Lens Mount: M12

Focal Length: 2.8 mm; 3.6 mm

Max. Aperture: F2.0

Field of View: 2.8 mm: H: 100°; V: 54°; D: 117°; 3.6 mm: H: 80°; V: 43°; D: 94°

Iris Control: Fixed

Video Output: Video output choices of CVI/TVI/AHD/CVBS by one BNC port
