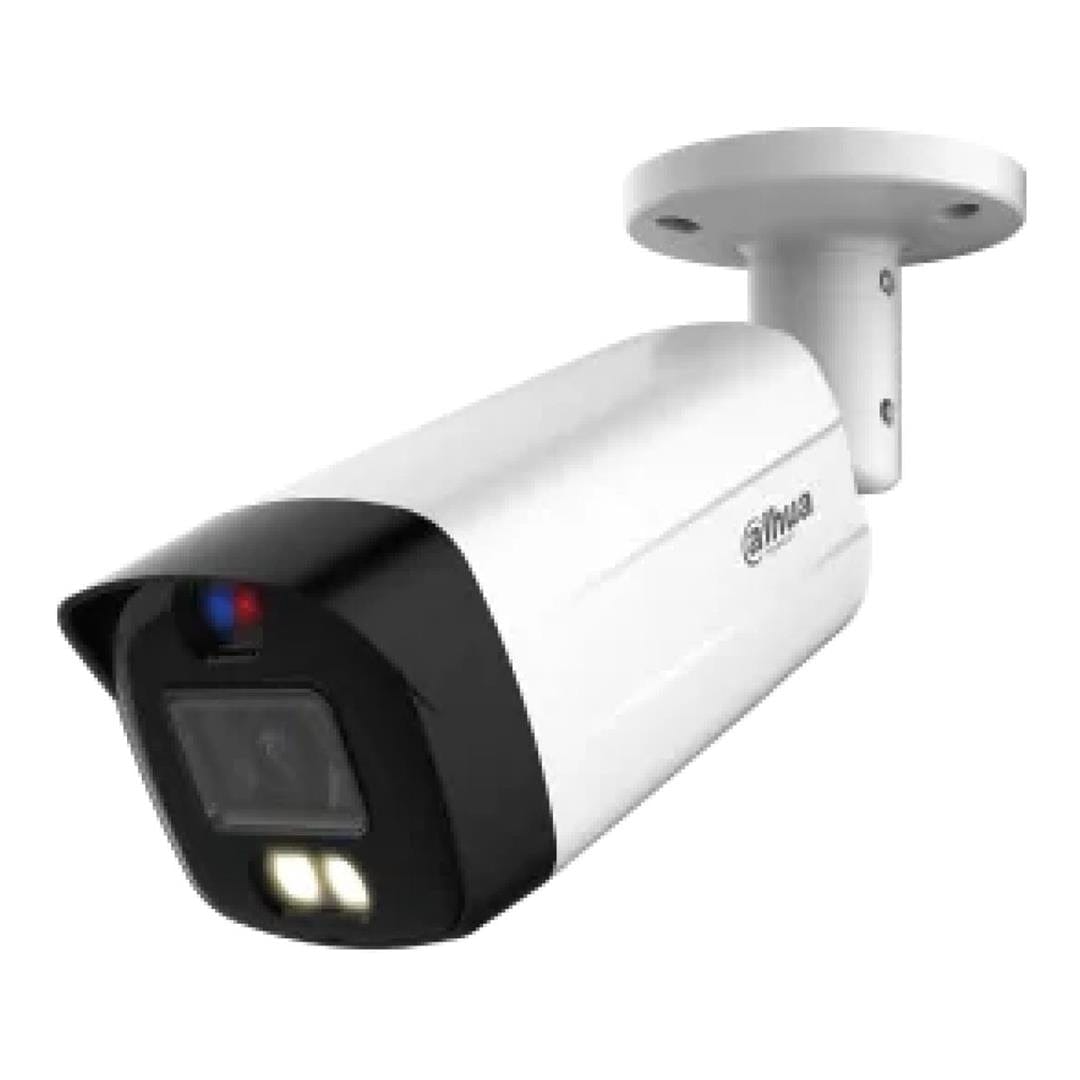

Dahua HAC-ME1509THP-A-PV 5MP 2.8mm Smart Dual Light HDCVI IR Bullet Camera

Dahua HAC-ME1509THP-A-PV 5MP 2.8mm Smart Dual Light HDCVI IR Bullet Camera

The Active Deterrence Series offers a multi-dimensional system that links surveillance videos to alarms, audio prompts and various types of information to assist with verifying potential risks. Cameras in this series actively warn off intruders with light and sound, while keeping you up to date of events in real-time through alarm-over-coax and its live view.

Smart Dual Light

With its smart dual light mechanism, the camera automatically turns on the white light when Perimeter Protection/SMD Plus function of AI XVR detects a target in the rule area to capture clear, vivid images. When the target leaves the rule area, the camera automatically switches over from the white light to the IR illuminator to significantly reduce light pollution.

Protection Against Red-Blue Light Interference

Leveraging smart exposure technology, the camera uses the CMOS image sensor to exercise time-sharing control over image capture and the red and blue lights to eliminate interference by switching off the lights when pictures are being taken.

Active Deterrence(Red-blue Light)

Designed with active deterrence technology, the camera turns on a siren and a red-blue light that flashes in intervals to deter and warn off intruders. The siren has customizable settings.

Wide Dynamic Range

With its advanced Wide Dynamic Range technology (WDR), the camera captures highly detailed images and produces high-definition recordings in high-contrast lighting conditions, and in scenes with backlighting or shadows.

Broadcast-quality Audio

Audio signal transmission over coaxial cables is supported by the HDCVI camera. It adopts a unique audio processing and transmission technology that restores source audio and eliminates noise, ensuring the quality and reliability of the audio information that is collected. This becomes important for video surveillance applications that use audio information as a type of supplementary evidence.

Super Adapt

With its intelligent algorithm, the camera automatically adjusts its parameters to provide optimal performance and vivid images.

Advanced 3DNR

Dahua’s advanced 3DNR technology reduces image noise with little to no impact on image sharpness, especially in poor lighting conditions. It detects the noise, and compares the sequential frames to effectively reduce the noise. It also makes efficient use of bandwidth, saving on storage space.

Protection (IP67, Wide Voltage)

• IP67: The camera passed a series of rigorous dust and immersion tests. Its enclosure is both dust-proof and waterproof, and can function normally while being immersed in 1 m deep water for up to 30 minutes.
• Wide voltage: The camera has ±30% input voltage tolerance (for some power supplies) and a wide voltage range, making it suitable for a variety of outdoor scenarios.

Specifications:

Pixel: 5MP

Image Sensor: 5MP CMOS

Max. Resolution: 2880 (H) × 1620 (V)

Scanning System:Progressive

Electronic Shutter Speed:

• PAL: 1/3 s–1/100000 s
• NTSC: 1/4 s–1/100000 s

Min. Illumination:

• 0.001 lux@F1.0 (Color, 30 IRE)
• 0.0001 lux@F1.0 (B/W, 30 IRE)
• 0 lux (Illuminator on)

S/N Ratio: >65 dB

Illumination Distance:

• IR: 40 m (131.23 ft)
• Warm light: 40 m (131.23 ft)

Illuminator On/Off Control: Auto; manual

Illuminator Number:

• 2 (IR light)
• 2 (Warm light)

Pan/Tilt/Rotation Range:

• Pan: 0°–360°
• Tilt: 0°–90°
• Rotation: 0°–360°

Lens Type: Fixed-focal

Lens Mount: M12

Focal Length: 2.8 mm; 3.6 mm

Max. Aperture: F1.0

Field of View: 2.8 mm: H: 111°; V: 57°; D: 131°

Iris Control: Fixed

Close Focus Distance: 2.8 mm: 1.5 m (4.92 ft)

Resolution:

• 5M (2880 × 1620);
• 4M (2560 × 1440);
• 1080p (1920 × 1080);
• 960H (960 × 576/960 × 480)

Day/Night: Auto (ICR)/Color/B/W

BLC: BLC; HLC; WDR; HLC-Pro

WDR: 120dB

White Balance: Auto; Area white balance

Gain Control: Auto; manual

Noise Reduction: 3D NR

Illumination Mode: Smart IR&WL; WL Mode; IR Mode

Defog: Electronic defog

Digital Zoom: 4×

Mirror: Yes

Privacy Masking: Off/On (8 areas, rectangle)
