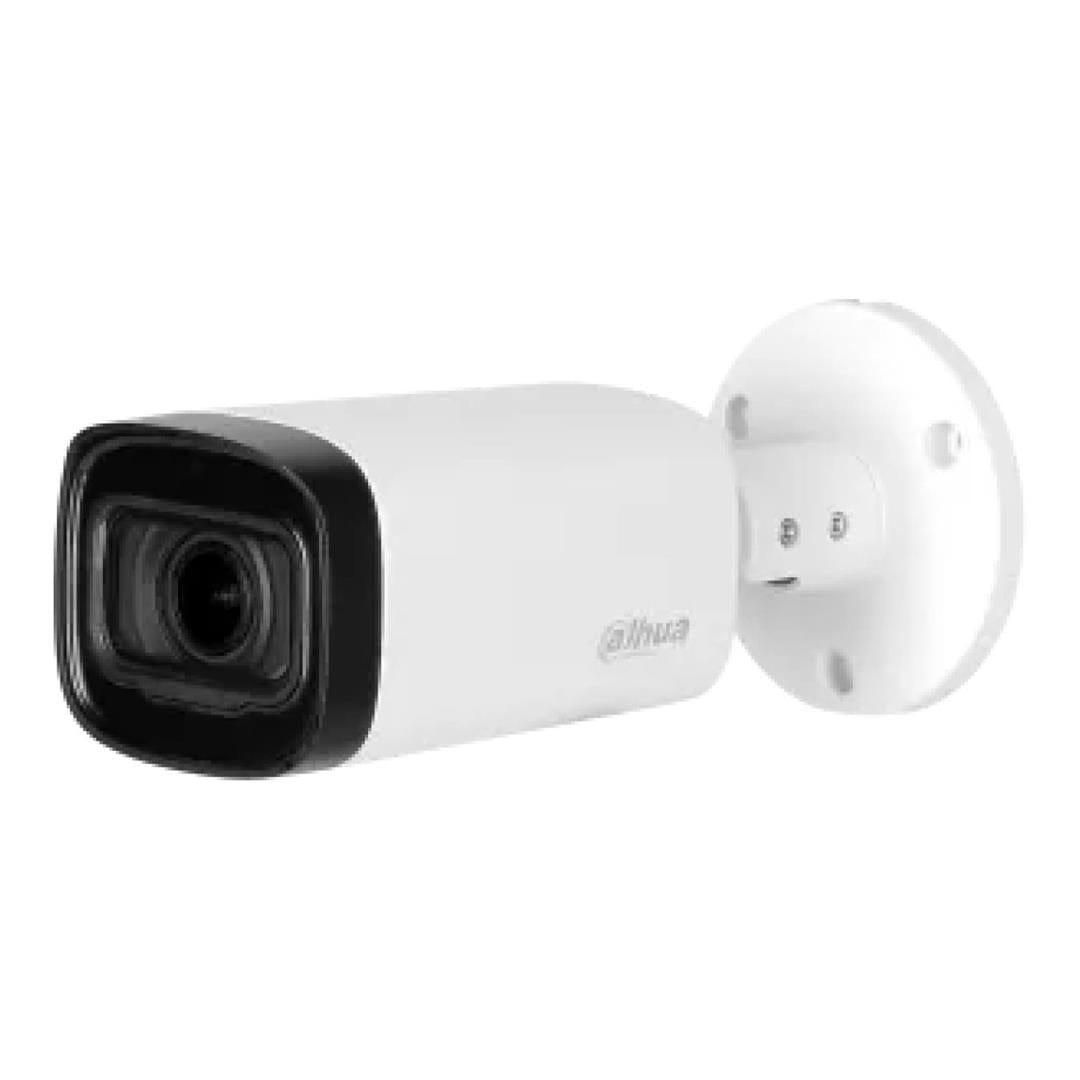

Dahua HAC-HFW1500RP-Z-IRE6 5MP 12mm HDCVI IR Bullet Camera

Dahua HAC-HFW1500RP-Z-IRE6 5MP 12mm HDCVI IR Bullet Camera

Experience superior 5MP video and the simplicity of reusing existing coaxial infrastructure with HDCVI. The Lite series 5MP HDCVI camera features a compact design and offers a high quality image with rich details at a friendly price. It offers various vari-focal/fixed lens models with a multi-language OSD and HD/SD switchable output. Its structural flexibility and high cost-performance makes the camera an ideal choice for SMB solutions.

4 Signals over 1 Coaxial Cable

HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e. video, audio*, data and power. Dual-way data transmission allows the HDCVI camera to interact with the HCVR, such as sending control signal or triggering alarm. Moreover, HDCVI technology supports PoC for construction flexibility.

* Audio input is available for some models of HDCVI cameras.

Long Distance Transmission

HDCVI technology guarantees long-distance and real-time transmission without any loss. It supports up to 700m for 5MP HD video via coaxial cable, and up to 300m via UTP cable.*

*Actual results verified by real-scene testing in Dahua's test laboratory.

Simplicity

HDCVI technology inherits the born feature of simplicity from traditional analog surveillance system, making itself a best choice for investment protection. HDCVI system can seamlessly upgrade the traditional analog system without replacing existing coaxial cabling. The plug and play approach enables full HD video surveillance without the hassle of configuring a network.

Smart IR

The camera is designed with microcrystalline LED IR illumination for best lowlight performance. Smart IR is a technology to ensure brightness uniformity in B/W image under low illumination. Dahua’s unique Smart IR adjusts to the intensity of camera's infrared LEDs to compensate for the distance of an object, and prevents IR LEDs from overexposing images as the object come closer to the camera.

HD/SD Switchable

The camera supports switchable HDCVI high definition video output and CVBS standard definition video output. The two formats can be switched over through OSD menu or by PFM820 (UTC controller). This feature makes the camera to be compatible with both HCVRs and existing analog DVRs and also facilitates debugging through analog testers.

Multi-language OSD

OSD menu provides multiple image adjustments and function settings to meet the requirements of different monitoring scenes. The OSD menu includes configurations such as backlight mode, day/night, white balance, privacy mask and motion detect. The camera supports 11 languages for OSD menu, namely, Chinese, English, French, German, Spanish, Portuguese, Italian, Japanese, Korean, Russian and Polish.

Protection

The camera's outstanding reliability is unsurpassed due to its rugged design.The camera is protected against water and dust with IP67 ranking, making it suitable for indoor or outdoor environments.With working temperature range of -40 °C to +60 °C (-40 °F to +140 °F), the camera is designed for extreme temperature environments.Supporting ±30% input voltage tolerance, this camera suits even the most unstable power supply conditions. Its 4KV lightning rating provides protection against the camera and its structure from the effects of lightning.

Specifications:

Image Sensor: 1/2.7 inch CMOS

Effective Pixels: 2592 (H) × 1944 (V), 5MP

Scanning System: Progressive

Electronic Shutter Speed:

• PAL: 1/25s–1/100000s
• NTSC: 1/30s–1/100000s

S/N Ratio: >65dB

Minimum Illumination: 0.02Lux/F1.8, 30IRE, 0Lux IR on

Fill Light Working Distance: 60 m (196.85 ft)

IR On/Off Control: Auto; manual

IR LED Number: 4

Pan/Tilt/Rotation Range:

• Pan: 0°–360°
• Tilt: 0°–90°
• Rotation: 0°–360°

Lens Type: Motorized-focal

Mount Type: φ14

Focal Length: 2.7 mm–12 mm

Max. Aperture: F1.8–F3.3

Angle of View:

• 2.7 mm: 122° × 93° × 68° (diagonal x horizontal x vertical)
• 12 mm: 37° × 30° × 22° (diagonal x horizontal x vertical)

Iris Type: Fixed iris

Auto Focus: N/A

Close Focus Distance: 0.8 m (2.62 ft)

Resolution: 5M (2592 × 1944); 4M (2560 × 1440); 1080P (1920 ×1080); 960H (960 × 576/960 × 480)

Day/Night: Auto switch by ICR

BLC: BLC/HLC/WDR

WDR: DWDR

Video Output: Video output choices of CVI/TVI/AHD/CVBS by one BNC port
