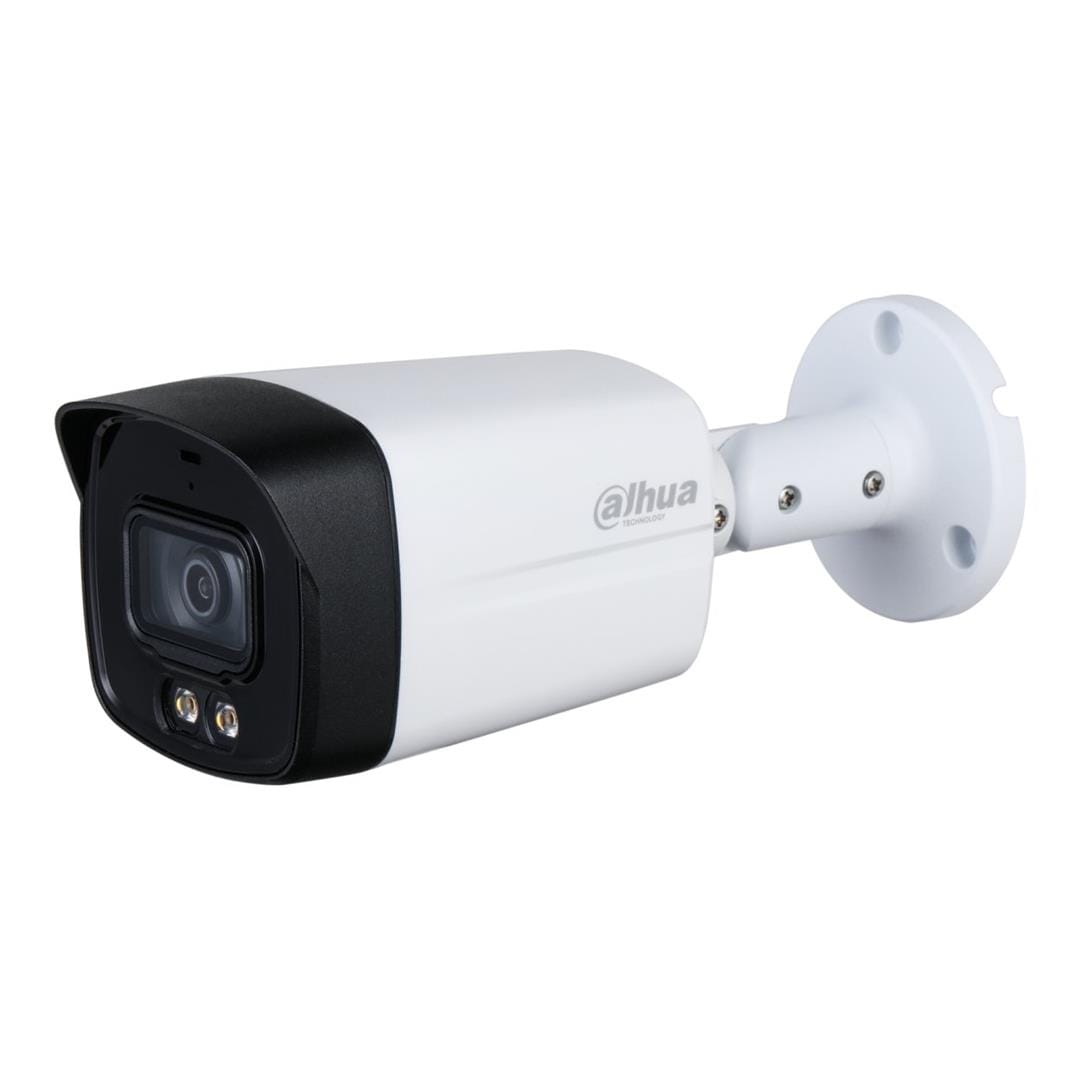

Dahua HAC-HFW1209TLMP-LED 2MP 2.8mm IR Full-colour HDCVI Bullet Camera

Dahua HAC-HFW1209TLMP-LED 2MP 2.8mm IR Full-colour HDCVI Bullet Camera

The Dahua HAC-HFW1209TLMP-LED is a 2MP Full-Colour HDCVI bullet camera designed to deliver vivid, full-colour surveillance footage 24/7. Equipped with a high-performance 2MP CMOS sensor, a fixed 2.8mm wide-angle lens, and integrated warm white LED illumination, the camera captures detailed colour images even in extremely low-light conditions. Built on Dahua's Full-Colour technology and HDCVI platform, it provides Full HD video transmission over existing coaxial infrastructure, making it an ideal upgrade solution for analogue CCTV systems in residential, commercial, and small business environments.

Full-Colour Technology

Unlike traditional infrared cameras that switch to monochrome imaging at night, Dahua Full-Colour technology uses a large-aperture lens, high-sensitivity sensor, and integrated warm LED illumination to maintain vivid colour images in low-light environments. This improves identification of people, vehicles, clothing colours, and other critical details during night-time surveillance.

HDCVI Benefits

The HAC-HFW1209TLMP-LED supports Dahua's HDCVI technology, enabling Full HD video transmission over existing coaxial cable infrastructure. This allows users to upgrade older analogue CCTV systems without replacing cabling, reducing installation costs and deployment complexity.

Ideal Applications:

• Residential security systems
• Retail stores and shopping centres
• Offices and business premises
• Parking areas
• Schools and educational facilities
• Warehouses and storage facilities
• Perimeter and entrance monitoring
• Small commercial CCTV installations

Features:

• 2MP Full HD Full-Colour HDCVI bullet camera
• 1/2.8-inch progressive CMOS image sensor
• Full HD 1920 × 1080 video resolution
• Fixed 2.8mm lens for wide-area surveillance
• Full-Colour technology for 24/7 colour imaging
• Integrated warm white LED illumination
• Illumination distance up to 20m
• HDCVI technology for long-distance HD transmission
• Super Adapt image optimisation technology
• 2D Digital Noise Reduction (2D DNR)
• Backlight Compensation (BLC)
• Wide Dynamic Range support
• Day and night monitoring without switching to black-and-white mode
• IP67-rated weatherproof housing
• Suitable for indoor and outdoor installations

Supports multiple video formats:

• HDCVI
• CVBS
• AHD
• TVI

Specifications:

Product Type: HDCVI Full-Colour Bullet Camera

Manufacturer: Dahua

Model: HAC-HFW1209TLMP-LED

SKU: 1.0.01.12.26100

Image Sensor: 1/2.8" Progressive CMOS

Resolution: 2MP (1920 × 1080)

Effective Pixels: 1920(H) × 1080(V)

Lens Type: Fixed-Focal

Focal Length: 2.8mm

Viewing Angle: Approx. 106° Horizontal

Video Output: HDCVI / CVBS / AHD / TVI

Illumination Type: Warm White LED

Illumination Distance: Up to 20m

Minimum Illumination: 0.001 Lux/F1.6, 0 Lux with LED On

Noise Reduction: 2D DNR

Backlight Compensation: BLC

White Balance: Auto / Manual

Power Supply: 12V DC

Power Consumption: Max. 3.3W

Weather Protection: IP67

Housing Material: Metal Front + Plastic Body

Operating Temperature: -40°C to +60°C

Camera Style: Bullet

Installation: Indoor / Outdoor
