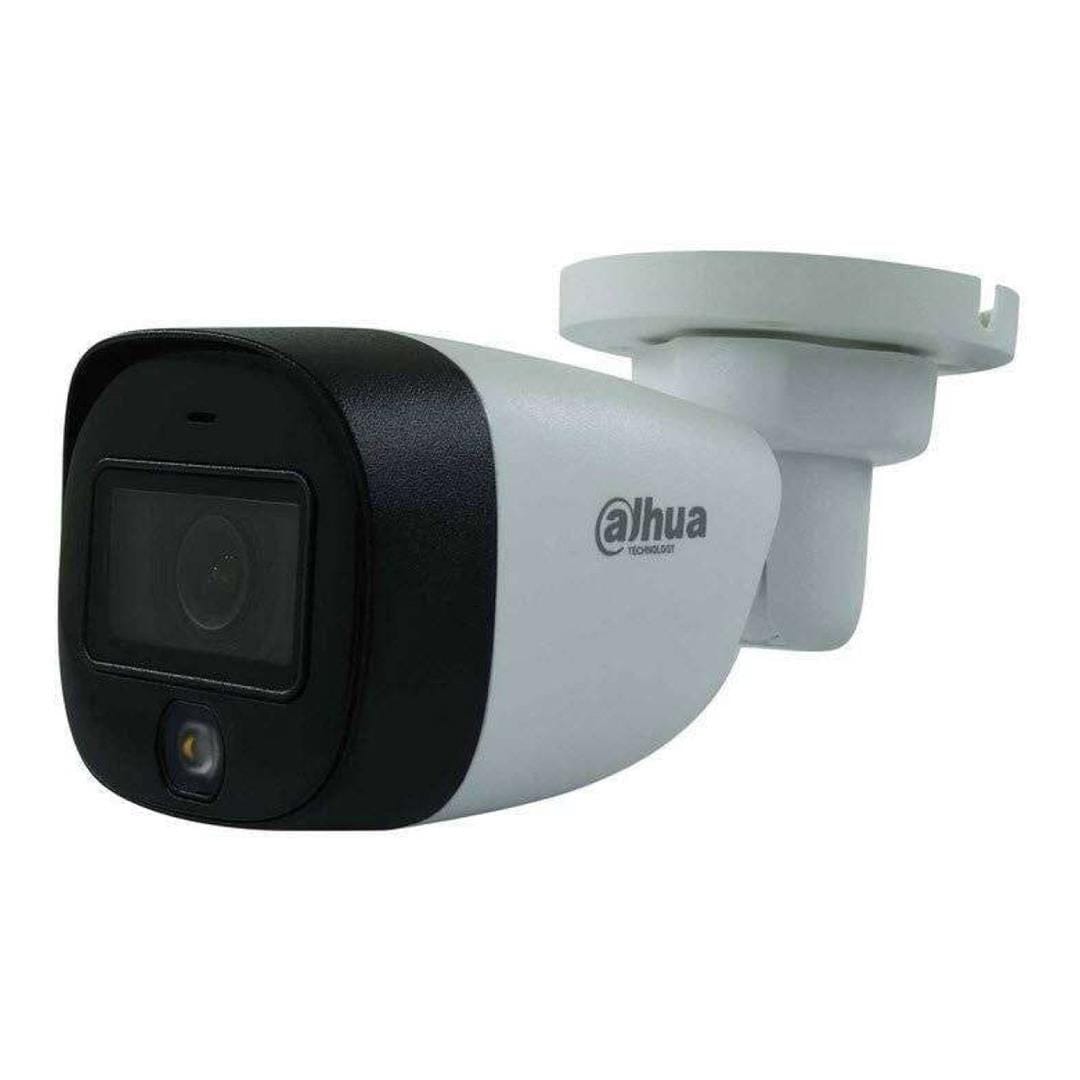

Dahua HAC-HFW1209CP-LED 2MP 3.6mm Full-colour IR HDCVI Starlight Bullet Camera

Dahua HAC-HFW1209CP-LED 2MP 3.6mm Full-colour IR HDCVI Starlight Bullet Camera

As the inventor of HDCVI (High Definition Composite Video Interface) technology, Dahua continuously invests in the technology to rejuvenate existing coaxial-based systems since its launch in 2012 with its own patents. As the first to bring 4K resolution over coax, the first to introduce IoT into analog monitoring, and with versatile offerings such as multi-sensor and fisheye cameras, Dahua has formulated its HDCVI camera selection as the perfect choice to strengthen your existing coaxial system.

Dahua HDCVI cameras are separated into the Pro, Lite and Cooper Series, which range from high performance with project oriented features to a cost/performance balance. Users can select cameras based on their needs.

HDCVI cameras are used in applications where existing analog infrastructure is available and users have a need for the latest technologies, including 4M/4K resolution, IoT over coax, Power over Coax (PoC), and more.

Specifications:

Image Sensor: 1/2.8" CMOS

Effective Pixels: 1920(H)×1080(V), 2MP

Scanning System: Progressive

Electronic Shutter Speed:

• PAL: 1/25~1/100000s
• NTSC: 1/30~1/100000s

Minimum Illumination: 0.01Lux/F1.6, 0Lux white light on

S/N Ratio: More than 65dB

IR Distance: Distance up to 20 m (65.61 ft)

IR On/Off Control: Auto / Manual

IR LEDs: 1

Lens Type: Fixed lens / Fixed iris

Mount Type: M12

Focal Length: 3.6mm (2.8mm Optional)

Max Aperture: F1.6

Angle of View: 3.6 mm: 103.6° × 86.9° × 46.3° (diagonal × horizontal × vertical)

Focus Control: N/A

Close Focus Distance: 3.6 mm: 1.2 m (3.94 ft)

Pan/Tilt/Rotation

• Pan: 0° ~ 360°
• Tilt: 0° ~ 90°
• Rotation: 0° ~ 360°

Video Output: 1-channel BNC high definition video output / CVBS video output (Can switch)

Day/Night: Auto (ICR) / Manual

OSD Menu: Multi-language

BLC Mode: BLC / HLC / DWDR

WDR: DWDR

Gain Control: AGC

Noise Reduction: 2D

White Balance: Auto / Manual

Smart IR: Auto / Manual
