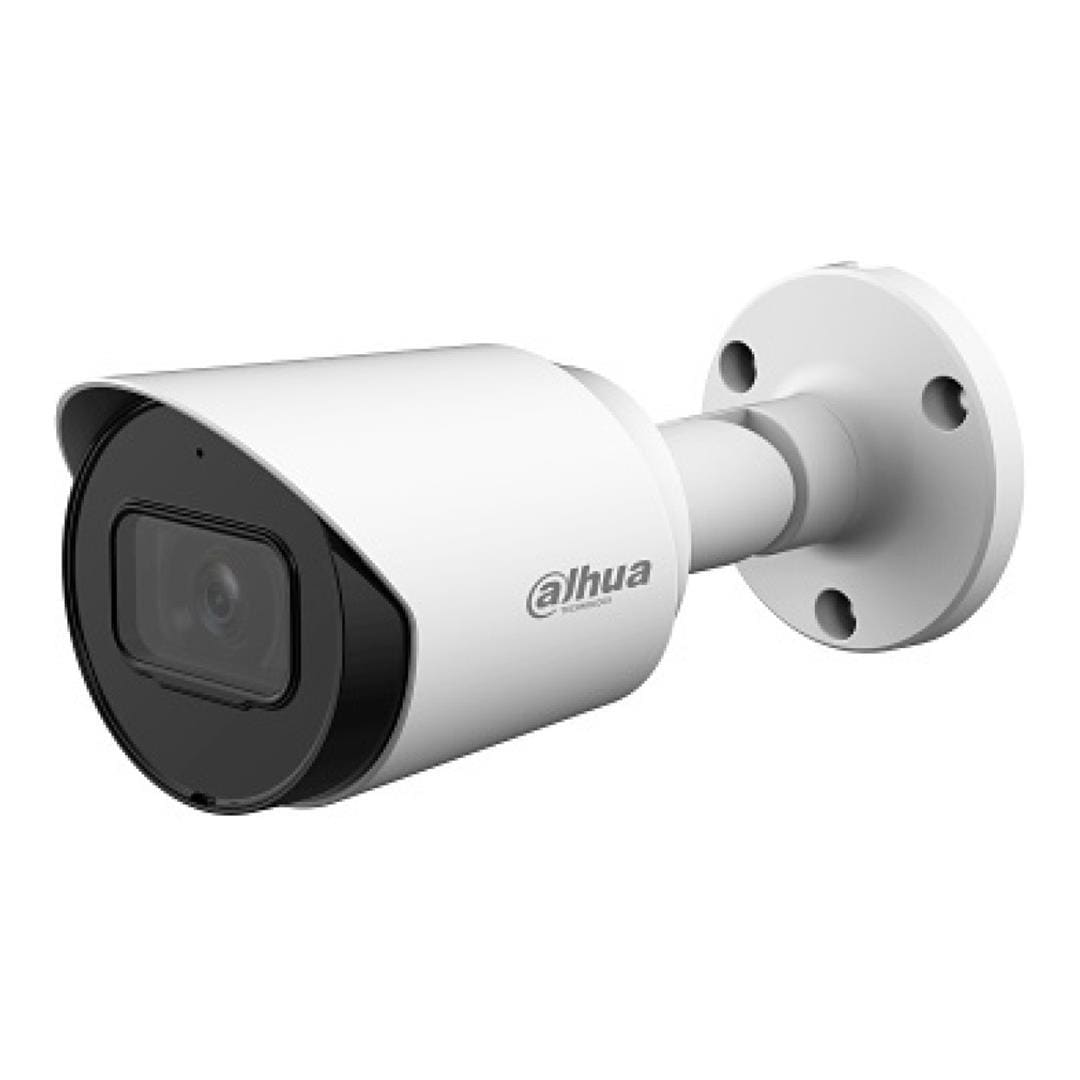

Dahua HAC-HFW1200TP 2MP 2.8mm HDCVI IR Fixed-Focal Bullet Camera

Dahua HAC-HFW1200TP 2MP 2.8mm HDCVI IR Fixed-Focal Bullet Camera

The Dahua HAC-HFW1200TP is a 2MP HDCVI fixed-focal bullet camera designed to provide reliable high-definition surveillance for residential, commercial, and small business security applications. Equipped with a 2MP CMOS image sensor, a wide-angle 2.8mm fixed lens, and integrated infrared night vision, the camera delivers clear Full HD video monitoring both day and night. Supporting HDCVI technology, it enables long-distance HD video transmission over coaxial cabling, making it an ideal upgrade solution for existing analogue CCTV systems. Its weather-resistant housing ensures dependable outdoor performance in various environmental conditions.

HDCVI Technology Benefits

The HAC-HFW1200TP uses Dahua's HDCVI technology, allowing Full HD video transmission over existing coaxial infrastructure without requiring network cabling upgrades. This makes it ideal for upgrading older analogue CCTV systems while maintaining cost-effective installation.

Night Vision Performance

Integrated Smart IR technology automatically adjusts infrared intensity based on subject distance, helping prevent image overexposure and improving visibility in low-light and complete darkness. The camera provides effective night-time monitoring up to 30 metres.

Ideal Applications

• Residential security systems
• Retail stores
• Offices and business premises
• Schools and educational facilities
• Warehouses and storage areas
• Perimeter monitoring
• Small commercial CCTV installations
• Analogue-to-HD surveillance upgrades

Features

• 2MP Full HD HDCVI bullet camera
• 1/2.7-inch CMOS image sensor
• 1920 × 1080 Full HD video resolution
• Fixed 2.8mm lens for wide-area coverage
• Smart IR night vision technology
• Infrared illumination range up to 30m
• HDCVI technology for long-distance HD transmission
• Day and night monitoring with automatic ICR filter
• Digital Wide Dynamic Range (DWDR)
• 2D Digital Noise Reduction (2D DNR)
• Backlight Compensation (BLC)
• Compact bullet camera design
• IP67-rated weatherproof housing
• Suitable for indoor and outdoor installations

Supports multiple video output formats:

• HDCVI
• CVBS
• AHD
• TVI

Specifications:

Product Type: HDCVI Bullet Camera

Manufacturer: Dahua

Model: DH-HAC-HFW1200TP-_2.8mm_S6

SKU: 1.0.01.12.24465

Image Sensor: 1/2.7" CMOS

Resolution: 2MP (1920 × 1080)

Effective Pixels: 1920(H) × 1080(V)

Lens Type: Fixed-Focal

Focal Length: 2.8mm

Viewing Angle: Approx. 101° Horizontal

Video Output: HDCVI / CVBS / AHD / TVI

Infrared Distance: Up to 30m

Day/Night Mode: Auto ICR

Wide Dynamic Range: DWDR

Noise Reduction: 2D DNR

Minimum Illumination: 0.02 Lux/F1.85, 0 Lux with IR On

Power Supply: 12V DC

Power Consumption: Max. 2.7W

Weather Protection: IP67

Housing Material: Metal Front + Plastic Housing

Operating Temperature: -40°C to +60°C

Camera Style: Bullet

Installation: Indoor / Outdoor
