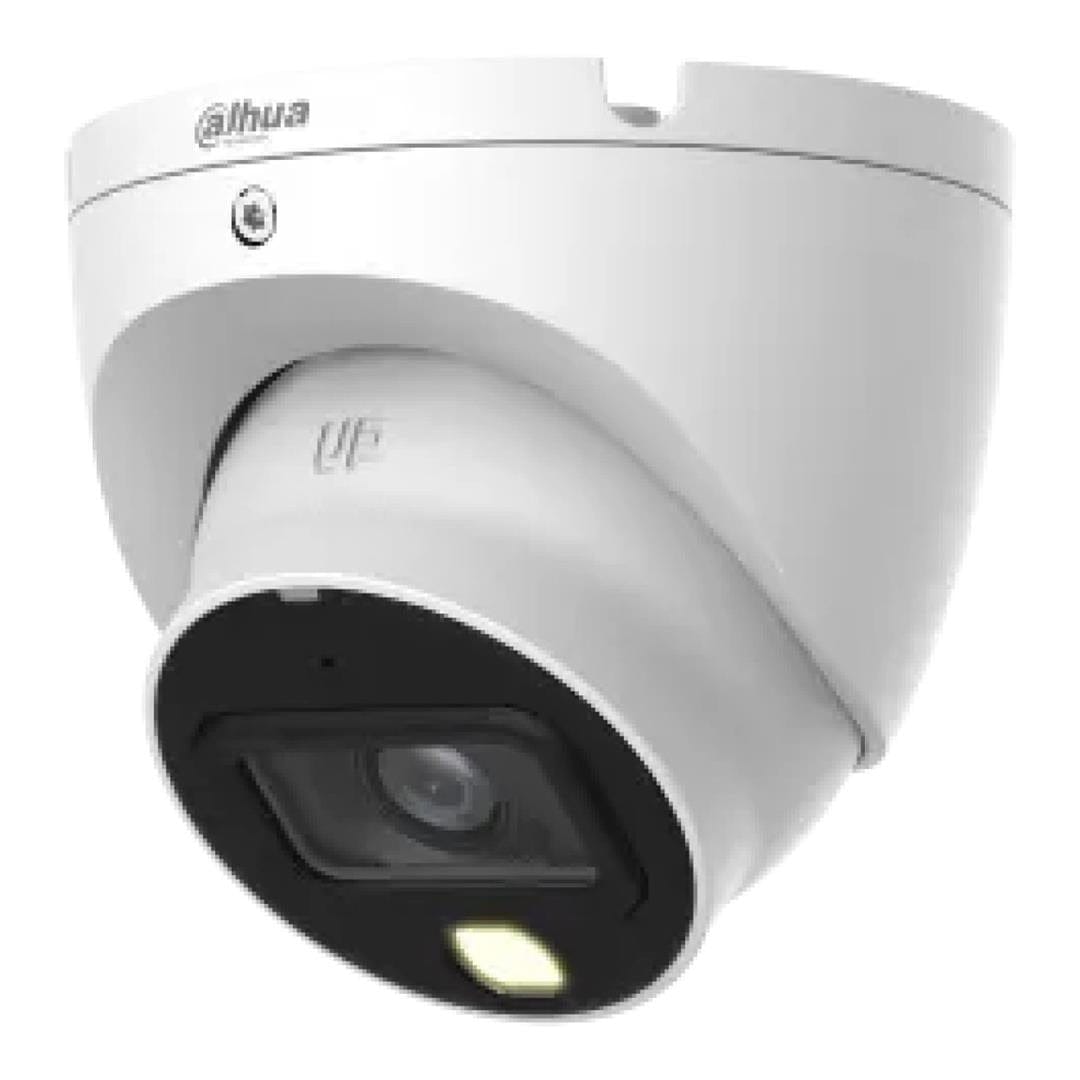

Dahua HAC-HDW2509TLMP 5MP 3.6mm Full-colour HDCVI IR Eyeball Camera

Dahua HAC-HDW2509TLMP 5MP 3.6mm Full-colour HDCVI IR Eyeball Camera

Pro Series is a perfect choice for SMB solutions and projects where both high reliability and flexibility are required. All cameras are equipped with Starlight feature, 120dB true WDR and 3DNR, and are able to provide clear images and rich details even under tough lighting conditions.

Full-colour

Full-color camera adopts large aperture lens and high performance sensor. With higher amount of absorbed light and advanced image processing algorithm, the camera provides 24/7 color monitoring that collects clear and vivid information,significantly increasing probability of gathering valid human, vehicle, and event evidence that can be used for further intelligent analysis.

Broadcast-quality Audio

Audio information is used as supplementary evidence in video surveillance applications. The HDCVI camera supports audio signal transmission over coaxial cable. In addition, it adopts unique audio processing and transmission technology that best restores source audio and eliminates noise, guaranteeing the quality and effectiveness of collected audio information.

Wide Dynamic Range

With advanced Wide Dynamic Range (WDR) technology, Dahua HDCVI camera provides clear details in the environment of strong brightness contrast. The bright and dark area can get clear video even in high brightness environment or with backlight shadow.

Super Adapt

Embedded with intelligent algorithm, for changing external environment, camera can automatically adjust parameters to present the optimal image, and it solves the trouble of configuration.

Advanced 3DNR

3DNR is noise reduction technology that detects and eliminates random noises by comparing two sequential frames. Dahua’s advanced 3DNR technology allows remarkable noise reduction with little impact to sharpness, especially under limited lighting condition. Besides, the advanced 3DNR effectively decreases the band width and saves the storage space.

Smart Illumination

The camera is designed with IR illumination for best lowlight performance. Smart IR is a technology to ensure brightness uniformity in B/W image under low illumination. Dahua’s unique Smart IR adjusts to the intensity of camera's infrared LEDs to compensate for the distance of an object, and prevents IR LEDs from overexposing images as the object come closer to the camera.

Signals over 1 Coaxial Cable

HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e. video, audio*, data and power. Dual-way data transmission allows the HDCVI camera to interact with the XVR, such as sending control signal or triggering alarm. Moreover, HDCVI technology supports PoC for construction flexibility.

* Audio input is available for some models of HDCVI cameras.

Long Distance Transmission

HDCVI technology guarantees real-time transmission at long distance without any loss. It supports up to 700m transmission for 2MP/5MP/8MP HD video via coaxial cable, and up to 300m via UTP cable.

*Actual results verified by real-scene testing in Dahua's test laboratory.

Protection (IP67, wide voltage)

• IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes.
• Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

Specifications:

Image Sensor: 5MP CMOS

Max. Resolution: 2880 (H) × 1620 (V)

Pixel: 5MP

Scanning System: Progressive

Electronic Shutter Speed:

• PAL: 1/3 s–1/100,000 s
• NTSC: 1/4 s–1/100,000 s

S/N Ratio: > 65 dB

Min. Illumination: 0.0002 Lux/F1.0, 0 Lux warm light on

Illumination Distance: 20 m (65.6 ft)

Illuminator On/Off Control: Auto; manual

Illuminator Number: 1 (Warm light)

Pan/Tilt/Rotation Range:

• Pan: 0°–360°
• Tilt: 0°–78°
• Rotation: 0°–360°

Lens Type: Fixed-focal

Mount Type: M12

Focal Length: 2.8 mm; 3.6 mm

Max. Aperture: F1.0

Field of View: 3.6 mm: H: 88°; V: 46°; D: 104°

Iris Type: Fixed iris

Close Focus Distance: 3.6 mm: 2.3 m (7.5 ft)

Resolution: 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480);

BLC: BLC/HLC/WDR/HLC-Pro

WDR: 120 dB

White Balance: Auto; Area white balance

Video Output: Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)

Audio Input: One channel built-in mic
