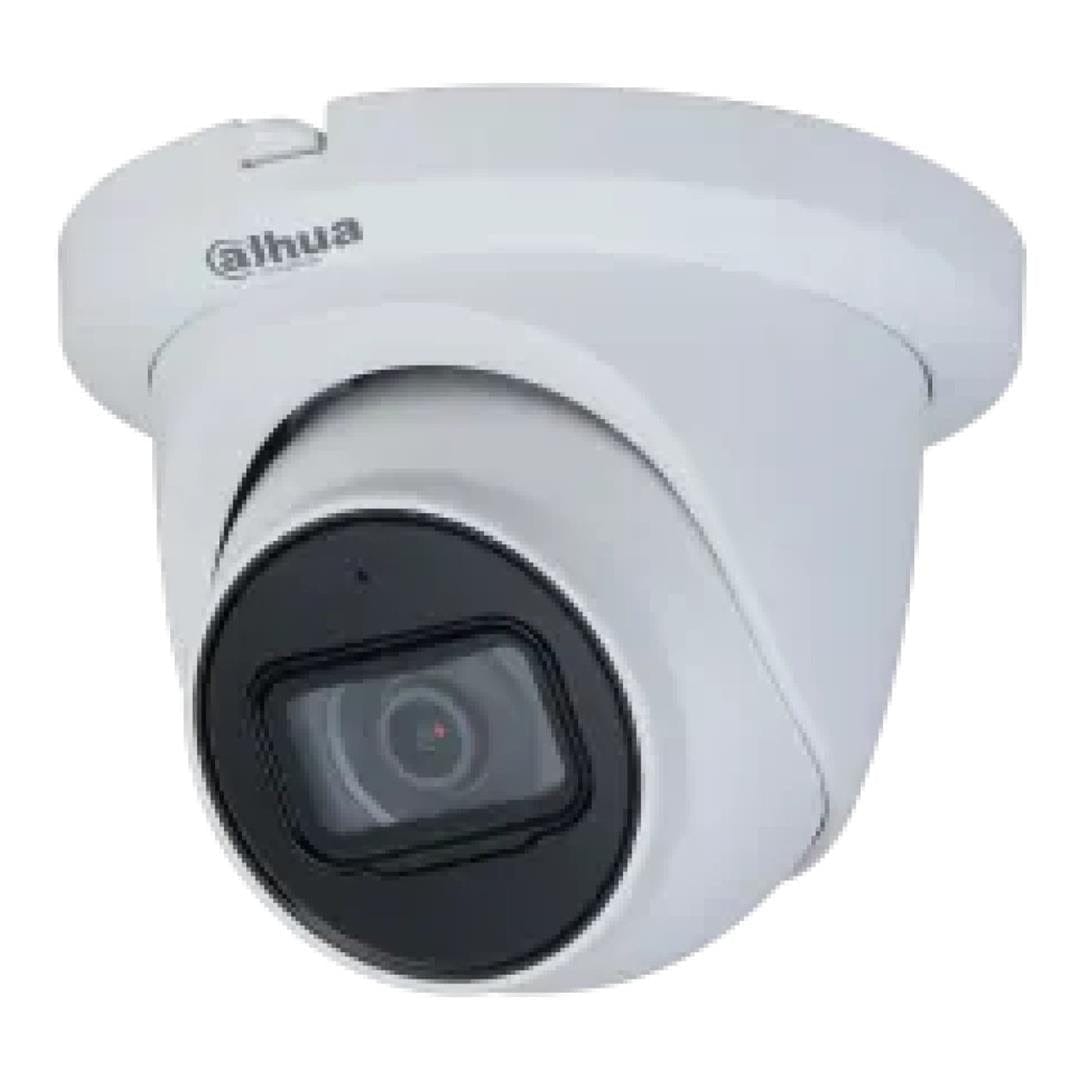

Dahua HAC-HDW1500TLMQP-A 5MP 2.8mm Starlight HDCVI IR Eyeball Camera

Dahua HAC-HDW1500TLMQP-A 5MP 2.8mm Starlight HDCVI IR Eyeball Camera

4 Signals over 1 Coaxial Cable

HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e. video, audio*, data and power. Dual-way data transmission allows the HDCVI camera to interact with the XVR, such as sending control signal or triggering alarm. Moreover, HDCVI technology supports PoC for construction flexibility.
* Audio input is available for some models of HDCVI cameras.

Easy Installation

HDCVI Quick-to-install eyeball adopts quick-to-install pedestal, which can achieve easier installation than conventional eyeball. Quick-to-install camera reduces time and labor costs.

Long Distance Transmission

HDCVI technology guarantees real-time transmission at long distance without any loss. It supports up to 700 m for 5MP HD video through coaxial cable, and up to 300 m through UTP cable.*
*Actual results verified by real-scene testing in Dahua's test laboratory.

Simplicity

HDCVI technology inherits the born feature of simplicity from traditional analog surveillance system, making itself a best choice for investment protection. HDCVI system can seamlessly upgrade the traditional analog system without replacing existing coaxial cabling. The plug and play approach enables full HD video surveillance without the hassle of configuring a network.

Smart IR

The camera is designed with IR LED illumination for best lowlight performance. Smart IR is a technology to ensure brightness uniformity in B/W image under low illumination. Dahua's unique Smart IR adjusts to the intensity of camera's infrared LEDs to compensate for the distance of an object, and prevents IR LEDs from overexposing images as the object comes closer to the camera.

Multi-formats

The camera supports multiple video formats including HDCVI, CVBS and other two common HD analog formats in the market. The four formats can be switched over through OSD menu. This feature makes the camera compatible with most end users' existing HD/SD DVRs.

Multi-language OSD

OSD menu provides multiple image adjustments and function settings to meet the requirements of different monitoring scenes. The OSD menu includes configurations such as backlight mode, day/night, white balance, privacy mask and motion detect. The camera supports 11 languages for OSD menu, namely, Chinese, English, French, German, Spanish, Portuguese, Italian, Japanese, Korean, Russian and Polish.

Protection

The camera's outstanding reliability is unsurpassed due to its rugged design. The camera is protected against water and dust with IP67 ranking, making it suitable for indoor or outdoor environments.With working temperature range of –40 °C to +60 °C (–40 °F to +140 °F), the camera is designed for extreme temperature environments.Supporting ±30% input voltage tolerance, this camera suits even the most unstable power supply conditions. Its 4kV lightning rating provides protection against the camera and its structure from the effects of lightning.

Specifications:

Image Sensor: 1/2.7 inch CMOS

Max. Resolution: 2880 (H) × 1620 (V)

Pixel: 5MP

Scanning System: Progressive

Electronic Shutter Speed:

• PAL: 1/25 s–1/100,000 s
• NTSC: 1/30 s–1/100,000 s

S/N Ratio: > 65 dB

Min. Illumination: 0.005 Lux/F1.6, 30IRE, 0 Lux IR on

Illumination Distance: 30 m (98.4 ft)

Illuminator On/Off Control: Auto; manual

Illuminator Number: 1

Pan/Tilt/Rotation Range:

• Pan: 0°–360°
• Tilt: 0°–78°
• Rotation: 0°–360°

Lens Type: Fixed-focal

Mount Type: M12

Focal Length: 2.8 mm

Max. Aperture: F1.6

Field of View: 111° × 58° (diagonal × horizontal × vertical)

Iris Type: Fixed iris

Close Focus Distance: 2.8 mm: 0.9 m (3.0 ft)

WDR: DWDR

White Balance: Auto; manual

Gain Control: Auto; manual

Noise Reduction: 2D NR

Smart IR: Yes

Mirror: Off/On

Privacy Masking: Off/On (8 areas, rectangle)

Audio Interface: One channel built-in mic (-A)

Video Output: Video output choices of CVI/TVI/AHD/CVBS by one BNC port
