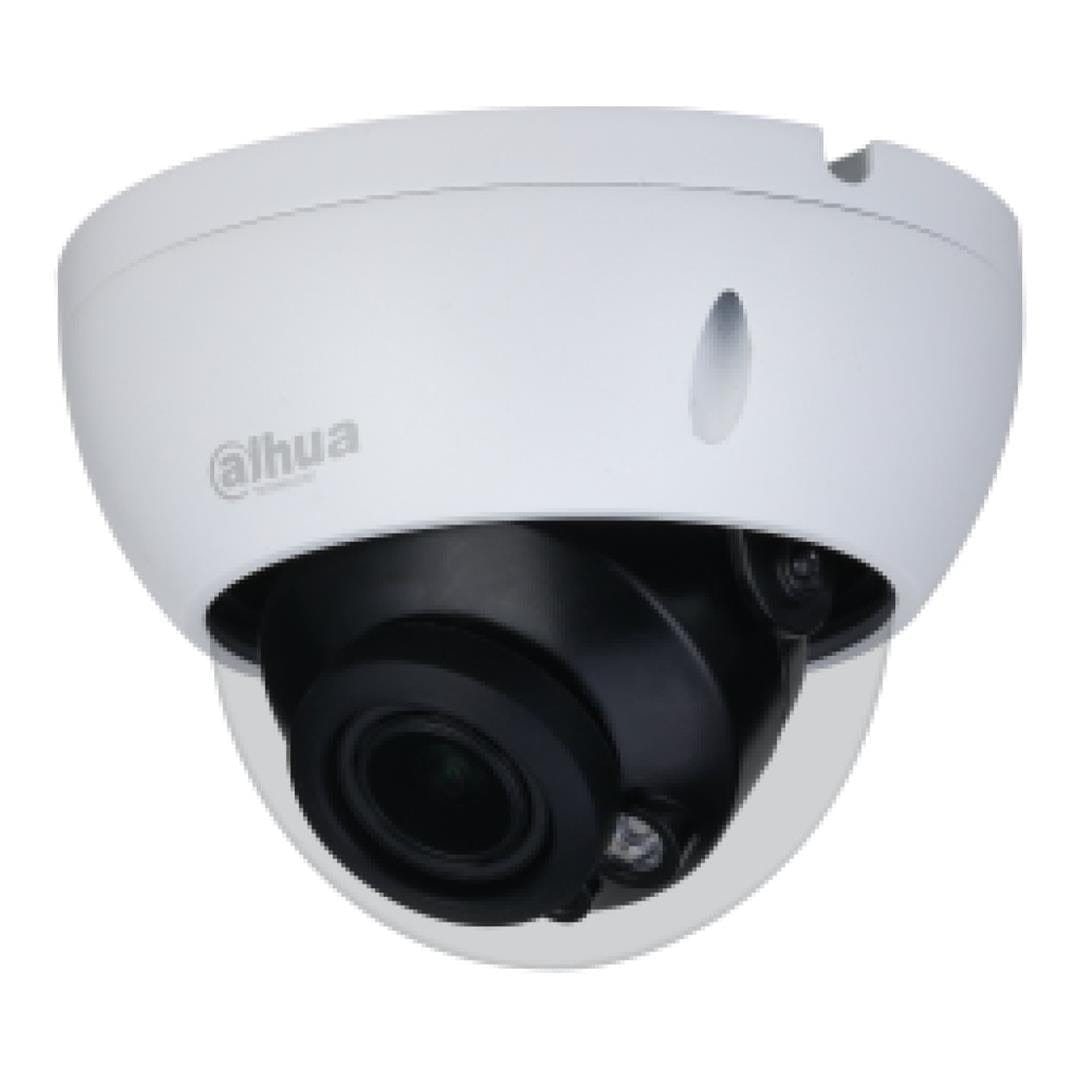

Dahua HAC-HDBW1500RP-Z 5MP 12mm Starlight HDCVI IR Dome Camera

Dahua HAC-HDBW1500RP-Z 5MP 12mm Starlight HDCVI IR Dome Camera

Specifications:

Image Sensor: 1/2.7 inch CMOS

Max. Resolution: 2880 (H) × 1620 (V)

Pixel: 5MP

Scanning System: Progressive

Electronic Shutter Speed:

• PAL: 1/25 s–1/100000 s
• NTSC: 1/30 s–1/100000 s

S/N Ratio: > 65 dB

Min. Illumination: 0.005Lux Lux/F1.6, 30IRE, 0 Lux IR on

Illumination Distance: 30 m (98.4 ft)

Illuminator On/Off Control: Auto; manual

Illuminator Number: 2

Pan/Tilt/Rotation Range:

• Pan: 0°–355°
• Tilt: 0°–75°
• Rotation: 0°–355°

Lens Type: Motorized vari-focal

Auto Focus: N/A

Mount Type: φ14

Focal Length: 2.7 mm–12 mm

Max. Aperture: F1.6

Field of View:

• Diagonal: 39°–130°
• Horizontal: 34°–107°
• Vertical: 19°–55°

Iris Type: Fixed iris

Close Focus Distance: 0.5 m (1.64 ft)

Resolution: 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night: Auto switch by ICR

BLC: BLC/HLC/DWDR

WDR: DWDR

White Balance: Auto; manual

Gain Control: Auto; manual

Noise Reduction: 2D NR

Smart IR: Yes

Mirror: Off/On

Privacy Masking: Off/On (8 area, rectangle)

Video Output: Video output choices of CVI/TVI/AHD/CVBS by one BNC port
